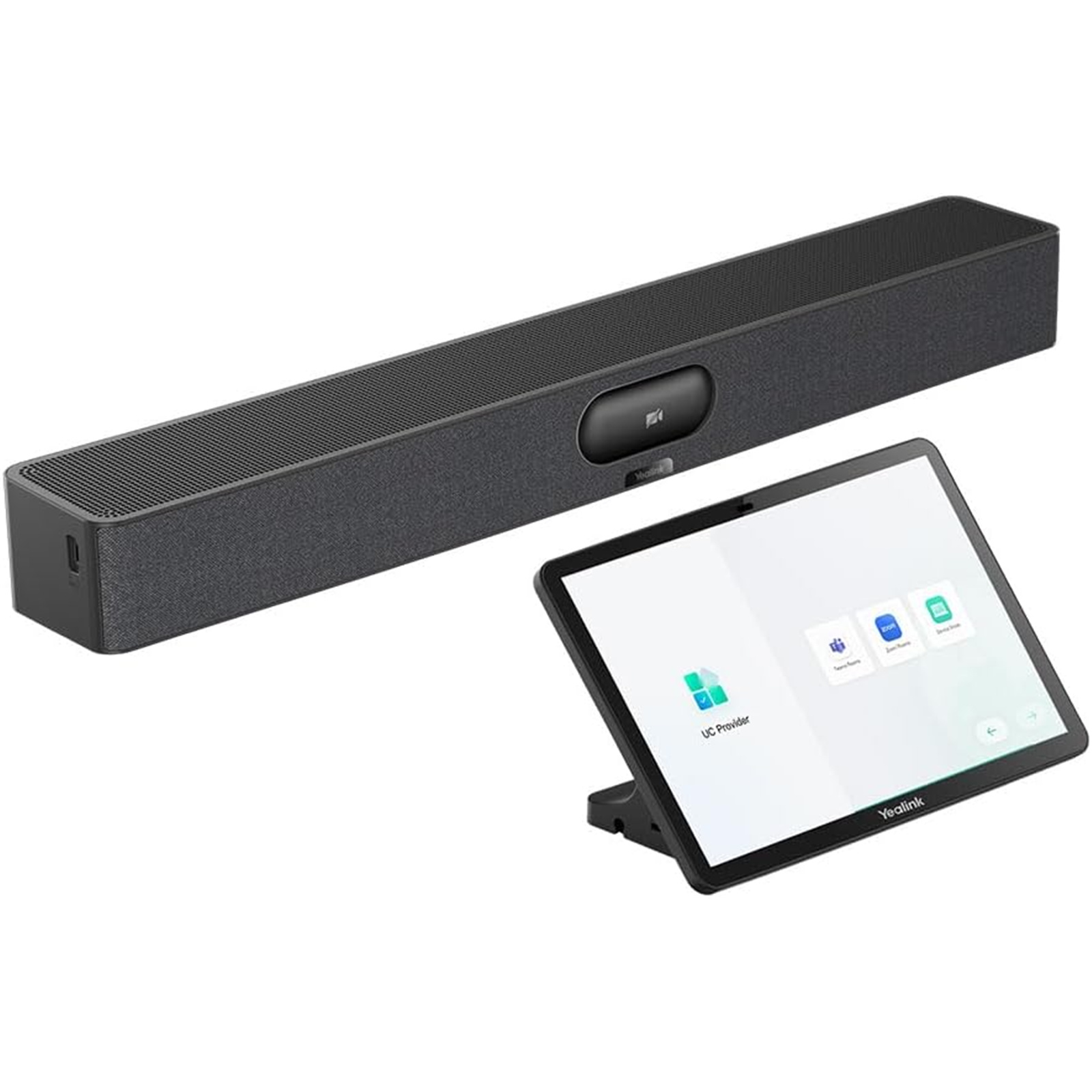

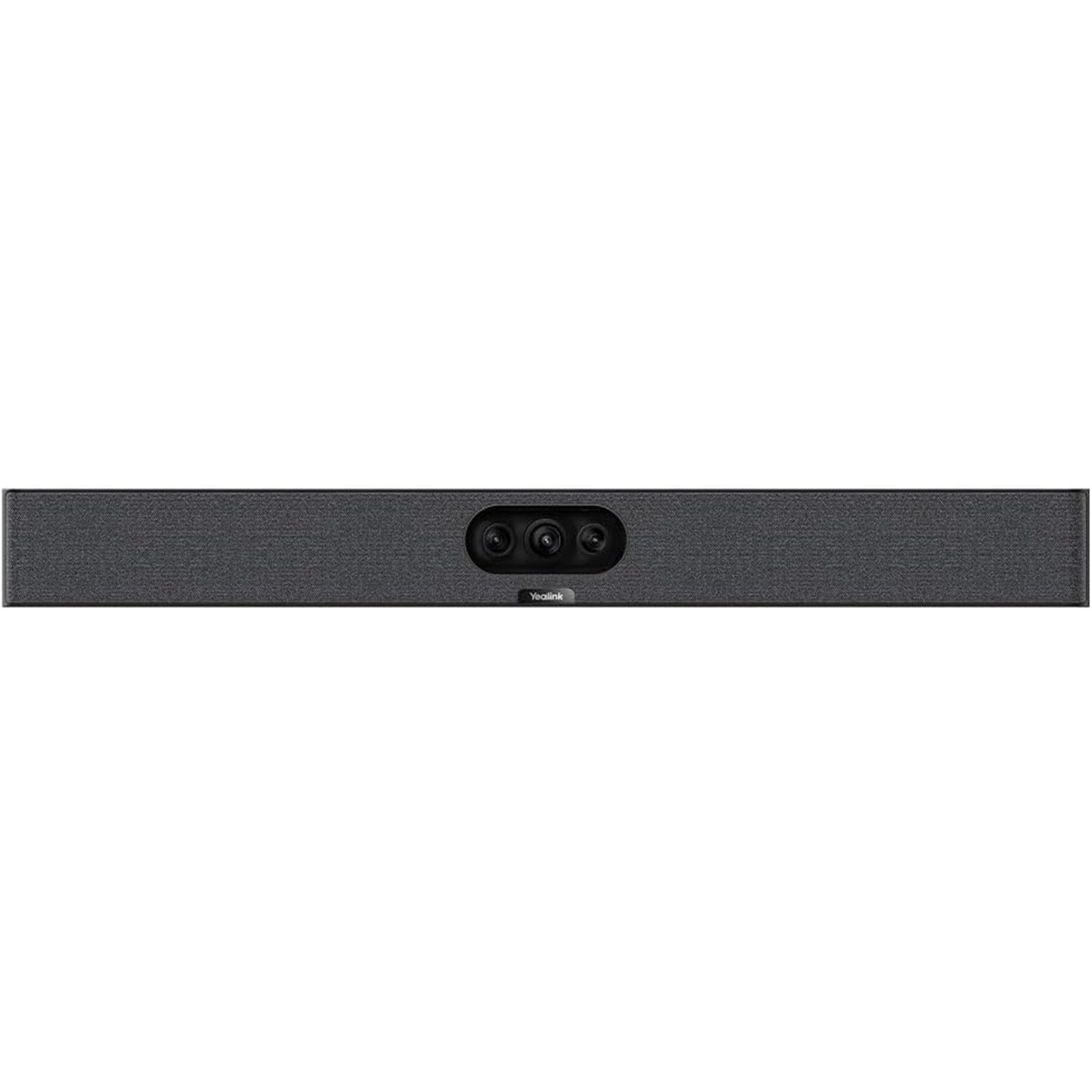

Yealink MeetingBar A25 (A25-031) 4K Triple-Eye - 151° FOV - All-in-One Video Bar - MTR on Android with Touch Console CTP25

PB Tech price

$ 3,584 .35

+GST

$ 4,122 .00

inc GST

Out of stock

Yealink MeetingBar A25 (A25-031) 4K Triple-Eye - 151° FOV - All-in-One Video Bar - MTR on Android with Touch Console CTP25

Brand: Yealink
MPN: 1206713
Part #: VCYLK6695827
UPC:

NEW ARRIVAL

PB Tech price

$ 4,122 .00

inc GST

+GST inc GST

Out of stock

No store stock available.

Click & Collect: Collect unavailable

Delivery: Out of stock When will I receive it?

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Yealink
MPN: 1206713
Part #: VCYLK6695827
UPC:

Be the first to review this product

Room Size

Small Room

Meeting Platform

Returns & Warranty Bulk Quote Print Page

Features

Designed for Simplicity

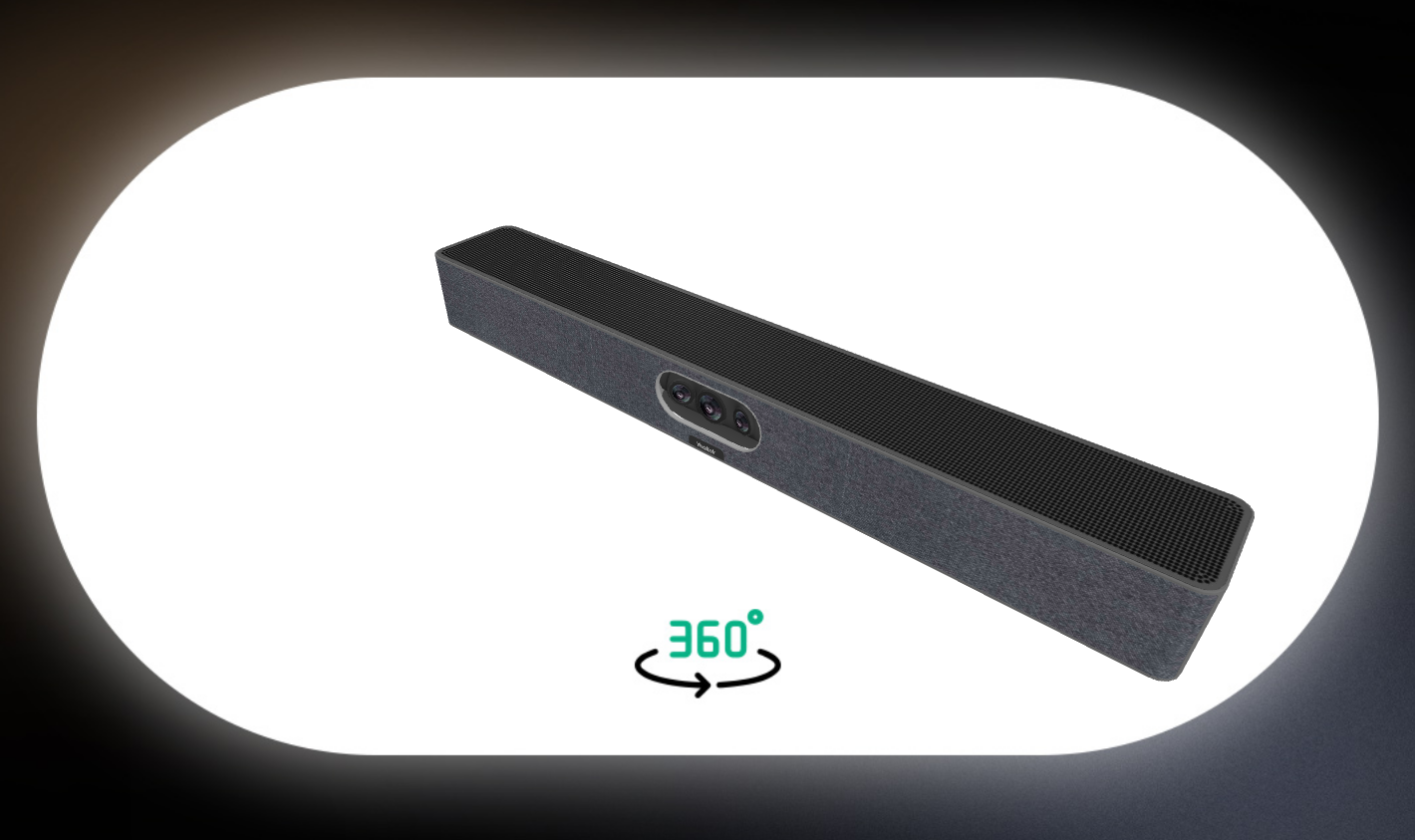

MeetingBar A25 is an all-in-one video bar designed for compact focus rooms, offering easy deployment and seamless use.

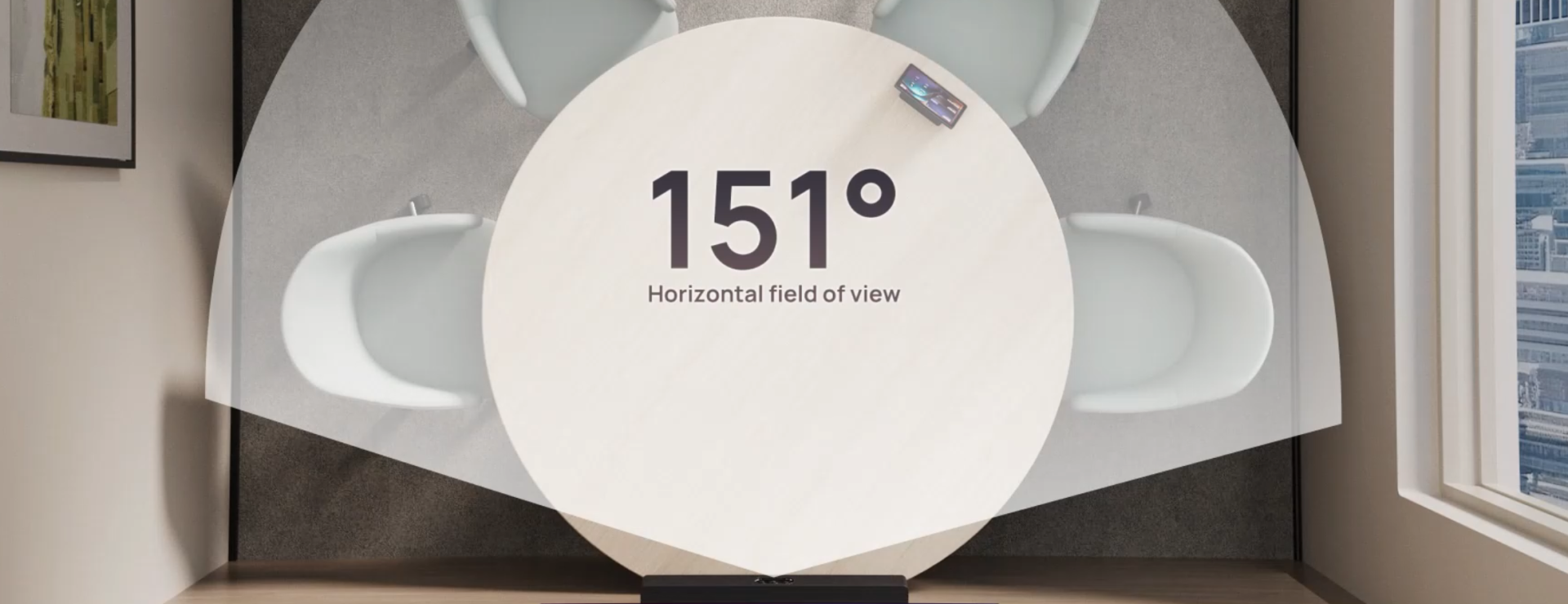

Built for Wide. Tuned for Clear.

The MeetingBar A25 offers a precisely calculated 151° field of view, perfectly balancing ultra-wide coverage with clear image quality. Designed for real-world focus rooms with curved tables pushed against the walls, it uses one ultra-wide lens plus two telephoto lenses to maintain sharp, edge-to-edge visibility--capturing every participant clearly in tight spaces.

Be Impressive with AI-Powered View

The MeetingBar A25 ensures everyone is equally impressive and important in a virtual meeting. Embrace a new level of meeting equity.

Hear and Be Heard with AI-Powered Audio

A25 ensures smooth communication with full-duplex audio, letting everyone speak and be heard at the same time without overlap. Its advanced AI-Enhanced Noise Cancellation filters out background sounds, delivering clear, natural voice quality in any space.

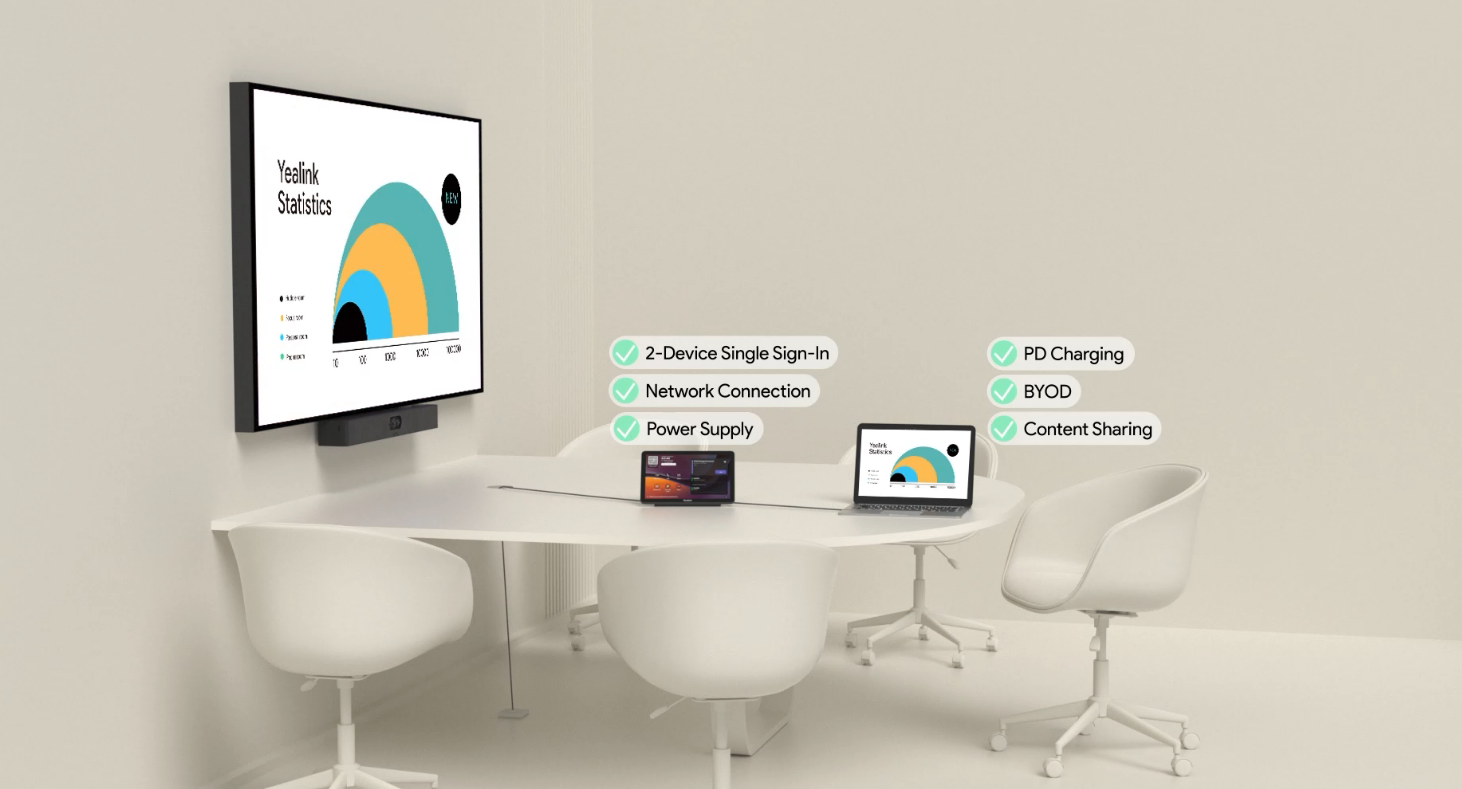

Simplify with One Plug

MeetingBar A25's One-Cable Solution simplifies deployment and sharing in 2 ways. A single Cat5e cable from the bar to the touch console provides power and network connectivity to the touch console, eliminating extra cables. Signing in on the touch console synchronizes the entire system, removing the need to sign in on the touch console. Additionally, a single USB-C cable from the touch console to the PC enables 4K sharing,

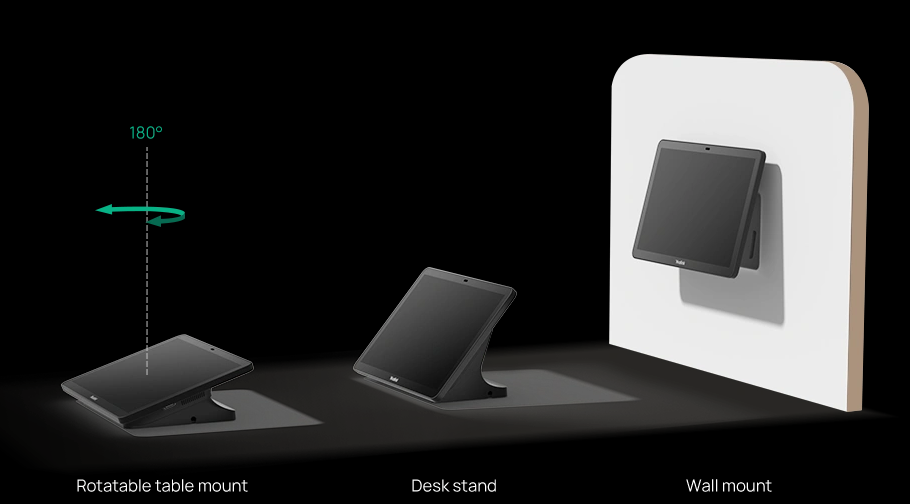

Flexibility Maximized

The touch console CTP25 can be mounted on the desk or wall, and it offers flexible connectivity options with direct connection to the bar or via IP.

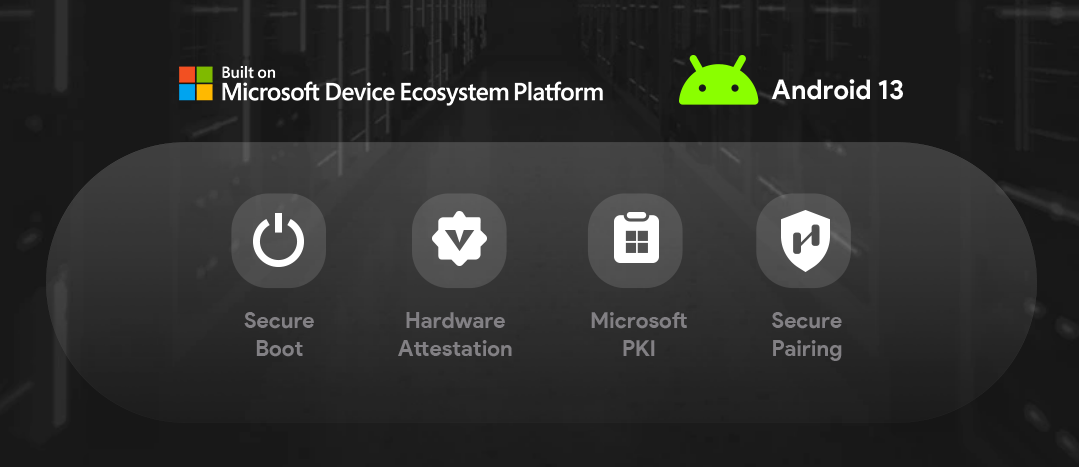

Android Based, Meetings Secured

MeetingBar A25, based on Android 13, supports the Microsoft Device Ecosystem Platform (MDEP), ensuring a future-proof and secure meeting experience that effectively combats malicious attacks and data leaks.

Specifications

Yealink MeetingBar A25

Operating System

Android 13

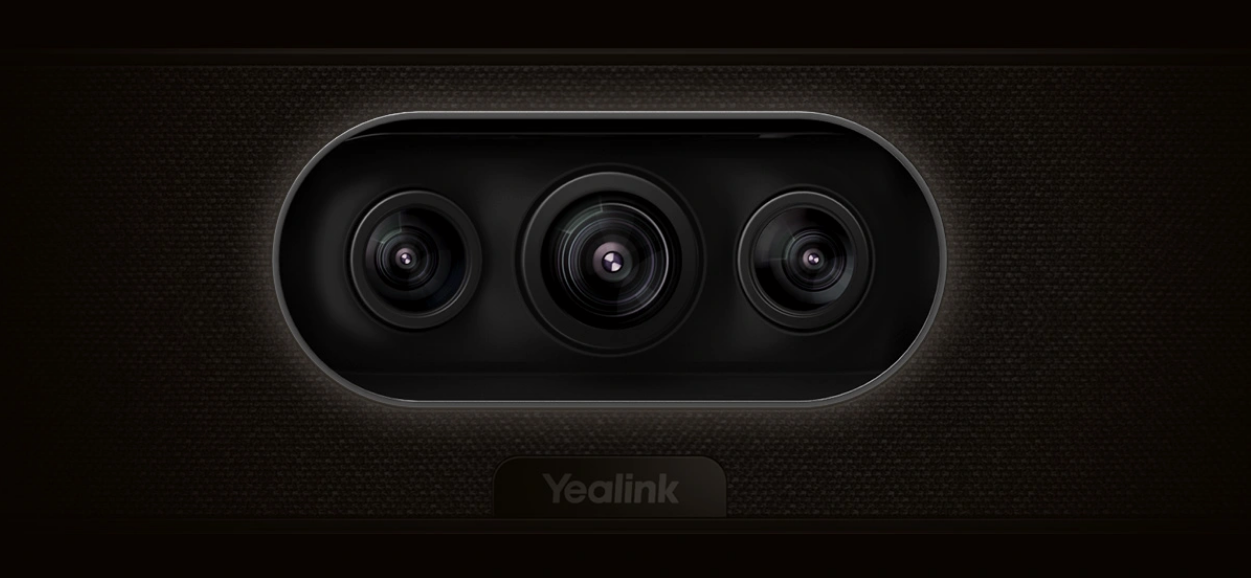

Camera

Maximum pixels

3 x 4K Camera

Number of preset positions

Electronic gimbal

Yes

Ultra-Wide Camera

1x, HFOV 151°, VFOV 81°

TeleCamera

2x, HFOV 84.4°, VFOV 53.1°

Depth of field

0.4-2.5 meters

Maximum resolution

Maximum frame rate

30FPS

Privacy cover

Electric lens cap

Lens calibration

Yes

Intelligence Features

IntelliFocus (2 portraits)
Auto Framing
Speaker Tracking
Picture in Picture
Video Fence
Smart Gallery (Zoom Rooms only)

Number of cameras

Speaker

Built-in Speaker

10W

Maximum sound pressure level

110dBSPL 10W @ 0.1m

Frequency response

100-16kHz

Sensitivity

86dB SPL @ 1W @ 0.5 meter

Sampling rate

48kHz

Sound emission angle

Forward-facing

Total Harmonic Distortion (THD)

at 10W, 1kHz, ＜5%

Rated impedance

4 ohms

Maximum power

12W

Rated power

10W

Microphone

Microphone Array

8 MEMS microphones built-in

Pickup distance

5-meter pickup, 3.5-meter high-quality pickup

Signal-to-noise ratio

72dB

Maximum sound pressure level

130dBSPL (whole device), 100dBSPL (individual microphone)

Dynamic range

28-100dBSPL

Sensitivity

-38dBV/pa

Frequency response

100-20kHz

Sampling rate

48K32bit

Bit depth

32-bit

Resolution

Portrait resolution: up to 4K30fps

Bandwidth requirement

10Mbps or more

Content Sharing

General Mode

Up to 4K15

Teams

1080p in meeting, 4K local sharing

Zoom

1080p

Video Codec

H.264 High profile, H.264 SVC, H.264

Communication standard protocol

H.323/SIP in General Mode
Dual stream protocol: H.239 (H.323) / BFCP (SIP)
FECC: H.224/H.281
H.323 protocol suit: H.245, H.225, H.235, H.241
Gatekeeper account and SIP account

Audio Codec

ARES: 24KHZ bandwidth
G.722.1C: 16KHz bandwidth
G.722.1: 8KHz bandwidth
G.722: 8KHz bandwidth
G.711 (PCMA/PCMU): 4KHz bandwidth
G.729: 8KHz bandwidth

Network Protocol

Wi-Fi

Wi-Fi 6, 2.4G & 5G dual-band, 802.11a/b/g/n/ac/ax, 2x2 MIMO

Bluetooth

Bluetooth 5.1

Other Network Features

TCP/IP (IPv4/IPv6), DHCP/static IP, HTTPS secure web access

Configuration Management

Management Methods

Automatic configuration via web page/display/AutoP, Firmware upgrade, factory reset, Configuration import and export, System log export

Device Management

Yealink Https Web Portal
Yealink Device Management Platform
Yealink Management Cloud Service
Microsoft Device Management Platform (Microsoft Teams Admin Center/Intune)
Zoom Device Management

Installation

Mounting Options

Wall mount
TV Mount (optional)
Desktop placement (optional)

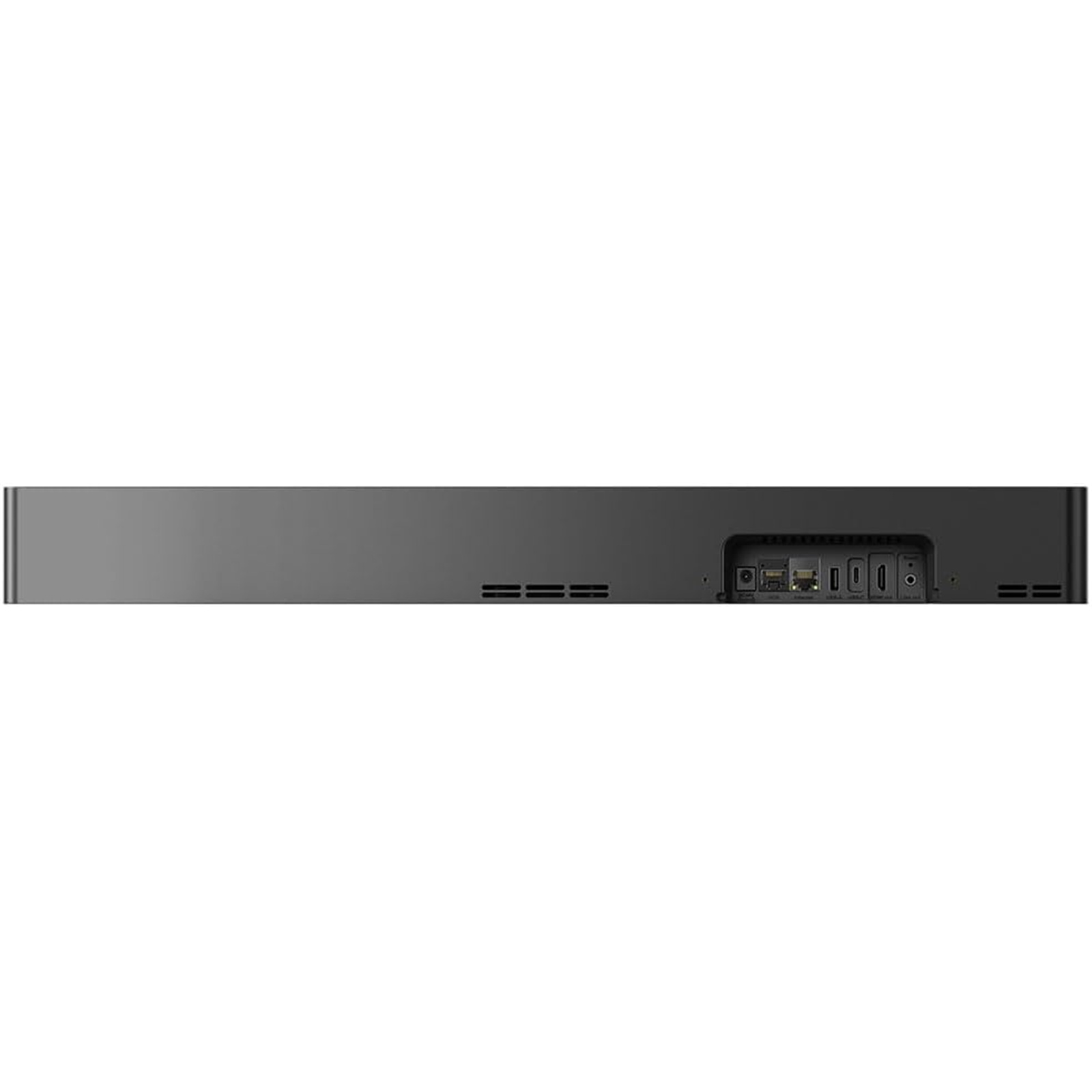

Ports

1x USB2.0 Type-A port
1x USB2.0 Type-C port (side)
1x USB3.0 Type-C port
1x Ethernet port
1x Yealink VCH port (RJ-45)
1x HDMI-out port
1x 3.5mm Line-out port
1x Power port
1x Security lock slot
1x Reset slot

Package Contents

Included

MeetingBar A25
Power adapter
HDMI cable x1
Network cable x1
USB A to C cable x1
Wall Mount x1

Optional Package

A25-010: A25 + USB C to C cable + VCR11
A25-031: A25 + CTP25

Environmental Factor

Operating humidity

10 - 95%

Operating temperature

0 - 40°C

Dimensions and Weight

MeetingBar A25 Dimensions (W × D × H)

570 x 80 x 65 mm

Net Weight (N.W/CTN)

3.812 kg

Gross Weight (G.W/CTN)

4.290 kg

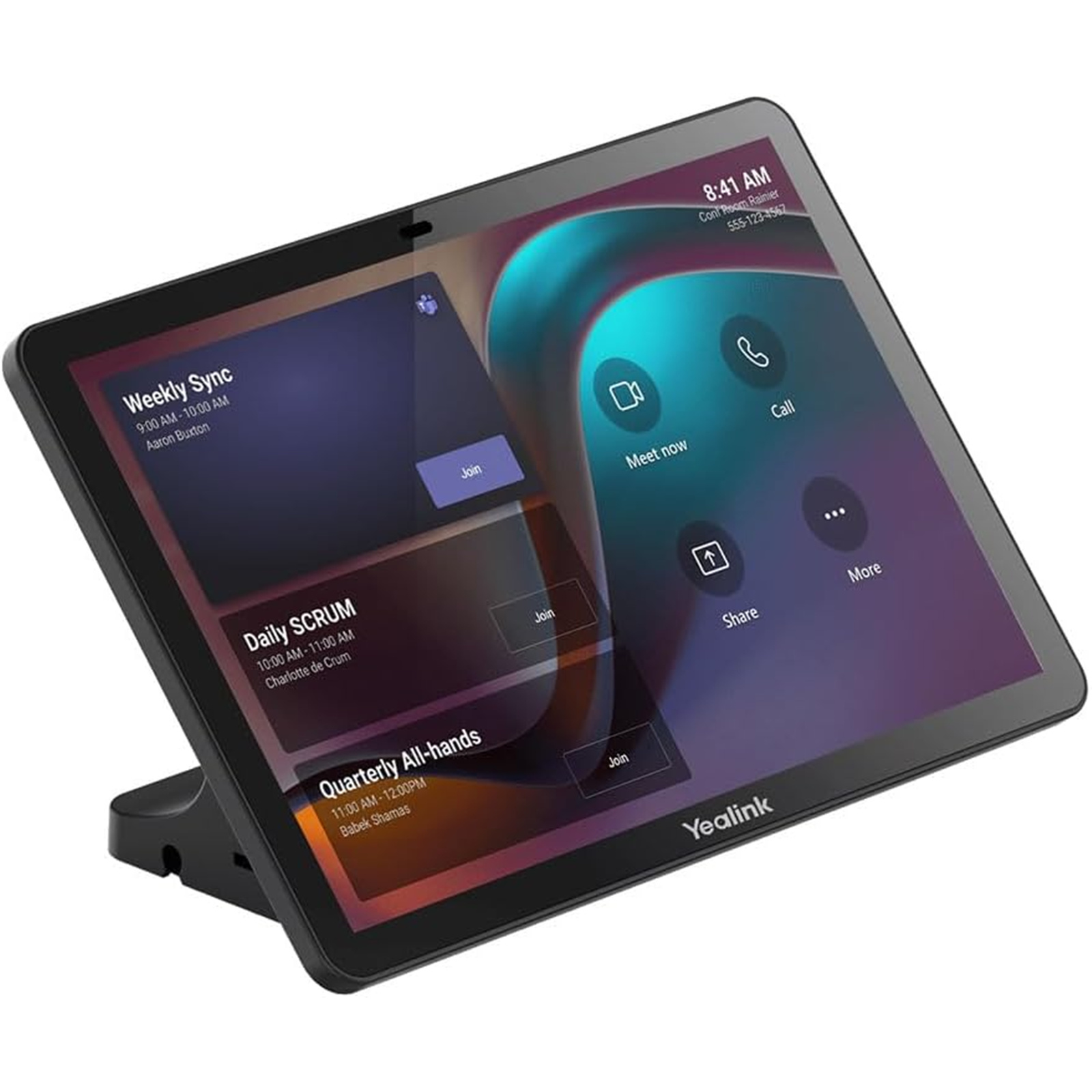

CTP25

Operating System

Android 13.0

Display

10.1 inch IPS, 1280 x 800, Contrast ratio: 1000:1, Brightness: 350 cd/㎡ (typical), Viewing angle: 178°(H)/178°(V), Multi-point capacitive touch, Anti-glare, Anti-fingerprint

Audio

Built-in Ultrasound Unit

Wireless

Wi-Fi 6 802.11a/b/g/n/ac/ax
Bluetooth 5.0

Network

VLAN, 802.1P/Q, Diffserv, 802.1X, LLDP-MED, HTTPS

Device Management

Yealink Web Portal
Yealink Device Management Platform
Teams Admin Center
Zoom Device Management

Physical Interface

1 x USB-A port
2 x USB-C port
1 x RJ45 port (PoE 802.3af compliant)
1 x Reset hole
Motion Sensor

Installation

Place on the Table
Mount on the Table
Mount on the Wall

Package

CTP25
7.5m Ethernet Cable
1.2m USB-C Cable
PD Power Adapter (65W)
Screwdriver
High Stand
Cable Management Cover
M3 Screws x10
Cable Ties x5
Quick Start Guide

Mounting Bracket

Standard: High Stand
Optional: Rotatable desktop mount (90° left and right)
Optional: Wall mount

Environmental

Operating Temperature: -10 to +45°C
Storage Temperature: -30 to +70°C

Power

Consumption: Standby: 5 W, Average: 7.3 W, Peak: 15.2 W
Power Adapter: 65W PD
PoE: IEEE 802.3af and above

Box Dimensions

286 × 198 × 140 mm

Box Net Weight

1.578 kg

Box Gross Weight

1.846 kg

Canton Dimensions

725 × 410 × 300 mm, 10 pieces

Canton Net Weight

18.478 kg

Canton Gross Weight

19.798 kg

CTP25 Dimensions

242.95 × 27.50 × 161.95 mm

CTP25 Weight

0.683 kg

Manufacturer Part No:

1206713

Brand:

Yealink

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

VCYLK6695827

Product Model:

MeetingBar A25 (A25-031)

Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
