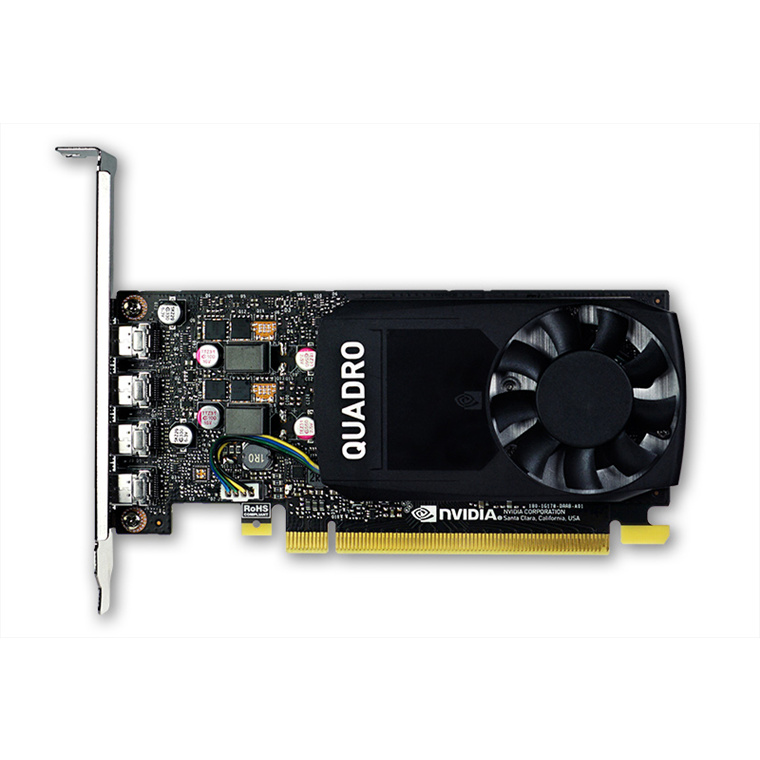

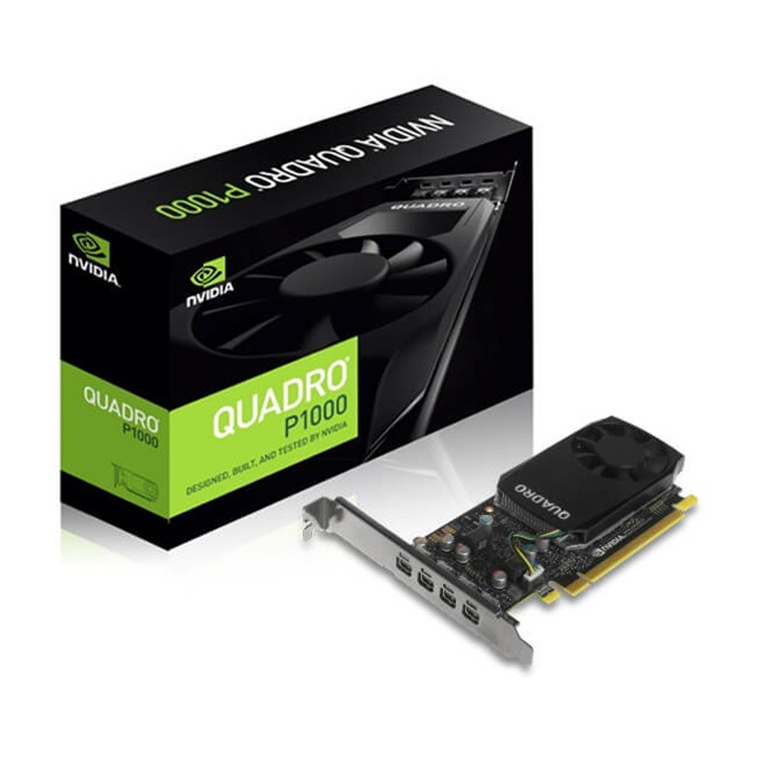

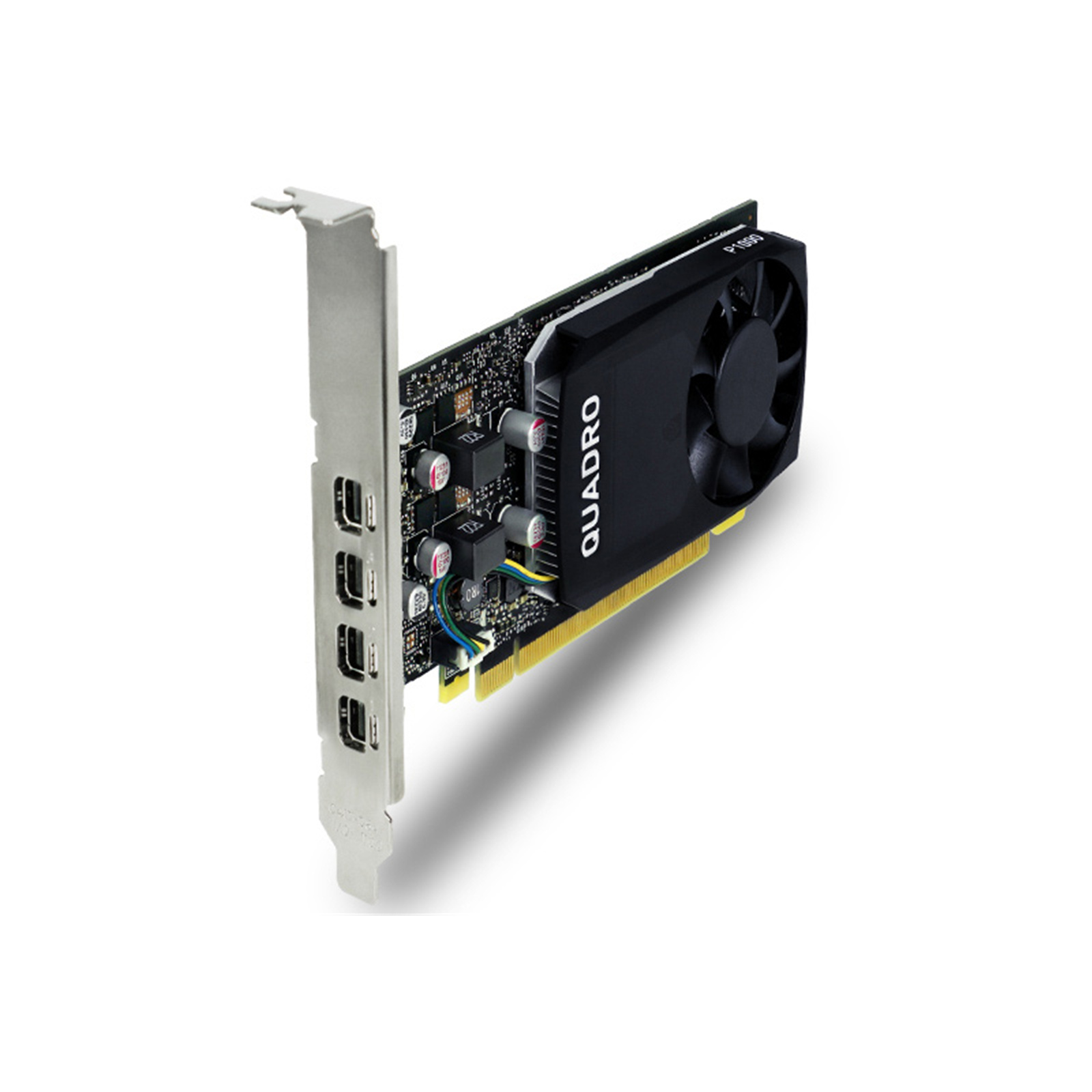

Leadtek NVIDIA Quadro P1000 4GB GDDR5 Professional WorkStation Graphics Card
Full Performance - 4x Mini Display Ports - Low Profile Support with Bracket - 4x mini DP-DP Adaptors
Out of stock
Leadtek NVIDIA Quadro P1000 4GB GDDR5 Professional WorkStation Graphics Card
Full Performance - 4x Mini Display Ports - Low Profile Support with Bracket - 4x mini DP-DP Adaptors
- Brand: Leadtek
- MPN: 126P9000300
- Part #: VGALTK1206
- UPC: 812674024271
- Brand: Leadtek
- MPN: 126P9000300
- Part #: VGALTK1206
- UPC: 812674024271
Product is out of stock. View similar products in-stock at PB Tech
Features
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Graphics Cards





Leadtek NVIDIA Quadro P1000 4GB GDDR5 Professional WorkStation Graphics Card Full Performance - 4x Mini Display Ports - Low Profile Support with Bracket - 4x mini DP-DP Adaptors
- Brand: Leadtek
- MPN: 126P9000300
- Part #: VGALTK1206
- UPC:812674024271

Product URL: https://www.pbtech.co.nz/product/VGALTK1206/Leadtek-NVIDIA-Quadro-P1000-4GB-GDDR5-Professional
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
- Pascal GPU
- 640 NVIDIA® CUDA® Cores
- 4 GB GDDR5 CPU Memory
- Up to 80GB/s Memory Bandwidth
- PCI Express 3.0 System Interface
- 1.894 TELOPS FP32 Peak single-precision floating point performance(board)
- 47W Max Power Consumption
- 4x mDP 1.4 Display Connectors
4GB GDDR5 Memory Capacity
Combines a 640 CUDA core Pascal GPU, 4 GB GDDR5 on-board memory and advanced display technologies in a low-profile form factor to deliver amazing graphics performance for demanding professional applications

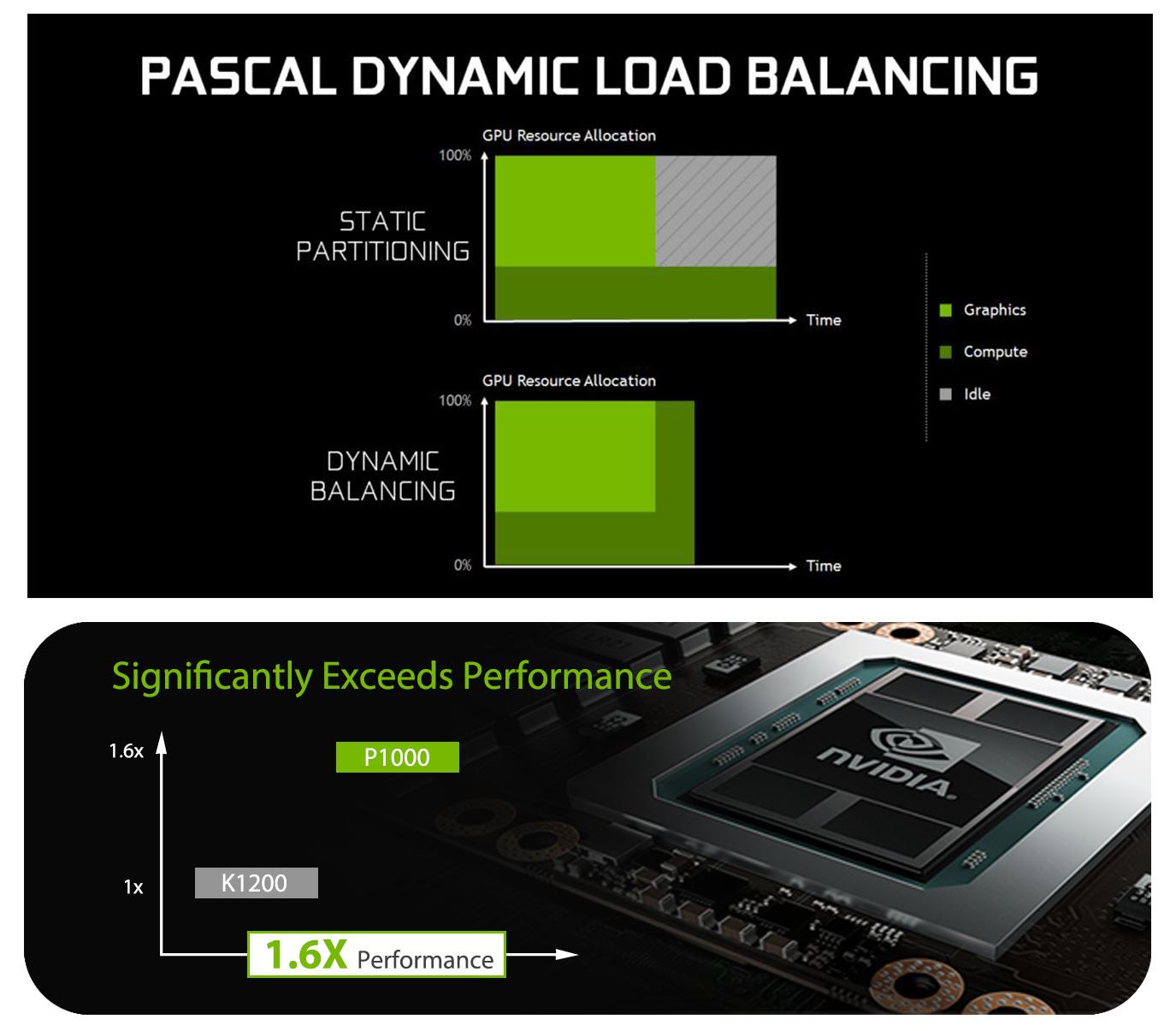

Pascal Dynamic Load Balancing
Dynamically allocate GPU resources for graphics and compute tasks as needed to maximize resource utilization
Mini-DisplayPort 1.4
Support HDR color for 4K @ 60Hz for 10/12b HEVC encode and up to 4K @ 60Hz for 10b HEVC decode
Multiple GPU Technology
Combine the visualization and interactive design capability of multiple GPUs by leveraging a mix of Quadro GPUs to dramatically improve the production workflow.
Advanced Display Features - DisplayPort 1.4
- DP 1.4 provides twice the bandwidth of the previous generation
- Drive up to four 5K displays simultaneously
- HDR support displays 2x the visible colors resulting in brighter, more saturated images

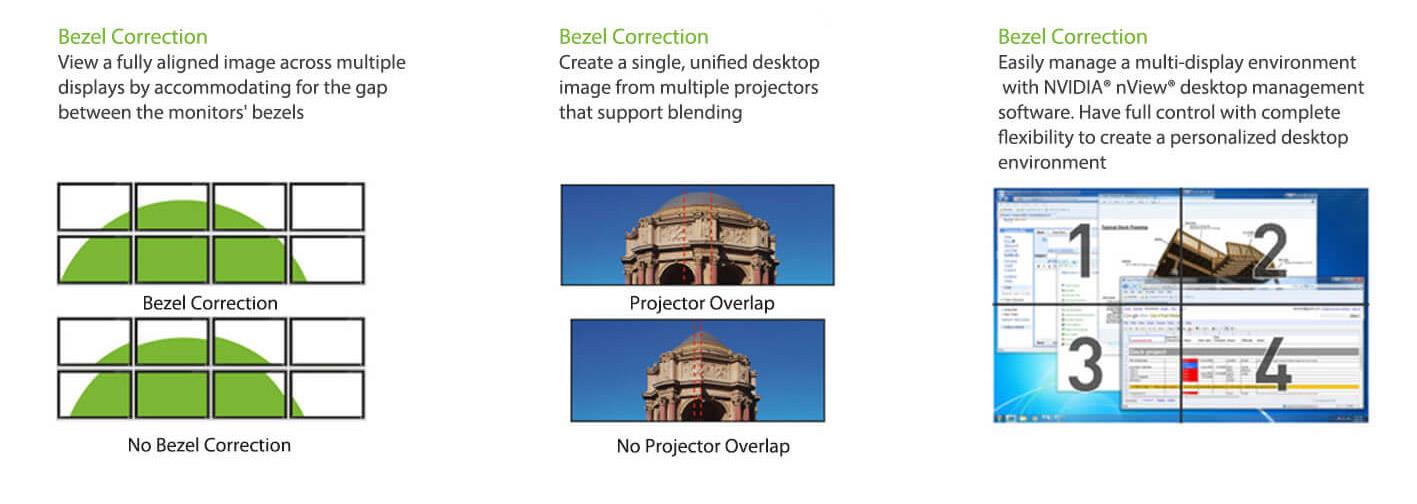

Multiple Display
Combine up to four Quadro GPUs in one system to simplify the deployment of display walls or other immersive display environments
H.264 and HEVC Encode /Decode
Creation and playback of HDR video with 4K @ 60Hz 10b/12b HEVC encode and 4K @ 60Hz 10b HEVC decode engines
3D Graphics Architecture

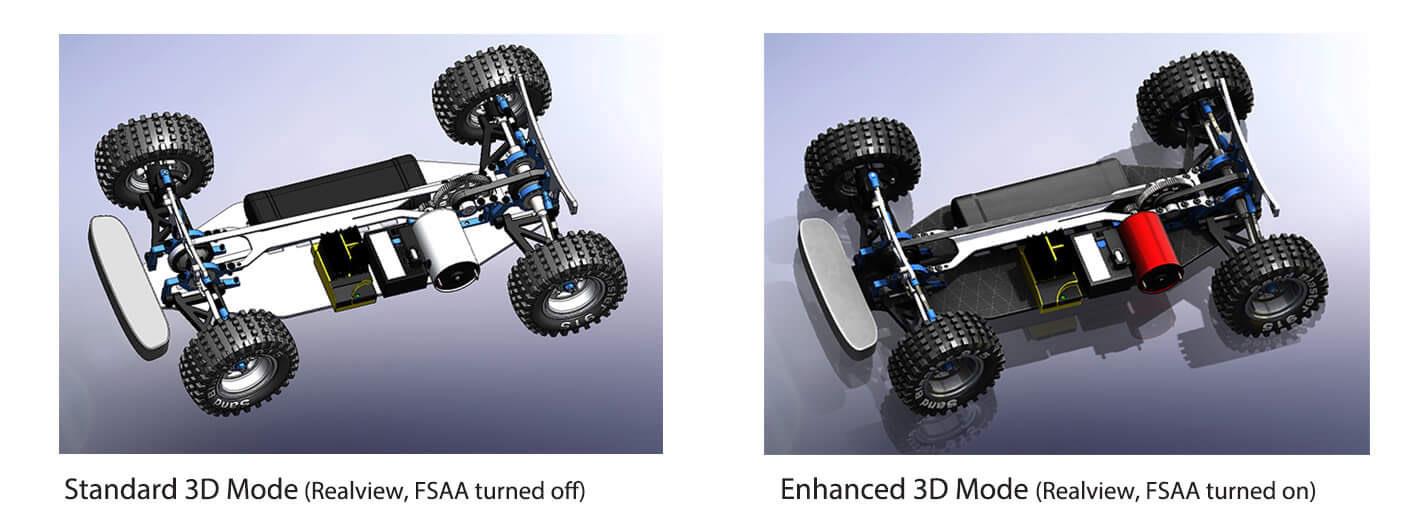

- 64x full scene antialiasing (FSAA)
- Up to 16 K x 16 K texture and render processing
- Support Shader Model 5.1/OpenGL 4.5/DirectX 12.0/Vulkan 1.0
- 32-bit per-component floating point texture filtering and blending

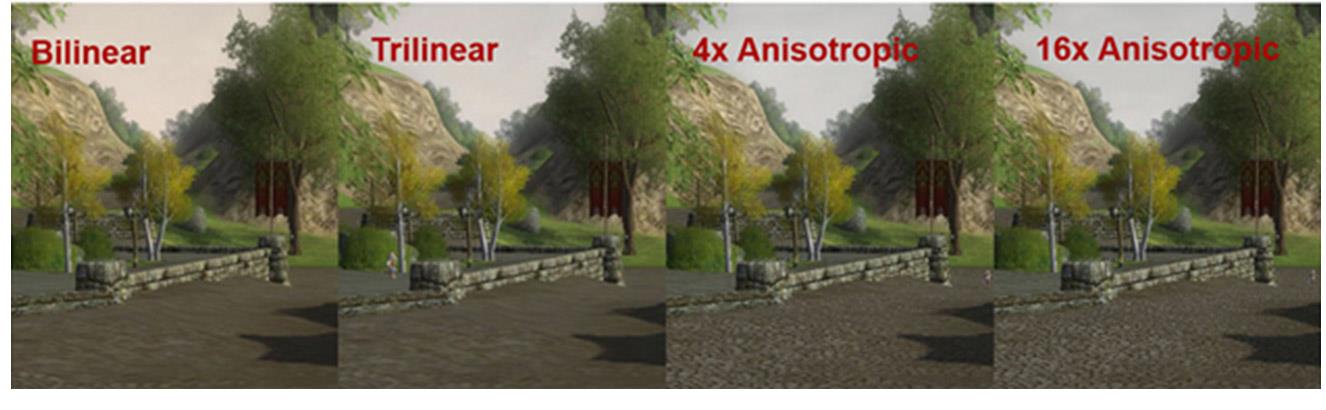

- 16x angle independent anisotropic filtering
Anisotropic filtering improves the clarity and crispness of textured objects in rendering. Textures are images containing various types of data such as color, transparency, reflectivity, and bumps (normals) that are mapped to an object and processed by the GPU in order to give it a realistic appearance on your screen

Specifications
GPU Memory
4 GB GDDR5
Memory Interface
128-bit
Memory Bandwidth
Up to 82 GB/s
NVIDIA CUDA® Cores
640
System Interface
PCI Express 3.0 x16
Max Power Consumption
47W
Thermal Solution
Active
Form Factor
2.713"H x 5.7" L, Single Slot, Low Profile
Product Weight
129 grams
Display Connectors
4x mDP 1.4
Max Simultaneous Displays
4 direct, 4 DP1.4, Multi- Stream
Display Resolution
4x 4096x2160 @ 60Hz / 4x 5120x2880 @ 60Hz
Graphics APIs
Shader Model 5.1, OpenGL 4.51, DirectX 12.02, Vulkan 1.01
Compute APIs
CUDA, DirectCompute, OpenCL™
NVIDIA Approved Accessory
P1000 Graphics Board
MDP-DP*4 Adaptors
Attached ATX Bracket
Unattached LP Bracket
Quick Installation Guide
Warranty Card
Support Guide
