Winmate R15IH3S-MRA3FP 15" Marine Pancel PC Intel Kaby Lake Core i5, 4GB, 64GB SSD, P-CAP touch, 2 x RJ45,1 x RS232/422/485,1 x RS232,2 x USB2.0, 1 x USB3.0, 1 x HDMI

PB Tech price
PB Tech price
$ 5,370 .62
 +GST
$ 6,176 .21
 inc GST

Out of stock

Winmate R15IH3S-MRA3FP 15" Marine Pancel PC Intel Kaby Lake Core i5, 4GB, 64GB SSD, P-CAP touch, 2 x RJ45,1 x RS232/422/485,1 x RS232,2 x USB2.0, 1 x USB3.0, 1 x HDMI

  • Brand: Winmate
  • MPN: R15IH3S-MRA3FP
  • Part #: WKAWMA15501
  • UPC:
PB Tech price
$ 5,370 .62 $ 6,176 .21
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock

Features

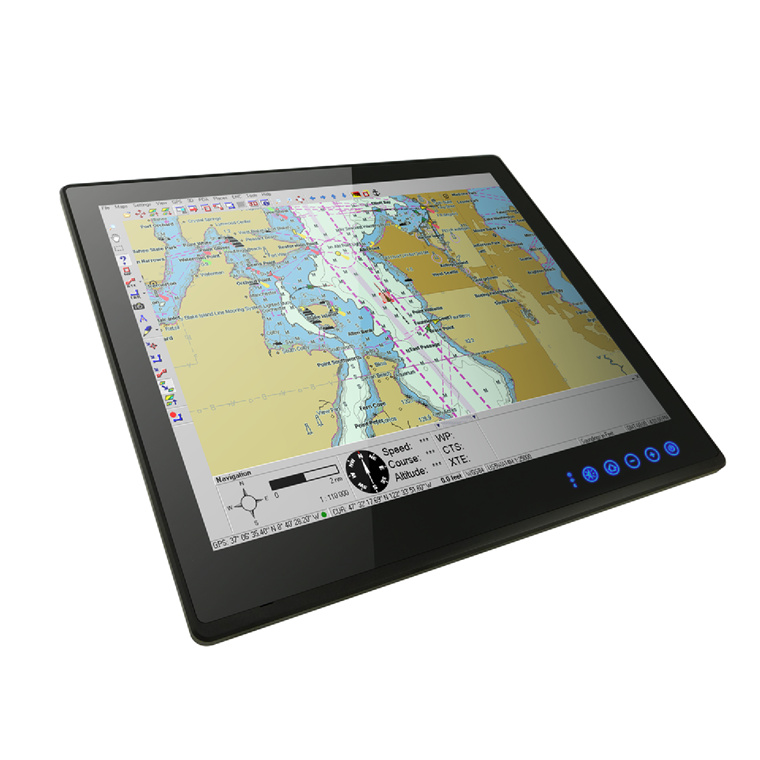

Winmate R15IH3S-MRA3FP 15" Intel i5 Marine Panel PC

Modern marine sector requires durable devices that can withstand long periods submersed in water. Winmate ECDIS Marine Series Panel PC is suitable for navigation, ship automation, and surveillance, rugged industrial and light military applications. Flat surface is easy-toclean and delivers aesthetically pleasing look. Due to dimmable backlight the Panel PC suitable for high and low ambient light conditions. You can mount the Panel PC on the
bridge of a ship.
The device powered by Intel 5th Generation Core i5 processor and supports various Windows-based operating systems: Windows 10 IoT Enterprise, Windows
Embedded 8.1 Industry PRO, Windows Embedded 8 Std, Windows Embedded Std. 7, and Windows 7 PRO for Embedded System. The Panel PC features user-friendly and resistant to scratches PCAP touch-screen. These models sealed with front IP 65 dust and water proof, and full IP44 protected from solid objects greater than 1 mm and water splash from all directions. All connectors are M12 type and ensure durability during maritime operations.
All ECDIS Marine Series Panel PC meet the requirements of industrial marine standards, including IEC60945 4th Edition, DNV2.4, IACS E10.

Features

-15" 1024 x 768 resolution with projective capacitive multi-touch screen
-Edge-to-edge narrow bezel design and fanless cooling system
-Colour calibrated for ECDIS compliance (Optional)
-Capacitive touch keys for quick function access and display control (Support DAY, DUSK, and NIGHT mode switching)
-Optional 4 x COM port (NMEA 0183 protocol) 422/485 switchable via software
-Support capacitive touch key lock / touchscreen lock function
-Meet the requirements of Industrial marine standards, including IEC60945 4th Edition, DNVGL-CG-0339, IACS E10

Specifications

Specifications

Processor

Intel Core i5-5200U

Memory

1 x DDR3L-1066 SODIMM, max.16GB (Default 4 GB)

Storage

1 x SATA2,max.256GB (Default 64GB SSD)

Cooling System

Fanless design

Mounting

VESA Mount
Panel Mount

Dimensions (W x H x D)

363 x 312 x 66.5 (mm)

Power Input

24V DC-in with isolation (9~36V acceptable), 1 x 3-pin terminal block (Phoenix type)

Certification

IEC60945 4th,DNVGL-CG-0339, IACS-E10, CE, FCC

OS Support

Windows 10 IoT Enterprise
Windows Embedded 8.1 Industry Pro
Windows Embedded 8 Standard
Windows 7 Pro for Embedded Systems

Display

Size/Type

15"

Resolution

1024 x 768

Panel Brightness

400 nits (typ.)

Contrast Ratio

2500 : 1 (typ.)

Viewing Angle

-88~88 (H); -88~88 (V)

Max Colours

16.2M (8 bit colours)

Touch

Projective Capacitive Multi-touch

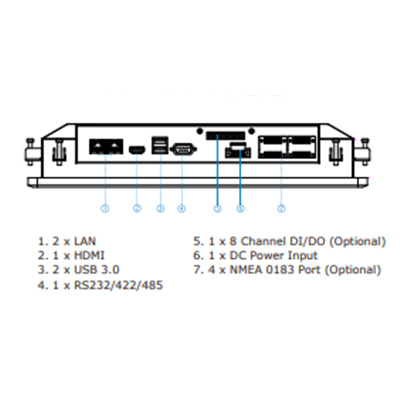

I/O Connectors

Ethernet LAN

2 x RJ45

COM

1 x RS232 (N/A with ECDIS Optional)
1 x RS232/422/485

USB

2 x USB 3.0

Digital IN / Out

8 channel isolated digital input/output (Optional)

NMEA Interface

4 x NMEA 0183 port (Optional)

HDMI

1 x HDMI

Speaker

2 x 2 Watt Speaker

Environment

Operating Temperature

-15°C to +55°C

Operating Humidity

5% to 95% (non-condensing)

Anti-vibration

0.7g @ DNV (Class A)

IP Rating

Front IP66

Anti-Shock

15G,11ms duration

Manufacturer Part No:
R15IH3S-MRA3FP
Brand:
Product Type:
15" Marine Pancel PC
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
WKAWMA15501
Product Model:
R15IH3S-MRA3FP
Warranty: 12 months *
