Winmate Marine Panel PC - 15" Touchscreen - Intel Core i7-3517UE - 2x Giga LAN - 2x USB 3.0 - 1x HDMI - 1x VGA - IP66 Proof - Safety Glass - Anti-Corrosion - Fanless

PB Tech price
PB Tech price
$ 3,272 .73
 +GST
$ 3,763 .64
 inc GST

Out of stock

Winmate Marine Panel PC - 15" Touchscreen - Intel Core i7-3517UE - 2x Giga LAN - 2x USB 3.0 - 1x HDMI - 1x VGA - IP66 Proof - Safety Glass - Anti-Corrosion - Fanless

  • Brand: Winmate
  • MPN: R15IV3S-MRM2
  • Part #: WKAWMA15701
  • UPC:
PB Tech price
$ 3,272 .73 $ 3,763 .64
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?

Features

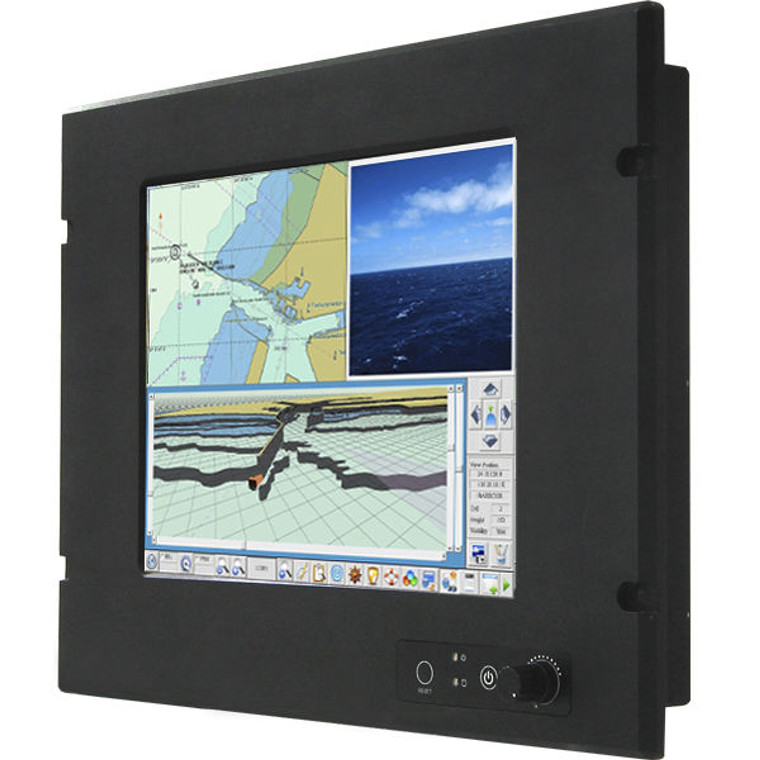

Winmate 15" Touchscreen Intel Core i7 Marine Panel PC

The Marine Grade Ivy Bridge Panel PC is high performance Panel PC with Intel Core i7-3517UE and HM76 chipset combined with a TFT LCD Panel. Design with transflective panel, dimming brightness, ease of use OSD front panel control, IP65 proof, high quality touch-screen, wide voltage range power input acceptable, and anti-corrosion protection. Born to the demands of marine applications as navigation, ship automation, and surveillance, rugged industrial and light military applications.

Features

-Dimming knob control backlight brightness from nearly 0% to 100%
-Transflective film technology enhance visibility
-Panel (flush) mount IP66 aluminum housing with powder coating design (IP54 rear)
-9 to 36V DC power input acceptable
-High quality touchscreen / AR protection glass for option
-Ease of use front panel OSD control
-Enhanced shock and vibration resistance

Specifications

Specifications

Processor

Intel Core i7-3517UE

Chipset

Intel HM76

Memory

1 x SODIMM DDR3 1333/1600, max.8GB

Audio

Realtek ALC886 HD Audio Codec

Storage

1 x SATA2 (Default 32GB SSD)

Cooling System

Fanless design

Mounting

VESA Mount

Power Input

9 to 36 V DC power supply with terminal block.

Certification

CE, FCC

Display

Size/Type

15"

Resolution

1024 x 768

Panel Brightness

400 nits (typ.)

Contrast Ratio

700 : 1

Viewing Angle

-80~80 (H); -60~80 (V)

Max Colours

16.2M (8 bit colours)

Touch

SAW, 5 Wire Resistive

I/O Connectors

Ethernet LAN

2 x RJ45 10/100/1000 Mbps

COM

1 x RS232
1 x RS232/422/485
2 x RS232 or 2 x Isolation RS422/485(optional)

USB

2 x USB 3.0

Video output

1 x VGA
1 x HDMI

Environment

Operating Temperature

-15°C to +55°C

Operating Humidity

5% to 95% (non-condensing)

Anti-vibration

5Hz~500Hz / 1Grms / 3 Axis

IP Rating

Front IP66
Rear IP54

Anti-Shock

15G,11ms duration

Manufacturer Part No:
R15IV3S-MRM2
Brand:
Product Type:
Marine Panel PC
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
WKAWMA15701
Product Model:
-
Warranty: 12 months *
