Winmate Marine Panel PC W24L100-MRA1IV3S 8G/512GB/i7-3517UE - 24" with P-CAP touch,Win 10 IoT High Brightness ( 1,000 nits )- 2x Giga LAN - 2x USB-A - 1x HDMI - 1x VGA - IP66 Proof - Safety Glass - Anti-Corrosion - Fanless
Out of stock
Winmate Marine Panel PC W24L100-MRA1IV3S 8G/512GB/i7-3517UE - 24" with P-CAP touch,Win 10 IoT High Brightness ( 1,000 nits )- 2x Giga LAN - 2x USB-A - 1x HDMI - 1x VGA - IP66 Proof - Safety Glass - Anti-Corrosion - Fanless
- Brand: Winmate
- MPN: W24L100-MRA1IV3S
- Part #: WKAWMA24701
- UPC:
- Brand: Winmate
- MPN: W24L100-MRA1IV3S
- Part #: WKAWMA24701
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT
Winmate Marine Panel PC W24L100-MRA1IV3S 8G/512GB/i7-3517UE - 24" with P-CAP touch,Win 10 IoT High Brightness ( 1,000 nits )- 2x Giga LAN - 2x USB-A - 1x HDMI - 1x VGA - IP66 Proof - Safety Glass - Anti-Corrosion - Fanless
- Brand: Winmate
- MPN: W24L100-MRA1IV3S
- Part #: WKAWMA24701
Product URL: https://www.pbtech.co.nz/product/WKAWMA24701/Winmate-Marine-Panel-PC-W24L100-MRA1IV3S-8G512GBi7
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features

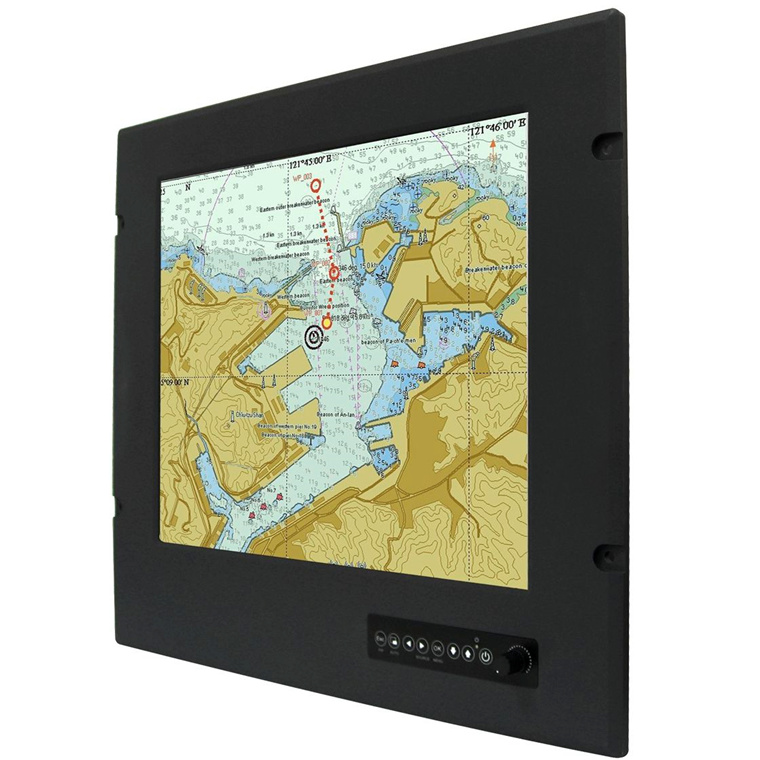

Winmate 24" Touchscreen Intel Core i7-3517UE Marine Panel PC
The Marine Grade Ivy Bridge Panel PC is high performance Panel PC with Intel Core i7-3517UE and HM76 chipset combined with a TFT LCD Panel. Design with transflective panel, dimming brightness, ease of use OSD front panel control, IP65 proof, high quality touch-screen, wide voltage range power input acceptable, and anti-corrosion protection. Born to the demands of marine applications as navigation, ship automation, and surveillance, rugged industrial and light military applications.
Features
-Intel Core i7-3517UE Platform, Fanless Design
-Dimming knob control backlight brightness from nearly 0% to 100%
-Transflective film technology enhance visibility
-Panel (flush) mount IP66 aluminum housing with powder coating design (IP54 rear)
-9 to 36V DC power input acceptable
-High quality touchscreen / AR protection glass for option
-Ease of use front panel OSD control
-Enhanced shock and vibration resistance
Specifications
Specifications
Processor
Intel Core i7-3517UE
Chipset
Intel HM 76
Memory
1 x SODIMM DDR3 1333/1600 (max 8GB)
Audio
Realtek ALC886 HD Audio Codec
Storage
1 x SATA2 (Default 32GB SSD)
Cooling System
Fanless design
Mounting
VESA Mount
Panel Mount
Power Input
9 to 36 V DC power supply with terminal block.
Certification
CE, FCC
Display
Size/Type
24" TFT
Resolution
1920 x 1080
Panel Brightness
300 nits (typ.)
Contrast Ratio
5000 : 1
Viewing Angle
-89~89 (H); -89~89 (V)
Max Colours
16.7M (8 bit colours)
Touch
5 Wire Resistive

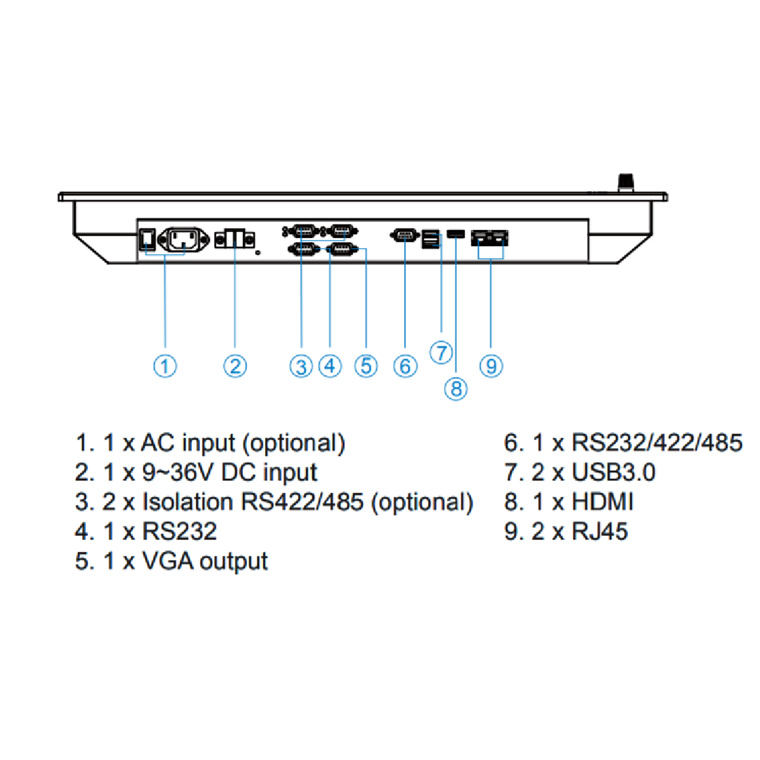

I/O Connectors
Ethernet LAN
2 x RJ45 10/100/1000 Mbps
COM
1 x RS232
1 x RS232/422/485
2 x Isolation RS422/485(optional)
USB
2 x USB 3.0
Video output
1 x VGA
1 x HDMI
Environment
Operating Temperature
-15°C to +55°C
Operating Humidity
5% to 95% (non-condensing)
Anti-vibration
5Hz~500Hz / 1Grms /3 Axis
IP Rating
Front IP66
Rear IP54
Anti-Shock
15G,11ms duration
