AAEON UP System B10 (new CPLD) UP-GWS01.INTEL CPU x5-z8350.2G memory,32G eMMC.B1.0
- Brand: AAEON
- MPN: UP-GWS01-A20-0232-B10
- Part #: WKSAAEB10002

Product URL: https://www.pbtech.co.nz/product/WKSAAEB10002/AAEON-UP-System-B10-new-CPLD-UP-GWS01INTEL-CPU-x5
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

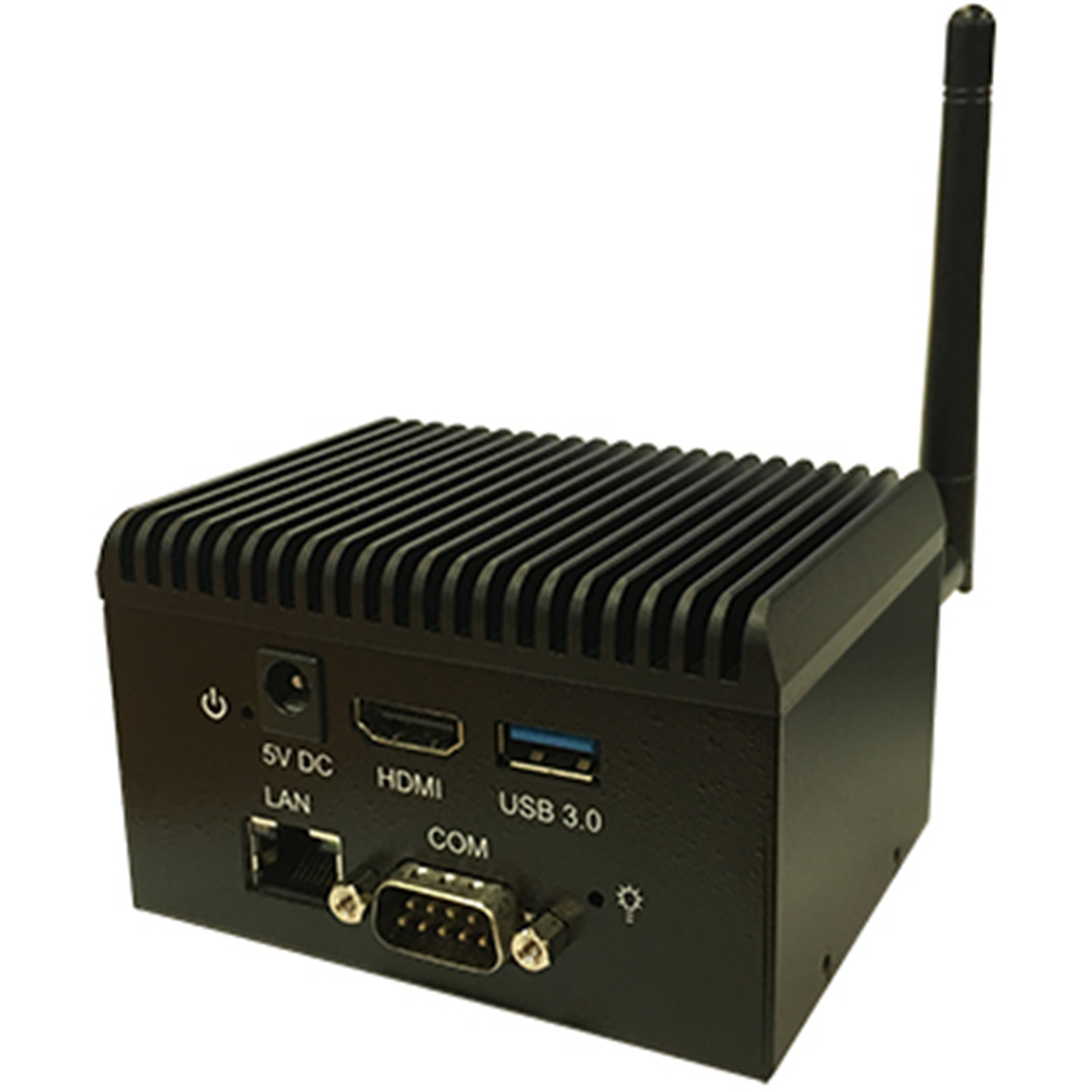

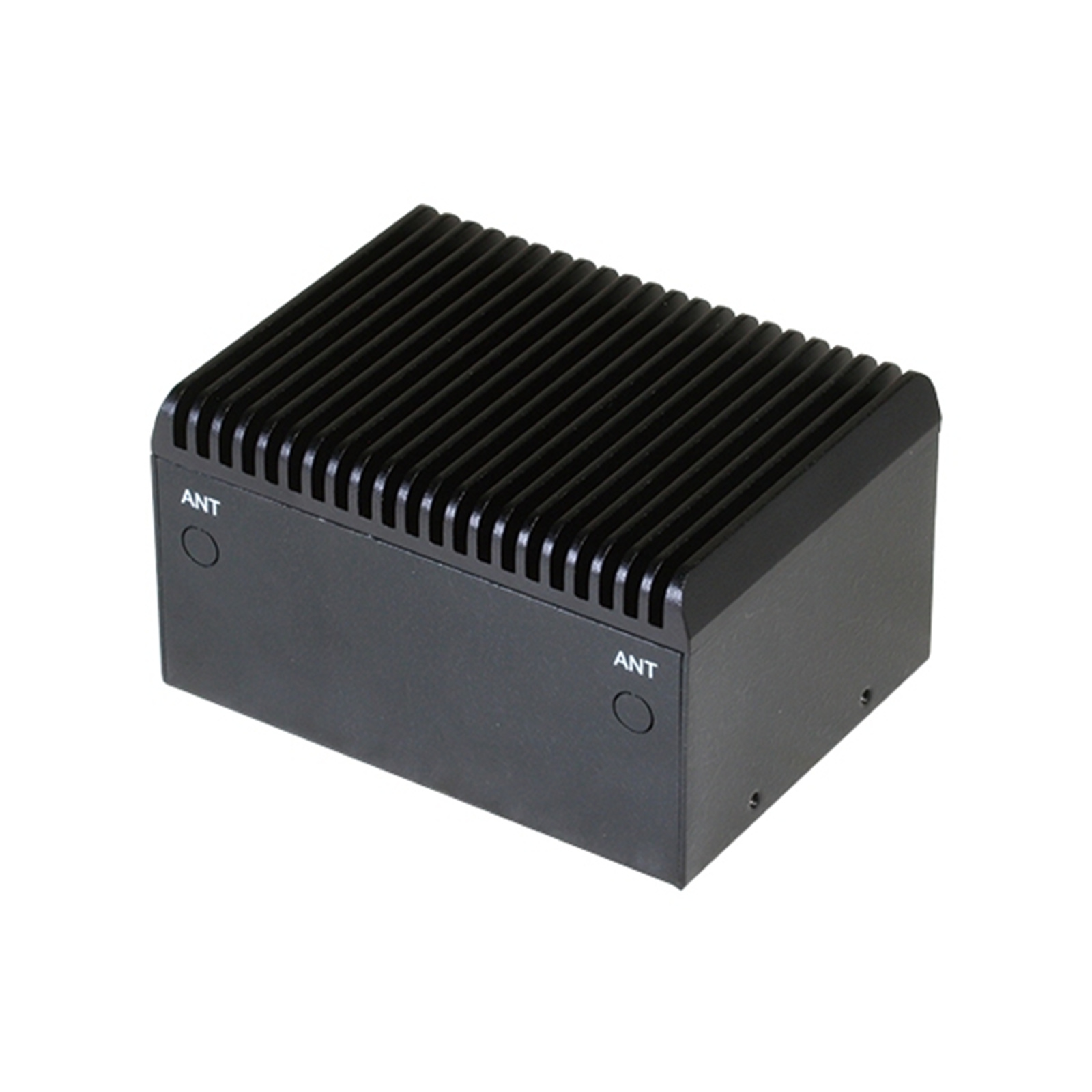

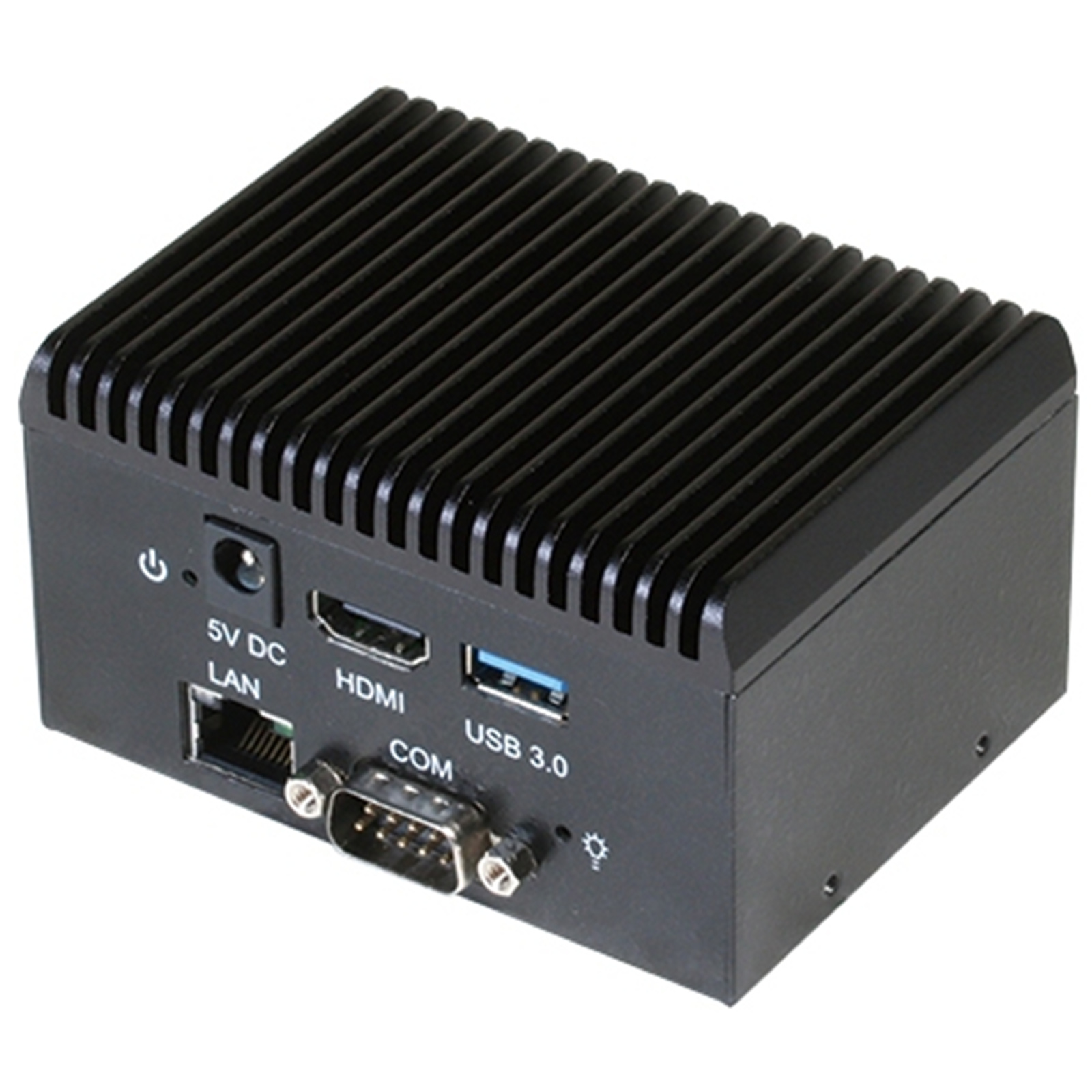

AAEON's UPC-GWS01 is a compact and cost-effective IoT system for intelligent home and digital signage applications. Despite its small dimensions, it still features onboard WiFi and Bluetooth, and it has an impressive I/O interface including USB, HDMI, COM, and LAN ports.

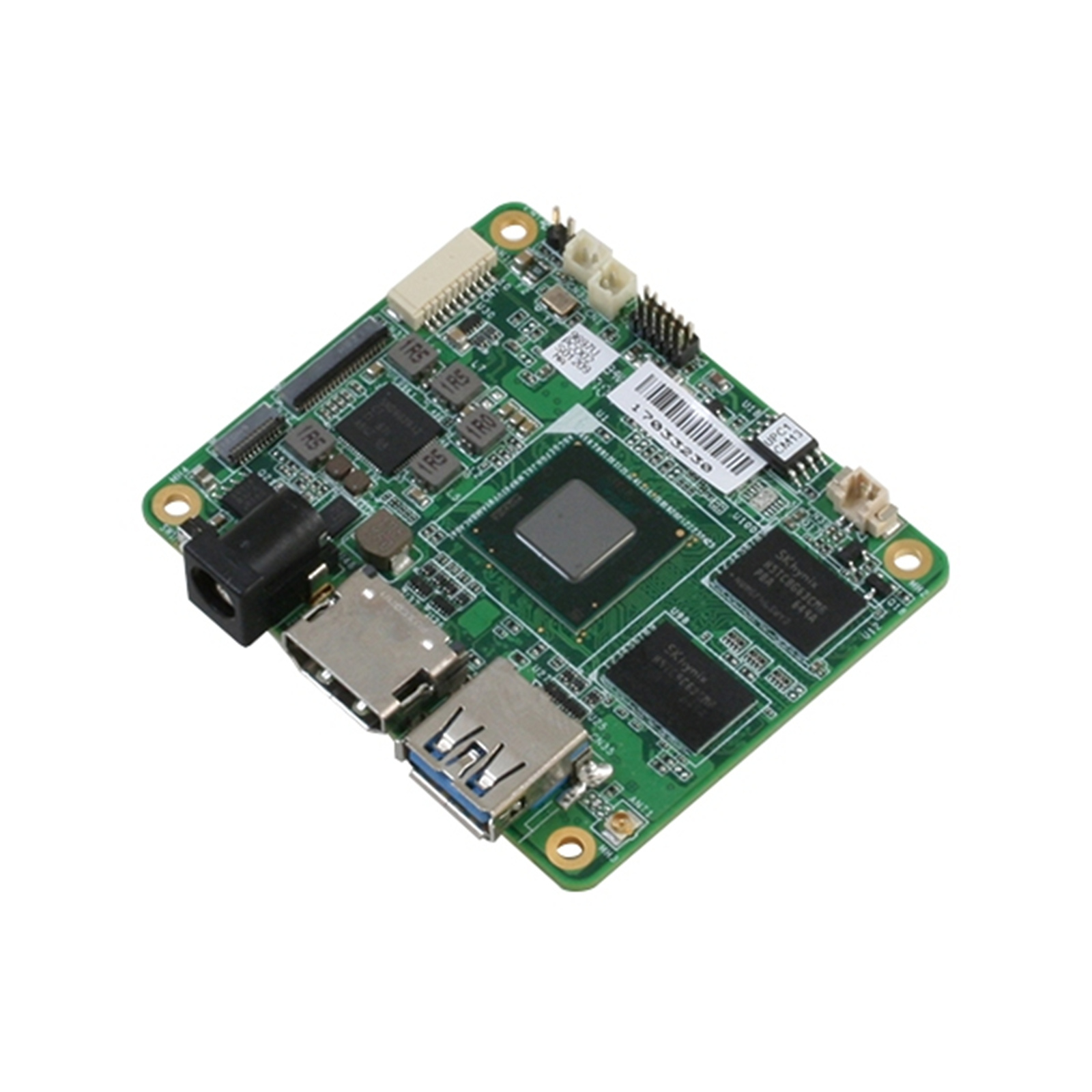

The system is built around the groundbreaking UP Core board - the smallest quad-core x86 single board computer in the world. The UPC-GWS01 is a user-friendly solution, and both the system chassis and the UP Core's carrier board can be customized to deliver alternative I/O options and a PCIe interface.
Applications
- Robotics
- Machine Vision
- Smart Home
- Education
- IoT
- Intelligent Vehicles
Features
- Intel® Atom™ Processor
- Onboard DDR3L Memory, eMMC Storage
- Onboard WiFi, Bluetooth
- HDMI x 1
- USB 3.0 x 1
- COM x 1
- Gigabit LAN x 1
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a PB Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Specifications
SYSTEM
CPU
Intel® Atom™ x5-Z8350 Processor
MEMORY
1GB/ 2GB/ 4GB onboard DDR3L-1600
GRAPHICS
Intel® HD 400 Graphics
STORAGE
16GB/32GB/64GB eMMC
ETHERNET
Realtek® 8111G x 1
WIFI/BT
WIFI802.11 b/g/n @2.4 GHz, Bluetooth 4.0
EXPANSION SLOT
Minicard (MINI card with SIM) socket x 1
SECURITY
-
OS SUPPORT
Windows® 10, Linux (UbiLinux, Ubuntu, Yocto), Android 6.0, Windows® 10 IoT core
I/O PLACEMENTS
USB
USB3.0 x 1
DISPLAYPORT
HDMI x 1
ETHERNET
RJ-45 x 1
COM
RS-232/422/485 x 1
AUDIO
HDMI x 1
GPIO
-
POWER SUPPLY
POWER REQUIREMENT
-
POWER SUPPLY TYPE
-
POWER CONSUMPTION (TYPICAL)
-
MECHANICAL
MOUNTING
-
DIMENSIONS (W X H X D)
-
NET WEIGHT
-
GROSS WEIGHT
0.77 lb (0.35 kg)
ENVIRONMENT
OPERATING TEMPERATURE
32°F ~ 104°F (0°C ~ 40°C)
OPERATING HUMIDITY
10% ~ 80% relative humidity, non-condensing
STORAGE TEMPERATURE
-
MTBF
-
CERTIFICATION
CE, FCC Class A
