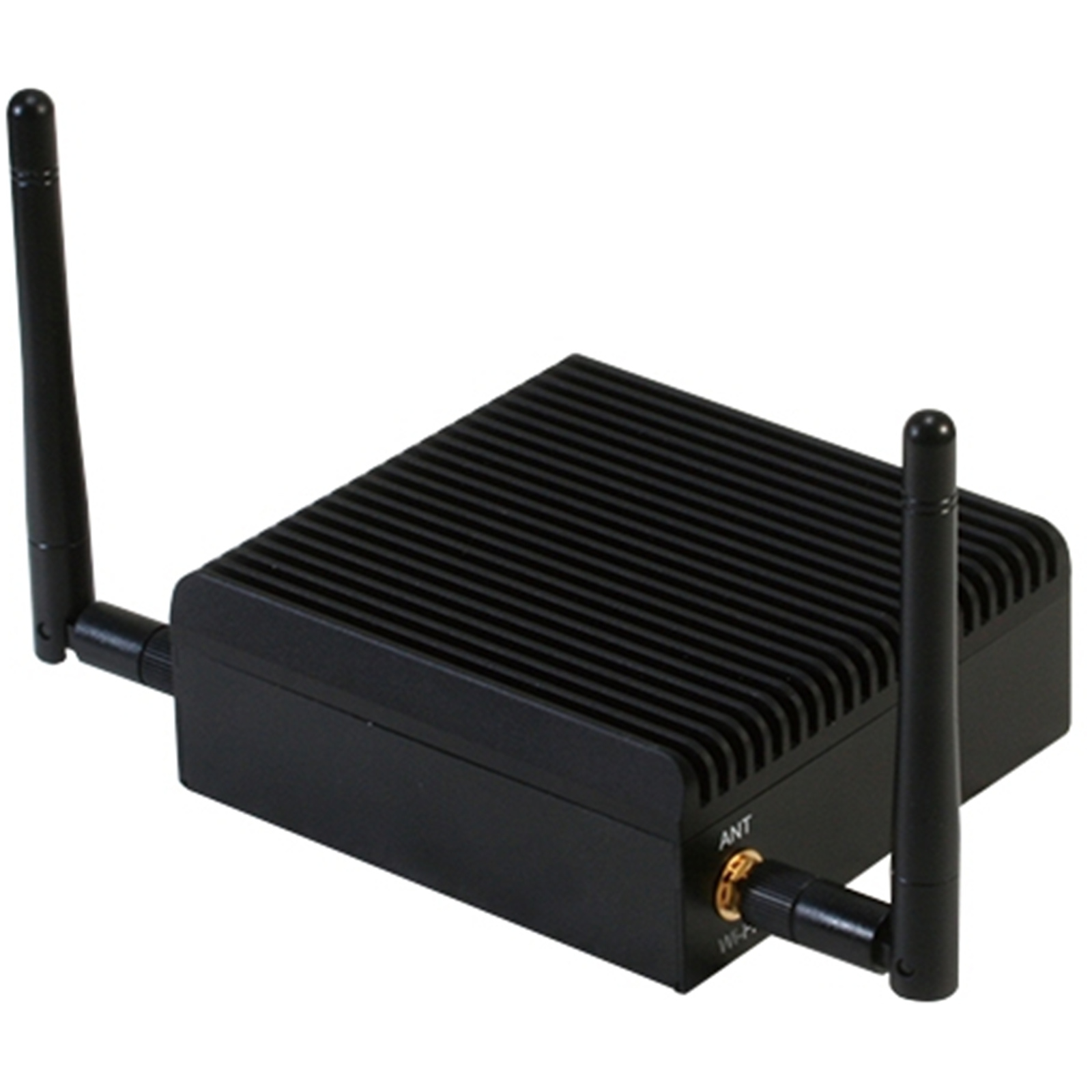

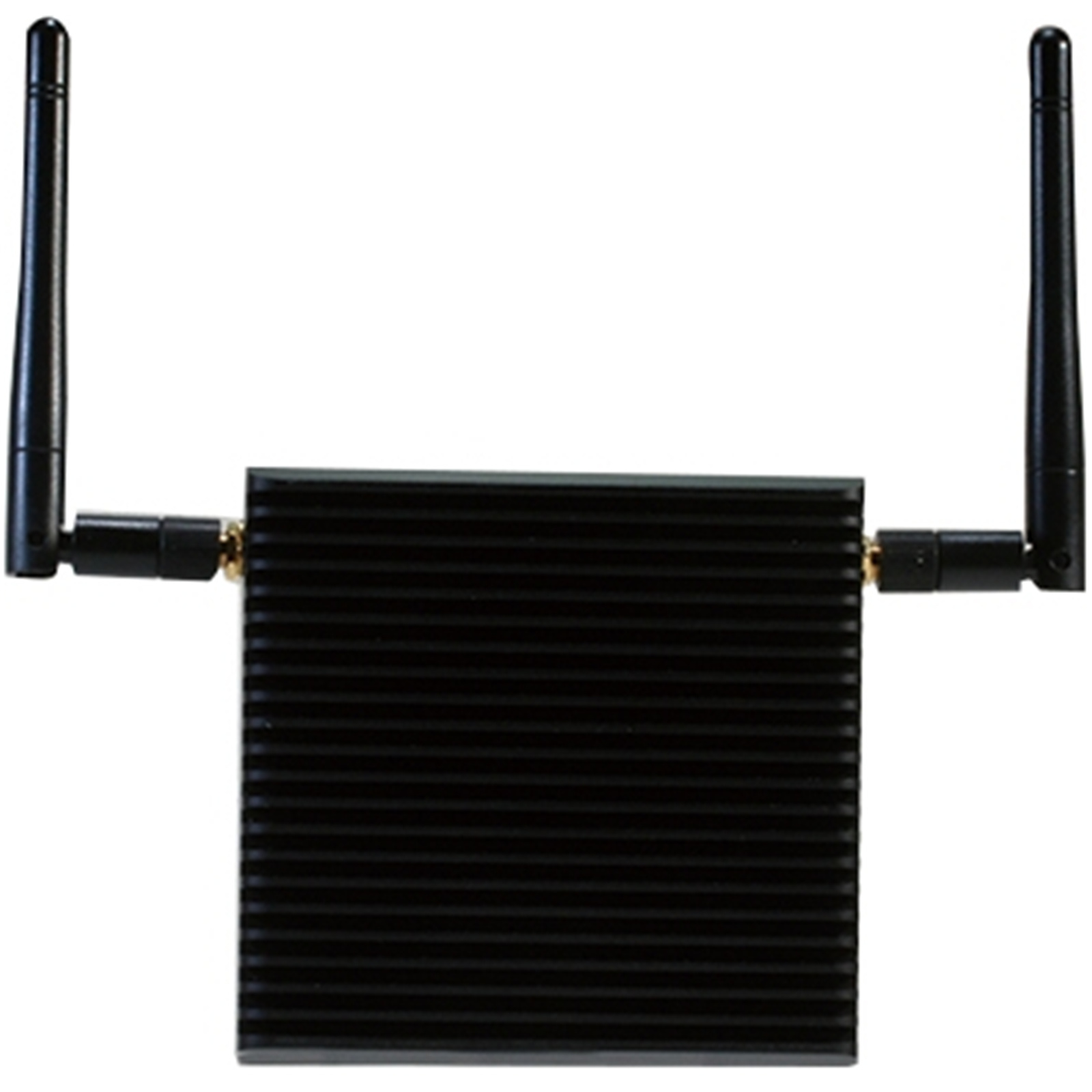

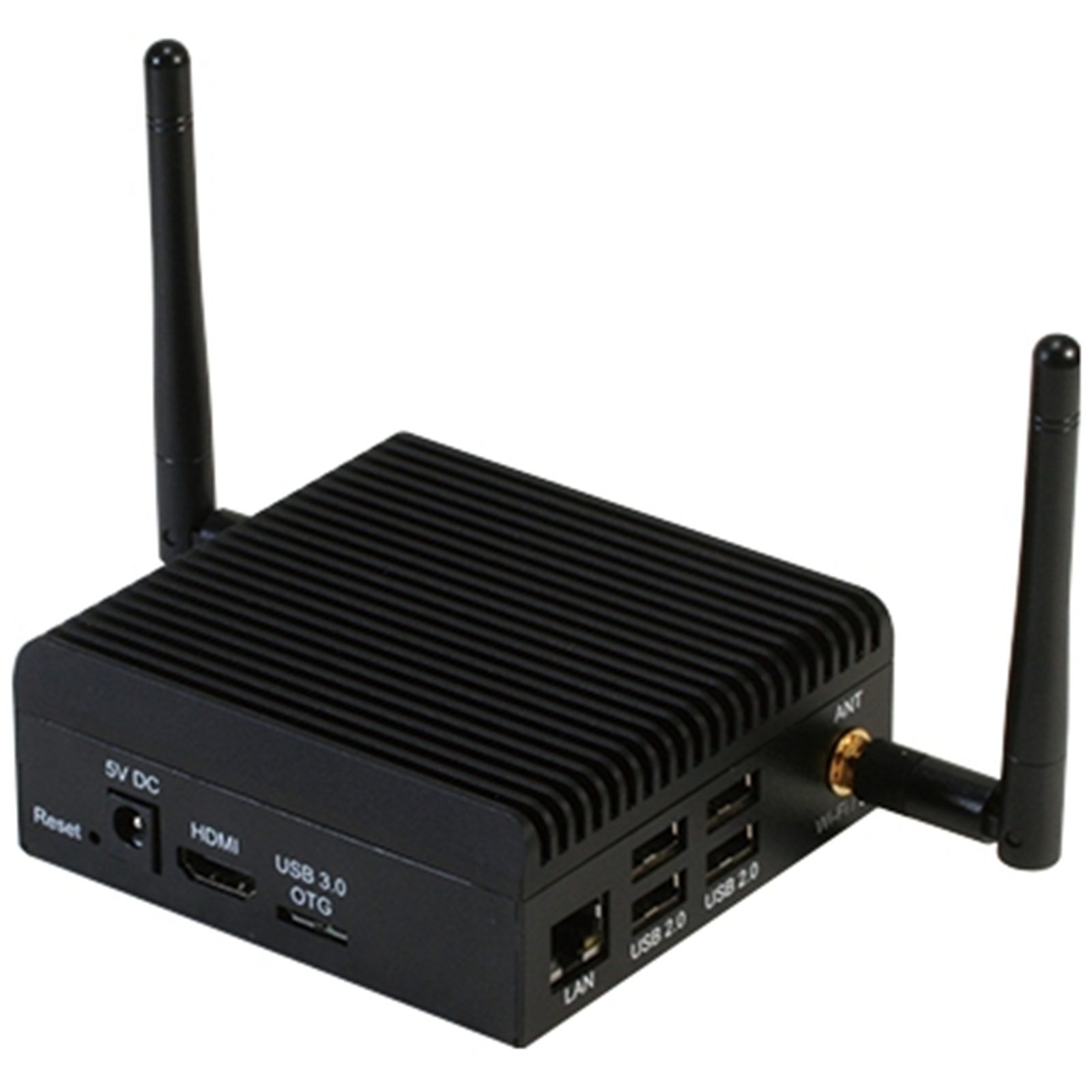

AAEON UP System B10 (new CPLD) UP-GWS01.INTEL CPU x5-z8350.4G memory,64G eMMC.B1.0 W /VESA
- Brand: AAEON
- MPN: UP-GWS01-A20-1432-B10
- Part #: WKSAAEB10005

Product URL: https://www.pbtech.co.nz/product/WKSAAEB10005/AAEON-UP-System-B10-new-CPLD-UP-GWS01INTEL-CPU-x5
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Compact in Design: 95mm x 91mm x 37mm (WxLxH)
Palm-sized compact system design for space-constrained surroundings.
Flexible Connectivity
UP-GWS01 offers optional WIFI and default Giga LAN. Designed to connect to cloud and server with ease.
IoT Support
Through powerful Intel® x5-Z8350 CPU plus various I/O expansion and connectivity, UP-GWS01 is fit for applications of all sizes. From factory automation gateway, security management, digital signage, to personal home application gateway.
- Intel Atom® x5-Z8350 Processor SoC
- Onboard DDR3L Memory
- Onboard eMMC Storage
- Gigabit LAN x 1, USB 2.0 x 4, USB 3.0 x 1, HDMI x 1
- Optimized Fanless Cooling Design
- Wi-Fi (Optional)
- No eDP/ MIPI-CSI/ 40pin HAT/ CPLD internally
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a PB Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Specifications
SYSTEM
CPU
Intel Atom® x5-Z8350 Processor (2M Cache, 1.44 GHz up to 1.92 GHz)
MEMORY
Onboard DDR3L memory
GRAPHICS
Intel® HD Graphics 400, 12 EU Gen 8, up to 500MHz Support DX*11.1/12, Open
GL*4.2, Open CL*1.2 OGL
ES3.0, H.264, HEVC (decode), VP8
STORAGE
Onboard eMMC
ETHERNET
Gb LAN x 1
WIFI/BT
Wi-Fi (Optional)
EXPANSION SLOT
-
SECURITY
-
OS SUPPORT
Windows® 10, Linux, Windows® 10 IoT core

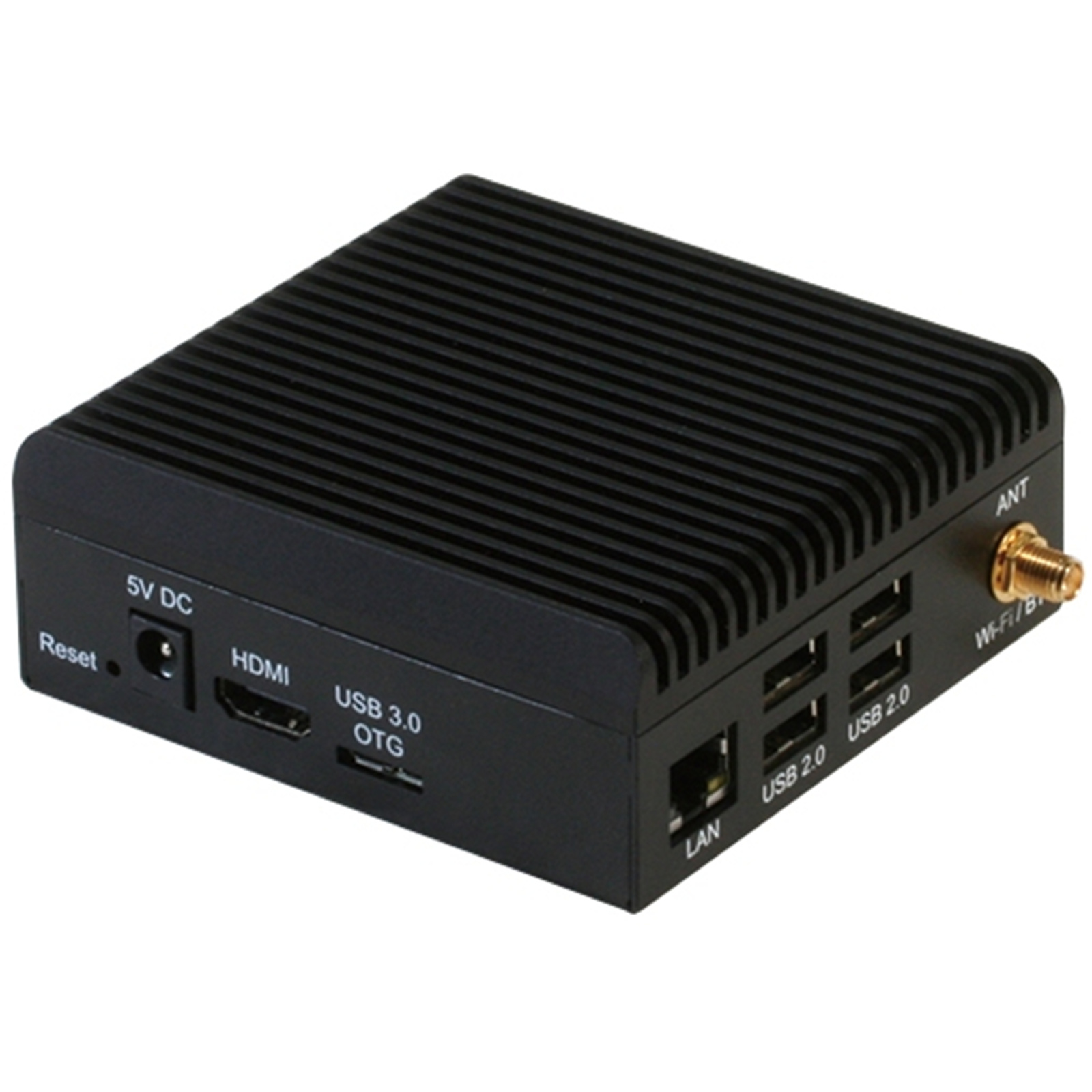

I/O PLACEMENTS
USB
USB 2.0 x 4, USB 3.0 x 1 (OTG)
DISPLAYPORT
HDMI x 1
ETHERNET
Gb LAN x 1
COM
-
AUDIO
HDMI x 1
GPIO
-
POWER SUPPLY
POWER REQUIREMENT
5V/4A DC Only
POWER SUPPLY TYPE
-
POWER CONSUMPTION (TYPICAL)
-
MECHANICAL
MOUNTING
-
DIMENSIONS (W X H X D)
3.74" x 3.58" x 1.46" (95mm x 91mm x 37mm)
NET WEIGHT
-
GROSS WEIGHT
-
ENVIRONMENT
OPERATING TEMPERATURE
32°F ~ 104°F (0°C ~ 40°C)
OPERATING HUMIDITY
0% ~ 90% relative humidity non-condensing
STORAGE TEMPERATURE
-
MTBF
-
CERTIFICATION
CE/FCC Class A
