AAEON Embedded BOX PCs BOXER-8640AI NVIDIA Jetson AGX Orin 32GB 1792-core Amper GPU with Tensor cores, 4xRJ-45 for PoE, 1x DB-9 for RS-232/422/485, 1x CANBUS, 40-pin header, M.2 E key, M key and SATA storage with Power adapter without NZ p
AAEON Embedded BOX PCs BOXER-8640AI NVIDIA Jetson AGX Orin 32GB 1792-core Amper GPU with Tensor cores, 4xRJ-45 for PoE, 1x DB-9 for RS-232/422/485, 1x CANBUS, 40-pin header, M.2 E key, M key and SATA storage with Power adapter without NZ p
- Brand: AAEON
- MPN: BOXER-8640AI
- Part #: WKSAAEBOX8640
- UPC:
- Brand: AAEON
- MPN: BOXER-8640AI
- Part #: WKSAAEBOX8640
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





AAEON Embedded BOX PCs BOXER-8640AI NVIDIA Jetson AGX Orin 32GB 1792-core Amper GPU with Tensor cores, 4xRJ-45 for PoE, 1x DB-9 for RS-232/422/485, 1x CANBUS, 40-pin header, M.2 E key, M key and SATA storage with Power adapter without NZ p
- Brand: AAEON
- MPN: BOXER-8640AI
- Part #: WKSAAEBOX8640

Product URL: https://www.pbtech.co.nz/product/WKSAAEBOX8640/AAEON-Embedded-BOX-PCs-BOXER-8640AI-NVIDIA-Jetson
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

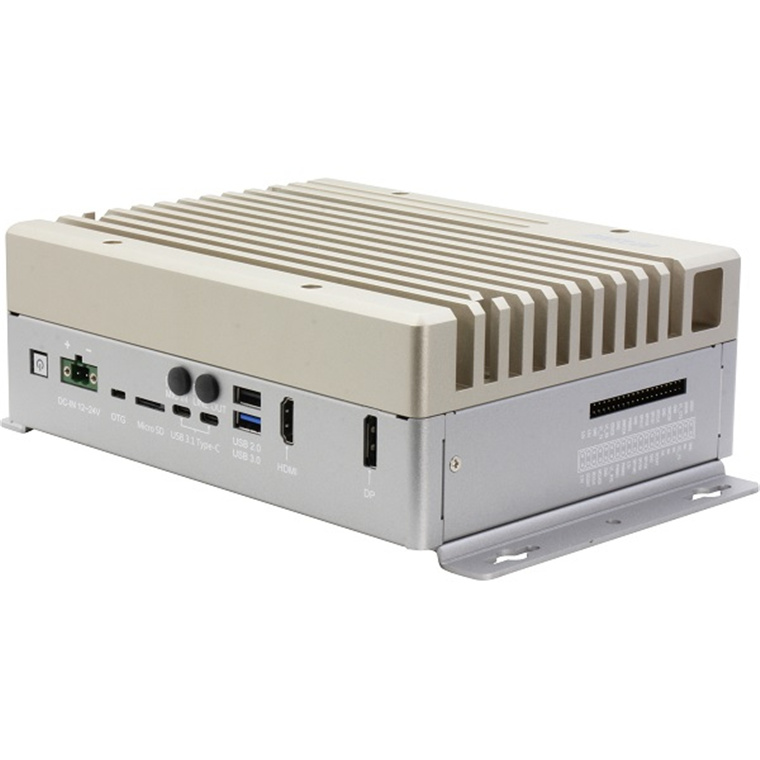

Powered by the NVIDIA® Jetson AGX Orin™, the BOXER-8640AI fanless Box PC brings preeminent AI capabilities to the edge for more uses than ever before. The NVIDIA® Jetson AGX Orin™'s Ampere Architecture boasts 1792 CUDA® and 56 Tensor cores, making it capable of up to 200 TOPS. This allows the BOXER-8640AI to harness paradigm-shifting inferencing performance across multiple video streams simultaneously. AAEON's expertly designed hardware broadens application potential by accommodating the latest NVIDIA JetPack™ SDK, giving creators a complete framework with which to harness world-class AI acceleration, multimedia, graphics, and computer vision tools for any application. A key facet to the BOXER-8640AI's utility is its versatility in deployment, boasting an impressive wide temperature range of -4°F ~ 131°F (-20°C ~ 55°C), making it suitable for deployment in any environment. Further, the density and sophistication of its design is represented by its four PoE LAN ports, synergizing power with multipurpose function.
The BOXER-8640AI's I/O is precisely configured to channel the AI performance of the NVIDIA® Jetson AGX Orin™, and to fully utilize the tools provided by the NVIDIA JetPack SDK. With a plethora of ports including one HDMI, four PoE LAN, and four USB 3.2 ports, users have a comprehensive interface through which to tailor solutions to their project. Further, the BOXER-8640AI offers storage options that are both vast and expandable, with 64GB eMMC onboard complimented by a MicroSD Card slot, 2.5" SATA drive bay, and NVMe via an M.2 2280 M-Key. Coupling these features gives customers both the means and microarchitecture to bring their ideas to fruition.
- NVIDIA® Jetson AGX Orin™
- PoE/PSE 802.3af x 4 ( Max. 60W )
- RS-232/422/485, CANBUS x 1
- 40-pin header, Mic in and Line out
- M.2 E key, M.2 M key and SATA storage
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a PB Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Specifications
SYSTEM
AI ACCELERATOR
NVIDIA Jetson AGX Orin™ 32GB
CPU
8-core ARM v8.2 64bit CPU, 2MB L2 + 4MB L3
SYSTEM MEMORY
32GB 256-Bit LPDDR5x 205GB/s
STORAGE DEVICE
64GB eMMC 5.1
Micro SD card slot x 1
2.5" SATA drive bay x 1
M.2 Key M 2280 x 1
DISPLAY INTERFACE
HDMI 2.0 x 1
ETHERNET
RJ-45 for GbE PoE/PSE 802.3af x 4 ( Max. 60W )
I/O
USB Type A x 2 for USB 3.2 Gen 2
USB Type C x 2 for USB 3.2 Gen 2
RS-232/422/485 x1
CANBUS x 1
Mic-in x 1
Line-out x 1
MicroSD slot x 1
Micro USB x 1 for OS Flash
Recovery button x 1
Power button x 1
40-pin header compliance with NVIDIA Dev Kit 40 pins ( without CANBus )
EXPANSION
USB 2.0 header x 1 (Optional, circuit reserved)
M.2 E Key 2230 ( for Wifi/BT ) x 1
M.2 M Key 2280 ( NVMe ) x 1
2.5" SATA drive bay x 1
RS-232/422/485 pin header x 1
INDICATOR
Power LED x 1
OS SUPPORT
Linux ( NVIDIA Jetpack 5.0 or above )
POWER SUPPLY
POWER REQUIREMENT
DC 12V~24V 2-pin terminal
MECHANICAL
MOUNTING
Wallmount
DIMENSION
8.26" x 6.46" x 2.32" (210mm x 164.2mm x 59mm)
GROSS WEIGHT
8.3lb ( 3.76kg )
NET WEIGHT
6.4lb ( 2.9kg )
ENVIRONMENTAL
OPERATING TEMPERATURE
-4°F ~ 131°F (-20°C ~ 55°C, according to IEC60068-2 with 0.5 m/s AirFlow)
STORAGE TEMPERATURE
-40 °F ~ 158°F(-40°C ~ 70°C)
STORAGE HUMIDITY
95% @ 40°C, non-condensing
ANTI-VIBRATION
Random, 3.5 Grms, 5 ~ 500Hz
ANTI-SHOCK
50G Peak Acceleration
CERTIFICATION
CE/FCC class A
