AAEON UP Xtreme i11 EDGE UPX-EDGE i11 Core i5-1145GRE w/o 40pin, type C

AAEON UP Xtreme i11 EDGE UPX-EDGE i11 Core i5-1145GRE w/o 40pin, type C

  • Brand: AAEON
  • MPN: UPX-EDGE-TGLI5-A10-0000-0001
  • Part #: WKSAAEI11010
  • UPC:
  • Brand: AAEON
  • MPN: UPX-EDGE-TGLI5-A10-0000-0001
  • Part #: WKSAAEI11010
  • UPC:

Features

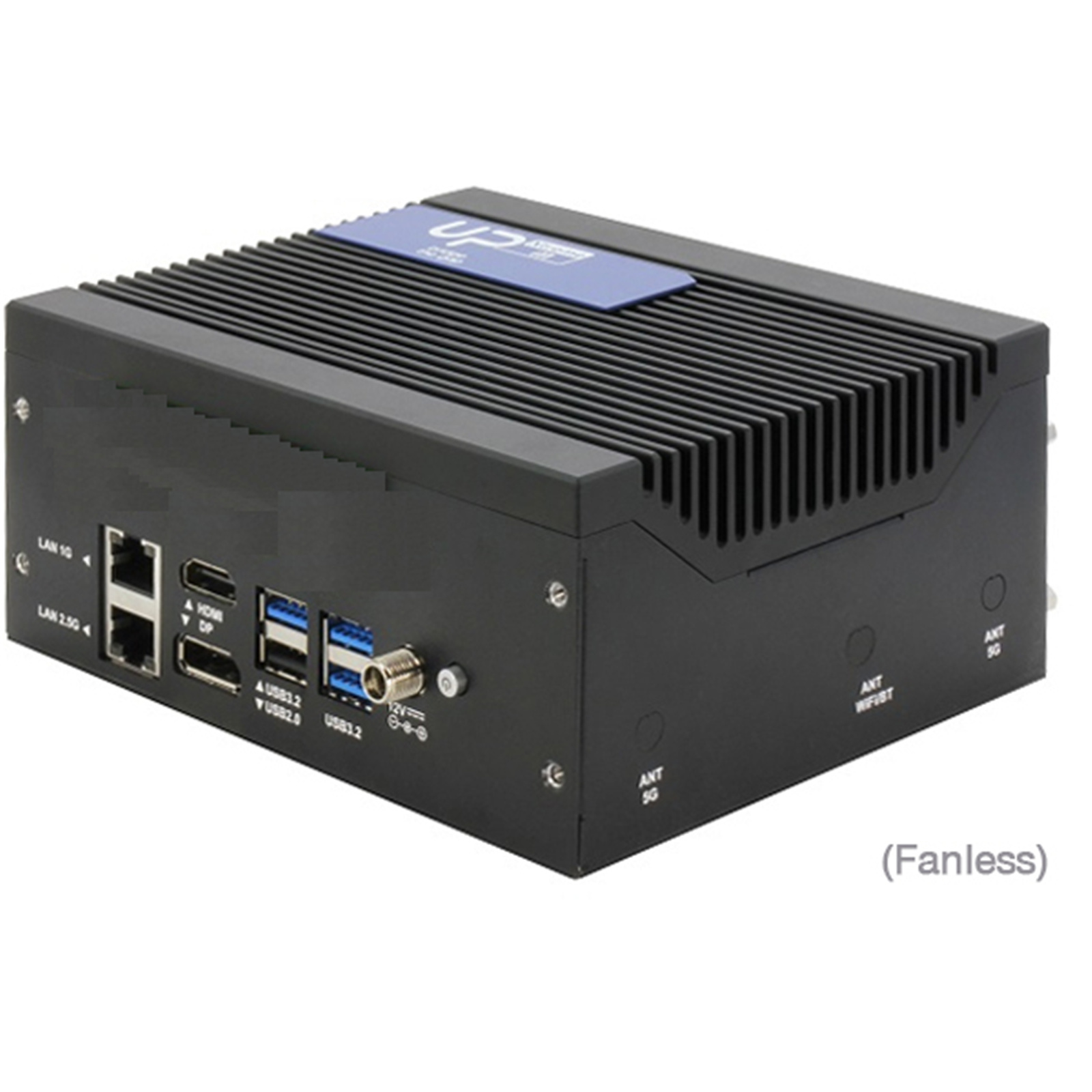

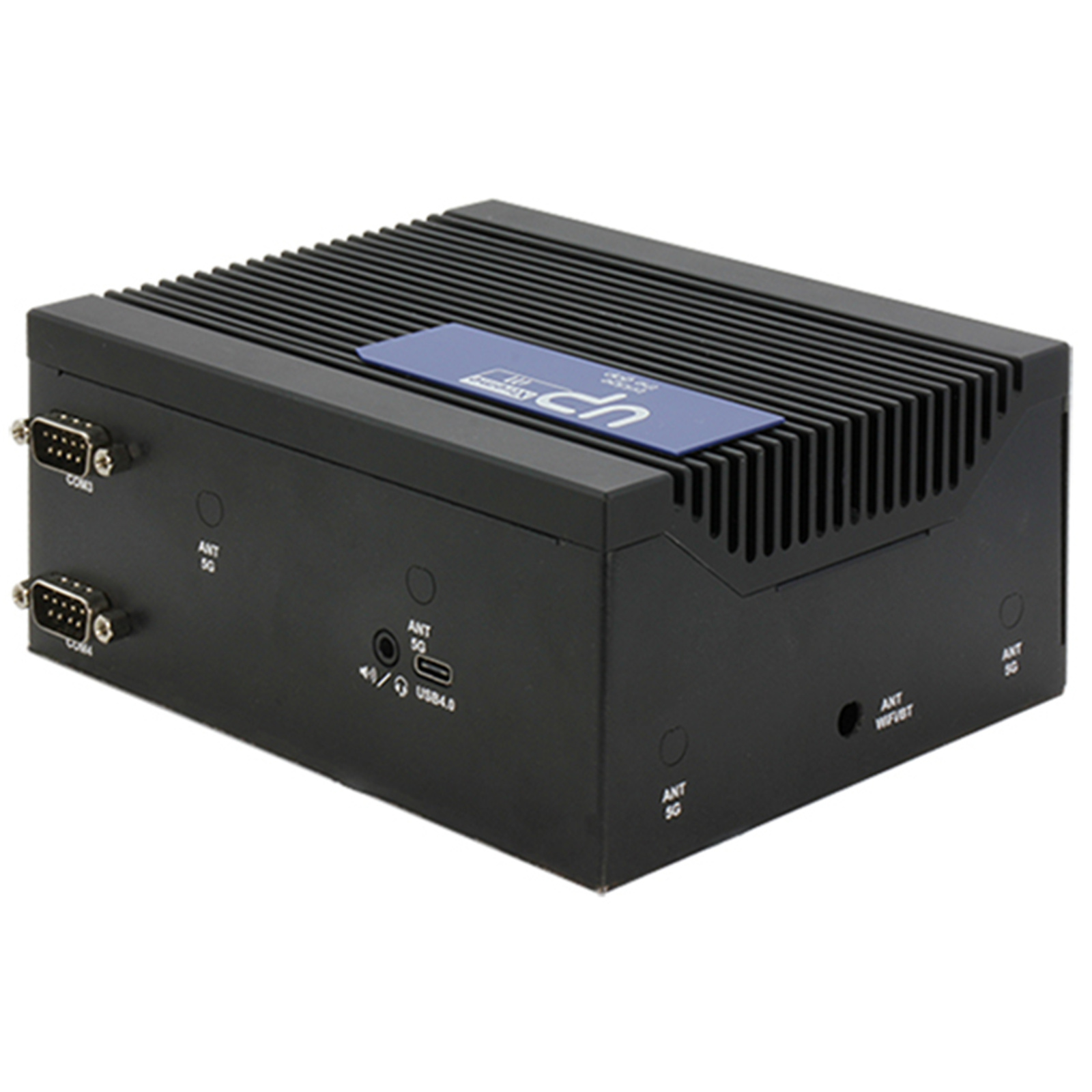

The UP Xtreme i11 Edge packages the powerful and innovative UP Xtreme i11 board in a system platform that's designed to easily deploy AI Edge applications anywhere they're needed. Powered by the 11th Generation Intel® Core™ processors (formerly Tiger Lake UP3), the UP Xtreme i11 delivers up to 20% greater performance over the previous generation along with up to 64GB of DDR4 SO-DIMM memory. The UP Xtreme i11 Edge is now available in both fan and fanless designs, expanding its application potential. The UP Xtreme i11 is built for AI, leveraging the embedded Intel® Iris® Xe graphics with an AI enhanced engine to allow implementation of various inferences, compatible with the Intel® distribution of OpenVINO™ toolkit.

Both the original and fanless versions of the UP Xtreme i11 Edge are built to provide flexible deployment for any project, delivering sophisticated AI solutions in a versatile package. The system itself is smaller than the previous generation, making it easier to install in tight spaces. The UP Xtreme i11 Edge features several M.2 expansion slots, designed to support Wi-Fi 6 communication, AI accelerator modules, and 5G cellular cards. Additionally, the system is available as an Intel® Foundation Kit, the UP Xtreme i11 Edge Compute Enabling Kit, which contains everything you need to deploy out of the box, including Ubuntu Certification with the Ubuntu OS pre-installed, saving time and money for setup.

- 11th generation Intel® Core™ i7/i5/i3/Celeron® Processor SoC (formerly Tiger Lake UP3)
- DDR4 SO-DIMM Slot x 2 (up to 64GB)
- 16pin GPIO connector x 1
- SATA storage
- Support 5G via M.2 3052
- Support AI Accelerator via M.2 2280
- Support WiFi 6
- Support USB 4.0
- Support LAN up to 2.5Gbps
- Fanless/Fan design available


Want us to build your custom PC?

Frequently asked questions

Can I swap out parts and/or add/change/remove operating systems in a PB Tech PC?

We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.

Contact our WebSales team here

What parts are used in this PC?

The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.

Once again, you can contact our WebSales team here

I've just purchased my first custom PC, how do I set it up?

Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.

Your can learn more in our new PC setup guide here

Specifications

SYSTEM

CPU

11th Gen Intel® Core™ Processor SoC
Core i7-1185G7E
Core i7-1185GRE
Core i5-1145G7E
Core i5-1145GRE
Core i3-1115GRE
Celeron® 6305E

MEMORY

DDR4 SO-DIMM Slot x 2 (up to 64GB 3200Mhz)

GRAPHICS

Intel® Iris® Xe graphics

STORAGE

SATA CONN x 1 with POWER CONN (2.5" SSD)
M.2 2280 M Key NVMe(PCIe [x2])

ETHERNET

Intel® i225IT x 1, Intel® i219 (vPRO) x 1

WIFI/BT

Optional

EXPANSION SLOT

M.2 2230 E-Key x 1
M.2 2280 M-Key x 1
M.2 3052 B-Key x 1 with Micro-SIM
SATA3.0 with power connector x 1 (2.5" SSD)
PCIe x 4 slot (Optional)

SECURITY

-

OS SUPPORT

Windows 10 /IOT, Yocto 3.1, Ubuntu 20.04.02

I/O PLACEMENTS

USB

USB3.2 Gen2 x 3
USB2.0 x 1 (Type A)
USB4.0 via USB type C

DISPLAYPORT

HDM 2.0 x 1 /DP 1.4 x 1
eDP x 1, 4K at 60hz panel

ETHERNET

Intel® i225IT x 1, Intel® i219 (vPRO) x 1

COM

RS232/422/485 x 2

AUDIO

Realtek ALC888s x 1 (Mic /Line out)

GPIO

-

POWER SUPPLY

POWER REQUIREMENT

-

POWER SUPPLY TYPE

-

POWER CONSUMPTION (TYPICAL)

-

MECHANICAL

MOUNTING

-

DIMENSIONS (W X H X D)

-

NET WEIGHT

-

GROSS WEIGHT

GW: 2.3kg

ENVIRONMENT

OPERATING TEMPERATURE

32°F ~ 140°F (0°C ~ 60°C)
Fanless Sku memory and Storage requirement:
DRAM Module : 0°C ~ 85°C
2.5" SSD: -45°C ~ 85°C

OPERATING HUMIDITY

0% ~ 90% relative humidity, non-condensing

STORAGE TEMPERATURE

-

MTBF

-

CERTIFICATION

CE,FCC Class A
