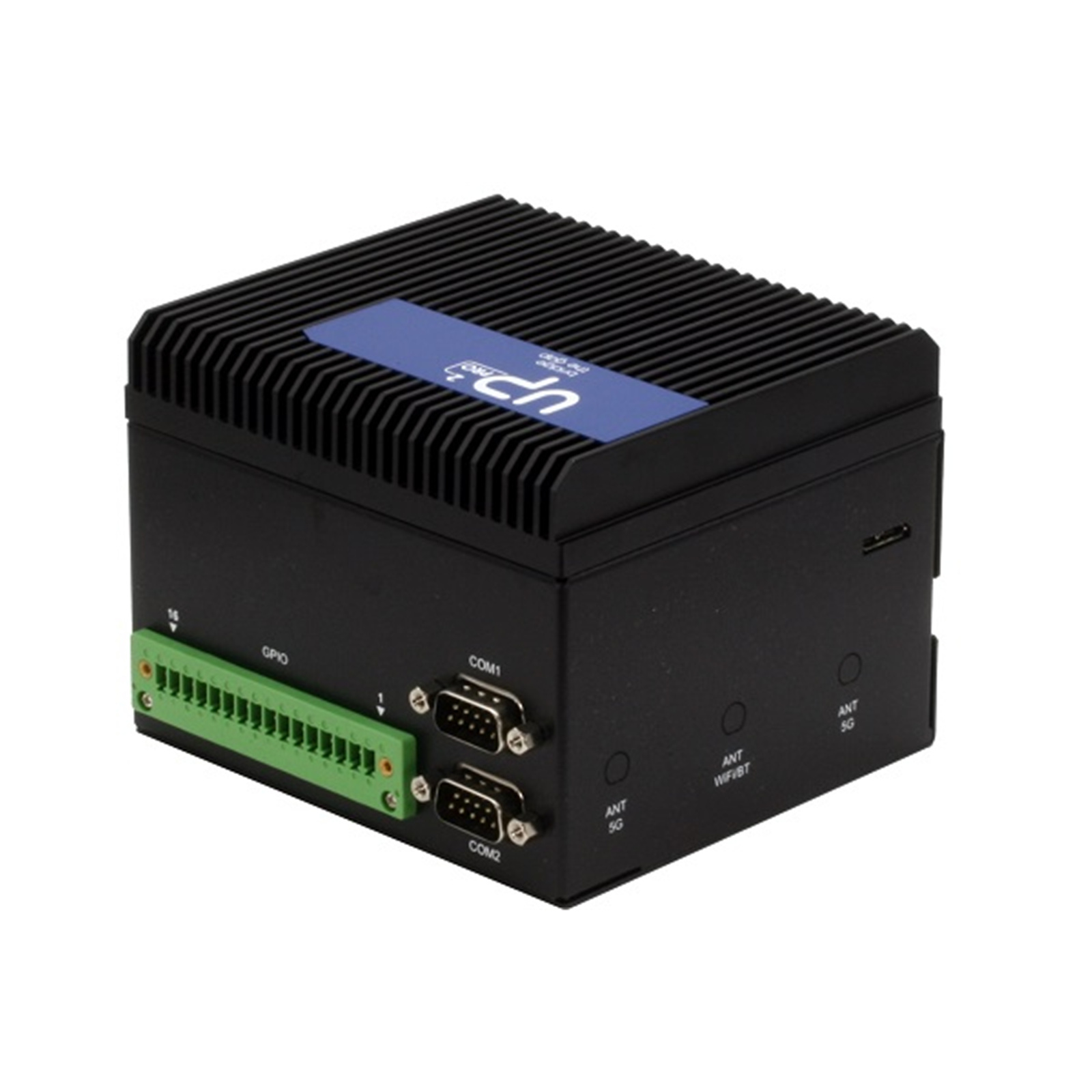

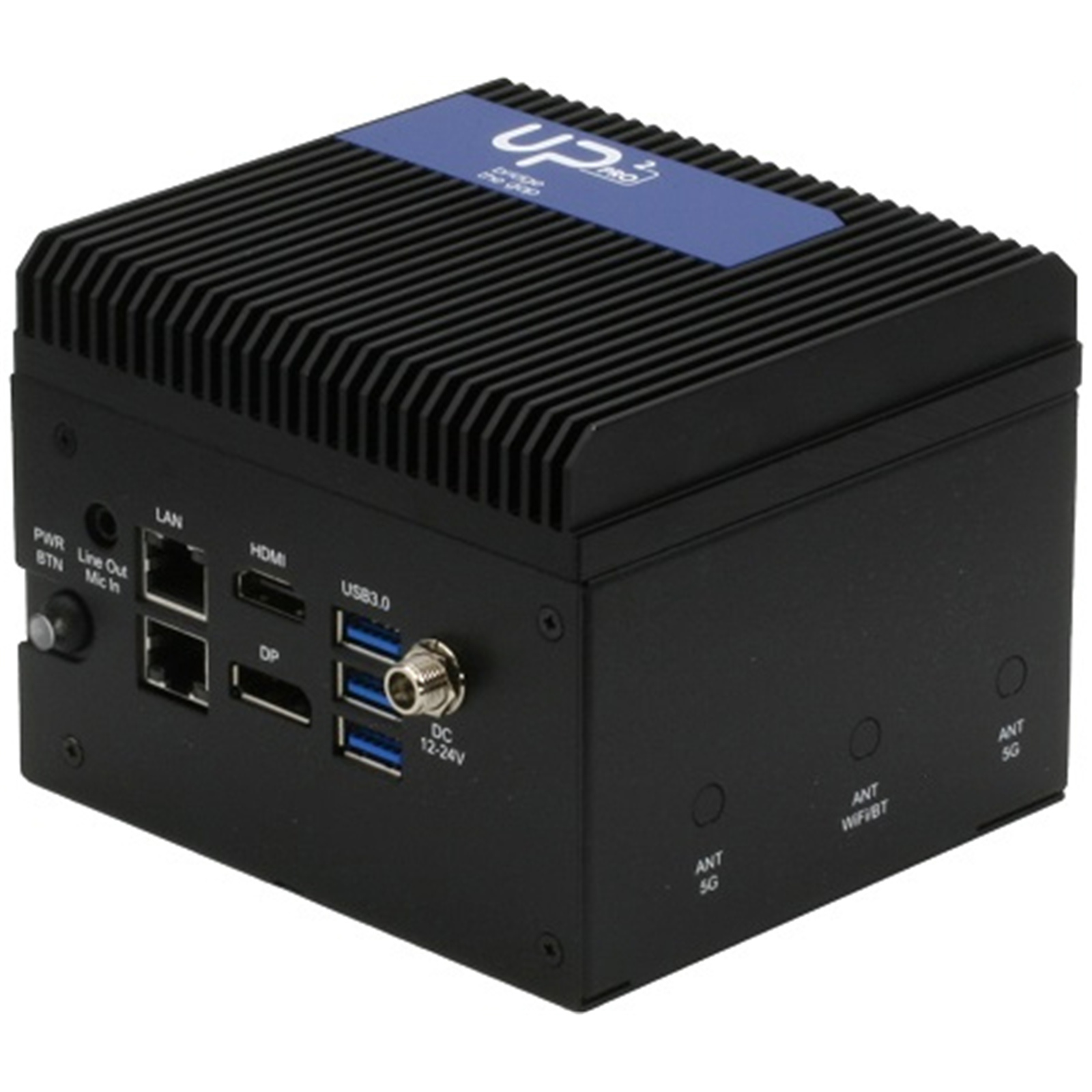

AAEON UPSquared PRO System UPN-EDGE PRO.CPU N4200(F1).Memory 8GB.eMMC 64GB.REV.A1.0
- Brand: AAEON
- MPN: UPN-EDGE-APLP4F-A10-0864
- Part #: WKSAAESQP004

Product URL: https://www.pbtech.co.nz/product/WKSAAESQP004/AAEON-UPSquared-PRO-System-UPN-EDGE-PROCPU-N4200F1
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
UP Squared Pro EDGE System with Intel® Pentium® N4200/ Celeron® N3350/ Atom™ E3950 Processor SoC
- Intel® Pentium® N4200/ Celeron® N3350/ Atom™ E3950 Processor SoC
- Onboard LPDDR4 Memory up to 8GB
- Onboard eMMC Storage up to 64GB
- Gigabit LAN x 2, USB 3.2 Gen 1 (Type A) x 3
- 12-24 VDC-in, 5A
- 16pin GPIO connector for 40 pin HAT
- Audio Jack x 1 (line out + Mic)
- SATA3 x 1
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a PB Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Specifications
SYSTEM
CPU
Intel® Apollo Lake N4200/N3350/E3950 Processor SoC
MEMORY
onboard DDR4, Max 8GB
Single Channel:2GB
Dual Channel:4GB,8GB
GRAPHICS
Intel® Graphic ,Gen 9
STORAGE
Emmc 32G/64G
ETHERNET
Intel i210 x2
WIFI/BT
Optional
EXPANSION SLOT
40 pin GPIO x 1
M.2 2230 E-key x 1
M.2 2280 M-key x 1
M.2 3052/3042 B-key x 1 (support with SIM)
SATA3 connector x 1 (support 2.5" HDD/SSD expansion)
SECURITY
-
OS SUPPORT
Microsoft Windows 10 (full), Windows IOT Core
Linux: Ubuntu 18.04.5 & Ubuntu 20.04.1
Yocto 3.1
I/O PLACEMENTS
USB
USB3.2 Gen1 OTG x 1
USB3.2 Gen1 (Type A) x 3
DISPLAYPORT
HDMIx1, DP x1
ETHERNET
Gb Ethernet (full speed) RJ-45 x 2 ( Intel i210)
COM
RS422/RS232/RS485 x 2
AUDIO
Line out+mic in x1
GPIO
-
POWER SUPPLY
POWER REQUIREMENT
12-24VDC
POWER SUPPLY TYPE
-
POWER CONSUMPTION (TYPICAL)
-
MECHANICAL
MOUNTING
-
DIMENSIONS (W X H X D)
4.61" x4.19" x3.5" (117mm x 106.5mm x 88.8mm)
NET WEIGHT
-
GROSS WEIGHT
2.17 lb (982.5g)
ENVIRONMENT
OPERATING TEMPERATURE
32°F ~ 140°F (0°C ~ 55°C) with air flow 0.5m/s
OPERATING HUMIDITY
0% ~ 90% relative humidity, non-condensing
STORAGE TEMPERATURE
-
MTBF
-
CERTIFICATION
CE/FCC Class A, RoHS Compliant , REACH
