AAEON UP Xtreme System UPX-EDGE. i7-8665UE.16GB RAM.64GB eMMC. A1.0

AAEON UP Xtreme System UPX-EDGE. i7-8665UE.16GB RAM.64GB eMMC. A1.0

  • Brand: AAEON
  • MPN: UPX-EDGEI7-A10-1664-F01
  • Part #: WKSAAEXTR001
  • UPC:
  • Brand: AAEON
  • MPN: UPX-EDGEI7-A10-1664-F01
  • Part #: WKSAAEXTR001
  • UPC:

Features

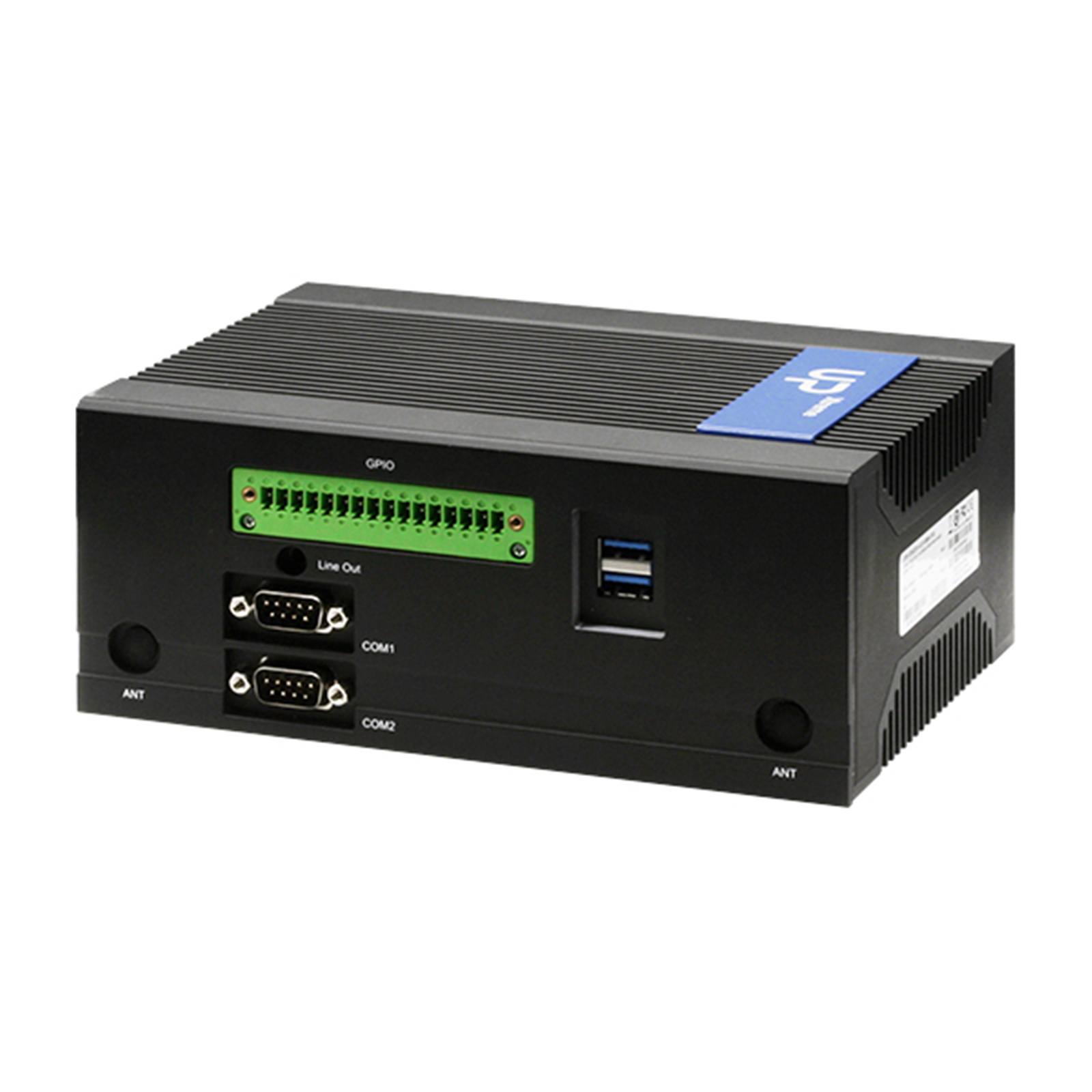

The UP Xtreme Edge Computing System, or UPX-Edge for short, is a complete embedded system that's ready to go out of the box. Built on the UP Xtreme board, UPX-Edge is powered by 8th Generation Intel® Core™ and Celeron® processors (formerly Whiskey Lake) with up to 16GB of onboard RAM and 64GB of eMMC memory to power through any application. With the latest Intel® graphics solution, the UPX-Edge is capable of 4K video output, and features a built-in audio jack as standard.

The UPX-Edge is designed with key industrial I/O features for flexibility and easy integration with existing infrastructure. I/O ports include two external GPIO connections, two COM ports, and four USB 3.2 Gen 1 ports. The UPX-Edge can also hold up to extreme conditions, with an operating temperature range of -20°C to 70°C (tested with AI Core XM 2280, 2x Intel® Movidius™ Myriad™ X).

UPX-Edge makes deploying a powerful edge system easy, whether it's as a factory IoT gateway, AI powered machine controller, or in a smart retail application.

- Intel® WHL-U Core™ i7/i5/i3/Celeron Processor SoC
- Onboard DDR4 memory, Max 16GB
- eMMC 64GB
- HDMI 2.0 x 1 (Support 4K at 60 Hz)
- COM ports (RS-232/422/485) x 2
- 16pin GPIO connectors (1x GPIO for SMT32, 1x GPIO for 40pin HAT)
- Audio Jack x 1 (line out + Mic)
- 12-60V DC-in
- Fanless Chassis design


Want us to build your custom PC?

Frequently asked questions

Can I swap out parts and/or add/change/remove operating systems in a PB Tech PC?

We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.

Contact our WebSales team here

What parts are used in this PC?

The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.

Once again, you can contact our WebSales team here

I've just purchased my first custom PC, how do I set it up?

Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.

Your can learn more in our new PC setup guide here

Specifications

SYSTEM

CPU

8th generation Intel Core i7/i5/i3/Celeron Processor SoC

MEMORY

Onboard DDR4 memory, Max 16GB
Single Channel: 4GB
Dual Channel: 8GB, 16GB

GRAPHICS

Intel® Graphics , GEN 9

STORAGE

eMMC 64GB

ETHERNET

i7/i5 SKU LAN (i210 AT) x 1, LAN (i219 LM) x 1
i3/Celeron® LAN (i210 AT) x 1, LAN (i219 V) x 1

WIFI/BT

Optional

EXPANSION SLOT

M.2 2230 E Key x 1
M.2 2280 M Key x 1
mPCIe slot x 1
100pin connector x 1
40 pin HAT x 1
SATA3 connector x 1 (support 2.5" HDD/SSD expansion)

SECURITY

-

OS SUPPORT

Win 10, Linux Ubuntu 18.04 with Kernel 5.0, Linux Yocto 2.7 with Kernel 4.19

I/O PLACEMENTS

USB

USB 3.2 Gen 2 STACK Connector for 2 ports (Front) x 1
USB 3.2 Gen 2 STACK Connector for 2 ports (Rear) x 1

DISPLAYPORT

HDMI 2.0 x 1 (Support 4K at 60 Hz), DP 1.2 x 1,
16pin GPIO connectors (1 x GPIO for SMT32, 1 x GPIO for 40pin HAT)

ETHERNET

RJ45 connector x 2

COM

RS-232/422/485 x 2

AUDIO

Line out + MIC x 1

GPIO

-

POWER SUPPLY

POWER REQUIREMENT

12V5A

POWER SUPPLY TYPE

12VDC from M/B

POWER CONSUMPTION (TYPICAL)

-

MECHANICAL

MOUNTING

-

DIMENSIONS (W X H X D)

-

NET WEIGHT

-

GROSS WEIGHT

6.61lbs (3kg)

ENVIRONMENT

OPERATING TEMPERATURE

eMMC: 32°F ~ 140°F (0°C ~ 60°C)
SATA: -4°F ~ 158°F (-20°C ~ 70°C)
With AI module: 32°F ~ 140°F (0°C ~ 60°C)

OPERATING HUMIDITY

0% ~ 90% relative humidity, non-condensing

STORAGE TEMPERATURE

-

MTBF

-

CERTIFICATION

CE/FCC Class A, RoHS Compliant, REACH

Manufacturer Part No:
UPX-EDGEI7-A10-1664-F01
Brand:
Product Type:
-
UPC
-
Product Family:
UP Xtreme System
Shipping Weight:
1 kg
PB Part No:
WKSAAEXTR001
Product Model:
-
Warranty: 12 months *
