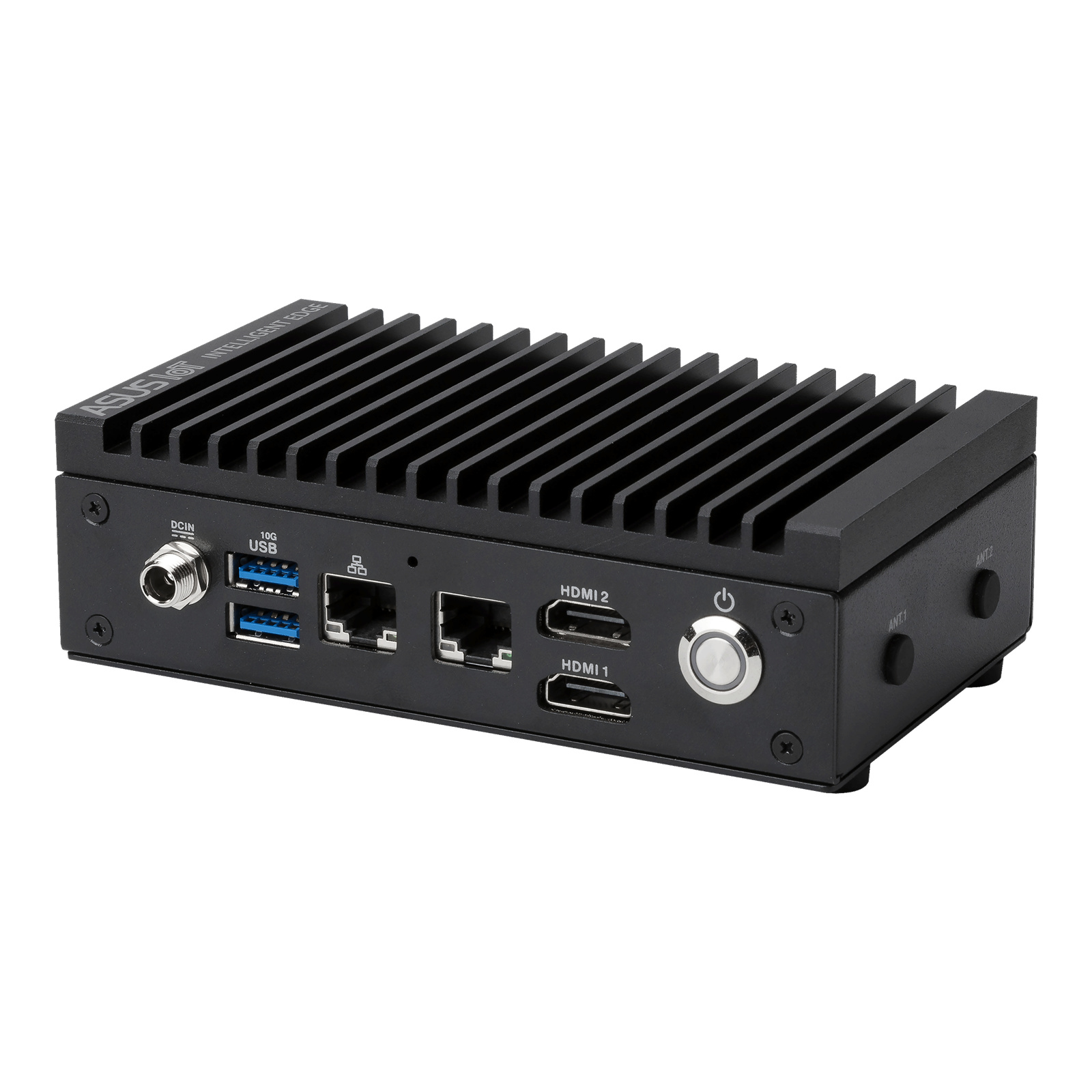

ASUS IoT Rugged Fanless system EBS-P300 Celeron J6412 Barebone LPDDR4x on board, up to 4Kp60 solutions via HDMI X 2, Dual-LAN, Multiple COM, USB3.2, M.2 E key, M.2 B key, 12-24V DC
Out of stock
ASUS IoT Rugged Fanless system EBS-P300 Celeron J6412 Barebone LPDDR4x on board, up to 4Kp60 solutions via HDMI X 2, Dual-LAN, Multiple COM, USB3.2, M.2 E key, M.2 B key, 12-24V DC
- Brand: ASUS IoT
- MPN: EBS-P300
- Part #: WKSASU050
- UPC:
- Brand: ASUS IoT
- MPN: EBS-P300
- Part #: WKSASU050
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Computers





ASUS IoT Rugged Fanless system EBS-P300 Celeron J6412 Barebone LPDDR4x on board, up to 4Kp60 solutions via HDMI X 2, Dual-LAN, Multiple COM, USB3.2, M.2 E key, M.2 B key, 12-24V DC
- Brand: ASUS IoT
- MPN: EBS-P300
- Part #: WKSASU050

Product URL: https://www.pbtech.co.nz/product/WKSASU050/ASUS-IoT-Rugged-Fanless-system-EBS-P300-Celeron-J6
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Extreme Light BOX PC, Easy To Adapter Everywhere
Fanless design for rugged environments
Supports 2.5Gbe & 1Gbe Ethernet for various data transmission.
Fix Holes for Antenna, Wall Mount, DIN-Rail Kit Optional

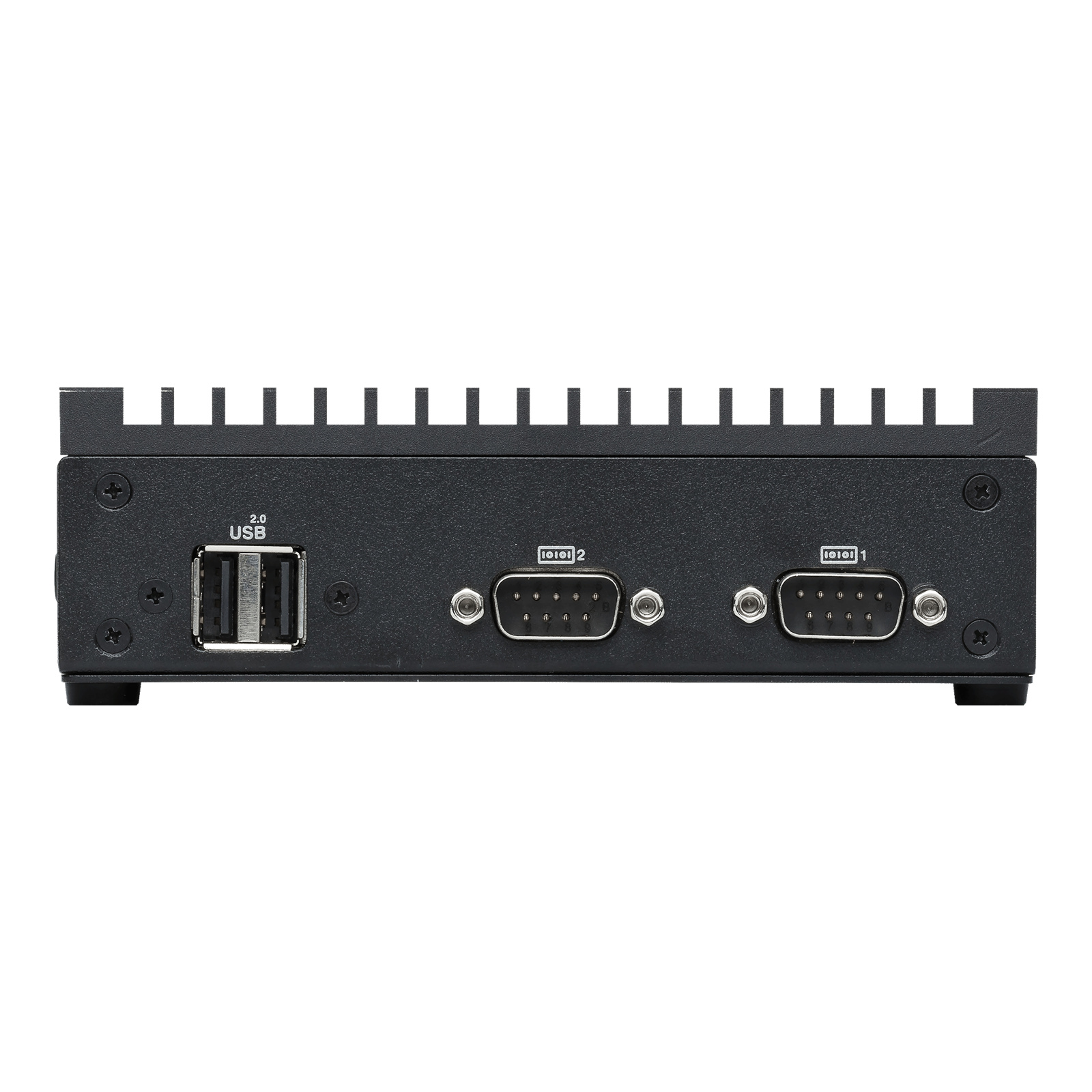

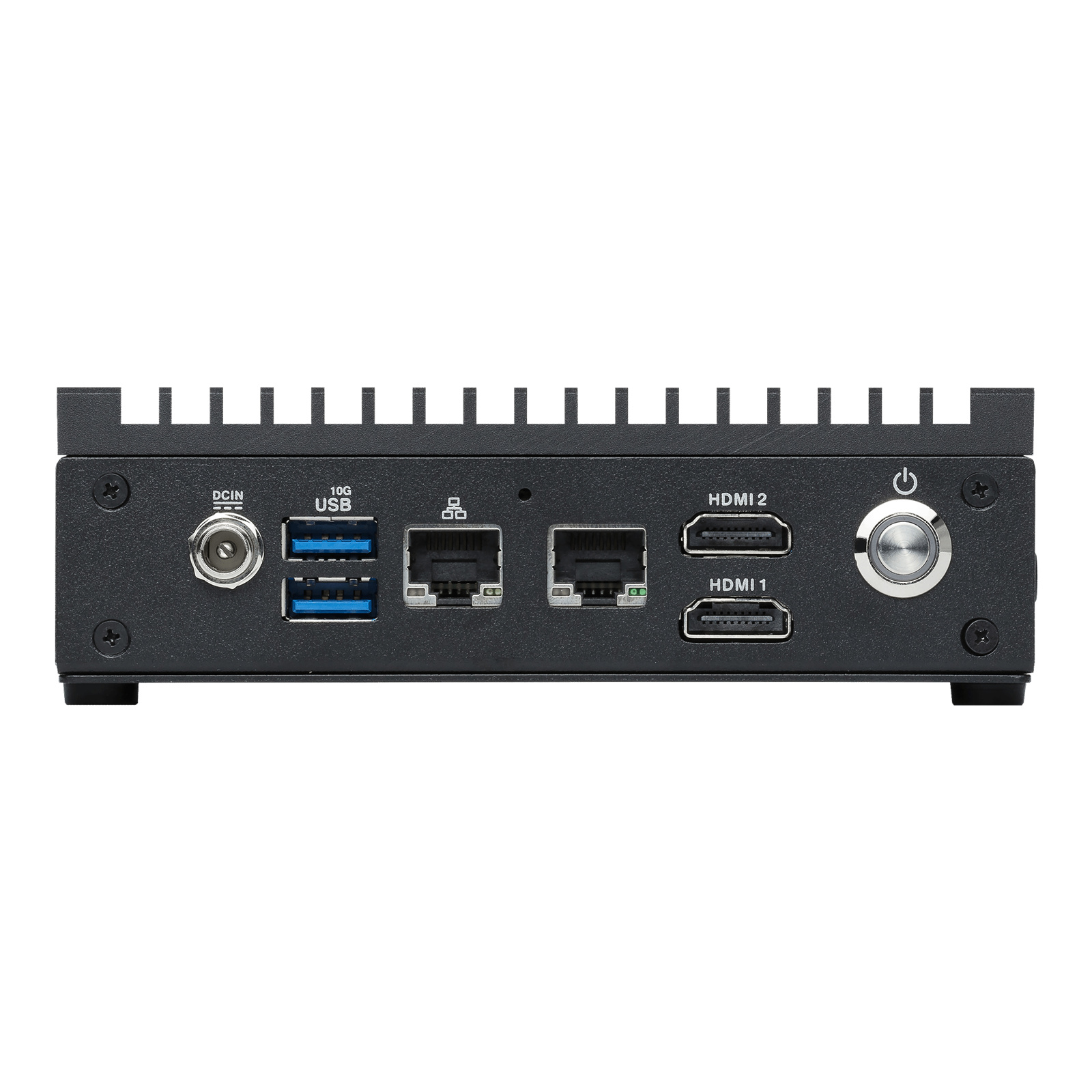

Excellent expansibility with essential I/O ports on front/back side bezel
TPM 2.0 on board or optional
The EBS-P300 PICO-ITX motherboard is equipped with the Intel® Celeron® J6412 processor and is suitable for various applications due to its fanless design. It comes with on-board LPDDR4x-3733 8GB memory and up to 128GB EMMC storage. Additionally, it can drive independent displays with up to 4Kp60 resolution through two HDMI ports.
Experience versatile data transmission with support for both 2.5Gbe and 1Gbe Ethernet, while our system comes equipped with basic I/O ports on both front and rear sides, allowing seamless expansion and connectivity to other devices. Whether integrating POS systems or incorporating external devices, unlock greater flexibility and convenience.
As the world's No.1 motherboard brand, ASUS offers industrial motherboards with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after-sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a PB Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Specifications
System CPU
CPU
Intel® Celeron® J6412 Processor
Base Frequency
Up to 2.6 GHz
Core/Tread
4/4
CPU TDP
10W
Memory
Technology
LPDDR4x 3733
Max.
8GB
Storage
EMMC
128GB
M.2 B Key
1 x M.2 2242 B Key Socket
External Interfaces
Video
1 x HDMI 2.0; 1 x HDMI 1.4
Ethernet
1 x Intel® I226V (2.5 Gbe) & 1 x Intel I210AT (1 Gbe)
USB
2 x USB 3.2; 2 x USB 2.0
COM
2 x RS232/422/485
Expansion Slot
M.2
1 x 2230 M.2 E key for WIFI/BT device
1 x 2242 M.2 B Key (Support PCIE & SATA Storage)
Power
Power
12V-24V DC Input
Mechanical
Construction
Aluminum housing
Mounting
DIN-rail/Wall Mount
Dimensions
137 x 81 x 44.45 mm
Security
TPM
TPM2.0, TPM optional (Infineon SLB 96xx)
OS & Software Support
Microsoft Windows
Windows® 10 (64bit) / Windows® IoT enterprise
Linux
Ubuntu, RedHat Enterprise, Fedora Workstation, OpenSUSE
ASUS IoT Suite
HW Monitor
Power Scheduling
Fan Control
Watch Dog Timer
GPIO
I2C
Linux GPIO Sample code
User Interfaces
API
GUI
Environment
Operating Temp.
0 ~60° C
Relative Humidity
Operational humidity: 40°C@10%~95%
Certification
EMC ,Safety
CE, FCC, CCC, BSMI
