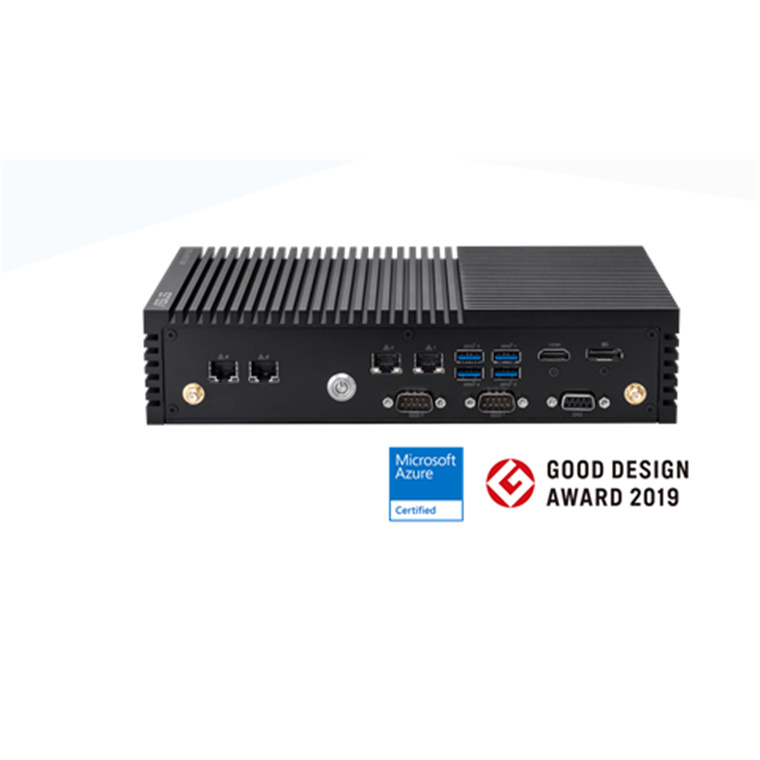

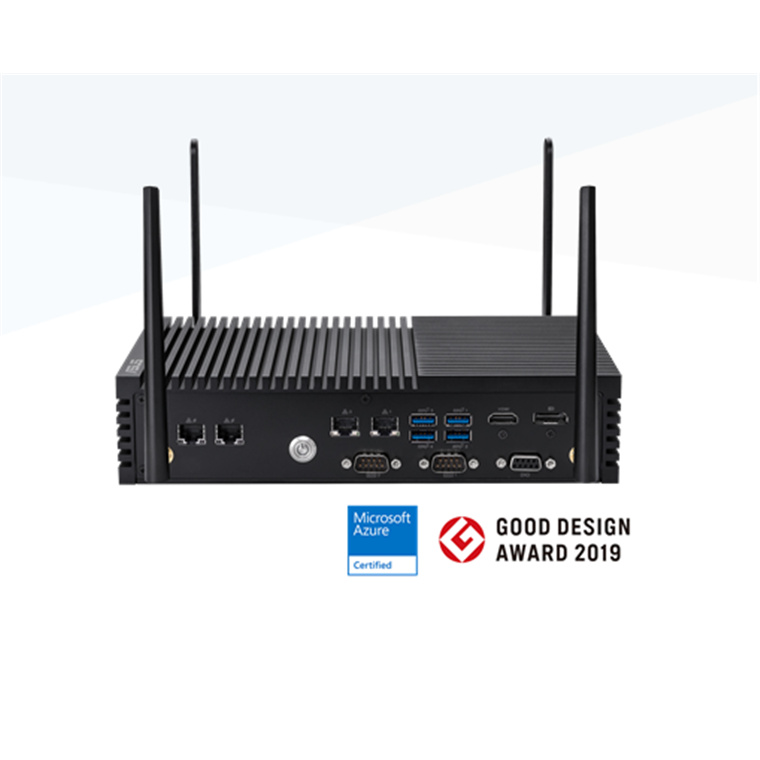

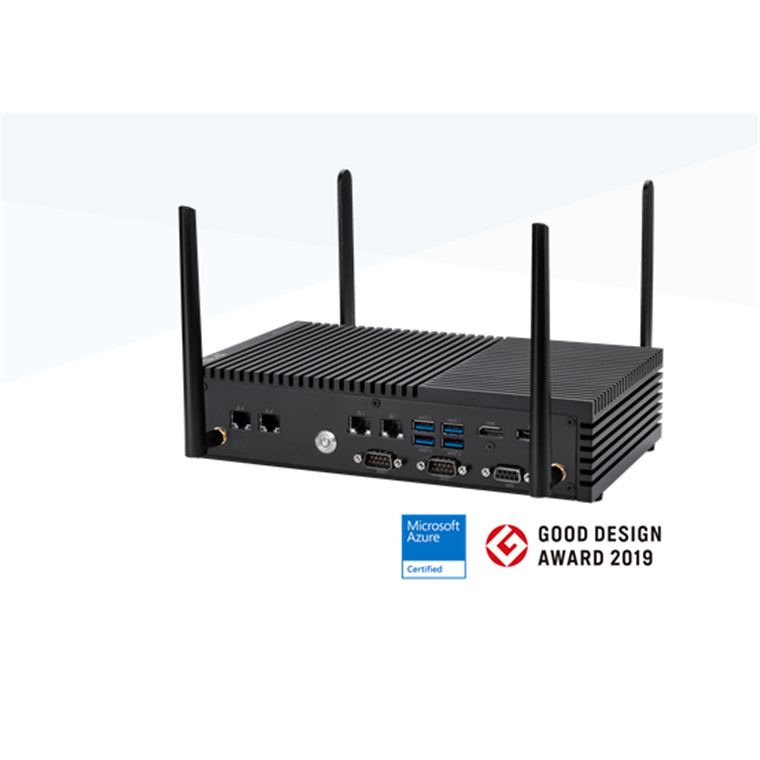

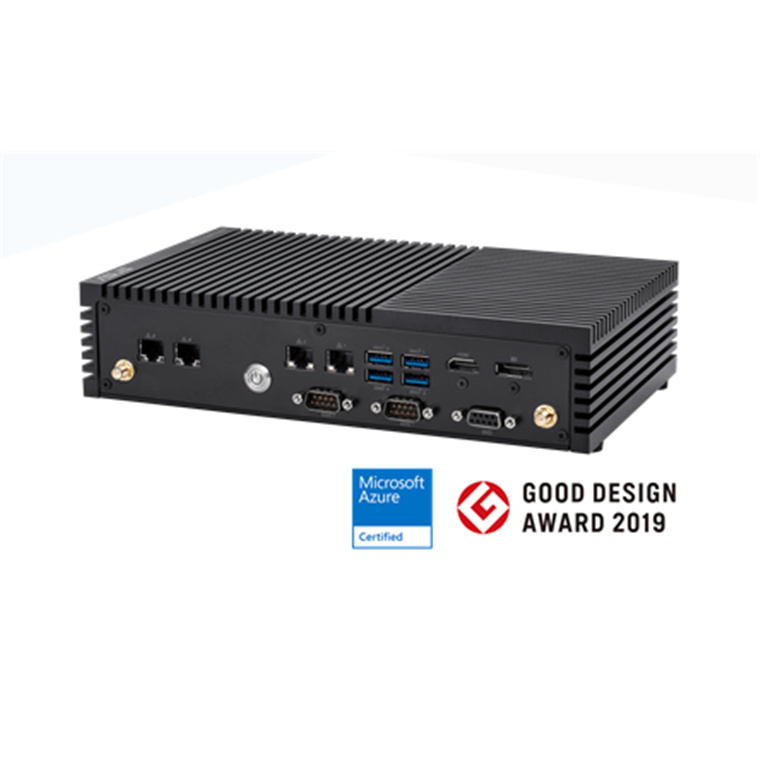

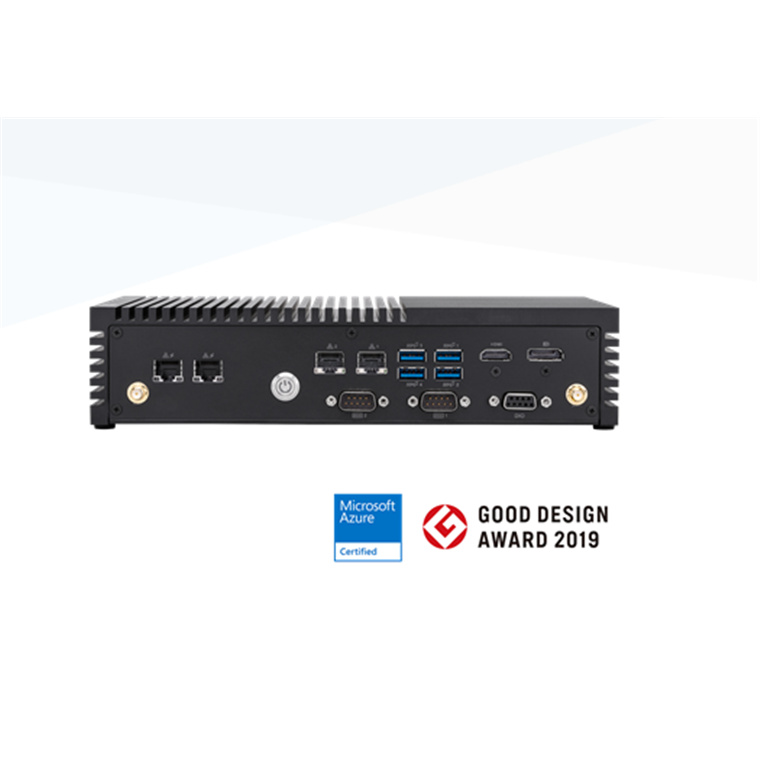

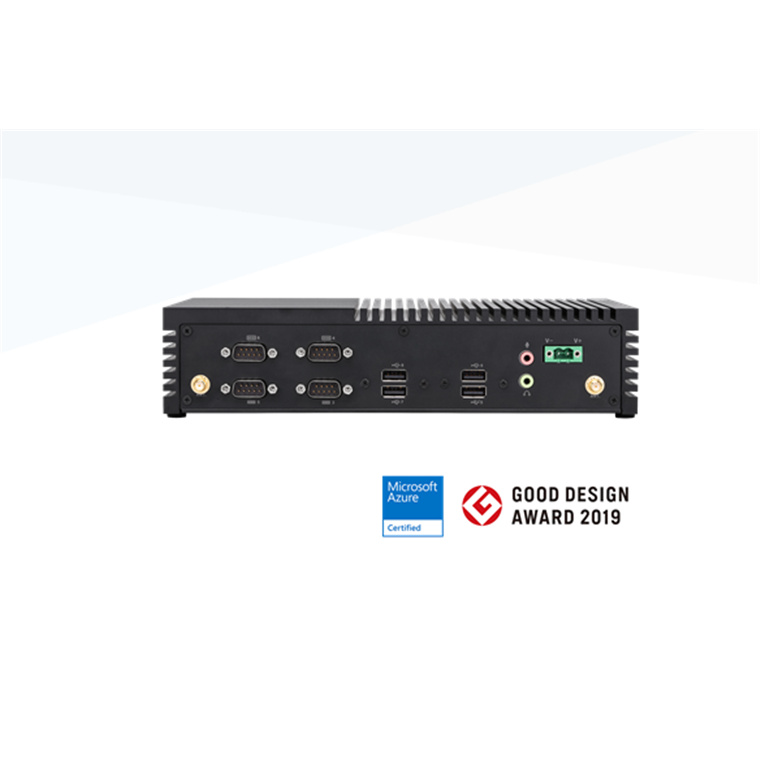

ASUS IoT PE200U I3, 8G, 256GB with mini PCIe slot, DP, HDMI, 12-24V Dual-LAN, Multiple COM DC, TMP, Wide temp storage -40~85°C ,
Out of stock
ASUS IoT PE200U I3, 8G, 256GB with mini PCIe slot, DP, HDMI, 12-24V Dual-LAN, Multiple COM DC, TMP, Wide temp storage -40~85°C ,
- Brand: ASUS IoT
- MPN: PE200UI3H
- Part #: WKSASUPE200UI3H
- UPC:
- Brand: ASUS IoT
- MPN: PE200UI3H
- Part #: WKSASUPE200UI3H
- UPC:
Features
ASUS IoT PE200U - Intel® Core™ i3 Processor Intelligent Edge Computer with mini PCIe slot,DDR4 2400MHz, DP, HDMI, Dual-LAN, Multiple COM, 12-24V DC
- Achieve high performance with full CPU utilization and fan-less thermal
- Wide range of power inputs (12~24V) and operating temperatures (-20°~60°)
- Diverse I/O interface and expansion options for multiple markets
- World-class after-sales service and long-term availability guarantee
- A high-quality, TCO-optimized solution for AIoT computing
- Supports I2C, SMBus and GPIO
ASUS PE200U is an Intelligent Edge Computer with a high-quality, TCO-optimized solution for AIoT computing. PE200U includes up to 6 COM ports(2 x RS-232/422/485) and supports dual display configuration by multiple interface: HDMI/DP and integrated CPU. PE200U is designed for high performance and silent operation in harsh environment. It's capable of achieving full CPU utilization while being cooled by a fanless thermal solution.
ASUS Edge Computer offers enhanced features to ensure optimal performance and the flexibility to adapt to the surrounding environment, configure easily with a wide range of power inputs (12~24V), operating temperatures (-20°~60°), diversified I/O interface and expansion for multiple vertical markets. ASUS Edge computer is built for 24/7 stability and reliability, combined with our world-class after-sales service and guaranteed long-term availability - your investment for the duration of the product lifecycle is maximized.

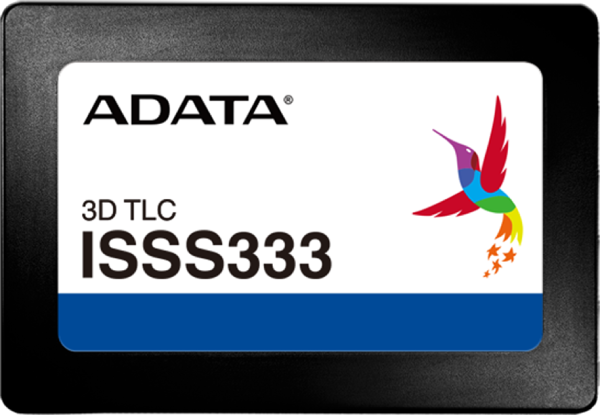

ADATA SSD 256GB
- P/E cycle upgrade to 3K - improved endurance and reliability
- 3D NAND Flash for higher capacity, durability, and power efficiency
- SATA III 6Gbps
- Maximum sequential read/write speed : 560/520MB per second
- Low power consumption : 3.96W
- Supports S.M.A.R.T, Wear Leveling, NCQ, and Windows TRIM Command
- Hardware power detector and Flash protection
- Suitable for Automation, IPC, Networking, Transportation, Surveillance, and Healthcare
The ISSS333 2.5" SATA III solid state drives implement 3D NAND Flash for superb transfer rates up to 560/520MB per second. They also feature low power consumption, high reliability, and compatibility across diverse storage applications that require security, convenience, performance, and capacity.
ISSS333 solid state drives are purpose-made for industrial computing, embedded applications, and general automation, and take full advantage of ADATA proprietary A+ Testing Methodology. This guarantees drives meet the exacting requirements of industrial and enterprise applications.
When it comes to SSD quality, ADATA A+ Testing Methodology delivers superior functionality and reliability. ISSS333 SSDs undergo the strictest quality controls to provide industrial systems with the best choice for reliability and rugged performance.
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a PB Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT
MINIX MiniPC Z97 Intel N97, 12GB DDR5, 512GB NVMe Dual Ethernet,...
MINIX Mini PC NGC NR660 AMD Ryzen 6600H/16GB DDR5/512GBSSD/ Win...
MINIX Mini PC NGC NR774 AMD Ryzen 8745HS/32GB DDR5/1TB SSD/ Win...
Transcend Embedded DrivePro Body 30 Body Worn Camera 1440P, 64GB...
JimiLab Vehicle Trackers VL 512 OBD II Play &Plug Tracker 4G with...
ASUS IoT PE200U I3, 8G, 256GB with mini PCIe slot, DP, HDMI, 12-24V Dual-LAN, Multiple COM DC, TMP, Wide temp storage -40~85°C ,
- Brand: ASUS IoT
- MPN: PE200UI3H
- Part #: WKSASUPE200UI3H
Product URL: https://www.pbtech.co.nz/product/WKSASUPE200UI3H/ASUS-IoT-PE200U-I3-8G-256GB-with-mini-PCIe-slot-DP
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
ASUS IoT PE200U - Intel® Core™ i3 Processor Intelligent Edge Computer with mini PCIe slot,DDR4 2400MHz, DP, HDMI, Dual-LAN, Multiple COM, 12-24V DC
- Achieve high performance with full CPU utilization and fan-less thermal
- Wide range of power inputs (12~24V) and operating temperatures (-20°~60°)
- Diverse I/O interface and expansion options for multiple markets
- World-class after-sales service and long-term availability guarantee
- A high-quality, TCO-optimized solution for AIoT computing
- Supports I2C, SMBus and GPIO
ASUS PE200U is an Intelligent Edge Computer with a high-quality, TCO-optimized solution for AIoT computing. PE200U includes up to 6 COM ports(2 x RS-232/422/485) and supports dual display configuration by multiple interface: HDMI/DP and integrated CPU. PE200U is designed for high performance and silent operation in harsh environment. It's capable of achieving full CPU utilization while being cooled by a fanless thermal solution.
ASUS Edge Computer offers enhanced features to ensure optimal performance and the flexibility to adapt to the surrounding environment, configure easily with a wide range of power inputs (12~24V), operating temperatures (-20°~60°), diversified I/O interface and expansion for multiple vertical markets. ASUS Edge computer is built for 24/7 stability and reliability, combined with our world-class after-sales service and guaranteed long-term availability - your investment for the duration of the product lifecycle is maximized.
ADATA SSD 256GB
- P/E cycle upgrade to 3K - improved endurance and reliability
- 3D NAND Flash for higher capacity, durability, and power efficiency
- SATA III 6Gbps
- Maximum sequential read/write speed : 560/520MB per second
- Low power consumption : 3.96W
- Supports S.M.A.R.T, Wear Leveling, NCQ, and Windows TRIM Command
- Hardware power detector and Flash protection
- Suitable for Automation, IPC, Networking, Transportation, Surveillance, and Healthcare
The ISSS333 2.5" SATA III solid state drives implement 3D NAND Flash for superb transfer rates up to 560/520MB per second. They also feature low power consumption, high reliability, and compatibility across diverse storage applications that require security, convenience, performance, and capacity.
ISSS333 solid state drives are purpose-made for industrial computing, embedded applications, and general automation, and take full advantage of ADATA proprietary A+ Testing Methodology. This guarantees drives meet the exacting requirements of industrial and enterprise applications.
When it comes to SSD quality, ADATA A+ Testing Methodology delivers superior functionality and reliability. ISSS333 SSDs undergo the strictest quality controls to provide industrial systems with the best choice for reliability and rugged performance.
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a PB Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Specifications
ASUS IoT PE200U I3 Specifications
CPU
Intel® Core™ i3-8145U Processor (formerly Whiskey Lake-U)
Chipset
Integrated
Memory
8GB (Up to 16GB) DDR4
Expansion Slots
1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT device
1 x M.2 Socket 3 with M key, type 2242 (PCIe x2 mode & SATA mode)
1 x Full-Length Mini PCIe slot with an on-board Nano-SIM socket
Storage
1 x SATA 6Gb/s connecter
1 x mSATA slot (shared with Mini PCIe)
1 x Micro SD Card slot (on-board)
Display
Multi-VGA output support :DP/HDMI ports
USB
4 x USB3.1 Gen2 Type-A ports
4 x USB2.0 connectors (optional)
Serial Port
2 x RS-232/422/485
4 x RS-232 (optional)
Internet
Dual RJ45 connectors (1 x Intel® I219V, 1 x Intel® I211AT)
Audio
Realtek ALC887-VD2 High Definition Audio CODEC
Internal I/O
1 x Chassis fan header
1 x Clear CMOS jumper
1 x LPC Debug header
1 x SMBus header
1 x I2C header
GPIO
1 x 8bit GPIO
TPM
TPM 2.0 (optional discrete module)
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.0, WfM 2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, Last Modified Log, ErP
Watch dog timer
Yes
Power requirement
12-24V DC input
Operation Temperature
-20~60°C (w/ selected memory and storage)
Non-Operation Temperature
-40~85°C
Relative Humidity
0%~85%
Operating System Support
Windows® 10 (64-bit) / Windows® 10 IoT Enterprise / Linux
Form Factor
254 x 147 x 57 mm
ADATA SSD Specifications
Form Factor
2.5"
Capacity
256GB
Interface
SATA III
Flash Type
3D TLC
Dimensions (L x H x W)
100 x 70 x 7mm
Sequential Read (Max)
560MB/s
Sequential Write (Max)
520MB/s
Operating Temperature (Industrial)
-40ºC to 85ºC
Operating Voltage
5V
Power Consumption
3.96W
Shock Resistance
1500G/0.5ms, Half Sine Wave
Operating Humidity
5%-95% RH, non-condensing
Vibration Resistance
20G (20-2000Hz)
Technologies
LDPC ECC, DEVSLP, S.M.A.R.T., Wear Leveling, NCQ and TRIM Command
