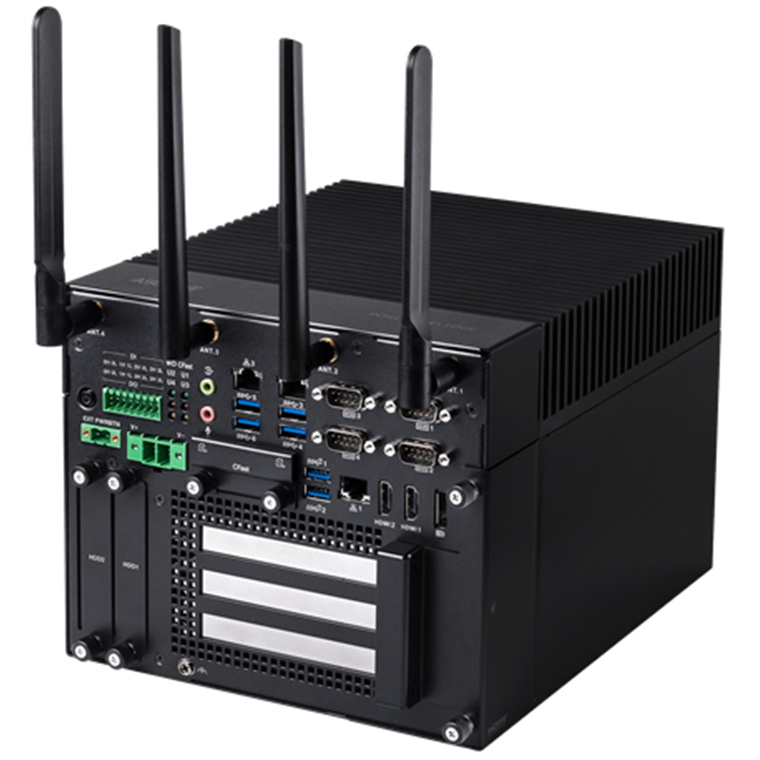

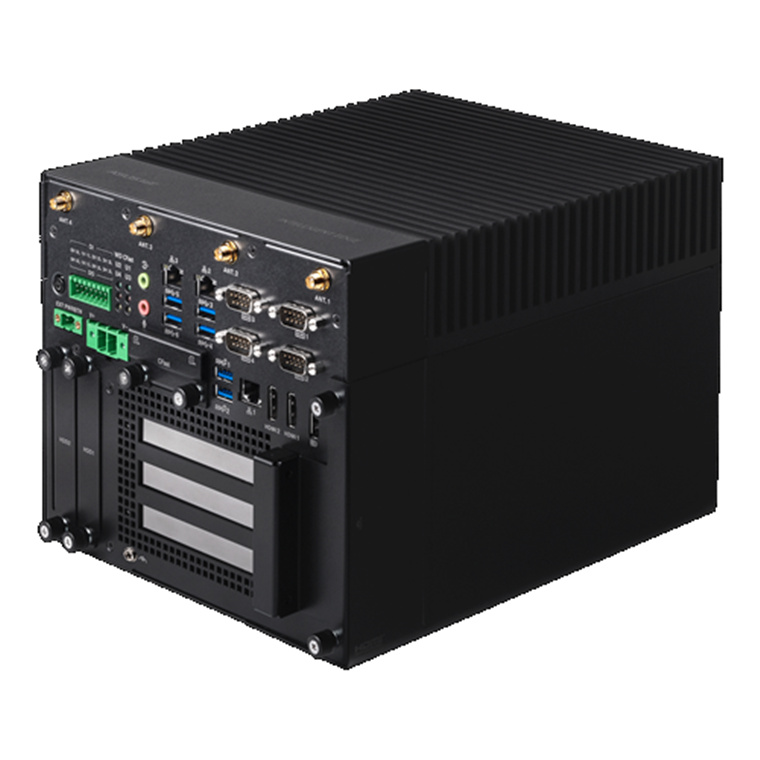

ASUS IoT Intelligent Computer PE400D i7 10700E mini PCIe x 1, PCIe x 3, DP x1, HDMIx 2, LAN x 3,COM x4, DIO x 1, SIM x2, USB x6, CFast x1, SATA x 2 Audio, 9to 36 VDC, 2 pin terminal block, Destop mount.TPM2.0
Out of stock
ASUS IoT Intelligent Computer PE400D i7 10700E mini PCIe x 1, PCIe x 3, DP x1, HDMIx 2, LAN x 3,COM x4, DIO x 1, SIM x2, USB x6, CFast x1, SATA x 2 Audio, 9to 36 VDC, 2 pin terminal block, Destop mount.TPM2.0
- Brand: ASUS IoT
- MPN: PE400-10700E
- Part #: WKSASUPE400DI7
- UPC:
- Brand: ASUS IoT
- MPN: PE400-10700E
- Part #: WKSASUPE400DI7
- UPC:
Features
Intel 10th Gen. Core-I and Xeon processors Intelligent Edge server with versatile connectivity, 3 expandable PCIe slots, supporting AI inferencing
- Powerful Intel® 10th Generation DT platform & Xeon Processor
- Heavy industry certification (IEC 61000)
- Massive expansion slots for storage, graphics, and AI accelerator card
- Wide range of power inputs (9~36V) and operating temperatures (-20~60°C)
- Wi-Fi & LTE ready to connect
ASUS PE400D is a powerful industrial grade edge server designed for rugged environment. Featuring Intel 10th Gen. Core-I and Xeon processors, PE400D offers massive capacity in versatile interfaces, such as CFAST, dual M.2, mPCIe, triple PCIe, dual SATA SSD. Apart from the intensive processing capability, connectivity and other applications, PE400D also offers multiple industrial I/Os all around. With heavy industry certification IEC 61000-6-2/4 and high standard of reliability test, smooth operation under tough electrical noise environment is guaranteed on PE400D.
The new computer is also engineered with a wide range of power inputs (9~36V), operating temperatures (-20°~60°) to serve as an edge-to-cloud gateway device for data aggregation, processing and forwarding. The TCO-optimized SBC is ideal for embedded automation solutions and diverse smaller-scale IoT applications. ASUS Edge computer also secure for 24/7 stability and reliability, combined with our world-class after-sales service and guaranteed long-term availability to make sure your investment for the duration of the product lifecycle is maximized.
More product SKUs, please contact [email protected]

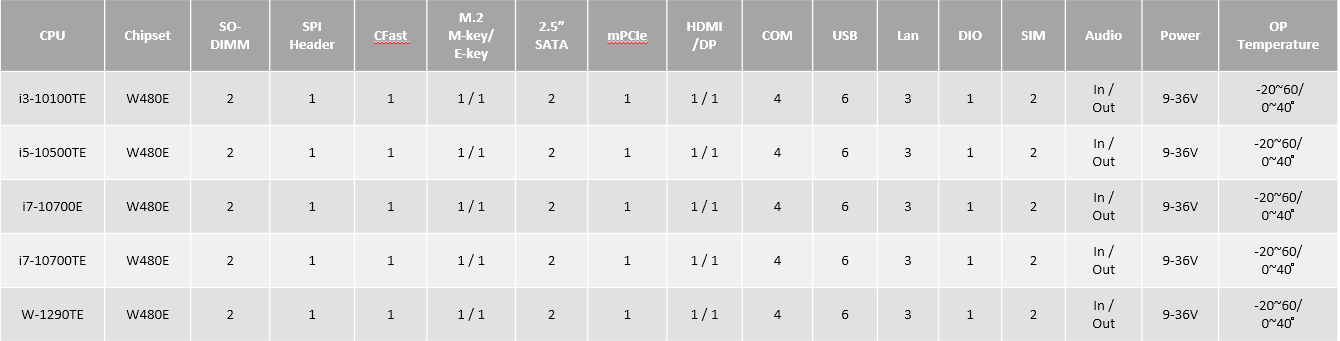

Ordering Information::

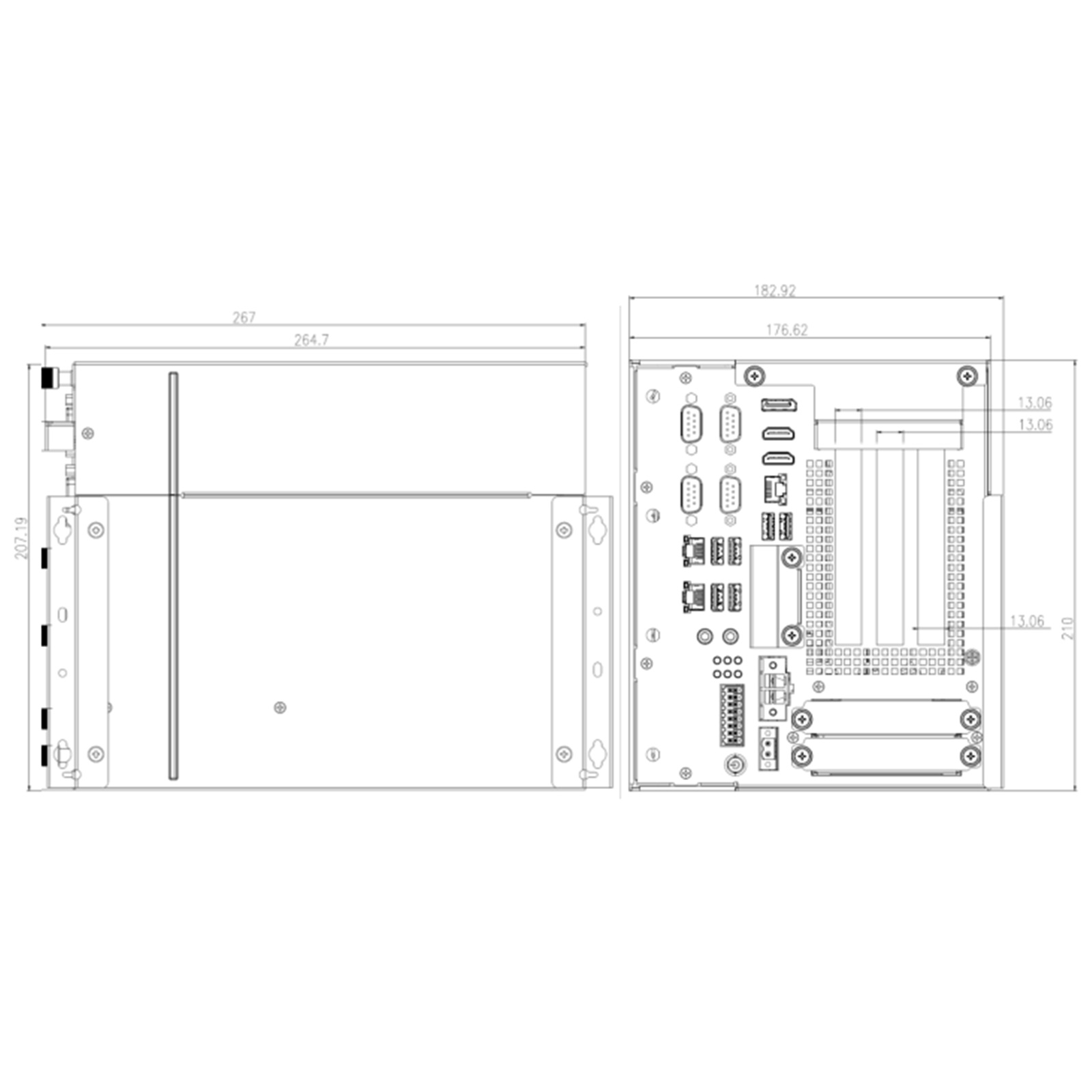

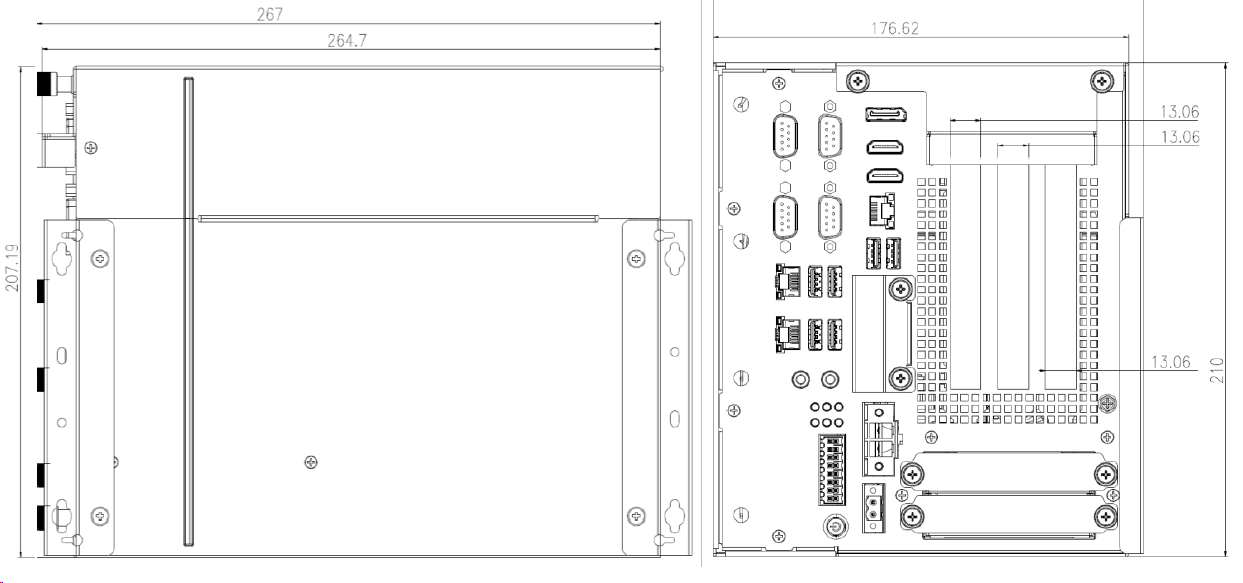

Dimension (mm):
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a PB Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Computers
MINIX MiniPC Z97 Intel N97, 12GB DDR5, 512GB NVMe Dual Ethernet,...
MINIX Mini PC NGC NR660 AMD Ryzen 6600H/16GB DDR5/512GBSSD/ Win...
MINIX Mini PC NGC NR774 AMD Ryzen 8745HS/32GB DDR5/1TB SSD/ Win...
MINIX Fanless MiniPC Z150-0dB Intel N150 16G/512GB, WiFi 6, Win...
MINIX Fanless MiniPC Z150-0dB Intel N150 8G/256GB, WiFi 6, Win 11...
ASUS IoT Intelligent Computer PE400D i7 10700E mini PCIe x 1, PCIe x 3, DP x1, HDMIx 2, LAN x 3,COM x4, DIO x 1, SIM x2, USB x6, CFast x1, SATA x 2 Audio, 9to 36 VDC, 2 pin terminal block, Destop mount.TPM2.0
- Brand: ASUS IoT
- MPN: PE400-10700E
- Part #: WKSASUPE400DI7
Product URL: https://www.pbtech.co.nz/product/WKSASUPE400DI7/ASUS-IoT-Intelligent-Computer-PE400D-i7-10700E-min
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Intel 10th Gen. Core-I and Xeon processors Intelligent Edge server with versatile connectivity, 3 expandable PCIe slots, supporting AI inferencing
- Powerful Intel® 10th Generation DT platform & Xeon Processor
- Heavy industry certification (IEC 61000)
- Massive expansion slots for storage, graphics, and AI accelerator card
- Wide range of power inputs (9~36V) and operating temperatures (-20~60°C)
- Wi-Fi & LTE ready to connect
ASUS PE400D is a powerful industrial grade edge server designed for rugged environment. Featuring Intel 10th Gen. Core-I and Xeon processors, PE400D offers massive capacity in versatile interfaces, such as CFAST, dual M.2, mPCIe, triple PCIe, dual SATA SSD. Apart from the intensive processing capability, connectivity and other applications, PE400D also offers multiple industrial I/Os all around. With heavy industry certification IEC 61000-6-2/4 and high standard of reliability test, smooth operation under tough electrical noise environment is guaranteed on PE400D.
The new computer is also engineered with a wide range of power inputs (9~36V), operating temperatures (-20°~60°) to serve as an edge-to-cloud gateway device for data aggregation, processing and forwarding. The TCO-optimized SBC is ideal for embedded automation solutions and diverse smaller-scale IoT applications. ASUS Edge computer also secure for 24/7 stability and reliability, combined with our world-class after-sales service and guaranteed long-term availability to make sure your investment for the duration of the product lifecycle is maximized.
More product SKUs, please contact [email protected]
Ordering Information::
Dimension (mm):
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a PB Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Specifications
| System | CPU | Intel® Xeon® W 1290TE |
Intel® Core™ i9 10900E |
Intel® Core™ i7 10700E |
Intel® Core™ i5 10500E |
Intel® Core™ i3 10100E |
| TDP | 35W | 65W | 65W | 65W | 65W | |
| # of Cores | 10 | 10 | 8 | 6 | 4 | |
| Base Freq. | 1.8GHz | 2.8GHz | 2.9GHz | 3.1GHz | 3.2GHz | |
| Max Turbo Freq. | 4.5GHz | 4.7GHz | 4.5GHz | 4.2GHz | 3.8GHz | |
| Memory | 2 xSO DIMM, DDR4 2666/2400/2133 MHz, ECC (only for Xeon CPU), max. 64GB | |||||

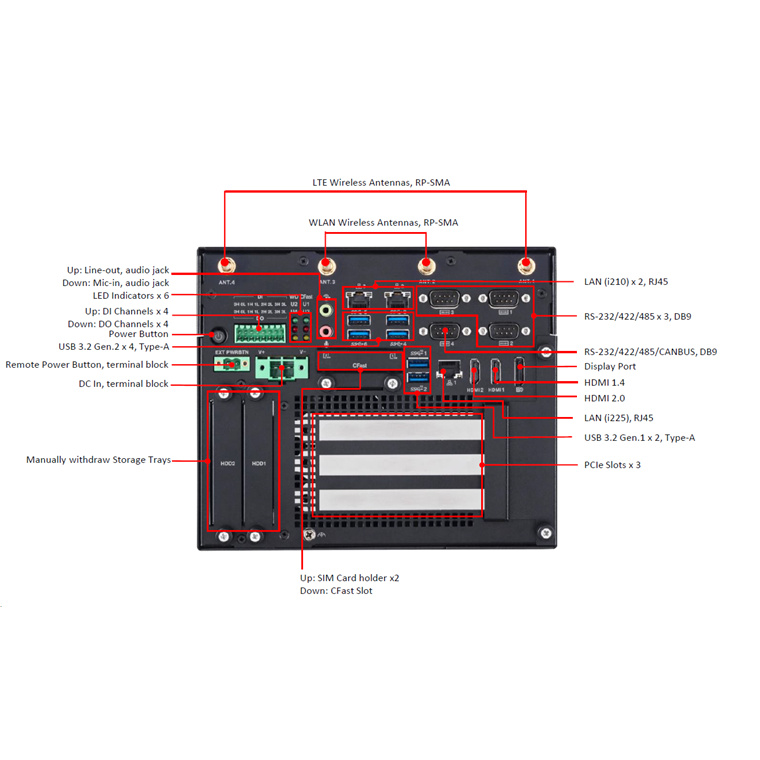

| External Interfaces | Display | 1 x HDMI 2.0, supports up to 4096 x 2160 @ 60 Hz | ||||
| 1 x HDMI 1.4, supports up to 4096 x 2160 @ 30 Hz | ||||||
| 1 x DP 1.2, supports up to 4096 x 2304 @ 60 Hz | ||||||
| *Default 4096 x 2304 @60Hz supports 3 independent d isplays at the same time | ||||||
| Ethernet | 3 x Intel ® i210 IT (1 GbE TSN )), RJ45 | |||||
| USB | 2 x USB 3.2 gen.2, 4 x USB 3.2 gen. 1 | |||||
| Audio | 1 x Micin, audio jack | |||||
| 1 x Lineout, audio jack | ||||||
| COM/CAN* | 3 x COM: RS232/422/485, DB9 | |||||
| 1 x COM*: RS232 /422/485, CANBus (2.0A/B), DB9 | ||||||
| *Default RS232, configured to CANBus by onboard jumper | ||||||
| DIO | 4 x DI, 4 x DO support relay output, 2 x 8 terminal block | |||||
| SIM | 2 x nano SIM slot | |||||
| Storage | Cfast | 1 x Type II CFast slot for OS storage | ||||
| SATA | 2 x 2.5" HDD slots (hot swappable, supports SATA 3.0, 7~7.5mm) | |||||
| Expansion Slot | PCIe | 3 x PCIe slot | ||||
| *2 configuration: 1 x PCIex16 + 1 x PCIex4 or 2 x PCIex8 + 1 x PCIex4, auto-detect | ||||||
| *Max. length<192mm ; Max. 100W power supply from mainboard for total 3 slots | ||||||
| Mini PCIe | 1 x Mini PCIe socket (supports mSATA or cellular module) | |||||
| M.2 M Key | 1 x M.2 2242/60/80 M key socket (PCIex4 & SATA) | |||||
| M.2 E Key | 1 x M.2 2230 E key socket (supports CNVi , Wi Fi/BT module) | |||||
| Power | Power | 9 to 36 VDC, 2 pin terminal block | ||||
| *System can be powered up by pressable button/remote power button | ||||||
| * Pressable power button can be disabled by onboard jumper/BIOS setting | ||||||
| Mechanical | Mounting | Desktop mount | ||||
| Dimensions | 176.6 (H) x 210 (W) x 250 (D) mm | |||||
| Weight | 6.8 kg | |||||
| Environment | Operating Temp. | -20~60 C w/ all module operating (industrial parts) at 0.3m/s air flow | ||||
| 0~40w/ all module operating (commercial parts) at 0.3m/s air flow | ||||||
| Storage Temp. | -40~85 C | |||||
| Relative Humidity | 5 to 95% (non-condensing) | |||||
| EMC | CE (IEC 61000 6 2/4) 4), FCC, VCCI, RCM , BSMI | |||||
| Safety | UL, CB, CCC, BSMI | |||||
| Vibration | Operating: 0.5 Grms , sine, 5 500 Hz (with | |||||
| Shock | Operating: 50 Grms , half sine, 11ms(with SSD) | |||||
| Green | GA (RoHS) | |||||
| Security | TPM | TPM v2.0 powered by Nuvoton NCPT 750 (Optional) | ||||
| Others | Watch dog timer | Yes. HW WDT Enable (WDT_EN) | ||||
| Operating System | Windows 10 IoT Enterprise | |||||
| Packing List: | Power terminal block to power jack adaptor, 10cm | 1 | |||||
| External power button terminal block | 1 | ||||||
| DIO terminal block | 1 | ||||||
| Desktop mount bracket Set(2 pcs) | 1 | ||||||
| Dust cover set | 1 | ||||||
| Optional Accessories: | ADAPTER | Power adapter, input voltage 90 to 264VAC , output voltage 24VDC with 13.75A DC load, 0 to 70 C (>40 C de rating) operating temperature | ||||
| POWER CORD | Power cord with Australia (AU) plug, 180cm | |||||
| WIRELESS EXTENSION CABLE | External wireless extension cable, RP-SMA to RP SMA, 60cm | |||||
| 4G LTE ANTENNA | Omni directional rubber duck GPRS/EDGE/UMTS/HSPA/LTE antenna , 704 to 960MHz & 1710 to 2690MHz, 3.5 dBi , RP SMA, antenna length 10cm | |||||
| WI FI ANTENNA | Omni directional rubber duck Wi Fi antenna , 2.4/5GHz , 2dBi, RP SMA, antenna length 8.6cm | |||||
| Wi Fi Module | QUECTEL/EC25 AU | |||||
| LTE Module | Quectel EC25 AU LTE cat.4 mini PCIe module, supports B1, 2, 3, 4, 5, 7, 8, 20, 40 , 40~85 C | |||||
| CORAL MINI PCIE ACCELERATOR | ||||||
| CORAL M.2 PCIE ACCELERATOR | ||||||
| CORAL M.2 PCIE ACCELERATOR With Dual Edge TPU | ||||||
| Fan Duct | PE400D AIR DUCT BRKT ASSY for NVIDIA T4 GPU | |||||
