Features
QBiX Pro Series of GIGAIPC embedded system is implemented with GIGAIPC QBi Pro (3.5" SubCompact Board) . Its fan-less design reduces the risk of fan failure and maintenance efforts. The aluminum heatsink and ruggedized chassis enhanced the ability to work in harsh environment. The Compact size can easily be designed in any applications in limited space, such as factory automation, industrial controller / Surveillance systems and IoT Gateway. Furthermore, it can be a computing solution dedicated to thin client, POS, KIOSK for commercial market.
QBiX-Pro-WHLA8565H-A2 is powered by Intel® Core™ i7-8565U Whiskey Lake Processor , to support Dual Channel DDR4 2400MHz up to 64G. It is designed with full range 9-36V DC power inputs for operating temperature of 0°C ~50°C. The system supports 2.5" HDD/SSD (SATA 6Gb/s) with vibration resistance of 5 Grms/5~500Hz and shock endurance to 50G/11ms, to meet industrial standard.
It's available with rich features of 2 x HDMI outputs, 3 x COM Ports, 4 x USB 3.2 Gen 2x1 and 2 x USB 2.0 Ports to work with different peripherals of devices as line out headphone jack and M.2 2280 M-Key / 2230 E-Key for expansion.
- System Size : 178W x 125D x 52.7H (mm)
- Intel® Core™ i7-8565U Processor
- Dual Channel DDR4, 2 x SO-DIMMs
- 2 x HDMI for Dual display
- 2 x GbE LAN Port
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a PB Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Specifications
Dimension
178W x 125D x 52.7H(mm)
CPU
Intel® Core™ i7-8565U Processor
14nm, 4 cores, 8 threads, up to 4.6 GHz
TDP 15W
Chipset
SoC
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR4 2400 MHz memory modules
Ethernet
2 x GbE LAN Ports (Intel® I219V and Intel® I211AT)
Graphics Support
Integrated Graphics Processor - Intel® UHD Graphics for 8th Generation Intel® Processors:
2 x HDMI 1.4 ports, supporting a maximum resolution of 4096x2160 @30Hz
(2 independent display outputs)
Audio
Realtek® Audio Codec
Storage
1 x 2.5" HDD/SSD (SATA 6Gb/s)
Expansion-Slots
1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module
Front I/O
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 2x1
2 x HDMI
1 x Power button with LED
1 x HDD LED
1 x COM Port (RS-232/422/485 & RI/5V/12V)

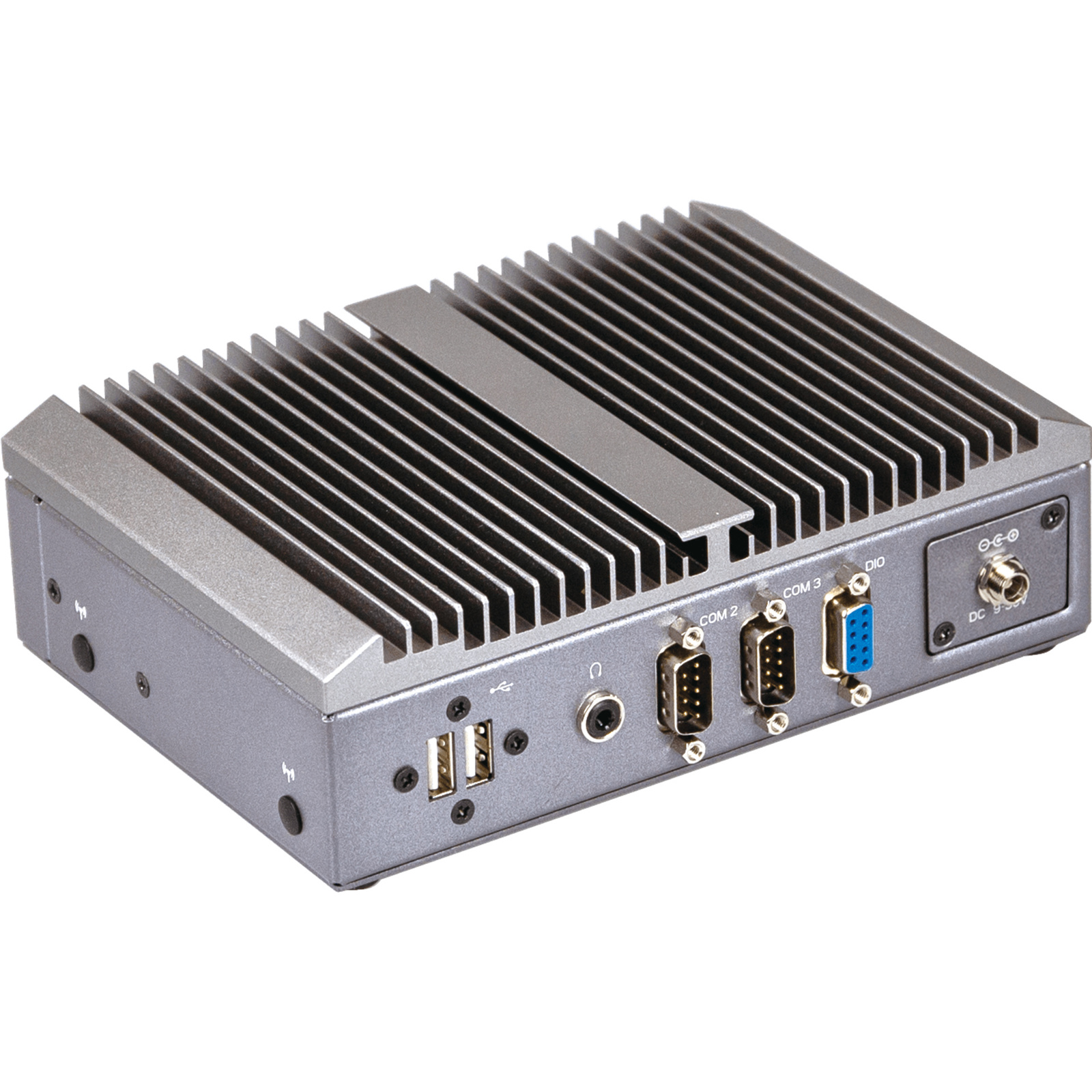

Rear l/O
2 x USB 2.0
2 x COM Ports (RS-232)
1 x GPIO (8 bits)
1 x Headphone Jack
1 x Screw Type DC Jack
Side I/O
2 x External Antenna Holes (Optional)
Power
+9V~36VDC (Adapter 19V/90W)
Operation Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packing Content
Single Box size: 313 x 191 x 95 (mm)
Single Box weight: Approx. 2.1kg
Including:
Screw I Head For 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)
Thermal Pad x 2 (P/N: 25ST3-200052-T5R)
Thermal Pad x 1 (P/N: 25ST3-200051-T5R)
SATA Cable x 1 (P/N: 25CF4-070020-S9R)
Power Cord : Optional (by region)
PSU ADP 19V 90W 100-240VAC x 1 (P/N: 25EP4-10090A-F3S)
Mounting
Wall mount (Optional)
Order Information
6BQP8565AMR-SI (Box Packing)
Optional Kit
TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R
