GigaIPC QBiX-Pro-EHLA6412H-A1 Industrial system with Intel Celeron J6412 Processor / Fanless Design/ Dual Channel DDR4 up to 32GB/ 2 x HDMI/Terminal block
GigaIPC QBiX-Pro-EHLA6412H-A1 Industrial system with Intel Celeron J6412 Processor / Fanless Design/ Dual Channel DDR4 up to 32GB/ 2 x HDMI/Terminal block
- Brand: GigaIPC
- MPN: 6BQP6412AMR-SI-2Q47
- Part #: WKSGICQ20037
- UPC:
- Brand: GigaIPC
- MPN: 6BQP6412AMR-SI-2Q47
- Part #: WKSGICQ20037
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Computers





GigaIPC QBiX-Pro-EHLA6412H-A1 Industrial system with Intel Celeron J6412 Processor / Fanless Design/ Dual Channel DDR4 up to 32GB/ 2 x HDMI/Terminal block
- Brand: GigaIPC
- MPN: 6BQP6412AMR-SI-2Q47
- Part #: WKSGICQ20037

Product URL: https://www.pbtech.co.nz/product/WKSGICQ20037/GigaIPC-QBiX-Pro-EHLA6412H-A1-Industrial-system-wi
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
- Intel® Celeron® J6412 Processor
- Dual Channel DDR4, 2 x SO-DIMMs
- 1 x COM Port (RS-232/422/485 & RI/5V/12V)
- 1 x COM Port (RS-232/422/485)
- 1 x COM Port (RS-232)
- 2 x GbE LAN Ports
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a PB Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Specifications
Dimension
178W x 125D x 52.7H(mm)
CPU
Intel® Celeron® J6412 Processor
10nm, 4 cores, 4 threads, up to 2.60 GHz
TDP 10W
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual Channel DDR4 3200 MHz memory modules
Ethernet
2 x GbE LAN Ports (Intel® I210AT)
Graphics Support
Integrated Graphics Processor -
Intel® UHD Graphics for 10th Gen Intel® Processors:
2 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
(2 independent display outputs)
Audio
Realtek® Audio Codec
Storage
1 x 2.5" HDD/SSD (SATA 6Gb/s)
Expansion-Slots
1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s)
1 x Full-size Mini PCIe with SIM slot

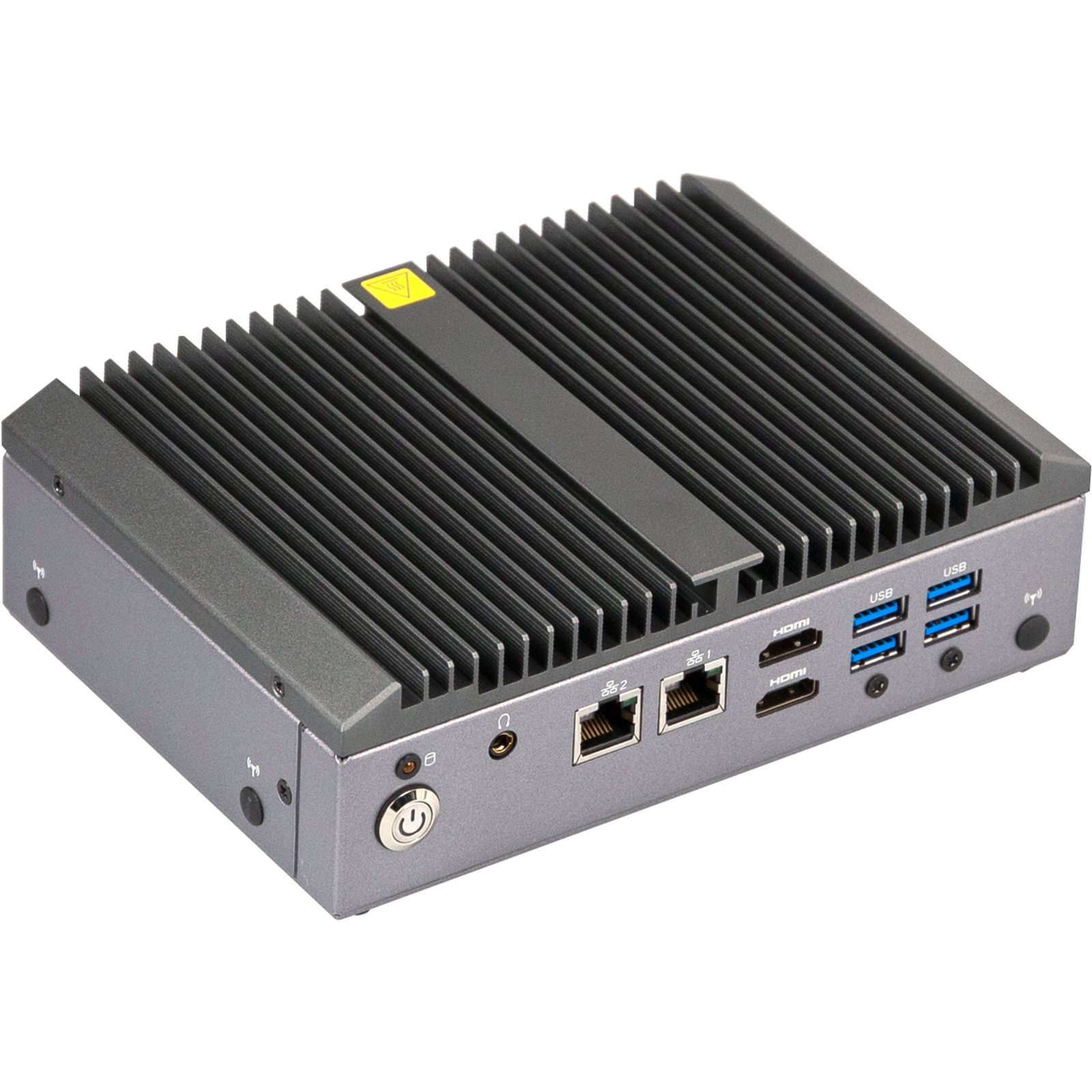

Front I/O
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
2 x HDMI
1 x Power button with LED
1 x HDD LED
1 x Headphone Jack

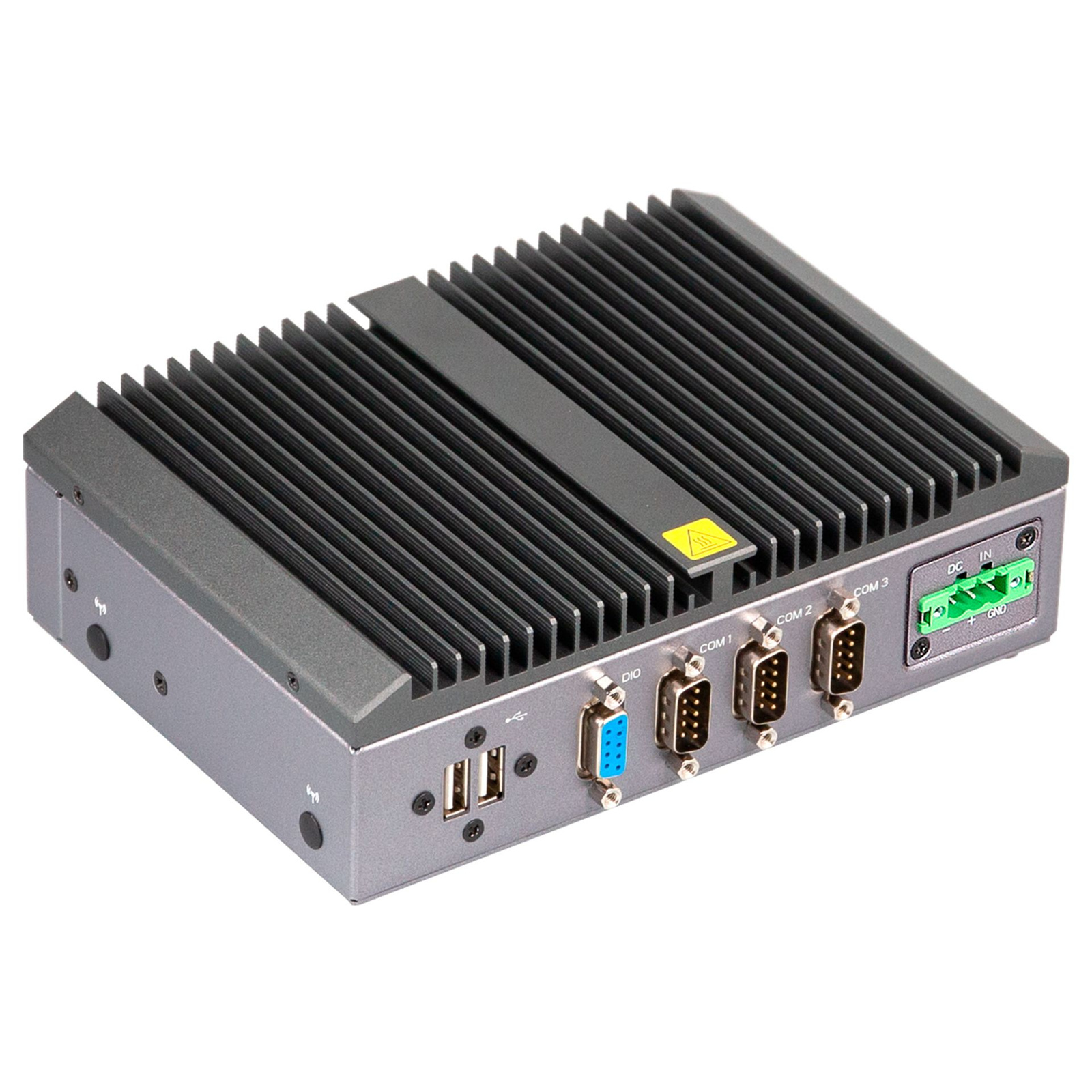

Rear l/O
2 x USB 2.0
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x COM Port (RS-232/422/485)
1 x COM Port (RS-232)
1 x GPIO (8 bits)
1 x 3-pin Terminal block
Side I/O
2 x External Antenna Holes (Optional)
Power
+12V~36VDC (Full Range)
Operation Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packing Content
Single Box size: 313 x 191 x 95 (mm)
Single Box weight: Approx. 2.0kg
Including:
Screw I Head For 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)
Thermal Pad for Memory x 1 (P/N: 25ST3-200086-T5R)
SATA Cable x 1 (P/N: 25CRI-150001-S9R)
Terminal Blocks Male Plug x 1 (P/N: 25IO0-5ESDV0-D2R)
Mounting
Wall mount P/N: 25HB2-CGAA20-CHR x 1 (Optional)
VESA 75/100 P/N: 25HB1-TPL021-S8R x 1 + 25KSD-000002-C0R x 1 (Screw) (Optional)
Order Information
6BQP6412AMR-SI (Box packing)
