GigaIPC QBiX-WP-WHLA8265H-A1 IP67 - Industrial water proof system with Intel Core i5-8265U Processor/8G RAM/256GB SSD
GigaIPC QBiX-WP-WHLA8265H-A1 IP67 - Industrial water proof system with Intel Core i5-8265U Processor/8G RAM/256GB SSD
- Brand: GigaIPC
- MPN: 9BQW8265AMR-SI-0V1Z
- Part #: WKSGICQ20047
- UPC:
- Brand: GigaIPC
- MPN: 9BQW8265AMR-SI-0V1Z
- Part #: WKSGICQ20047
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Computers





GigaIPC QBiX-WP-WHLA8265H-A1 IP67 - Industrial water proof system with Intel Core i5-8265U Processor/8G RAM/256GB SSD
- Brand: GigaIPC
- MPN: 9BQW8265AMR-SI-0V1Z
- Part #: WKSGICQ20047

Product URL: https://www.pbtech.co.nz/product/WKSGICQ20047/GigaIPC-QBiX-WP-WHLA8265H-A1-IP67---Industrial-wat
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features

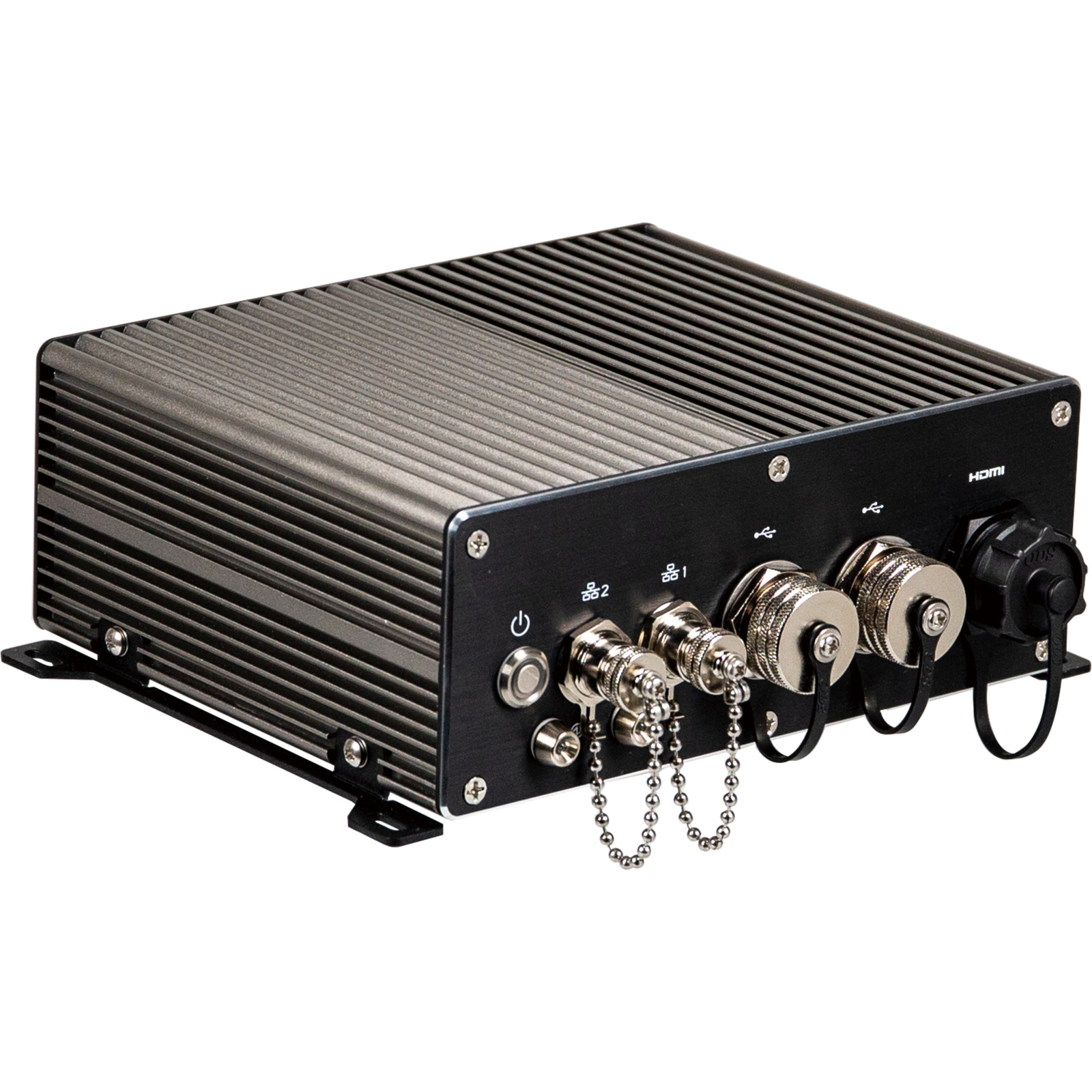

QBiX-WP (Water Proof) Embedded System is designed for harsh conditions, such as in chemical, food and beverage factory, outdoor digital signage and automation/robotic control where the systems are in constant threat of water splash and dust immersion. It offers IP67-rated protection with waterproof and dustproof capability in -20°C to 70°C wide range of operating temperatures. The hermetic and rugged enclosure of extruded aluminum protects the system from corrosion and M12 connectors secure the cable connectivities.
- System Size: 188W x 155D x 72H (mm)
- Intel® Core™ i5-8265U Processor
- Dual Channel DDR4, 2 x SO-DIMMs
- IP67 water proof certification
- M12 and IP67 water proof connectors
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a PB Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Specifications
Dimension
188W x 155D x 72H(mm)
CPU
Intel® Core™ i5-8265U Processor
14nm, 4 cores, 8 threads, up to 3.9 GHz
TDP 15W
Chipset
SoC
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR4 2400 MHz memory modules
(Integrated 8GB memory)
Ethernet
2 x GbE LAN Ports (Intel® I219V and Intel® I211AT)
Graphics Support
Integrated Graphics Processor - Intel® UHD Graphics 620:
1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @30Hz
Audio
Realtek® Audio Codec
Storage
1 x 2.5" HDD/SSD (SATA 6Gb/s)
Expansion-Slots
1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module (please contact with your sales representative for more information)
(Integrated M.2 SSD 256GB)
Front I/O
2 x (M12) LAN Ports
2 x (IP67) USB 2.0 connector
1 x (IP67) HDMI connector
1 x (IP67) Power switch
1 x (M8) Power & HDD LED
Rear l/O
1 x (M12) COM Port (RS-232/422/485 & RI/5V/12V)
2 x (M12) COM Port (RS-232)
1 x (M12) GPIO (8 bits)
1 x (M12) DC Jack
Power
+9V~36VDC (Full Range)
Operation Temperature
Operating temperature: -20°C to 70°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packing Content
Carton size: 305 x 285 x 265 (mm)
Packing Capacity: 1pc
Including:
COM Cable, waterproof, x 3 (P/N: 25CF8-1K8400-O0S)
USB 2.0 Cable, waterproof, x 2 (P/N: 25CFA-1K8000-O0R)
RJ45 Cable, waterproof, x 2 (P/N: 25CR0-1K8401-O0S)
SIGNAL Cable, waterproof, x 1 (P/N: 25CR5-1K8500-O0R)
HDMI Cable, waterproof, x 1 (P/N: 25CRC-180720-O0S)
DC JACK Cable, waterproof, x 1 (P/N: 25CRD-1K8300-O0S)
Wall mount bracket, x 2 (P/N: 25HBA-826520-H5R)
Order Information
9BQW8265AMR-SI (Box packing)
Optional Kit
TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R
