GigaIPC QBiX-JMB-CMLA47EH-A1 Industrial system with Intel Q470E Chipset, Intel Core i9-10900E Processor, discrete GFX card and 850W power supply
GigaIPC QBiX-JMB-CMLA47EH-A1 Industrial system with Intel Q470E Chipset, Intel Core i9-10900E Processor, discrete GFX card and 850W power supply
- Brand: GigaIPC
- MPN: 9BQJQ47EAMR-SI (CTO)
- Part #: WKSGICQ20053
- UPC:
- Brand: GigaIPC
- MPN: 9BQJQ47EAMR-SI (CTO)
- Part #: WKSGICQ20053
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Computers





GigaIPC QBiX-JMB-CMLA47EH-A1 Industrial system with Intel Q470E Chipset, Intel Core i9-10900E Processor, discrete GFX card and 850W power supply
- Brand: GigaIPC
- MPN: 9BQJQ47EAMR-SI (CTO)
- Part #: WKSGICQ20053

Product URL: https://www.pbtech.co.nz/product/WKSGICQ20053/GigaIPC-QBiX-JMB-CMLA47EH-A1-Industrial-system-wit
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features

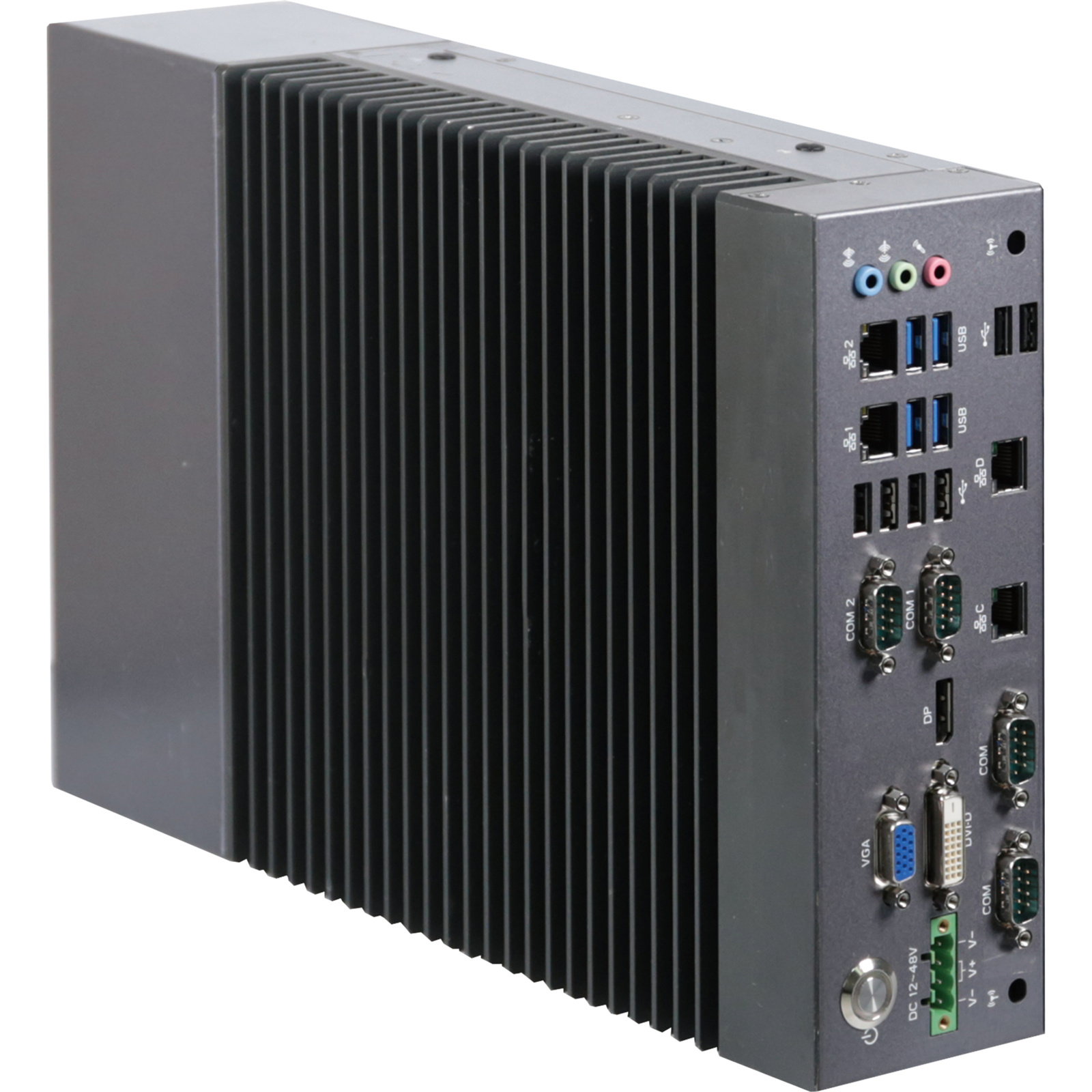

QBiX-JMB-CMLA47EH-A1 is a high-performance fanless embedded computer featured with Intel® Q470E Express Chipset and supported Intel® 10th gen Core™ i processor in LGA1200 package, to provide powerful computing and excellent graphic performance. It's mainly designed for edge computing applications, machine vision, robotic image detection, machine automation, surveillance system in factory, logistics and even healthcare systems, to increase production efficiency.
In addition, it offers 1 x Display Port, 1 x DVI-D Port and 1 x VGA Port for three independent display outputs, rich I/O interface of 4 x USB 3.2 Gen 1, 6 x USB 2.0, 2 x switchable COM Ports (RS-232/422/485 & RI/5V/12V), 2 x RS-232 COM Ports, 4 GbE LAN Ports and expantion M.2 slots to connect multiple devices and implement industrial applications. This system supports full range 12-48V DC power inputs for operating temperature of -20°C~50°C . The system supports 2.5" HDD/SSD (SATA 6Gb/s) with vibration resistance of 3 Grms/5~500Hz and shock endurance to 50G/11ms, to meet industrial standard.
Industrial system with Intel® Q470E Chipset, support for Intel® 10th Gen Processor / Display Port/ DVI-D port/ VGA port/ 4 x USB 3.2 Gen 1/ 6 x USB 2.0/ 4 x COM Ports/ 4 x GbE LAN Ports /M.2 slots
- System Size : 224W x 256.1D x 77.7H (mm)
- Support Intel® 10th Gen Processor
- Dual Channel DDR4, 2 x SO-DIMMs
- DVI-D, VGA & DP ports for multiple display
- 4 x GbE LAN Ports
- 4 x COM Ports
- 10 x USB Ports
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a PB Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Specifications
Dimension
224W x 256.1D x 77.7H(mm)
CPU
Support for 10th Generation
Intel® Core™ i9, Pentium® and Celeron® processors in the LGA1200 package
TDP under 65W
Chipset
Intel® Q470E Express Chipset
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual channel DDR4 2933/2666 MHz memory modules
Ethernet
1 x GbE LAN Port (Intel® I219V)
3 x GbE LAN Ports (Intel® I211AT)
Graphics Support
Integrated Graphics Processor - Intel® HD Graphics support:
1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1080 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1080 @60Hz
(3 independent display outputs)
Audio
Realtek® Audio Codec
Storage
4 x 2.5" HDD/SSD (SATA 6Gb/s) -- support Intel RAID 0/1/5/10
Expansion-Slots
1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
1 x Full-size Mini PCIe with SIM slot
Front I/O
1 x Power Switch/Power/HDD LED
3 x Audio Jacks (Line in, Line out, Mic in)
1 x Display port
1 x DVI-D
1 x VGA
2 x COM Ports (RS-232/422/485 & RI/5V/12V)
2 x COM Ports (RS-232)
4 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
6 x USB 2.0
1 x 4-pin Terminal Block
2 x External Antenna Holes (Optional)
Power
+12V~48VDC (Full Range)
Operation Temperature
Operating temperature: -20°C to 50°C (CPU 65W TDP)
Operating temperature: -20°C to 60°C (CPU 35W TDP)
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packing Content
Carton size: 300 x 351 x 166 (mm)
Packing Capacity: 1
Weight: Approx. 5kg
Including:
Screw M3x4L x 20 (P/N: 25984G-1C014-S00)
Terminal Blocks Male Plug x 1 (P/N: 25IO0-2ESDV0-D2R)
Order Information
6BQJQ47EAMR-SI (Box packing)
