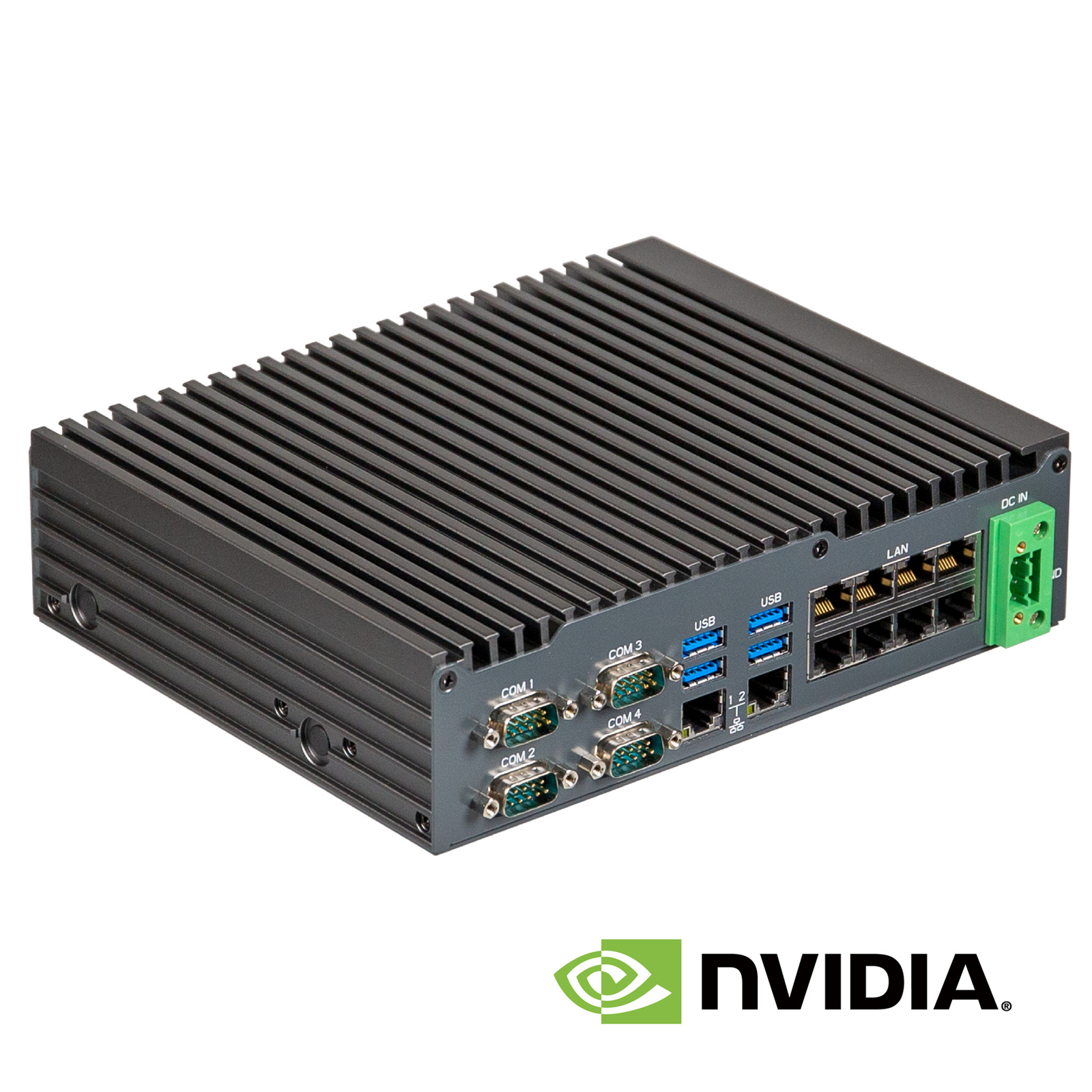

GigaIPC QBiX-Jetson-NanoAHP-A1 Industrial system with NVIDIA Jetson Nano System-on-Module including ARM Cortex -A57/ Maxwell GPU/ 4GB LPDDR4/ 16GB eMMC5.1
GigaIPC QBiX-Jetson-NanoAHP-A1 Industrial system with NVIDIA Jetson Nano System-on-Module including ARM Cortex -A57/ Maxwell GPU/ 4GB LPDDR4/ 16GB eMMC5.1
- Brand: GigaIPC
- MPN: 9BQNNANOAMR-SI-1P27
- Part #: WKSGICQ20067
- UPC:
- Brand: GigaIPC
- MPN: 9BQNNANOAMR-SI-1P27
- Part #: WKSGICQ20067
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Computers





GigaIPC QBiX-Jetson-NanoAHP-A1 Industrial system with NVIDIA Jetson Nano System-on-Module including ARM Cortex -A57/ Maxwell GPU/ 4GB LPDDR4/ 16GB eMMC5.1
- Brand: GigaIPC
- MPN: 9BQNNANOAMR-SI-1P27
- Part #: WKSGICQ20067

Product URL: https://www.pbtech.co.nz/product/WKSGICQ20067/GigaIPC-QBiX-Jetson-NanoAHP-A1-Industrial-system-w
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
- CPU Quad-core processor ARM® Cortex®-A57 MPcore
- NVIDIA® Maxwell GPU with 128 NVIDIA® CUDA® cores
- Fan-Less sytstem
- 8 x GbE LAN Ports with PoE 15W/Port
- 2 x GbE LAN Ports
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a PB Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Specifications
Dimension
210W x 169.8D x 55.2H (mm)
CPU
ARM® Cortex® A57 MPCore (Quad-Core) Processor with NEON Technology
Memory
4GB 16-bit LPDDR4 DRAM 1600MHz (Module)
Ethernet
8 x GbE LAN Ports with PoE 15W/Port, IEEE802.3af compliant, Total 120W
2 x GbE LAN Ports
Graphics Support
NVIDIA® Maxwell™ architecture with 128 NVIDIA® CUDA® cores
1 x HDMI port, supporting a maximum resolution of 3840x2160 @60Hz
1 x DP port, supporting a maximum resolution of 2500x1600 @60H
Storage
1 x 16GB eMMC 5.1 (Module)
1 x SATA 6Gb/s (Swappable 2.5" HDD/SSD)
Expansion-Slots
1 x 3052 M.2 B-Key
1 x Mini PCIe slot
1 x 2230 M.2 E-Key
1 x SIM slot
Front I/O
1 x Power button with LED
1 x HDD LED
1 x GPIO (12 bits)
1 x DP
1 x HDMI
1 x USB 2.0 Type Micro B
1 x SD slot (Micro SD)
1 x Recovery button
2 x External Antenna Holes (Optional)
Rear l/O
4 x COM Ports (RS-232/422/485)
4 x USB 3.2 Gen 1
8 x GbE LAN Ports with PoE 15W/Port
2 x GbE LAN Ports
1 x 3-pin Terminal Block
Side I/O
4 x External Antenna Holes (Optional)
Power
+12V~54VDC (non PoE)
+54VDC (PoE support)
Operation Temperature
Operating temperature: -20°C to 70°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Packing Content
Single Box size: 316 x 281 x 125 (mm)
Including:
54V/180W adapter x 1 (P/N: 25EP4-101807-F3S)
Power cord x 1 (By region)
Screw for 2.5" HDD/SSD, M3x4L x 4 (P/N: 25984G-1C014-S00)
Order Information
9BQNNANOAMR-SI (Box Packing)
