iBASE Embedded Computing AMI232AFM-F Core-i3 9300TvPro, 8G Wifi/bluebooth kits,support 2PCIe x8, 12USB port & 2PCIex8 slot, Aluminum Chassis, Fanless Design, with Power adapter 330W KIT
Out of stock
iBASE Embedded Computing AMI232AFM-F Core-i3 9300TvPro, 8G Wifi/bluebooth kits,support 2PCIe x8, 12USB port & 2PCIex8 slot, Aluminum Chassis, Fanless Design, with Power adapter 330W KIT
- Brand: iBASE
- MPN: AMI232AFM-F
- Part #: WKSIBA232A
- UPC:
- Brand: iBASE
- MPN: AMI232AFM-F
- Part #: WKSIBA232A
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Computers





iBASE Embedded Computing AMI232AFM-F Core-i3 9300TvPro, 8G Wifi/bluebooth kits,support 2PCIe x8, 12USB port & 2PCIex8 slot, Aluminum Chassis, Fanless Design, with Power adapter 330W KIT
- Brand: iBASE
- MPN: AMI232AFM-F
- Part #: WKSIBA232A

Product URL: https://www.pbtech.co.nz/product/WKSIBA232A/iBASE-Embedded-Computing-AMI232AFM-F-Core-i3-9300T
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
AMI232 - Expandable Fanless & Ventless System with 9th Gen Intel® Core™ i3 Desktop Processors (35W TDP)
- Fanless system with IBASE MB230 customized board
- 9th Gen Intel® Core™ i3 Desktop Processors
- Dual SIM slots supports WWAN redundancy
- 4x RJ45 Gigabit Ethernet port (2x Supports 802.3at PoE+)
- 3x M.2 (B-Key/E-Key/M-Key)
- Supports Over/Under/Reverse voltage protection
- iSMART, iAMT (11.6), TPM (2.0)
- Flexible expansion slot system
- 2x 2.5" storage (Supports RAID 0/1)
The AMI232 is a robust embedded system based on the 9th/8th Gen Intel® Core™ platform. Developed for smart factory, industrial automation, AIoT and other applications in harsh environments, the rugged AMI232 delivers exceptional computing and graphics performance with an extended operating temperature range of -20°C to 70°C, operating vibration up to 3Grms and over/under/reverse voltage protection.
The AMI230 series houses the Intel® Q370 MB230AF motherboard and is equipped with multiple high speed I/O including 8x USB 3.1, 4x COM, and 3x M.2 (B-Key, E-Key & M-Key) for NVMe storage, WiFi and 4G/LTE options, and HDMI/DP/DVI-D display interface. It also features four Gigabit Ethernet ports making it highly suitable for network related applications, iAMT (11.6) for system remote management and repair, TPM (2.0) security for preventing phishing attacks, and iSMART green technology for power on/off scheduling and power resume functions.
All models in the series come with 8GB of DDR4 memory that is expandable to 32GB, a 64GB MLC industrial-grade SSD, and 12V or 18V~24V wide-range DC input. Operating systems supported are Windows 10 (64-bit) / Windows 7 (32-bit & 64-bit), and Linux Ubuntu / Fedora 24. The AMI231 and AMI232 variations support optional expansion cards featuring PCI, PCIe (x1), PCIe (x8), PCIe (x16), 2x COM (COM5 & COM6), 1x SATA II, and 2x USB 2.0.
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a PB Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Specifications
System Mainboard
MB230AF with Intel® Q370 PCH
MB230AF-P with Intel® Q370 PCH
(supports PCI-E function for M.2 (B-KEY)
CPU Type
9th Gen Intel® Core™ i3 Desktop Processor
System Speed
Up to 4.00 GHz
Memory
2x DDR4-2666/2400 SO-DIMM, Max. 32GB
Construction
Aluminum & steel
Chassis Color
Silver + Gray (Aluminum)

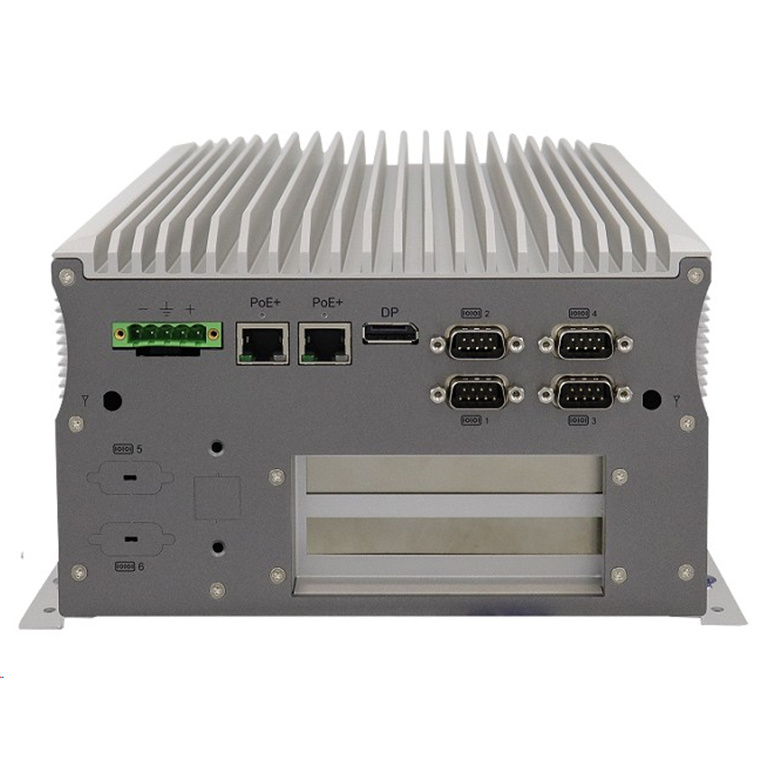

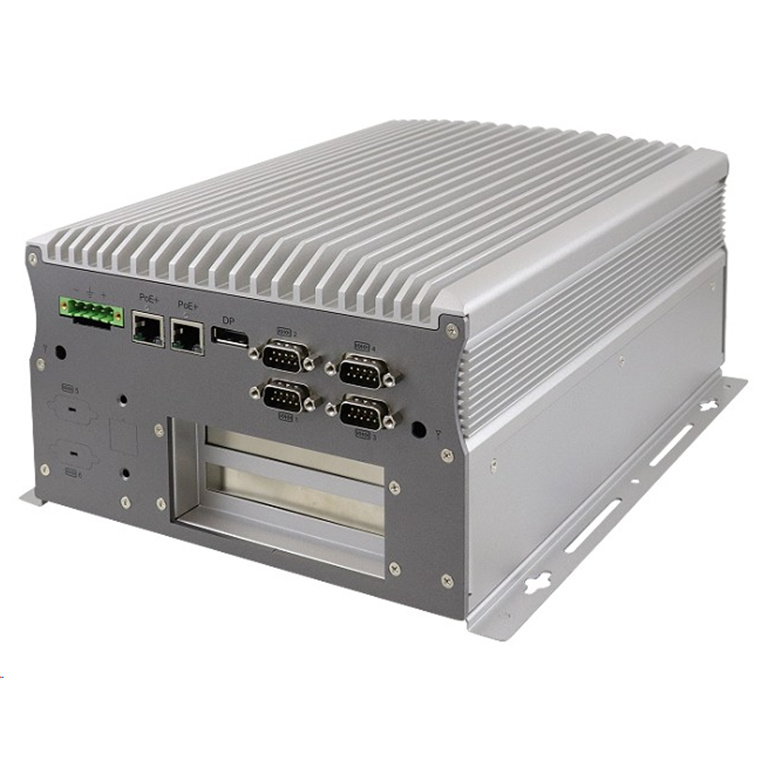

Front Panel External I/O
1x RS232/422/485 port for COM#1~COM#2
3x RS232 ports for COM#3~COM#4
2x RS232 ports for COM#5~6 from optional IP211/IP212
1x DisplayPort (1.2)
2x RJ45 Gigabit Ethernet port (Supports 802.3at PoE+)
1x 5-pins DC-in terminal block type for 12V or 18V~24V
2x Antenna holes
2x USB 2.0 from optional IP211/IP212/IP213
2x expansion slot

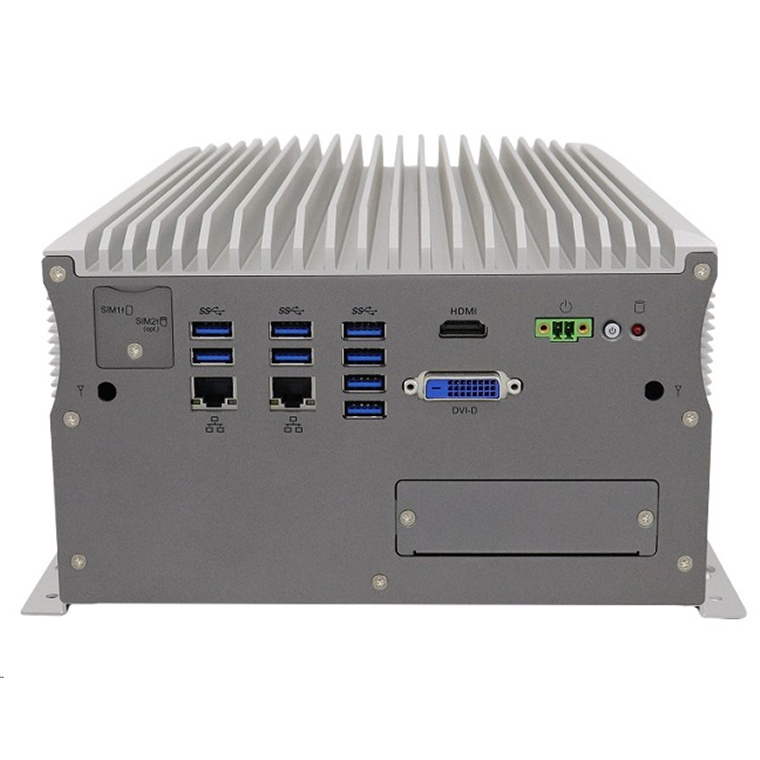

Rear Panel External I/O
1x DVI-D + HDMI(1.4)
1x Audio jack for MIC-in / Line-out
4x USB3.1 ports
2x Antenna holes
2x RJ45 Gigabit Ethernet port + Dual USB3.1 stack ports
1x Red HDD LED
1x power button with Green LED indicator
1x 2-pin terminal block
2x SIM Card (AMI231AF-P only supports 1x SIM Card)
Expansion Slots
IP211/IP212/IP213
Storage / M.2
2x 2.5'' HDD/SSD
1x M.2 (B-KEY Supports USB2.0 for 4G/LTE)
1x M.2 (E-KEY Supports PCIe + USB2.0 for CNVi)
1x M.2 (M-KEY Supports PCIe(4x) + SATA for NVMe SSD)
Mounting
Desktop & wall mount
Weight
4.9 kg
Dimensions
210mm(W) x 285mm(D) x 129mm(H)
Operating Temperature
-20°C to 70°C (-4°F~158°F) (for 35W CPU)
Storage Temperature
-20°C~80°C (-4°F~176°F)
Relative Humidity
5%~90% @ 45°C (non-condensing)
Vibration
Operating : 3Grms / 5~500Hz
Shock
Operating : 20G / 11ms
Non-operating : 40G / 11ms
Certification
CE/ FCC ClassA/ LVD
