iBASE AMS300 Fanless Design Intel Core i7-7700T, 16GB Memory, 512GBx2, WIFI PSU, Supporting vPro & iAMT 11.0, desktop or wall mounting brackets
Out of stock
iBASE AMS300 Fanless Design Intel Core i7-7700T, 16GB Memory, 512GBx2, WIFI PSU, Supporting vPro & iAMT 11.0, desktop or wall mounting brackets
- Brand: iBASE
- MPN: AMS300
- Part #: WKSIBA300
- UPC:
- Brand: iBASE
- MPN: AMS300
- Part #: WKSIBA300
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Computers





iBASE AMS300 Fanless Design Intel Core i7-7700T, 16GB Memory, 512GBx2, WIFI PSU, Supporting vPro & iAMT 11.0, desktop or wall mounting brackets
- Brand: iBASE
- MPN: AMS300
- Part #: WKSIBA300

Product URL: https://www.pbtech.co.nz/product/WKSIBA300/iBASE-AMS300-Fanless-Design-Intel-Core-i7-7700T-16
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

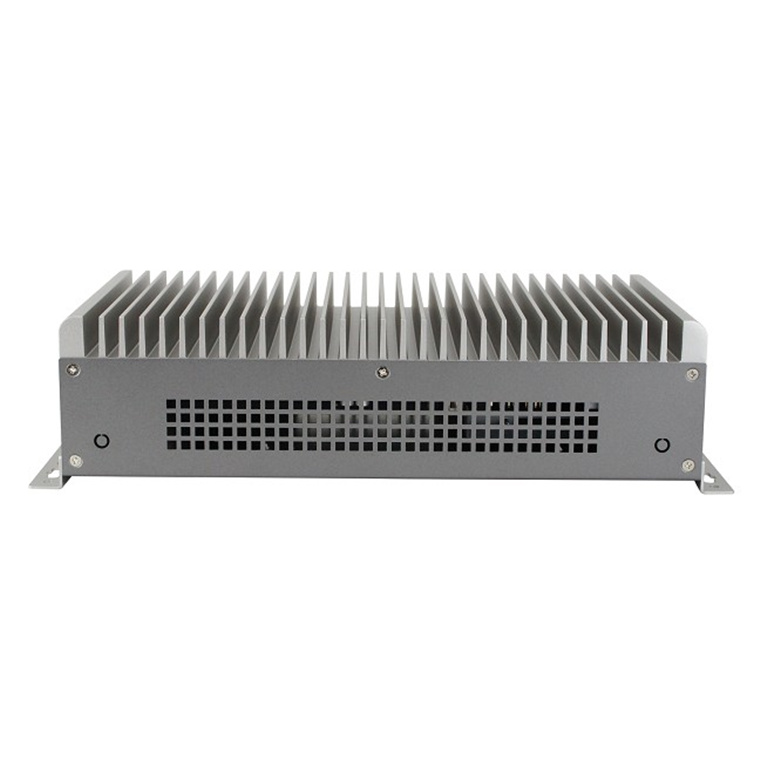

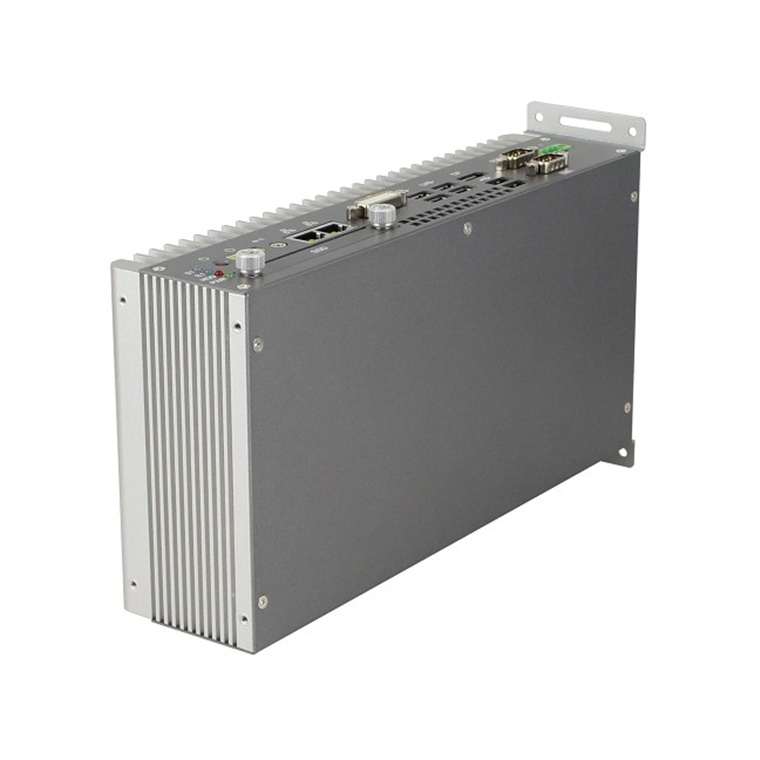

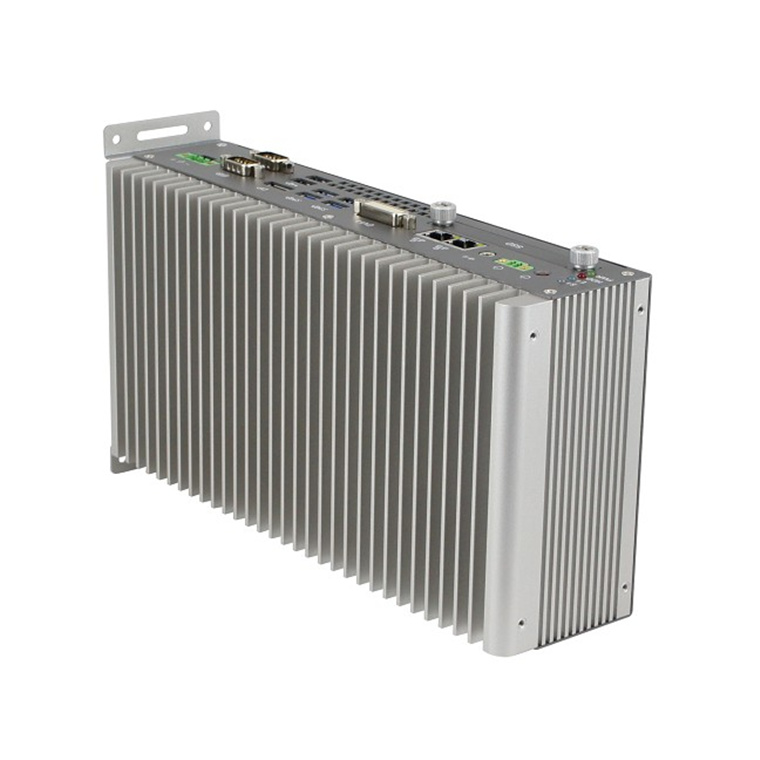

The AMS300 is a compact, yet expandable fanless system designed for industrial control and measurement processes in smart factory automation applications. It is powered by 7th/6th Gen Intel® Core™ i7/i5/i3 processors and comes integrated with 8GB memory as well as 64GB of industrial-grade SSD storage. An optional 2MB MRAM expansion module is available to store data even without power. The AMS300 is built with two module compartments for PCI-E/PCI cards and Fieldbus modules, giving flexibility to customers to configure the various I/O required. The unit also features high vibration and shock resistance crucial for deployment in harsh conditions and all interfaces situated on one side for easy assembly and expansion.

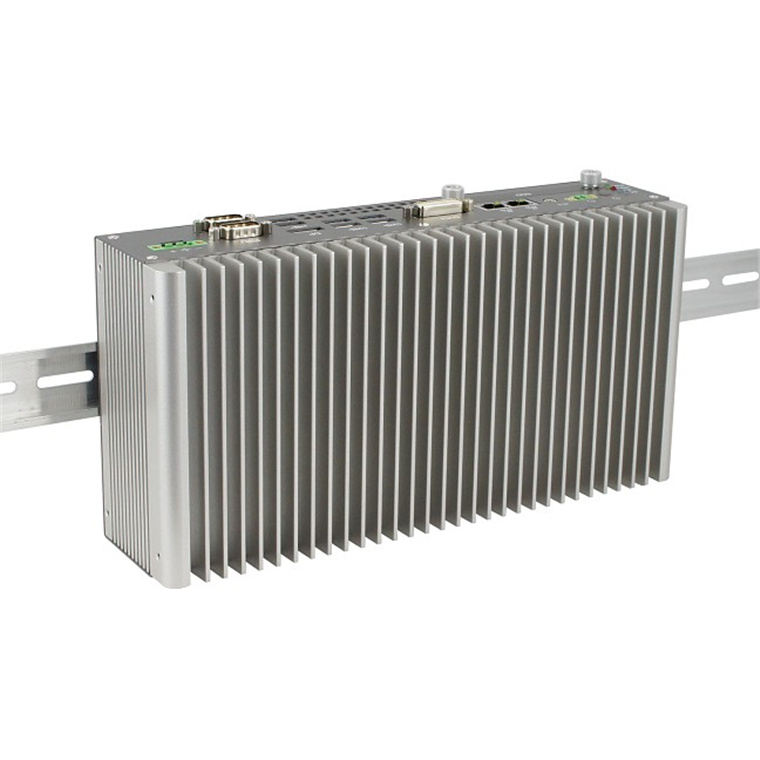

Built with a passive finned heat sink, the rugged AMS300 boasts of superb thermal performance while reliably operating at a temperature range of -10°C to 60°C. It adopts wall, side and DIN-rail mounting to securely fit in space-constrained and industrial environments. Advanced features include iAMT (11.6) for remote management and repair of systems and IBASE's owned iSMART technology that enables energy-efficient systems with various power-saving functions. AMS300 offers extensive I/O connectivity including a drive bay with RAID 0/1 support, a 24V DC terminal block, 4x USB 3.0 which can be used as machine vision camera interface, 2x USB 2.0, 2x COM, 2x Gigabit Ethernet and video outputs for DVI-I and DisplayPort interface.
To meet customer specific requirements, the AMS301, an AMS300 variant model, houses an extension module with an IP301 card with 3x mPCIe slots that can be installed with optional PROFINET and PROFIBUS Fieldbus modules. The AMS302, on the other hand, has an IP302 expansion card with interface for USB, COM, PCI-E(x8) and PCI-E(x4) devices.
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a PB Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Specifications
System Mainboard
MB300 with Intel® Q170 PCH
CPU Type
6th Generation Intel® Core™ i5 Desktop processors
System Speed
Up to 3.4GHz
Memory
2x DDR4-2133 4GB SO-DIMM, Max. 32GB
Construction
Aluminum & steel
Chassis Color
Sliver
Front Panel External I/O
2x Antenna hole for WLAN module
Rear Panel External I/O
1x DVI-I + 1x DisplayPort connector
1x Audio jack for Line-out
4x USB 3.0 ports, 2x USB 2.0 ports
1x Red HDD LED, 1x Green PWR LED, 2x error LED by programming
1x power button
1x 2-pin terminal block for external power button
1x RS232/422/485 port for COM#1
1x RS232 port for COM#2
2x RJ45 Gigabit Ethernet port
1x 3-pin DC-in terminal block type for 24V
Expansion Slots
1x Mini PCI-E socket (full-sized)
Storage 1x 2.5" SSD + 1x mSATA socket
Mounting
Desktop or wall mounting (wall mount kit included)
Side mounting
DIN rail mounting (optional)
Weight
2.7kg
Dimensions
275mm (W) x 140mm (D) x 70mm (H)
Operating Temperature
-10°C to 60°C (14°F~140°F)*With Air flow
-10°C to 50°C (14°F to 122°F)
Storage Temperature
-20°C to 80°C (-4°F to 176°F)
Relative Humidity
5~90% @ 45°C, (non-condensing)
Vibration
Non-Operating: 1.0 grms / 5~500Hz / random operation
Operatiing: 0.25 grms / 5~500Hz / random operation
Certification
CE / LVD / FCC Class B
