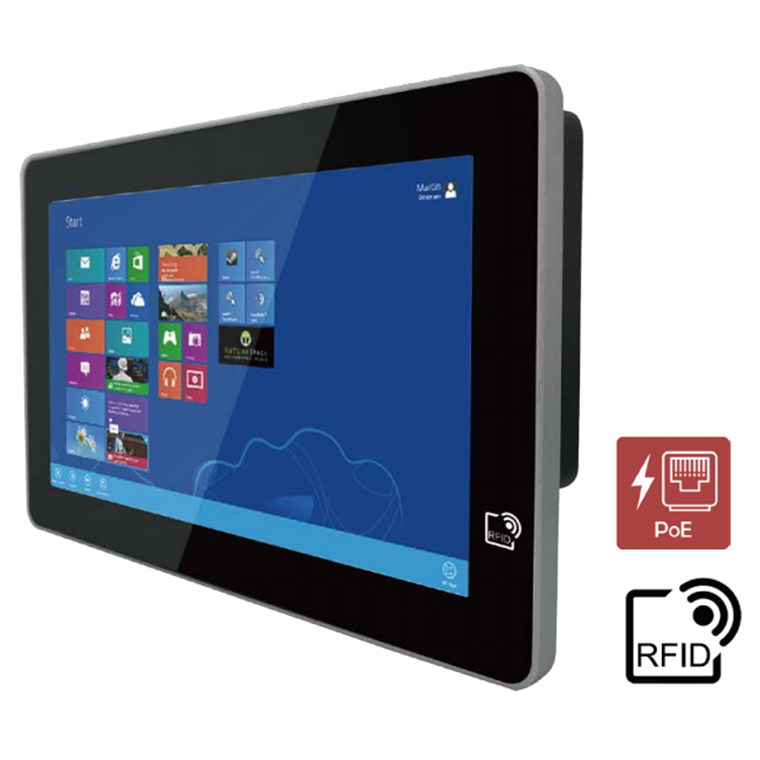

Winmate W10IB3S-PCH2-POE Panel PC with Win10 IoT 10.1" 1280x800 Resolution Screen , with Intel Celeron N2930 1.83GHz CPU, 2GB DDR3 64GB Storage, With POE Function

PB Tech price
PB Tech price
$ 1,728 .00
 +GST
$ 1,987 .20
 inc GST

Out of stock

Winmate W10IB3S-PCH2-POE Panel PC with Win10 IoT 10.1" 1280x800 Resolution Screen , with Intel Celeron N2930 1.83GHz CPU, 2GB DDR3 64GB Storage, With POE Function

  • Brand: Winmate
  • MPN: W10IB3S-PCH2-POE
  • Part #: WKSWMA101B
  • UPC:
PB Tech price
$ 1,728 .00 $ 1,987 .20
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock

Features

- 10.1" 1280x 800 Resolution with Projected Capacitive Multi-Touch (P-CAP)
- Low-power system with Intel® Celeron® N2930 processor
- PoE standard IEEE 802.3at (25W)
- Fanless cooling system and ultra-low power consumption
- Dual Gigabit Ethernet
- Front IP65 water and dust proof
- Optional HF RFID Reader
- Support PoE Function
- Room booking schedule, access control, room information display


Want us to build your custom PC?

Frequently asked questions

Can I swap out parts and/or add/change/remove operating systems in a PB Tech PC?

We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.

Contact our WebSales team here

What parts are used in this PC?

The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.

Once again, you can contact our WebSales team here

I've just purchased my first custom PC, how do I set it up?

Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.

Your can learn more in our new PC setup guide here

Specifications

LCD Panel Specification

Size

10.1" (Widescreen)

Active Display Area

216.96(H) x 135.6(V)

Pixel Pitch

0.1695(H) x 0.1695(V)

Resolution

1280 x 800

Contrast Ratio

800:1(typ.)

Display Color

16.7M

Brightness

350(typ.)

Viewing Angle

-85~85(H) ; -85~85(V)

Touch Screen

Projected Capacitive Multi-Touch (P-CAP)
Optional anti-glare coating

System Specification

Processor

Intel® Celeron® Bay Trail-M N2930 1.83GHz

Chipset

Intel® ATOM SoC Integrated

Memory

2 GB, 1 x SODIMM DDR3L 1600 MHz ( Max 8GB)

Storage

1 x M.2 SSD (Default 64GB)

LAN

Intel® I210-AT GbE

I/O Connectors

Digital IO

1 x DIDO (Optional)

USB Port

1 x USB 3.0, 1 x USB 2.0

Ethernet

1 x RJ 45-10/100/1000 Mbps (LAN)
1 x RJ 45-10/100/1000 Mbps (LAN/ PoE)

COM Port

1 x RS232/422/485

Speaker

1 x 1 Watt Speaker

Mechanical and Environment

Operating Temperature

0°C to +50°C

Operating Humidity

30% to 90% (non-condensing)

Cooling System

Fanless design

Dimension (W x H x D)

263.28 x 172 x 35.7 (mm)

Mouting

VESA Mount(75x75mm), Panel Mount, Front Side Wall Mount

Product Spec

OS

Windows 10 IoT Enterprise

Peripheral

RFID(HF, 13.56MHz)

HF RFID reader 13.36 MHz (Optional)

Camera

2MP Front Camera (Optional)

Power

Power Input

12V DC Terminal Block (Phoenix Type)
Support PoE standards IEEE 802.3at for up to 25 Watt

Power Consumption

19W

Power over Ethernet

Power Device (PD): follows IEEE 802.3at (25 W)

Software

Utility

"HotTab"

Manufacturer Part No:
W10IB3S-PCH2-POE
Brand:
Product Type:
Panel PC with Win10 IoT
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
WKSWMA101B
Product Model:
W10IB3S-PCH2-POE
Warranty: 12 months *
