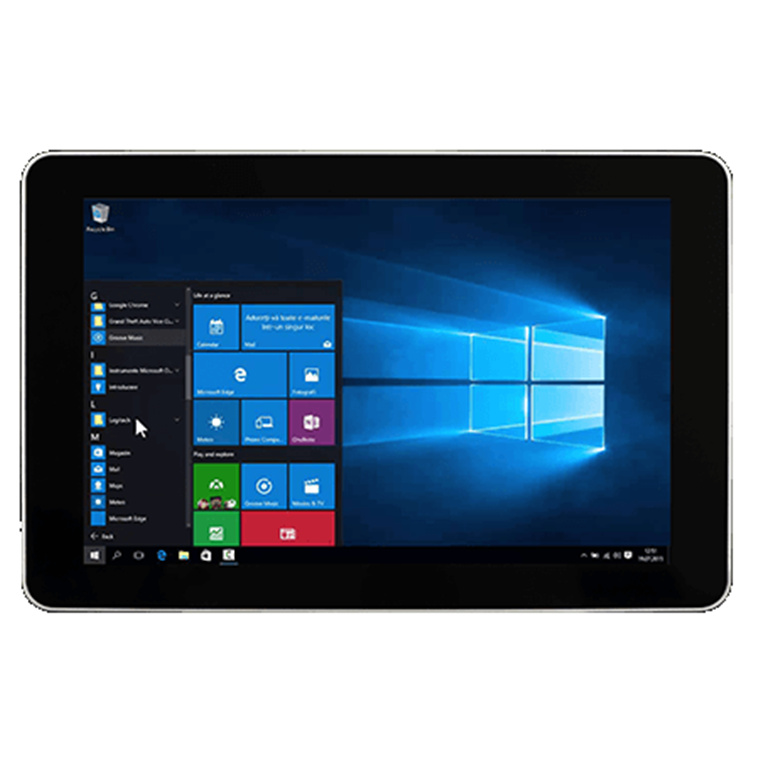

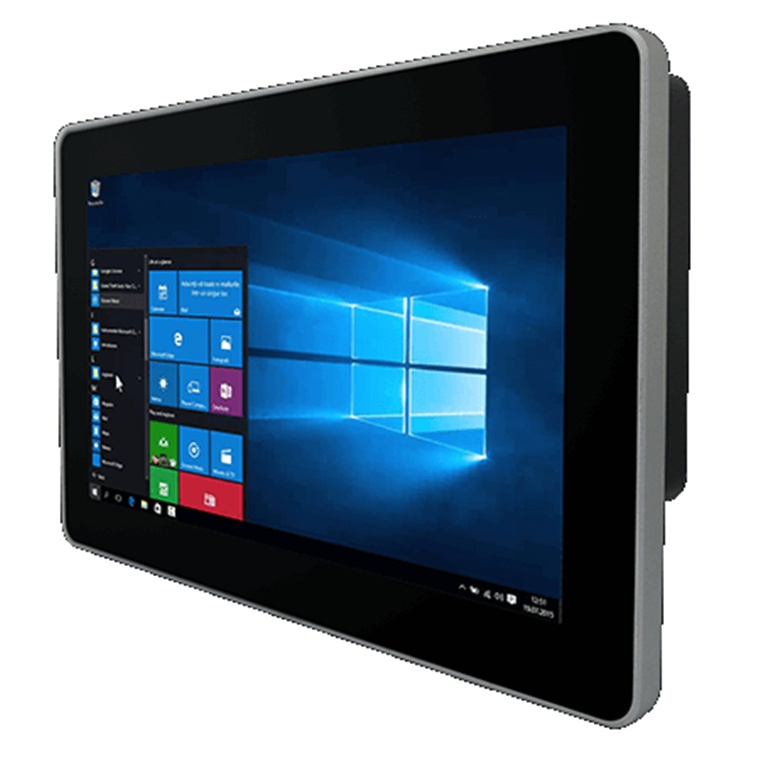

Winmate Panel PC W10IB3S-PCH2-POE Intel, 4G, 128GB, WIFI 10.1" 1280x800, 350nits, PCAP , with intel Celeron N2930 1.83GHz, With POE Function, Windows IOT
Out of stock
Winmate Panel PC W10IB3S-PCH2-POE Intel, 4G, 128GB, WIFI 10.1" 1280x800, 350nits, PCAP , with intel Celeron N2930 1.83GHz, With POE Function, Windows IOT
- Brand: Winmate
- MPN: 98C010A000FN
- Part #: WKSWMA101BW
- UPC:
- Brand: Winmate
- MPN: 98C010A000FN
- Part #: WKSWMA101BW
- UPC:
Features

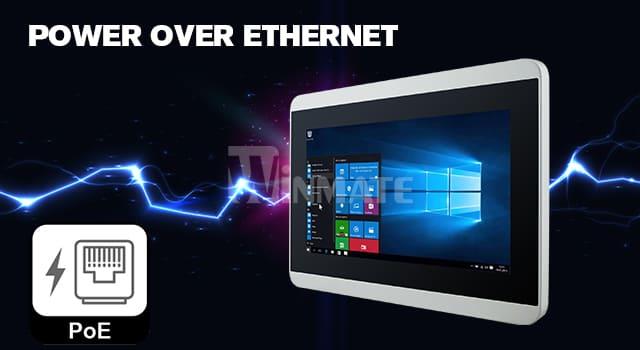

Power over Ethernet (Data and Power connections in a single cable)
The hardware installation becomes easier with Power over Ethernet. PoE reduces the number of cables needed for the connection of various devices. This infrastructure allows for centralized power management; therefore, it is a cost-effective solution for access control, home, and industrial automation.

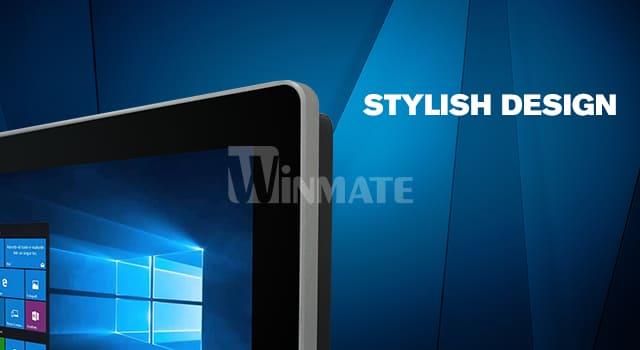

Stylish Design
Winmate's S-series HMIis 35% thinner than a traditional Panel PC. With the slim design, it has an aesthetically pleasing look that fits modern interiors and exteriors. Its true flat surface is not only for a stylish look but easy to maintain and clean. No more clogged dust on the edges.

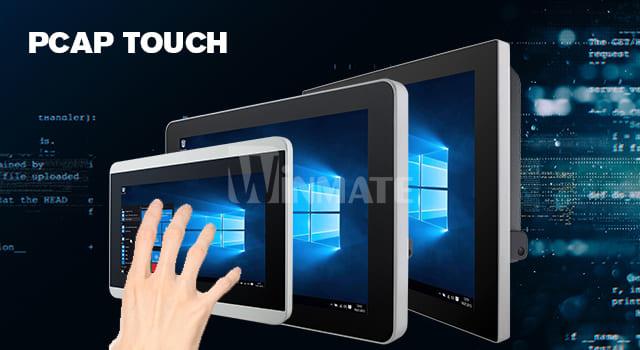

P-Cap Touch (Resistant to scratches)
The glass cover lens provides great protection from scratches. P-Cap Touch supports 4-point multi-touch and can easily be controlled by fingers. This technology allows enjoying every touch and improving the convenience of using the device. Thus, it helps to enhance the overall customer experience.

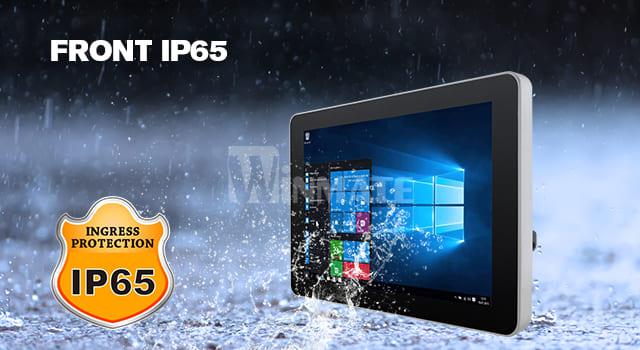

Front IP65 (Water and Dust Proof)
Don't worry whether somebody split the coffee over S-Series HMI, or if the raindrops reach the device! This HMI is sealed with IP65 on the front side and is protected against possible damages from outer dust and water splash.
- 10.1" 1280x 800 Resolution with Projected Capacitive Multi-Touch (PCAP)
- Low-Power System with Intel® Celeron® N2930 Processor
- Fanless Cooling System and Ultra-low Power Consumption
- Dual Gigabit Ethernet
- Support PoE function
- Front IP65 Water and Dust Proof
- Optional HF RFID Reader
- Optional 2MP Front Camera
- Room Booking Schedule, Access Control, Room Information Display
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a PB Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Computers
MINIX MiniPC Z97 Intel N97, 12GB DDR5, 512GB NVMe Dual Ethernet,...
MINIX Mini PC NGC NR774 AMD Ryzen 8745HS/32GB DDR5/1TB SSD/ Win...
MINIX Fanless MiniPC Z150-0dB Intel N150 8G/256GB, WiFi 6, Win 11...
MINIX Fanless MiniPC Z150-0dB Intel N150 16G/512GB, WiFi 6, Win...
MINIX SF16T 16" Portable Monitor with touch panel
Winmate Panel PC W10IB3S-PCH2-POE Intel, 4G, 128GB, WIFI 10.1" 1280x800, 350nits, PCAP , with intel Celeron N2930 1.83GHz, With POE Function, Windows IOT
- Brand: Winmate
- MPN: 98C010A000FN
- Part #: WKSWMA101BW
Product URL: https://www.pbtech.co.nz/product/WKSWMA101BW/Winmate-Panel-PC-W10IB3S-PCH2-POE-Intel-4G-128GB-W
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Power over Ethernet (Data and Power connections in a single cable)
The hardware installation becomes easier with Power over Ethernet. PoE reduces the number of cables needed for the connection of various devices. This infrastructure allows for centralized power management; therefore, it is a cost-effective solution for access control, home, and industrial automation.
Stylish Design
Winmate's S-series HMIis 35% thinner than a traditional Panel PC. With the slim design, it has an aesthetically pleasing look that fits modern interiors and exteriors. Its true flat surface is not only for a stylish look but easy to maintain and clean. No more clogged dust on the edges.
P-Cap Touch (Resistant to scratches)
The glass cover lens provides great protection from scratches. P-Cap Touch supports 4-point multi-touch and can easily be controlled by fingers. This technology allows enjoying every touch and improving the convenience of using the device. Thus, it helps to enhance the overall customer experience.
Front IP65 (Water and Dust Proof)
Don't worry whether somebody split the coffee over S-Series HMI, or if the raindrops reach the device! This HMI is sealed with IP65 on the front side and is protected against possible damages from outer dust and water splash.
- 10.1" 1280x 800 Resolution with Projected Capacitive Multi-Touch (PCAP)
- Low-Power System with Intel® Celeron® N2930 Processor
- Fanless Cooling System and Ultra-low Power Consumption
- Dual Gigabit Ethernet
- Support PoE function
- Front IP65 Water and Dust Proof
- Optional HF RFID Reader
- Optional 2MP Front Camera
- Room Booking Schedule, Access Control, Room Information Display
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a PB Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Specifications
Display
Size
10.1 inches
Touch / Glass
Projected Capacitive Multi Touch Screen
Resolution
1280x800
Panel Brightness
350 nits
1000 nits(Optional)
Contrast Ratio
800:1
View Angles
85,85,85,85
Active Area
216.96 x135.6 mm
System Specification
Processor
Intel® Celeron® N2930 (2M Cache, up to 2.16 GHz)
Memory
1 x SO-DIMM, DDR3L 1600 MHz, 4GB
Storage
1 x M.2 2242 B-key SSD 128GB.
Ethernet controller
2 x Intel® Ethernet Controller
Operating System
Windows 10 IoT Enterprise (Optional)
Linux Ubuntu 20.04 (Optional)
WLAN
Support (Optional)
BT
Support (Optional)
RFID
HF RFID Reader 13.56 MHz (Optional)
Mechanical
Dimension
264.57 x 173.29 x 35.7 mm
Cut out
250x159mm
Mounting
Panel mount
VESA Mount
Enclosure
Metal Housing
Cooling System
Fanless design
Environment
Operating Humidity
10% to 90% (non-condensing)
Operating Temperature
0~50°C
Storage Temperature
-20~60°C
IP rating
Front IP65
Certification
Certification
CE, FCC
IO Ports
USB Port
1 x USB3.2 Gen1x1 (Type-A)
1 x USB2.0 (Type-A)
Serial Port
1 x RS232/422/485 (Default RS232)
LAN
2 x Giga LAN RJ45 Connector, One with PoE(PD, 802.3at)(Optional)
Audio
1 x Speaker
Expansion Port
2 x M.2 slot(1 for WiFi, 1 for SSD)
Power Input
1 x 12V DC, 3-Pin Terminal Block
Power
Power Rating
12V DC
10~60V (Optional)
Adapter
12V 50W
POE
PoE (PD): follows IEEE 802.3at (25 W)
