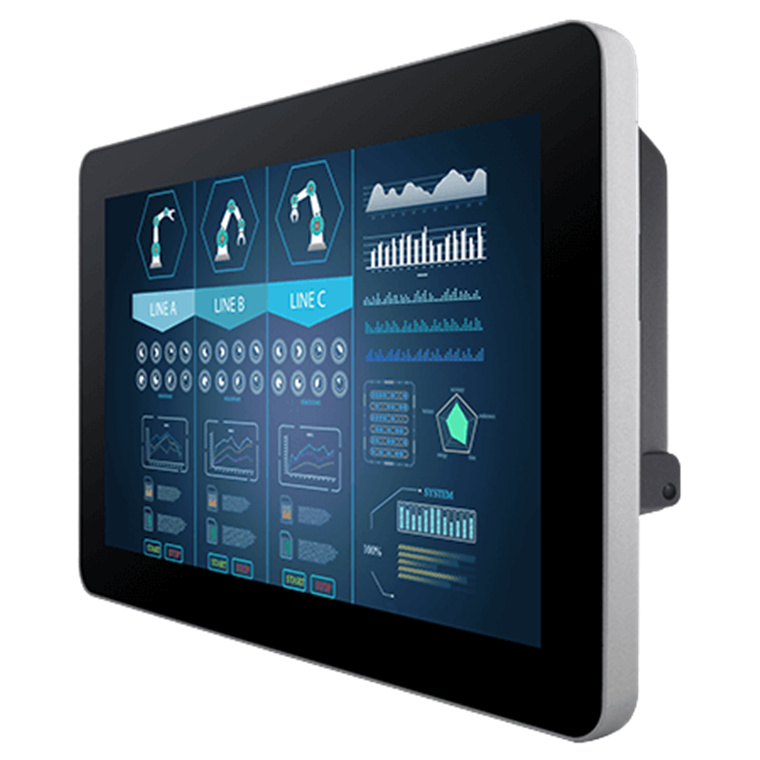

Winmate Multi-Touch Chassis W10L100-PCH2 P-Cap 10.1" 1280x800 Front IP65 Water and Dust Proof, 1xUSB, 1xVGA, Fanless design
Winmate Multi-Touch Chassis W10L100-PCH2 P-Cap 10.1" 1280x800 Front IP65 Water and Dust Proof, 1xUSB, 1xVGA, Fanless design
- Brand: Winmate
- MPN: W10L100-PCH2
- Part #: WKSWMA10L100
- UPC:
- Brand: Winmate
- MPN: W10L100-PCH2
- Part #: WKSWMA10L100
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT
Winmate Multi-Touch Chassis W10L100-PCH2 P-Cap 10.1" 1280x800 Front IP65 Water and Dust Proof, 1xUSB, 1xVGA, Fanless design
- Brand: Winmate
- MPN: W10L100-PCH2
- Part #: WKSWMA10L100
Product URL: https://www.pbtech.co.nz/product/WKSWMA10L100/Winmate-Multi-Touch-Chassis-W10L100-PCH2-P-Cap-101
Branch | New Stock | On Display |
---|---|---|
Albany | - | |
Glenfield | - | |
Queen Street | - | |
Auckland Uni | - | |
Newmarket | - | |
Westgate | - | |
Penrose | - | |
Henderson (Express) | - | |
St Lukes | - | |
Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Head Office | - | |
Hornby | - | |
Christchurch Central | - |
Features
Low Power Consumption
This display is designed for low power consumption and effective heat dissipation, making it durable for long-term usage in production facilities. It is the ultimate energy-efficient solution.
Easy Mounting
This industrial display comes with a universal VESA mounting option for wall and desk mounting. Enable easy installation and use in various industries according to your specific requirements.
- 10.1" 1280 x 800 Resolution
- Projected Capacitive Multi-Touch (P-Cap)
- Front IP65 Water and Dust Proof
- VGA input and variety of optional connectors
- USB port for touch
- Stylish and elegant design
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a PB Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
Specifications
Display
Size
10.1 inches
Touch / Glass
Projected Capacitive Multi Touch Screen
Anti-glare Coating (Optional)
Resolution
1280x800
Panel Brightness
350 nits
1000 nits(Optional)
Contrast Ratio
800:1
View Angles
85,85,85,85
Display Color
16.7M Colors
Active Area
216.96 x135.6 mm
Environment
Operating Humidity
10% to 90% (non-condensing)
Operating Temperature
0~50°C
Storage Temperature
-10~60°C
Certification
Certification
CE, FCC
IO Ports
USB Port
1 x USB for Touch Screen
Video
1 x VGA
1 x HDMI (Optional)
1 x DVI (Optional)
Audio
1 x Speaker (Optional)
Mechanical
Dimension
264.57 x 173.29 x 35.70 mm
Mounting
VESA Mount
Enclosure
Aluminum
Cooling System
Fanless Design
Power
Power Rating
12V DC input
Control
Button
5 Keys: - , + , Power , Esc , Enter
