Winmate FA30 SB3-210 ARM Freescale Cortex A9 iMX6 DUAL core 1GHz, RAM : 1G,16GB eMMC, LAN x1, U2L board, Audio, WP1240C with ignition, USB GPS module, Linux Yocto - Ubuntu 18.04, PowerCordType:AUS
Out of stock
Winmate FA30 SB3-210 ARM Freescale Cortex A9 iMX6 DUAL core 1GHz, RAM : 1G,16GB eMMC, LAN x1, U2L board, Audio, WP1240C with ignition, USB GPS module, Linux Yocto - Ubuntu 18.04, PowerCordType:AUS
- Brand: Winmate
- MPN: FA30SB3-210
- Part #: WKSWMAFA30SB3
- UPC:
- Brand: Winmate
- MPN: FA30SB3-210
- Part #: WKSWMAFA30SB3
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Computers





Winmate FA30 SB3-210 ARM Freescale Cortex A9 iMX6 DUAL core 1GHz, RAM : 1G,16GB eMMC, LAN x1, U2L board, Audio, WP1240C with ignition, USB GPS module, Linux Yocto - Ubuntu 18.04, PowerCordType:AUS
- Brand: Winmate
- MPN: FA30SB3-210
- Part #: WKSWMAFA30SB3

Product URL: https://www.pbtech.co.nz/product/WKSWMAFA30SB3/Winmate-FA30-SB3-210-ARM-Freescale-Cortex-A9-iMX6
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

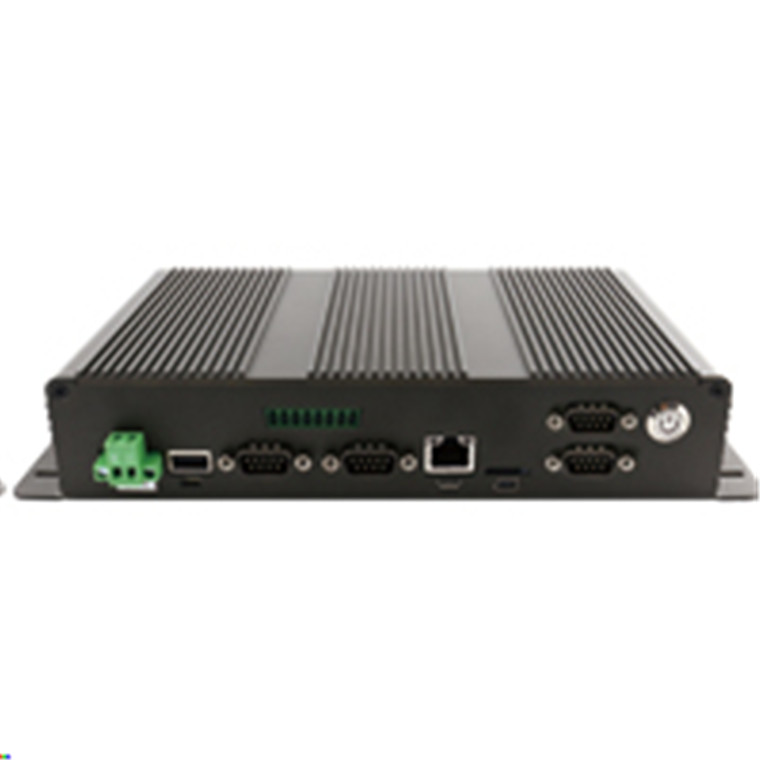

Alu. Fin BOX PC series Freescale i.MX6 Cortex A9 Dual Core 1GHz ARM BOX PC
- ARM Freescale Cortex A9 Dual Core 1GHz (Optional for Quad Core)
- Support Android 6.0 / Linux 4.1.15(QT 5.5 Browser)/ Ubuntu 16.04
- Built-in 1GB RAM and 16GB eMMC memory (optional 2GB RAM)
- 1 x RS323 (optional 422/485) (optional for the other 2 x RS232)
- 1 x USB, 1 x LAN (optional for PoE), 1 x 9-24V DC in
- 1 x USB OTG
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a PB Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Specifications
Processor
NXP A9 i.MX6 Dual Core 1GHz (Optional for Quad Core)
System Memory
1GB LPDDR3(optional for 2GB)
Serial
1 x RS323 (optional 422/485) (optional for the other 2 x RS232)
USB
1 x USB A-Type (Host)
Expansion Slot
1 x micro SD/SDHC card slot
Operating System
Android 6.0/ Linux 4.1.15(QT 5.5 Browser)
Front Side I/O
1 x RS232 (Optional 422/485) optional for the other two RS232
1 x USB A-type (Host)
1 x RJ-45 10/100(Optional PoE)
1 x Micro SD/SDHC Card Slot
1 x CAN BUS
1 x USB OTG
1 x Micro HDMI
6 x DIDO(optional)
Dimensions (L x W)
224 x 47 x 127 mm (W x H x D)
Color
Silver
Construction
Aluminum profile with fin housing
Power Input
9 ~ 24V DC-In
Operating Temperature
-20 to 60?
Operating Humidity
10% ~ 90% (non-condesing, RH)
Mounting
Desktop / Wall-Mount
