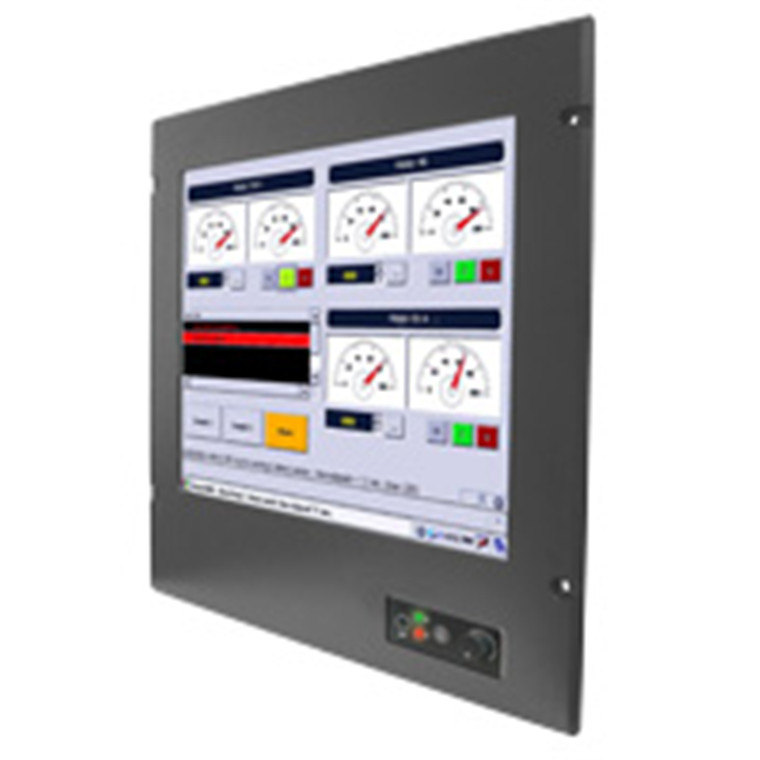

Winmate R17ID3S-MRM1 Marine Panel PC 17" Intel Dual Core Atom N2600 Platform with 2GB RAM, 128GB mSATA SSD , WS7P System,ResistiveTouch

Winmate R17ID3S-MRM1 Marine Panel PC 17" Intel Dual Core Atom N2600 Platform with 2GB RAM, 128GB mSATA SSD , WS7P System,ResistiveTouch
PB Tech price: PB Tech price:
  • Overview
  • Features
  • Specifications
  • Reviews
  • Q & A
  • Accessories

Generating Print Page

Winmate R17ID3S-MRM1 Marine Panel PC 17" Intel Dual Core Atom N2600 Platform with 2GB RAM, 128GB mSATA SSD , WS7P System,ResistiveTouch

Winmate R17ID3S-MRM1 Marine Panel PC 17" Intel Dual Core Atom N2600 Platform with 2GB RAM, 128GB...

Features

Intel® Dual Core Atom N2600 Platform, Fanless Design
Dimming knob control backlight brightness from nearly 0% to 100%
Transflective film technology enhance visibility
Panel (flush) mount IP66 aluminum housing with powder coating design (IP54 rear)
9 to 36V DC power input acceptable
High quality touchscreen / AR protection glass for option
Ease of use front panel OSD control
Enhanced shock and vibration resistance


Frequently asked questions

Can I swap out parts and/or change/remove Operating systems in a PB Tech PC?

We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.

Contact our WebSales team here

What parts are used in this PC?

The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.

Once again, you can contact our WebSales team here

Specifications

TFT Characteristics

Size

17"

Resolution

1280x1024

Pixel Pitch (RGB)

0.297 x 0.297

Contrast Ratio

1000:1

Brightness

350(typ.)

Viewing Angle

-85~85(H); -80~80(V)

Active Display Area

304.128(H) x 228.096(V)

Max Colors

6-bits+Hi-FRC

System Specifications

Processor

Intel® Dual Core Atom N2600 1.6GHz

BIOS

AMI 4Mbit Flash

Chipset

Intel NM10 express chipset

Memory

1 x SODIMM DDR3-800 max.4GB (Default 2 GB)

SATA

1 x SATA2

Ethernet

Dual Broadcom BCM57780 GbE controller

VGA

1x VGA Connector

Audio

Realtek ALC886 HD Audio Codec

USB Port

2 x USB2.0

Serial Port

2 x RS232, 1 x RS232/422/485

Storage

32GB SSD

Power Considerations

Power Supply Options

9 to 36 V DC power supply with terminal block.

Power Consumption

40 W typical, normal operation

Mechanical Specification

Operating Temperature

-15 to 55 deg.C

Operating Humidity

5% to 95% (non condensing)

Anti-Vibration

5Hz~500Hz / 1Grms/3 Axis

Anti Shock

15G, 11ms duration

I/O Connectors

Ethernet LAN

2 x RJ 45-10/100/1000 Mbps

COM

2 x RS232, 1 x RS232/422/485

USB

2 x USB Type-A Receptacle

RGB Out

1 x VGA 15P DSUB (female)

Power Input

1 x DC Terminal block

Manufacturer Part No: R17ID3S-MRM1 Brand: Winmate Product Type: Marine Panel PC
UPC - Product Family: - Shipping Weight: 1 kg
PB Part No: WKSWMAR17 Product Model: R17ID3S-MRM1

Warranty: 12 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

There are currently no reviews for this product

Filter Results

Do you own this product?

Write a review and go into the draw to win great prizes each month! Learn more WRITE A REVIEW

Customer Questions & Answers

Want to know something about this product? Ask a question which other users may be able to answer.

Winmate R17ID3S-MRM1 Marine Panel PC 17" Intel Dual Core Atom N2600 Platform with 2GB RAM, 128GB mSATA SSD , WS7P System,ResistiveTouch

  • Brand: Winmate
  • MPN: R17ID3S-MRM1
  • Part #: WKSWMAR17
  • UPC:
PB Tech price: $3,350.00 Excluding GSTPB Tech price:$3,852.50 Including GST
