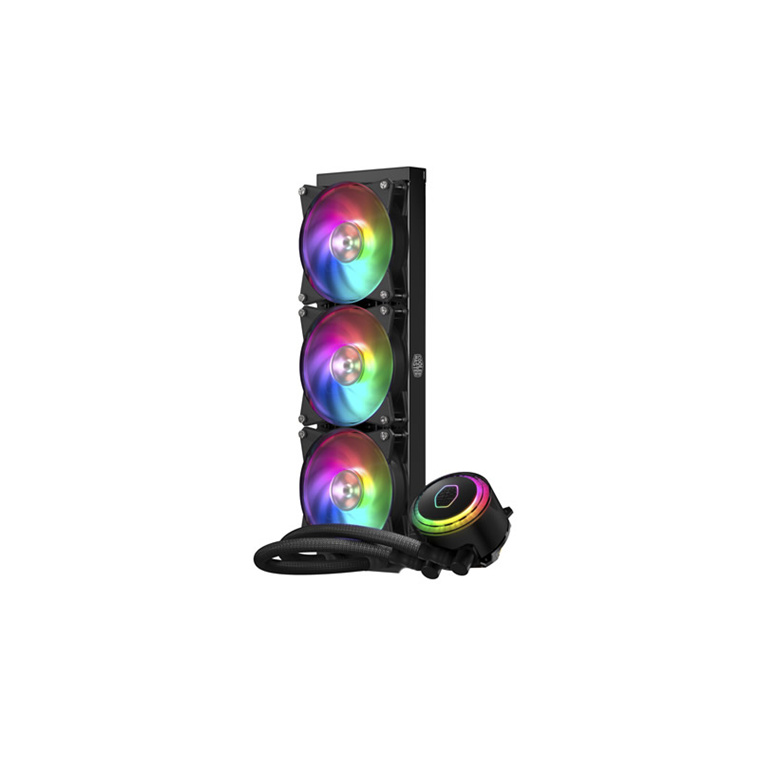

Cooler Master MasterLiquid ML360R All in One Watercooling with 3 X Addressable RGB 120MM fan - Performance 360mm radiator MAX TDP 230W Support Intel LGA 2066 / 2011 / 1366 / 1156 / 1155 / 1151 / 1150 / 775 AMD Socket FM1 / AM4 / AM3+ / A

Normally: $199.00 Normally: $228.85
$189 00  +GST $217 35  inc GST
Save: $10$11
  • Overview
  • Features
  • Specifications
  • Q&A
  • Reviews

Generating Print Page

Cooler Master MasterLiquid ML360R All in One Watercooling with 3 X Addressable RGB 120MM fan - Performance 360mm radiator MAX TDP 230W Support Intel LGA 2066 / 2011 / 1366 / 1156 / 1155 / 1151 / 1150 / 775 AMD Socket FM1 / AM4 / AM3+ / A

ON SPECIAL

Cooler Master MasterLiquid ML360R All in One Watercooling with 3 X Addressable RGB 120MM fan -...

  • Brand: Cooler Master
  • MPN: MLX-D36M-A20PC-R1
  • Part #: WTRCLM6360
  • UPC:884102043505
  • Radiator Size:360mm
  • Product Type:Water Cooling Kit
Normally: $199.00Normally: $228.85
Save: $10$11
$18900$21735
 +GST  inc GST

Store Pickup: Click & Collect not available during sale
Delivery: Order now and it ships on 30/04/2019
When will I receive it?

What PB Tech customers are saying about this product...See More Reviews

"Great 360mm rad. It keeps my 8700k under 60° while gaming, easily with minimal noise. My only gripe is that the rgb controller doesn't synch the fans with the 4 pin 12v rgb motherboard connector so..."
more
 Joshua B. ~ 25-02-19   VERIFIED OWNER
"The temps are low and the fan noise is good. pretty to."
 Ben ~ 17-01-19
"Easy to install, Plenty of colour options thanks to the included controller and ok software. Is a good match for my H500M case. Manages to keep my 8086k at 5GHz (6c12t@1.3v) under 81degC under load...."
more
 Brett@ongoingit ~ 15-01-19

Features

PLEASE NOTE: ADDRESSABLE RGB REQUIRES A COMPATIBLE ADD_HEADER ON YOUR MOTHERBOARD



SPECIAL DESIGN

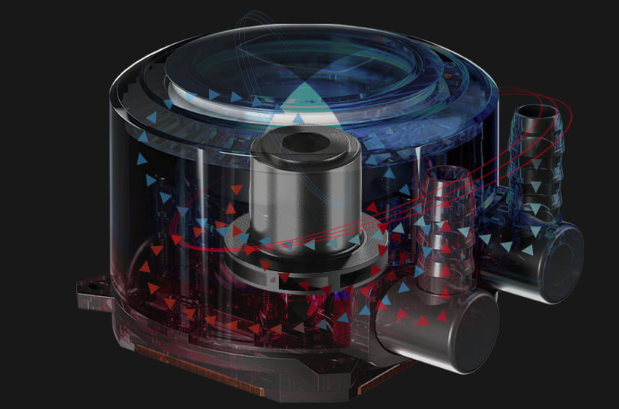

DUAL CHAMBERLOW-PROFILE DUAL CHAMBER

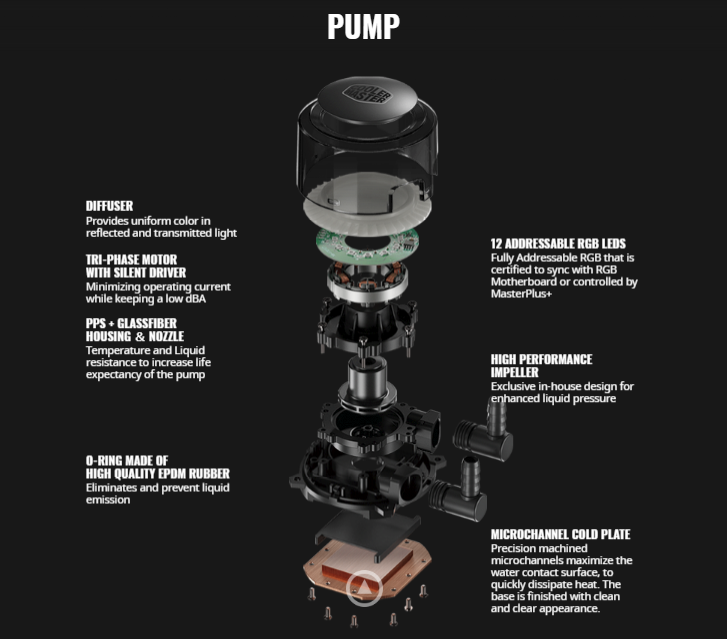

The PPS (Polyphenylene sulfide) and glass fiber construction resists a broad range of chemicals and is unaffected by moisture or immersion in water. Our pump is light and impervious to oxidation and corrosion.





STYLISH RADIATOR

Custom design low resistance radiator allows higher flow rate, heat exchange efficiency and provides unmatched cooling performance



DOUBLE TUBINGFEP

tubing makes it durable yet flexible. Sleeved tubing on the exterior to give it a premium look.

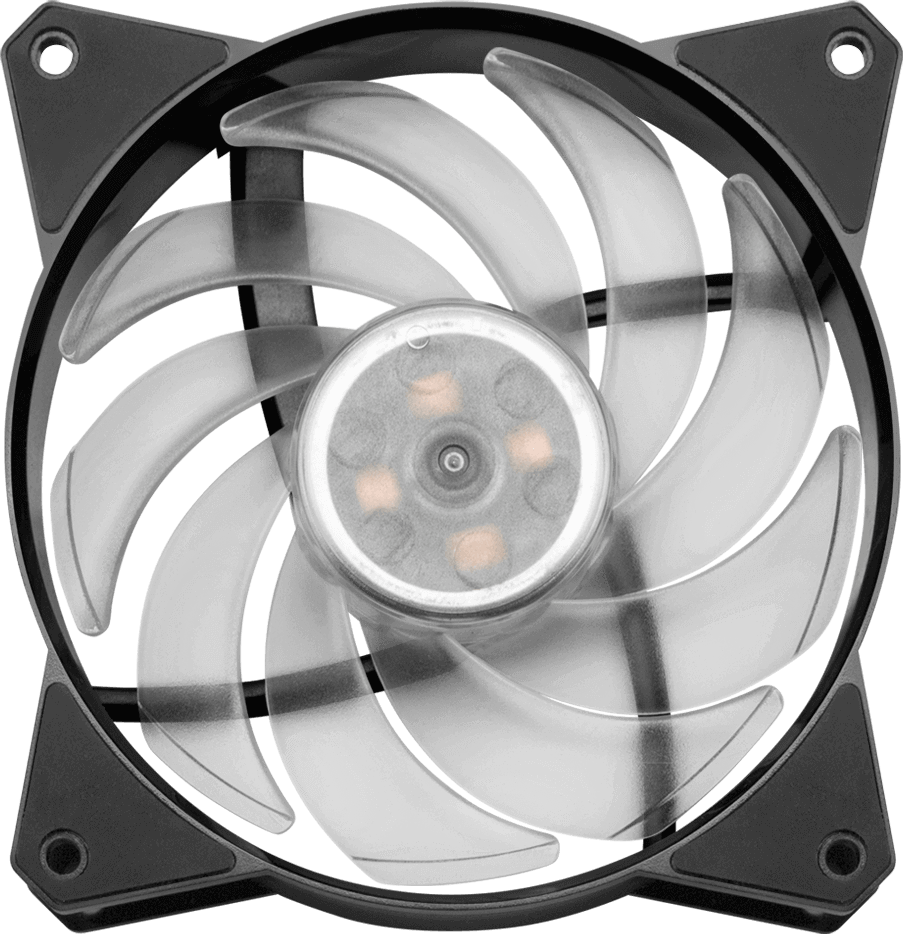

AIR BALANCE FANS

Aside from having perfect balance of airlfow and airpressure to exhaust air through the fins and out of the case, the dual fans uses an silent driver IC that smoothens fan operation to reduce fan clicks and vibrations.

Specifications

Product Name

MasterLiquid ML360R RGB

Model

MLX-D36M-A20PC-R1

CPU Socket

Intel© LGA 2066/ 2011-v3 / 2011 / 1151 / 1150 / 1155 / 1156 / 1366 / 775
AMD Socket AM4 / AM3+ / AM3 / AM2+/ AM2 / FM2+ / FM2 / FM1

Radiator Material

Aluminum

Radiator Dimensions

394 x 119 x 27.2mm (15.5 x 4.7 x 1.1")

Fan Dimensions

120 x 120 x 25 mm (4.7 x 4.7 x 1")

Fan Quantity

3 PCS

Fan Speed

650 ~ 2000 RPM (PWM) ± 10%

Fan Air Flow

66.7 CFM (Max)

Fan Air Pressure

2.34 mmH2O (Max)

Fan MTTF

160,000 hours

Fan Noise Level

6 ~ 30 dBA

Fan Connector

4-Pin (PWM)

Fan Rated Voltage

12 VDC

Pump Dimensions

83.6 x 71.8 x 52.7 mm (3.3 x 2.8 x 2.1")

Pump MTTF

70,000 hours

Pump Noise Level

< 15 dBA

Pump Connector

3-Pin

Pump Rated Voltage

12 VDC

Manufacturer Part No: MLX-D36M-A20PC-R1 Brand: Cooler Master Product Type: All in One Watercooling
UPC 884102043505 Product Family: MasterLiquid Shipping Weight: 2.593 kg
PB Part No: WTRCLM6360 Product Model: ML360R

Warranty: 24 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Customer Questions & Answers

Want to know something about this product? Ask a question which other users may be able to answer.
Question:
How many connectors does RGB controller have?
Asked by: Mathias Hansen on 13 March 2019

Reviews

4.7 out of 5 StarsBased on 6 Reviews

5 Stars
4
4 Stars
2
3 Stars
0
2 Stars
0
1 Star
0

Filter Results

Do you own this product?

Write a review and go into the draw to win great prizes each month! Learn more WRITE A REVIEW
Displaying 1 - 6 of 6 reviews
Ben

Best performer for $

17 January 2019
The temps are low and the fan noise is good. pretty to.
Did you find it helpful?
1 out of 1 user found this review helpful
Brett@ongoingit

ML360R by CoolerMaster

15 January 2019
Easy to install, Plenty of colour options thanks to the included controller and ok software. Is a good match for my H500M case. Manages to keep my 8086k at 5GHz (6c12t@1.3v) under 81degC under load. If you like it, buy it!
Did you find it helpful?
1 out of 1 user found this review helpful
Ewan M.
VERIFIED OWNER

Good price for what you get

15 November 2018
The ML360R is great if you're looking for a 360 Radiator to fill up in your case. The build quality feels great right out of the box. It comes with a fairly easy install and some pretty RGB. The one downside of the RGB is the lack of customization. Maybe if you connect it with Aura Sync (Yes it syncs with Aura Sync) you will have more options as I just have it controlled off the included box. The logo on the pump is able to be taken off and rotated to match the orientation of your case which is amazing. Temperatures are as expected on an AIO, running my 8700k at 4.8Ghz and averaging around 60 to low 70 while gaming. The Pump is fairly quiet...
View More
Did you find it helpful?
1 out of 1 user found this review helpful
Sam
VERIFIED OWNER

Awesome AOI cooler

11 November 2018
Awesome aoi watercooler, nice large radiator, eas to install, qualoty fans with rgb setup is both easy to install and easy on the eye, keeps cpu nice and cool, nice and quiet operation
Did you find it helpful?
1 out of 1 user found this review helpful
Ross O.
VERIFIED OWNER

Soooo quiet

29 October 2018
This product does what it says it will, keeps my CPU cool, but more importantly it is QUIET! :-)
Did you find it helpful?
1 out of 1 user found this review helpful
Joshua B.
VERIFIED OWNER

CM ML360R

25 February 2019
Great 360mm rad. It keeps my 8700k under 60° while gaming, easily with minimal noise. My only gripe is that the rgb controller doesn't synch the fans with the 4 pin 12v rgb motherboard connector so you can use aura synch to control it. It said supported but it only controls one 12v port out which makes it pretty useless as you can just use the header on the board instead. So unless you motherboard has a 5v pwm header you cannot synch the fans with motherboard rgb software.
Did you find it helpful?
0 out of 0 users found this review helpful

Cooler Master MasterLiquid ML360R All in One Watercooling with 3 X Addressable RGB 120MM fan - Performance 360mm radiator MAX TDP 230W Support Intel LGA 2066 / 2011 / 1366 / 1156 / 1155 / 1151 / 1150 / 775 AMD Socket FM1 / AM4 / AM3+ / A

  • Brand: Cooler Master
  • MPN: MLX-D36M-A20PC-R1
  • Part #: WTRCLM6360
  • UPC:884102043505
Normally: $199.00 $189.00 Excluding GSTNormally: $228.85$217.35 Including GST
Date Created: 21:01, 20-04-2019
Product URL: https://www.pbtech.co.nz/product/WTRCLM6360/Cooler-Master-MasterLiquid-ML360R-All-in-One-Water
Branch
New Stock
On Display
Penrose
0
North Shore
0
Manukau
0
Auckland CBD
0
Auckland Uni
0
Henderson
0
Hamilton
0
Tauranga
0
New Plymouth
0
Wellington
0
Christchurch
0
Head Office (Web)
0

Features

PLEASE NOTE: ADDRESSABLE RGB REQUIRES A COMPATIBLE ADD_HEADER ON YOUR MOTHERBOARD



SPECIAL DESIGN



DUAL CHAMBERLOW-PROFILE DUAL CHAMBER

The PPS (Polyphenylene sulfide) and glass fiber construction resists a broad range of chemicals and is unaffected by moisture or immersion in water. Our pump is light and impervious to oxidation and corrosion.





STYLISH RADIATOR

Custom design low resistance radiator allows higher flow rate, heat exchange efficiency and provides unmatched cooling performance



DOUBLE TUBINGFEP

tubing makes it durable yet flexible. Sleeved tubing on the exterior to give it a premium look.



AIR BALANCE FANS

Aside from having perfect balance of airlfow and airpressure to exhaust air through the fins and out of the case, the dual fans uses an silent driver IC that smoothens fan operation to reduce fan clicks and vibrations.

Specifications

Product Name

MasterLiquid ML360R RGB

Model

MLX-D36M-A20PC-R1

CPU Socket

Intel© LGA 2066/ 2011-v3 / 2011 / 1151 / 1150 / 1155 / 1156 / 1366 / 775
AMD Socket AM4 / AM3+ / AM3 / AM2+/ AM2 / FM2+ / FM2 / FM1

Radiator Material

Aluminum

Radiator Dimensions

394 x 119 x 27.2mm (15.5 x 4.7 x 1.1")

Fan Dimensions

120 x 120 x 25 mm (4.7 x 4.7 x 1")

Fan Quantity

3 PCS

Fan Speed

650 ~ 2000 RPM (PWM) ± 10%

Fan Air Flow

66.7 CFM (Max)

Fan Air Pressure

2.34 mmH2O (Max)

Fan MTTF

160,000 hours

Fan Noise Level

6 ~ 30 dBA

Fan Connector

4-Pin (PWM)

Fan Rated Voltage

12 VDC

Pump Dimensions

83.6 x 71.8 x 52.7 mm (3.3 x 2.8 x 2.1")

Pump MTTF

70,000 hours

Pump Noise Level

< 15 dBA

Pump Connector

3-Pin

Pump Rated Voltage

12 VDC
