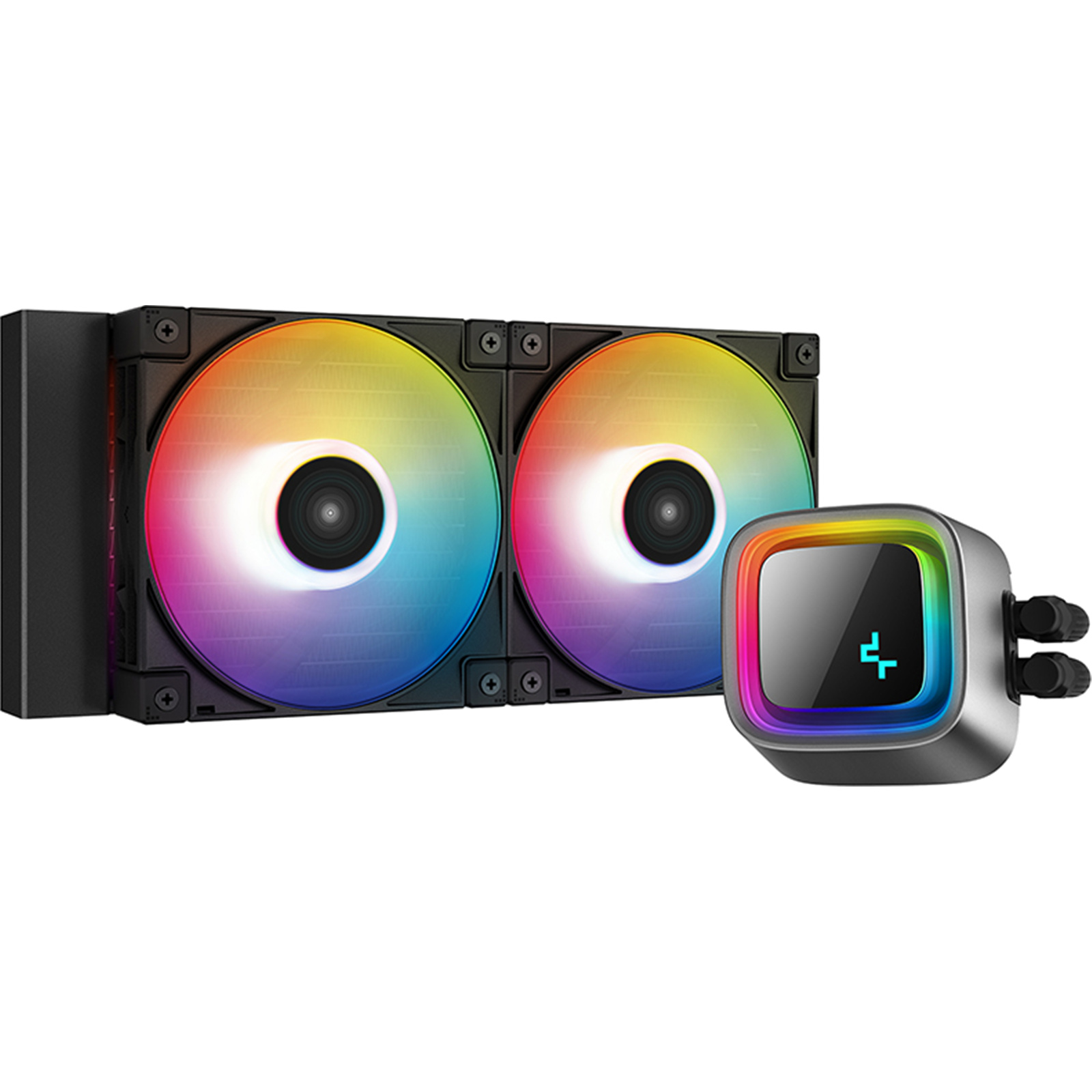

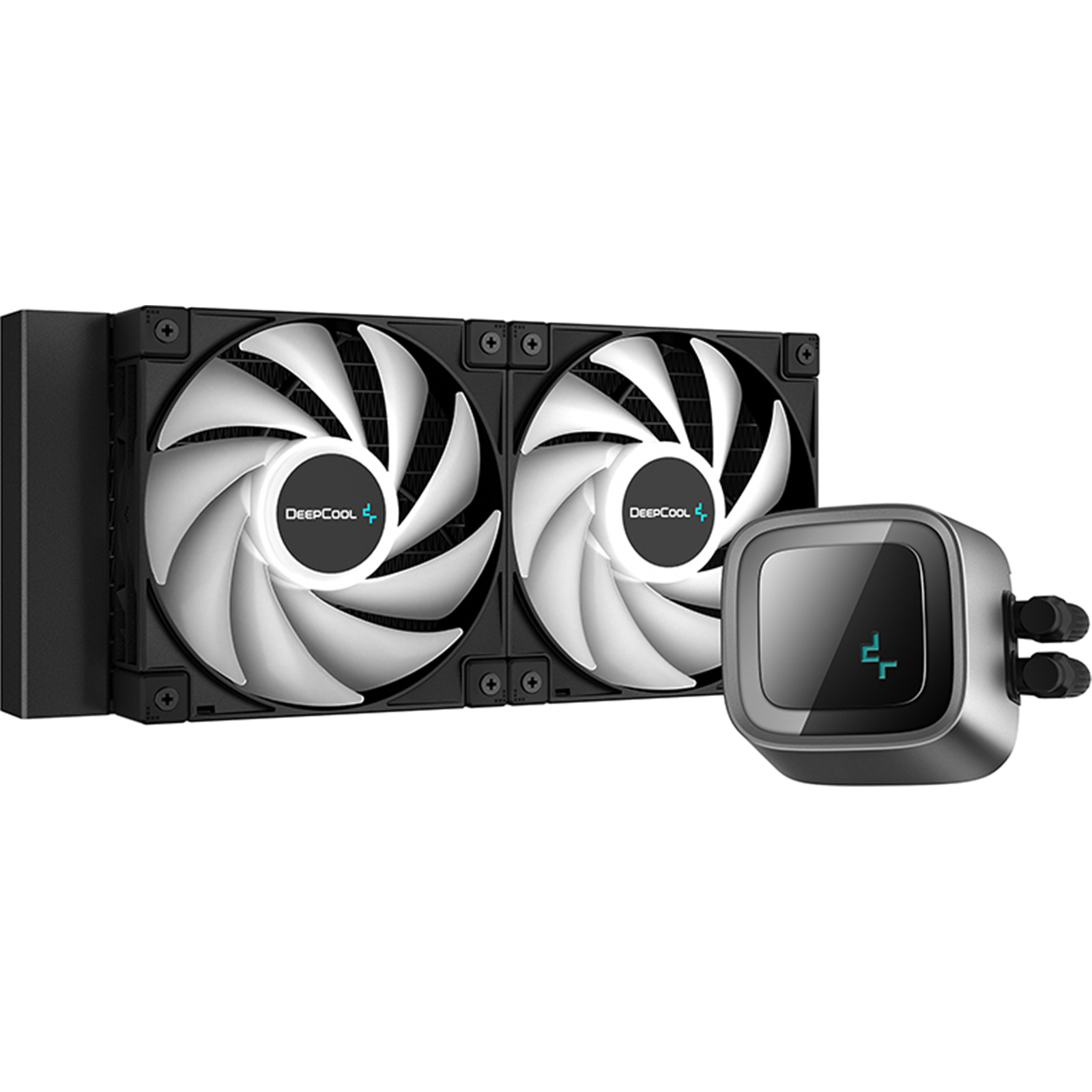

DEEPCOOL LS520 Premium 240mm AiO Water Cooling Kit with aRGB Fans, Infinity Mirror Pump, Support Intel LGA 1700 / 1200 / 1151 / 1150 / 1155, AMD AM5 / AM4

PB Tech price
PB Tech price
$ 211 .30
 +GST
$ 243 .00
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

DEEPCOOL LS520 Premium 240mm AiO Water Cooling Kit with aRGB Fans, Infinity Mirror Pump, Support Intel LGA 1700 / 1200 / 1151 / 1150 / 1155, AMD AM5 / AM4

Addressable RGB Colours!
  • Brand: DEEPCOOL
  • MPN: R-LS520-BKAMNT-G-1
  • Part #: WTRDPC2062
  • UPC:
4
PB Tech price
$ 211 .30 $ 243 .00
 +GST  inc GST

No store stock available. See in-stock alternatives

Click & Collect: Collect unavailable
Delivery: Out of stock
  • Brand: DEEPCOOL
  • MPN: R-LS520-BKAMNT-G-1
  • Part #: WTRDPC2062
  • UPC:

Fan Size

120mm

Number of Fans

2

CPU Air Cooler Height

N/A

Radiator Size

240mm

LED Colour

RGB

Sound Level (Roughly)

33dB

Bearing Type Variation

Fluid Bearing

Product is out of stock. View similar products in-stock at PB Tech

What PB Tech customers are saying about this product...

See More Reviews

"Flawless design and quality, I cannot fault it. This AIO def ...view more"

OC
By: OliC55 19/10/23
Verified Owner

"This fan is amazing and dropped my temp drastically!"

TS
By: TysonS465 02/02/23
Verified Owner

"Purchased for a 12700K install, temps are great and works as expected. RGBs do RGB things, what more could you want"

G
By: Guest 04/01/23

Features

LS520 - Elite performance

The DeepCool LS520 premium liquid CPU cooler maximizes cooling performance and low-noise efficiency with a 240mm radiator, two FC120 A-RGB PWM fans, and an infinity mirror cap design.



A NEW ERA OF DEEPCOOL

Built on our 4th Generation high-performance water pump that maximizes cooling performance featuring:

1. Improved microchannel design ensures optimal coolant flow.



2. Powerful three-phase drive motor up to 3100 RPM.

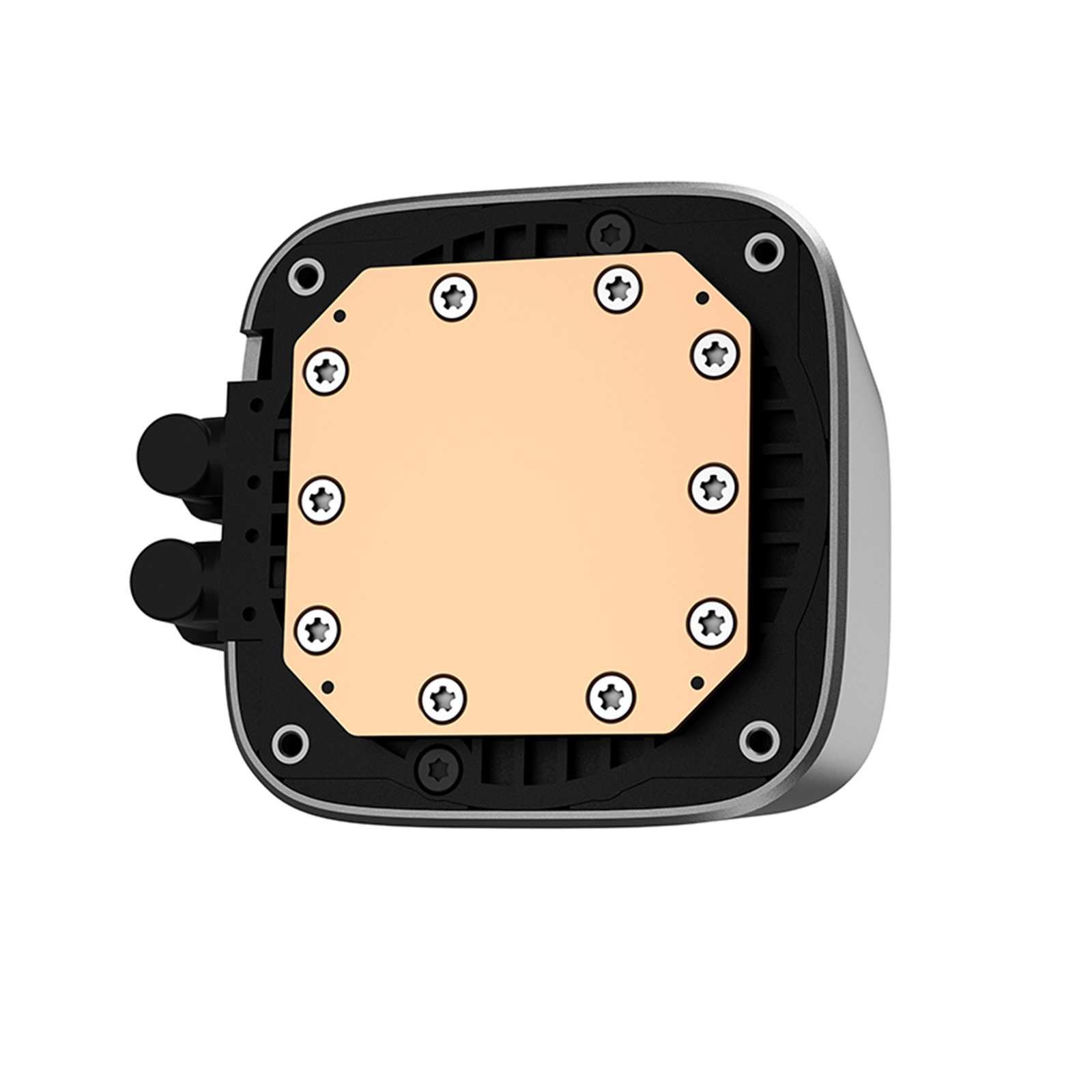

3. Thick solid copper base with a seamless match.



COOL AND QUIET

Get treated to excellent cooling and superb silent efficiency with the included FC120 fans boasting enhanced static pressure, concentrated airflow, and a fluid dynamic bearings.

- 500~2250 RPM* Dynamic PWM Range
- 85.85 CFM Supreme Airflow
- =32.9 dB(A) Full Load Noise
- 50,000 Hours Long Operational Lifespan

* The FC120 fans included on the LS series coolers feature different PWM range compared to retail models.

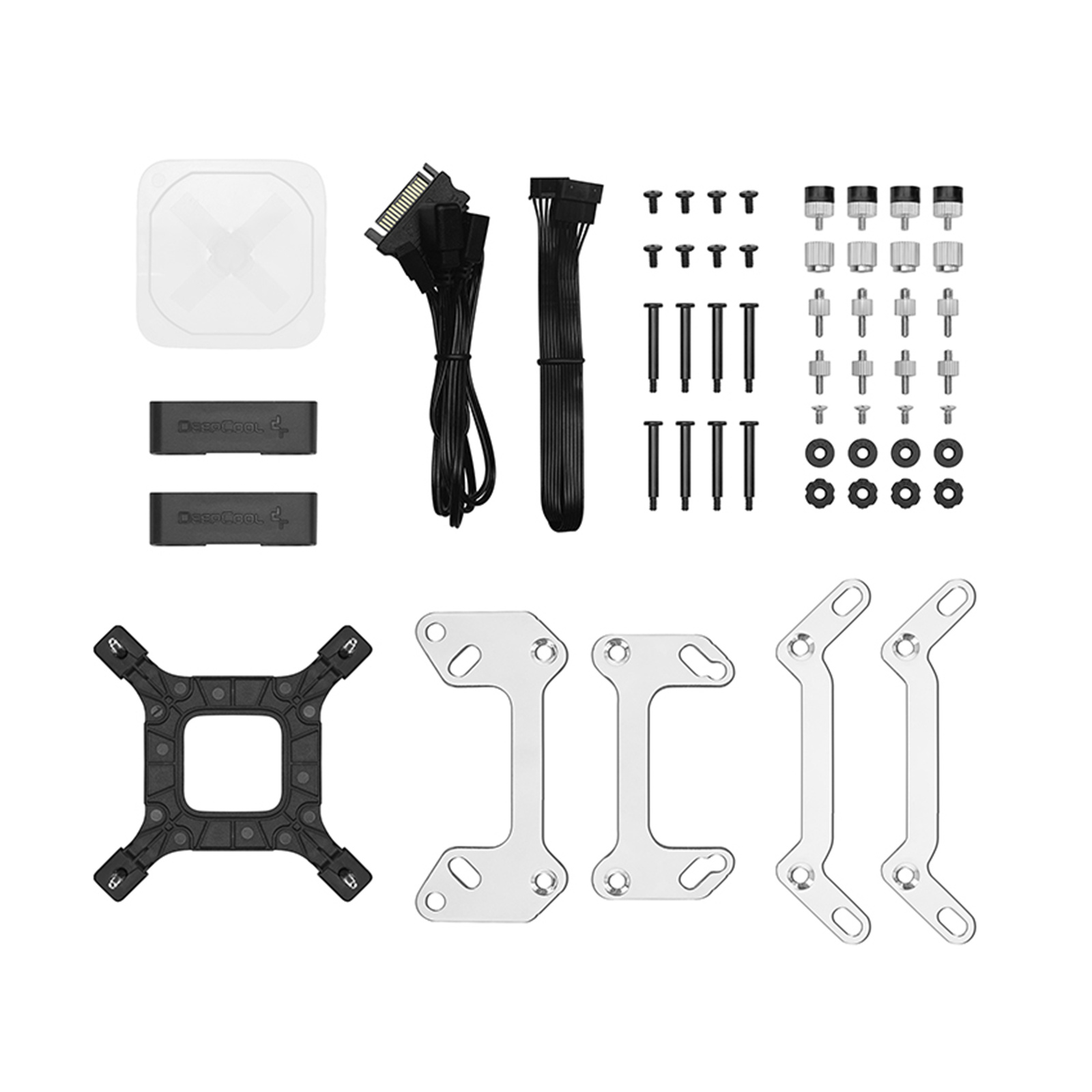

SIMPLE AND SECURE

Installation is quick and easy with newly designed mounting brackets that keep your cooler fastened safely on both Intel and AMD platforms.

INTEL
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155

AMD
sTRX4/sTR4/AM5/AM4

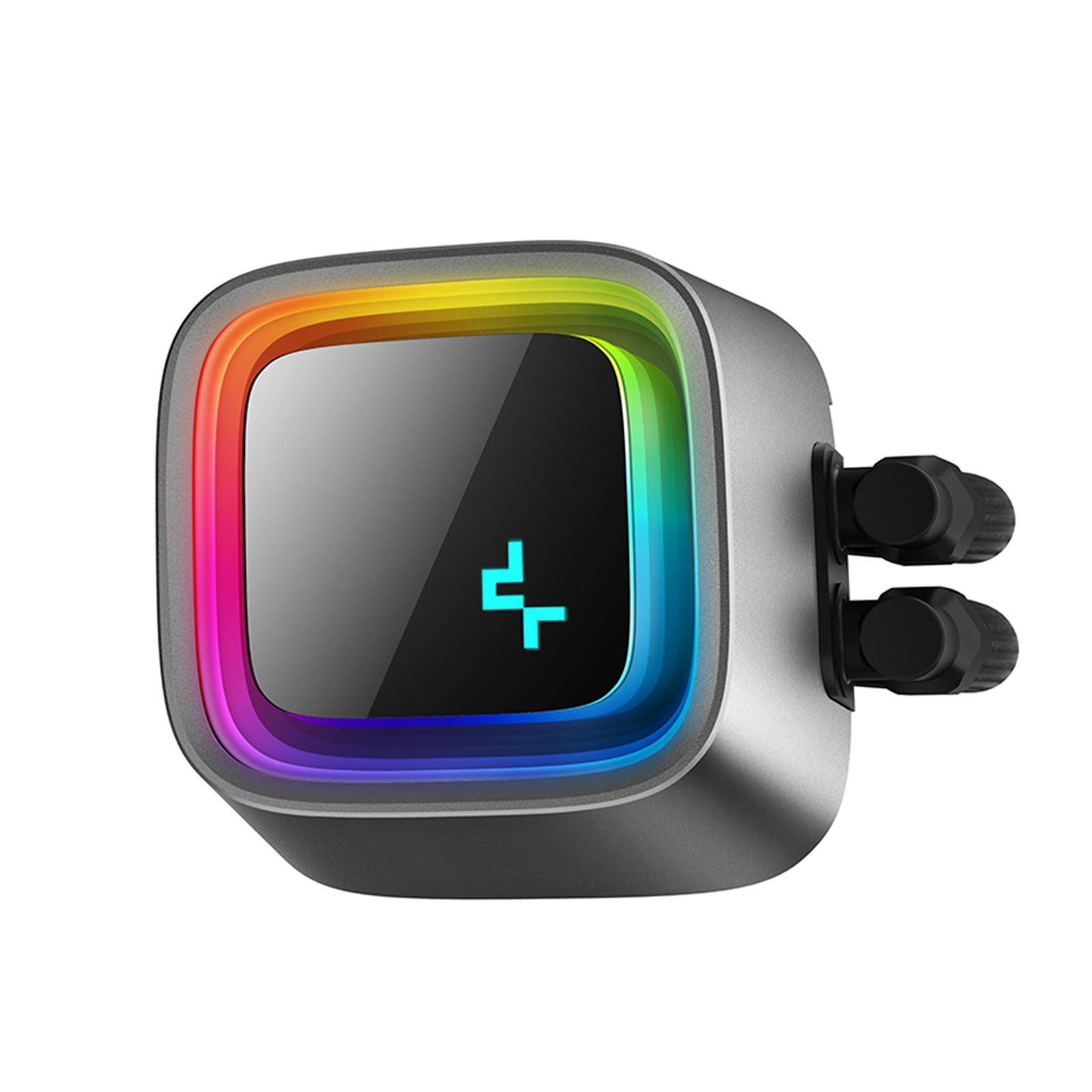

CUSTOMIZE YOUR LOOK

The new infinity mirror pump face design projects two light loops for a mesmerizing visual effect while also allowing installation in any orientation with a independently rotatable logo plate. For full customization, an additional blank plate is provided for your own design.



SYNCHRONIZE YOUR SETUP WITH RGB LIGHTING EFFECTS

Coordinate your colors through supported RGB software and motherboard synchronization to access control for different lighting effects. A default Auto-RGB rainbow effect is enabled when no controller is detected allowing limited functionality on motherboards without 5V A-RGB headers.

Specifications

Application For

Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155

AMD
sTRX4/sTR4/AM5/AM4

Net Weight

1305 g

Radiator Dimensions

282×120×27 mm

Radiator Material

Aluminum

Tube length

410 mm

Pump Dimensions

86×74×57 mm

Pump Speed

3100 RPM±10%

Pump Noise

19 dB(A)

Pump Connector

3-pin

Pump Rated Voltage

12 VDC

Pump Rated Current

0.47 A

Pump Power Consumption

5.64 W

Fan Dimensions

120×120×25 mm

Fan Speed

500~2250 RPM±10%

Fan Airflow

85.85 CFM

Fan Air Pressure

3.27 mmAq

Fan Noise

=32.9 dB(A)

Fan Connector

4-pin PWM

Bearing Type

Fluid Dynamic Bearing

Fan Rated Voltage

12 VDC

Fan Rated Current

0.29 A

Fan Power Consumption

3.48 W

LED Type

Addressable RGB LED

LED Connector

3-pin(+5V-D-G)

LED Rated Voltage

5 VDC

LED Power Consumption

2.2 W (PUMP)/ 3.6 W (FAN×2)

P/N

R-LS520-BKAMNT-G-1

Manufacturer Part No:
R-LS520-BKAMNT-G-1
Brand:
Product Type:
240mm AiO Water Cooling Kit
UPC
-
Product Family:
-
Shipping Weight:
2 kg
PB Part No:
WTRDPC2062
Product Model:
LS520 Premium
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
