EKWB EK-Loop Angled Bracket - 120mm

PB Tech price
PB Tech price
$ 42 .60
 +GST
$ 48 .99
 inc GST

Out of stock

EKWB EK-Loop Angled Bracket - 120mm

  • Brand: EKWB
  • MPN: EK-Loop Angled Bracket - 120mm
  • Part #: WTREKW825365
  • UPC:
1
PB Tech price
$ 42 .60 $ 48 .99
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: EKWB
  • MPN: EK-Loop Angled Bracket - 120mm
  • Part #: WTREKW825365
  • UPC:

Fan Size

N/A

Colour

Black

Number of Fans

N/A

CPU Air Cooler Height

N/A

Radiator Size

N/A

LED Colour

N/A

Reversed Fan Blade

N/A

Sound Level (Roughly)

N/A

What PB Tech customers are saying about this product...

See More Reviews

"It's incredibly pricey for what boils down to two bits of stamped metal and some brackets, but its the only convenient option in its category, and for this purpose it works."

AC
By: AutumnC8 24/11/23
Verified Owner

Features

Details

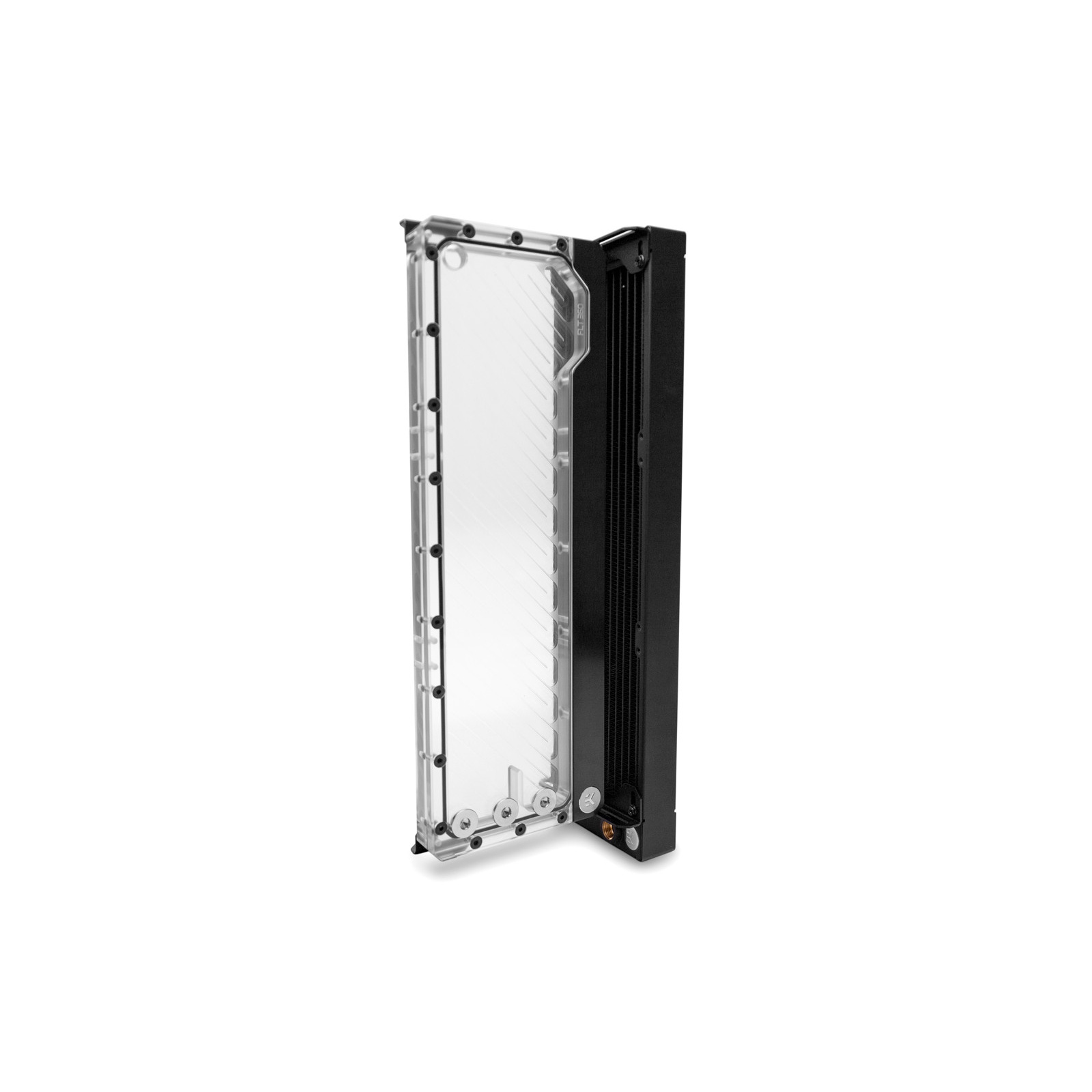

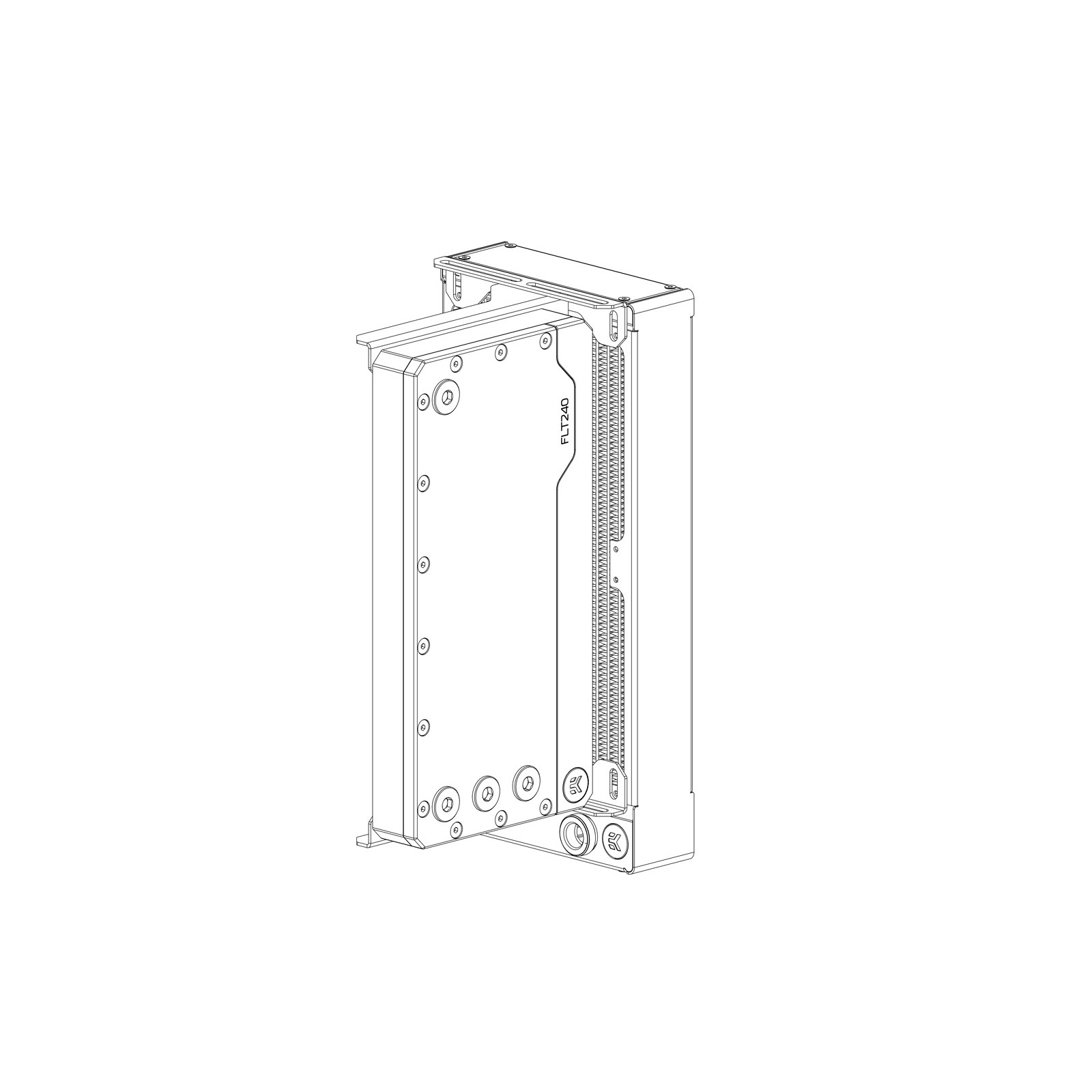

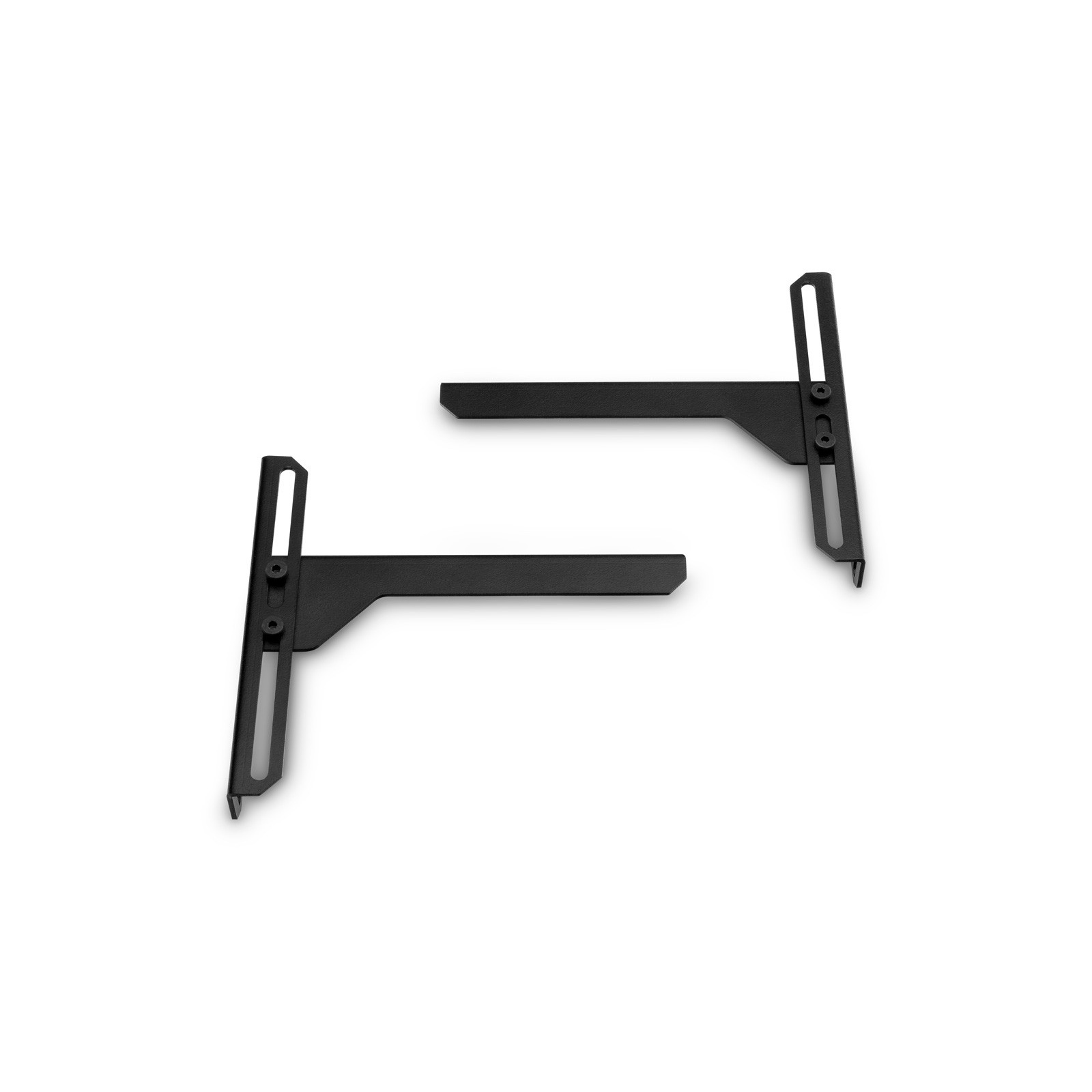

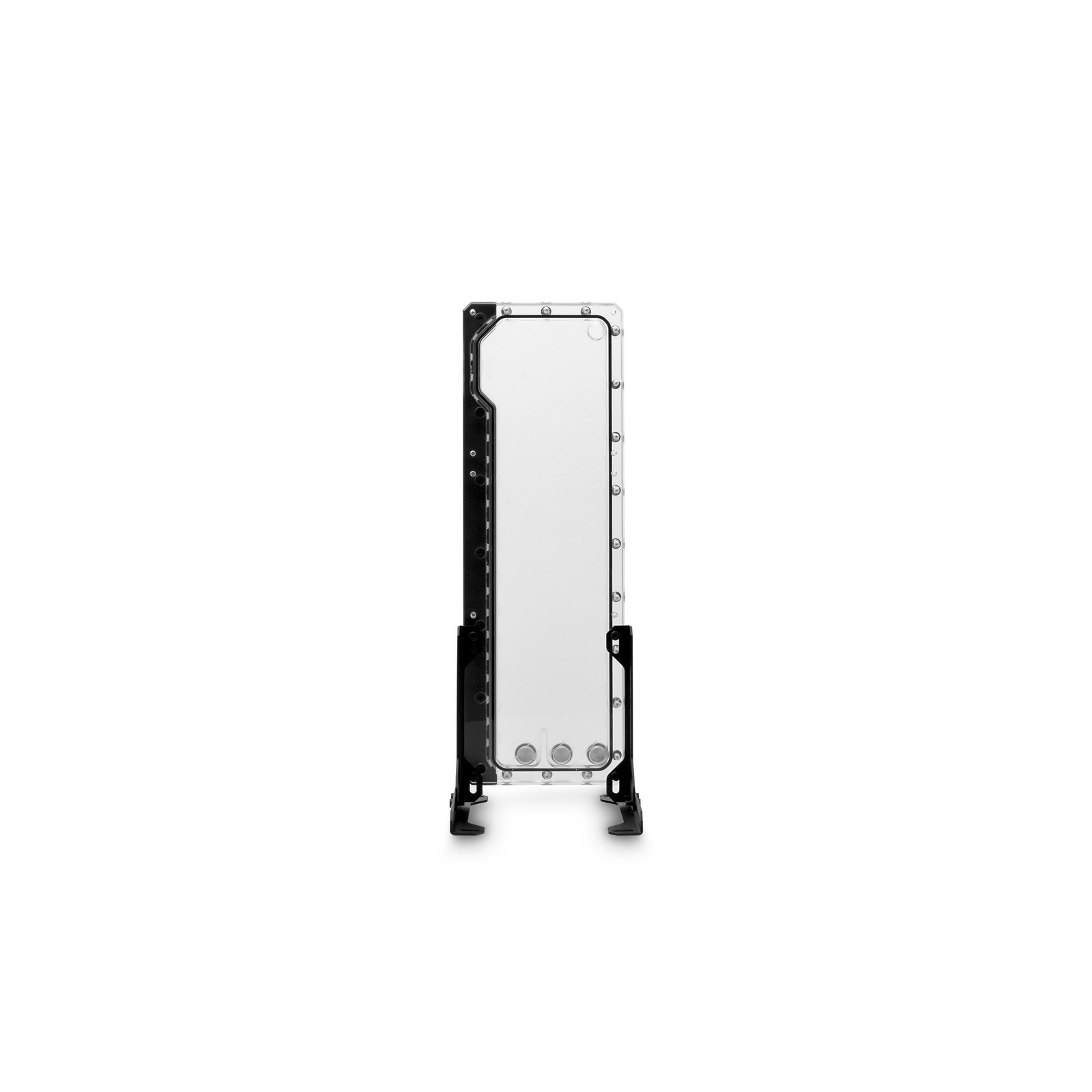

EK-Loop Angled Bracket is a steel mounting bracket that enables the user to mount the FLT style combo units or reservoirs perpendicular to any 120mm (105mm hole spacing) fan mounting holes. This will allow more airflow to freely pass through the case, or just to offer new mounting options which are not supported by the case itself. Additionally, you can use the long or the short side of your FLT product for additional mounting options.



This bracket also allows offsetting the product by about 50mm in each direction with the rail system it uses, because the screws are not in a fixed location. This bracket is not limited to FLT series products, even though it was engineered for it. With a bit of imagination, you can also use it for mounting radiators or any products with 120mm fan mounts. Made from press-bent 1,5mm thick painted steel.

This product is compatible with FLT reservoirs and combo units but can be used for any product with 120mm fan mounting holes.

Enclosed:

- EK-Loop Angled Brackets (left + right + base brackets)
- 4x polyamide washer M4 0.8mm
- 4x acetal spacer
- 4x screws M4x4 DIN7984
- 8x screws M4x10 DIN7984
- 4x nut M4
- Allen key 2.5mm

Specifications

Manufacturer Part No:
EK-Loop Angled Bracket - 120mm
Brand:
Product Type:
-
UPC
-
Product Family:
EK-Loop
Shipping Weight:
0.2 kg
PB Part No:
WTREKW825365
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
