Features

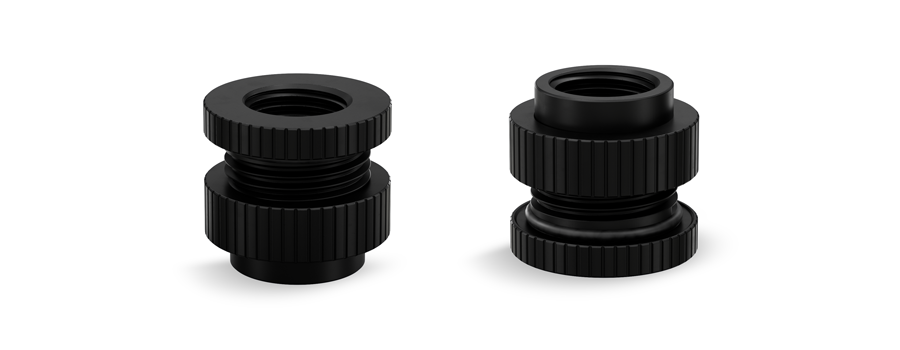

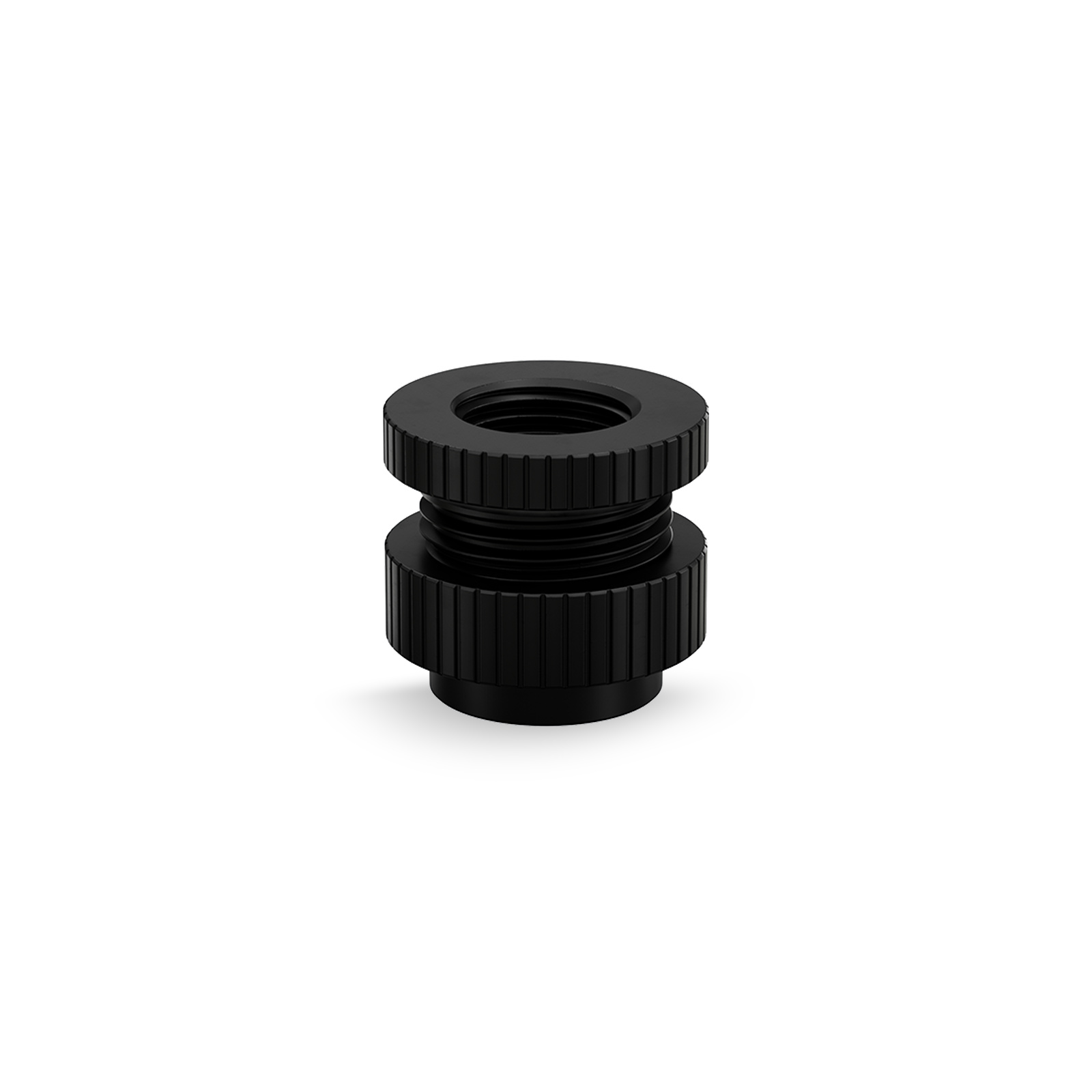

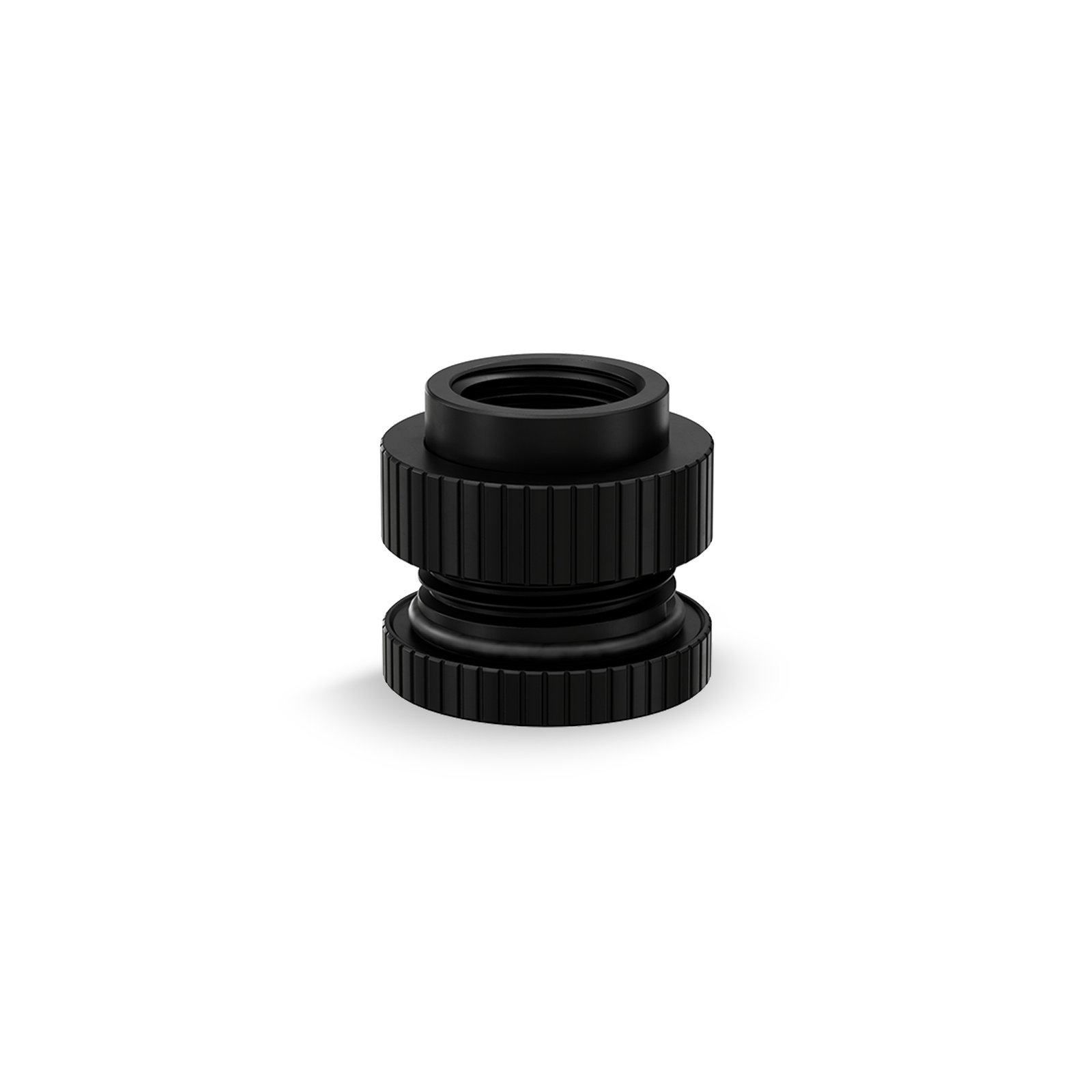

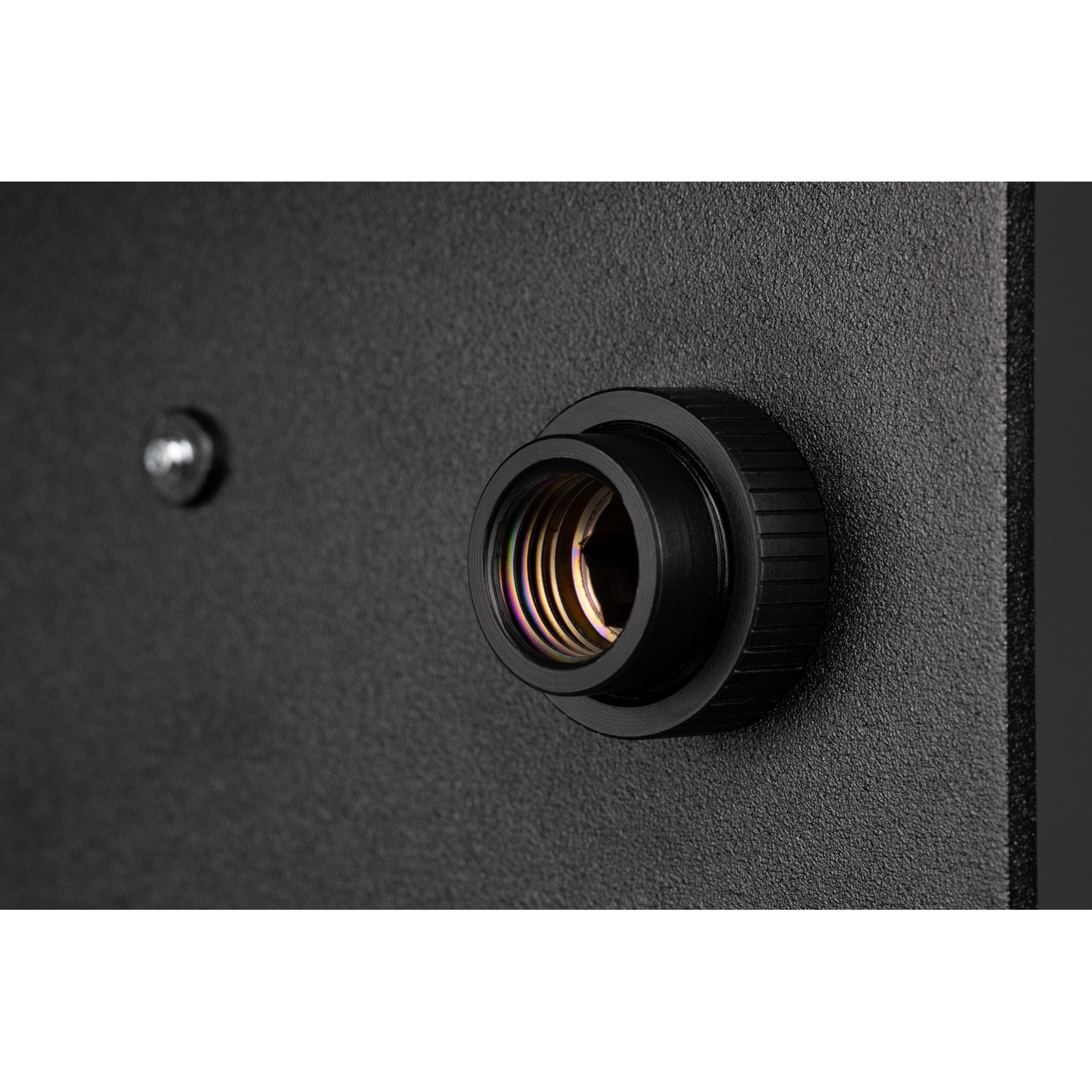

The EK-Quantum Torque Pass-Through G1/4 - Black is a panel-mounted adapter fitting. Equipped with female G1/4" BSP threads on both ends, it enables seamless liquid interconnection between separate chassis compartments.
This fitting is particularly well-suited for compact small form factor (SFF) cases that lack space for internal radiator placement, necessitating external positioning.

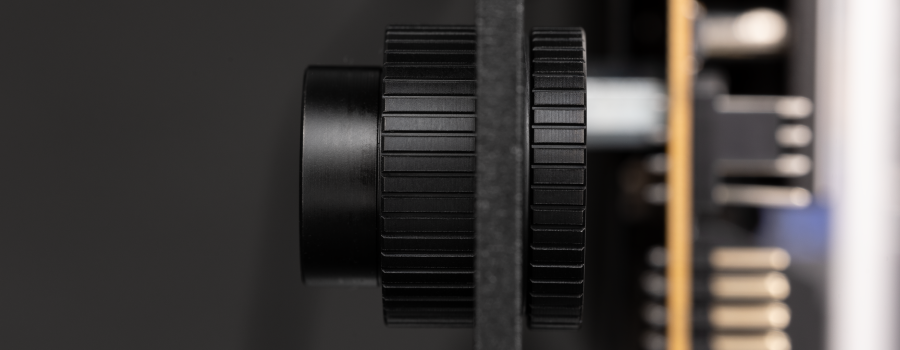

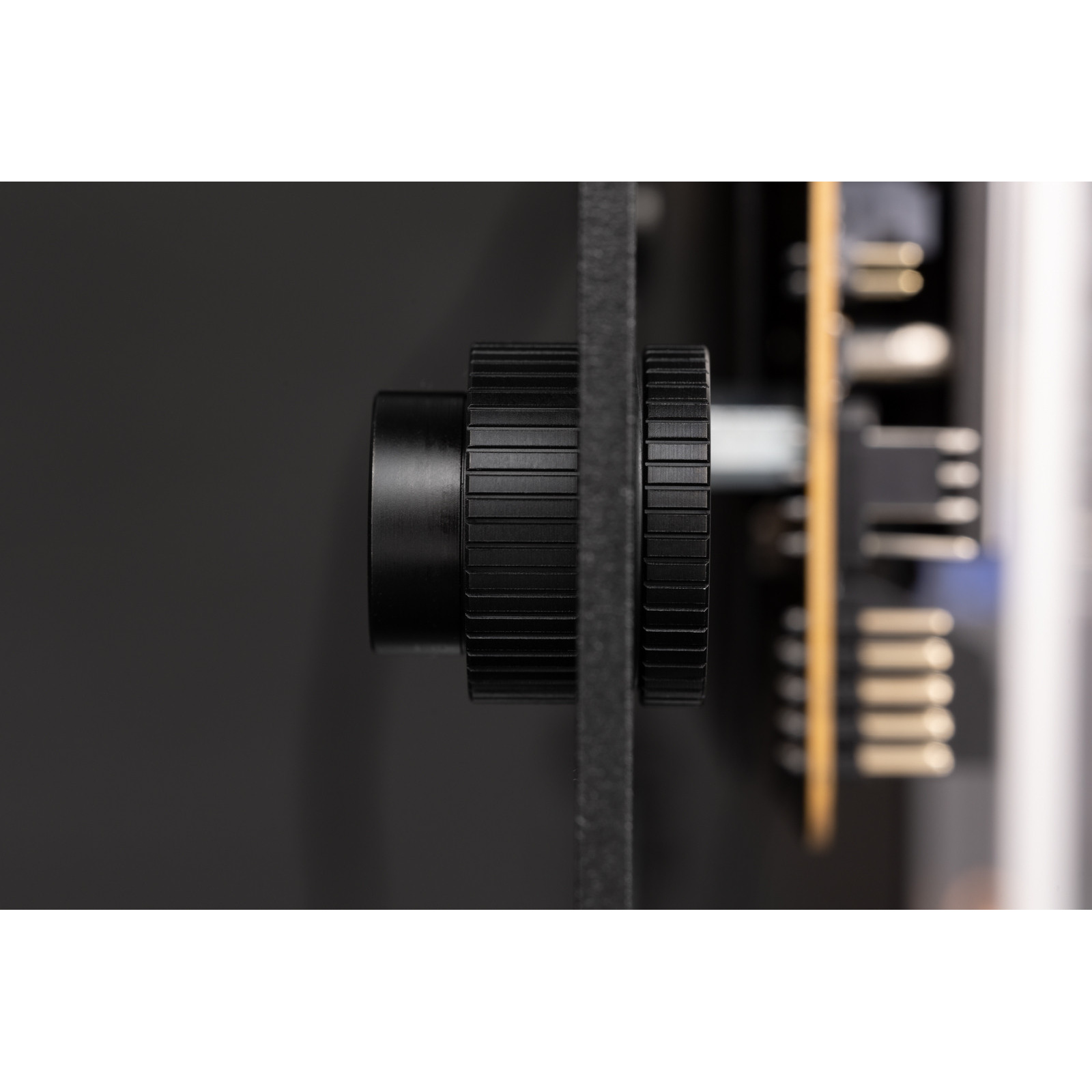

This Adapter Fitting is secured to the panel with the enclosed grip nut.
It is constructed from CNC-machined brass with a high-quality Satin Black finish, ensuring durability and an appealing aesthetic.
Specifications
Threading
2 x G 1/4" (Female-Female)
Thread length
4.5mm
Hole Diameter
20.0mm
Max thickness of the wall to bridge
6mm
Installation height on the side of the screw
4mm
Installation height on the side of the nut
min 7mm/max 16mm

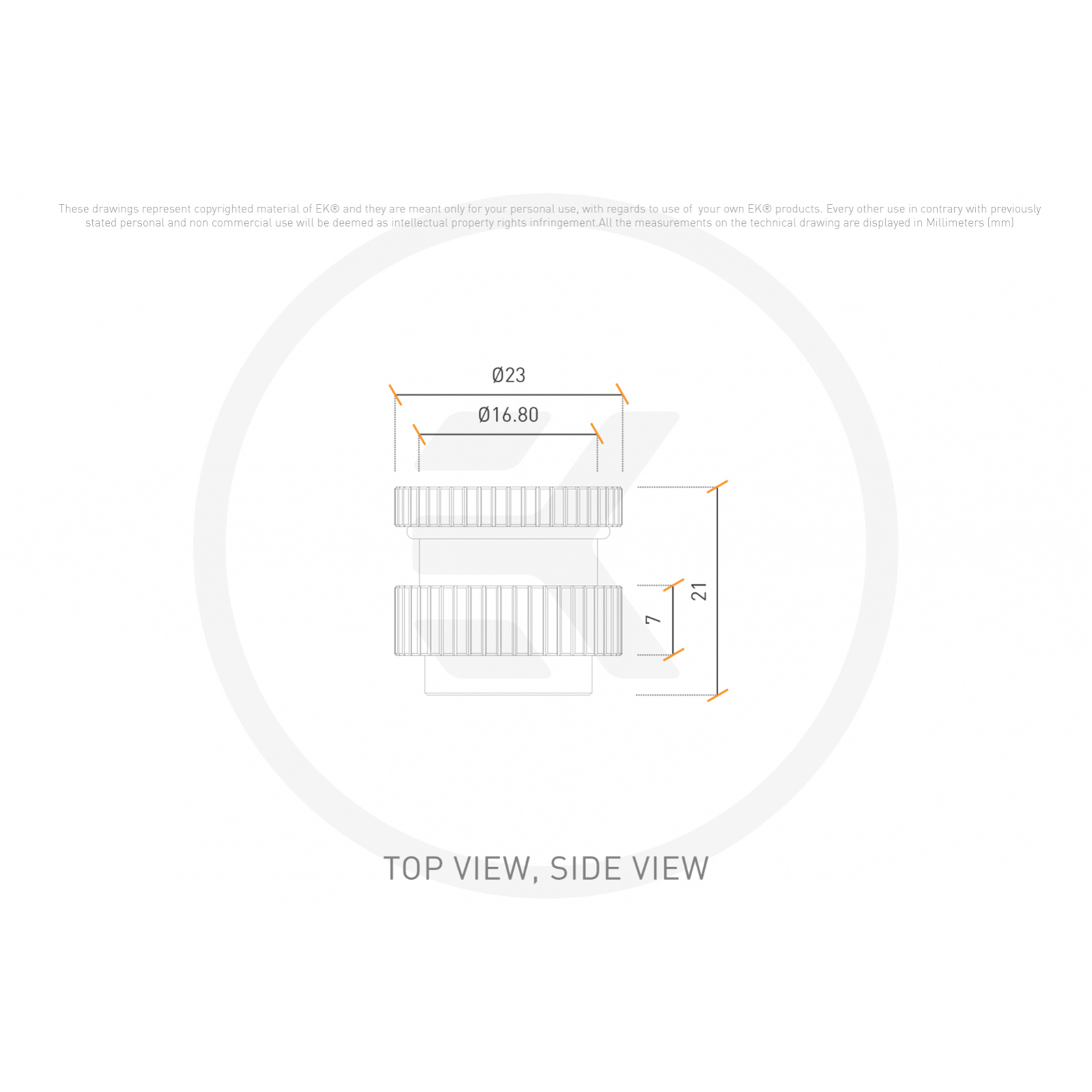

Width
23.0mm
Length
21.0mm
