Abeeway DEABE309-20-4AS LoRaWAN AS923 Smart IoT GPS Tracker Badge with Panic Button

  • Brand: Abeeway
  • MPN: DEABE309-20-4AS
  • Part #: ABW1005
  • UPC:
PB Tech price
$ 33 .91 $ 39 .00
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 02 Feb When will I receive it?
$33.91  +GST
$39.00

Four payments of $9.85 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

  • Brand: Abeeway
  • MPN: DEABE309-20-4AS
  • Part #: ABW1005
  • UPC:

Features

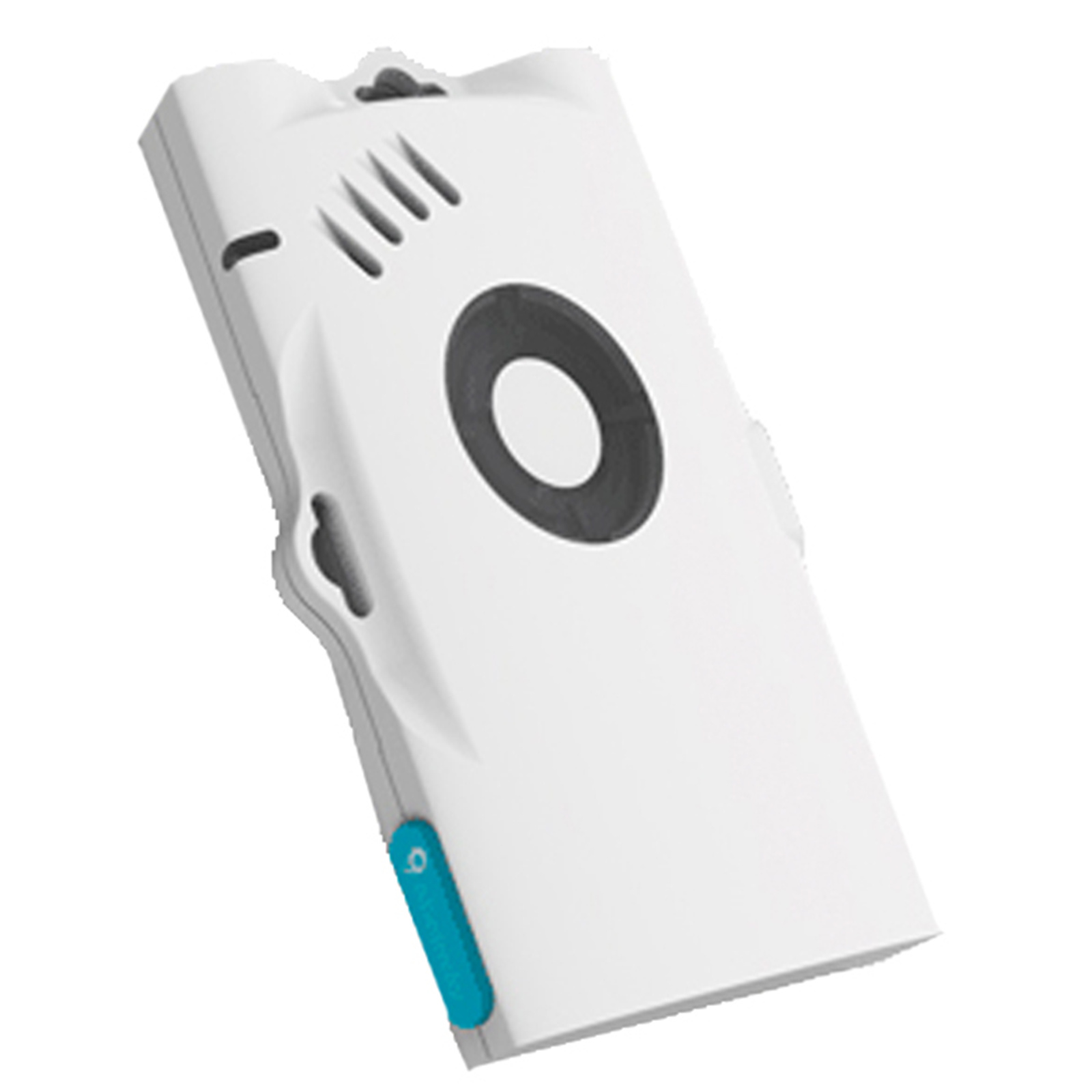

Abeeway LoRaWAN AS923 Smart IoT GPS Tracker Badge with Panic Button. The Abeeway Smart Badge is a portable multi-mode IoT GPS tracker in ID card format with embedded sensors combining multi-constellation GNSS, Low-power GPS, Wi-Fi Sniffer, BLE and LoRaWAN® TDoA geolocation technologies, supporting seamless outdoor and indoor geolocation.

This device is ideal for contact back-tracing, zone notification and monitoring of workforce safety and security. Simple to use, a single button gives you access to the numerous functionalities you may personalize for your needs, e.g. as a Panic/SOS Button. A local zoning feature is able to signal danger zones with a 96 dBa buzzer. It has a robust, industrial grade magnetic connector for recharging the battery, and optional multi-slot charging/upgrade dock.

Please note that this device does not include a data/power cable. This will need to be purchased separately. See related products below.

Need help selecting the right IoT solution?

Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API's for third party connectivity.

Consult with Scopious IoT today!

- Motion Tracking: Real-time position when motion is detected
- Permanent tracking: Regular interval real time position
- Start/End motion tracking: Receive position messages during motion start and end events
- Fix on demand: Obtain tracker position when needed (very low power operating mode)
- Activity tracking: Monitor activity rate with embedded sensors
- Dust-proof and powerful water jets - (IP 65)
- LoRaWANTM Class A radio
- Geofencing zone detection
- Proximity detection

Specifications

Product Code

DEABE309-20-4AS

Size

90mm x 65 mm x 11 mm (L x l x h)

Weight

64g

IP Rating

IP65

Operating temperatures

-10°C to 55°C

Charging temperatures

0°C to 45°C

Storage temperature

10°C to 30°C (recommended)

Time storage max

6 months

Humidity

5% to 95% non-condensing

GNSS Position Accuracy (50%-90%)

10 to 20 meters

Time To First Fix

Cold start 30-50 seconds
Hot start 5 seconds

Acquisition sensitivity

-140 dBm

Position Accuracy (50%-90%)

15 - 30 meters

Time To First Fix

10 seconds

Acquisition sensitivity

-144 dBm

Indoor and Deep Urban Position Accuracy

20 - 50 meters

Time to get a position

3 seconds

Sensitivity

-86 dBm

BLE Indoor Position Accuracy

5 - 15 m

Time to get a position

1 second

LoRaWAN® Modem

Semtech SX1261 transceiver

Protocol

LoRaWAN Class A

LoRaWAN® frequency

AS923MHz

Configuration supported

LoRaWAN® OTA or ABP

RF power

14 dBm / 18 dBm (max)

Min sensitivity

-130 dBm in SF 10

LoRaWAN® receiver

-135 dBm in SF 12

Wi-Fi Frequency band

2412 - 2472MHz

BLE sensitivity

-88 dBm

BLE RF output power

4 dBm max

BLE frequency band

2402 - 2480MHz

Radio regulatory certification

EC, FCC, IC, TELEC, IMDA

Manufacturer Part No:
DEABE309-20-4AS
Brand:
Abeeway
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.1 kg
PB Part No:
ABW1005
Product Model:
DEABE309-20-4AS
Warranty: 12 months *
