Features

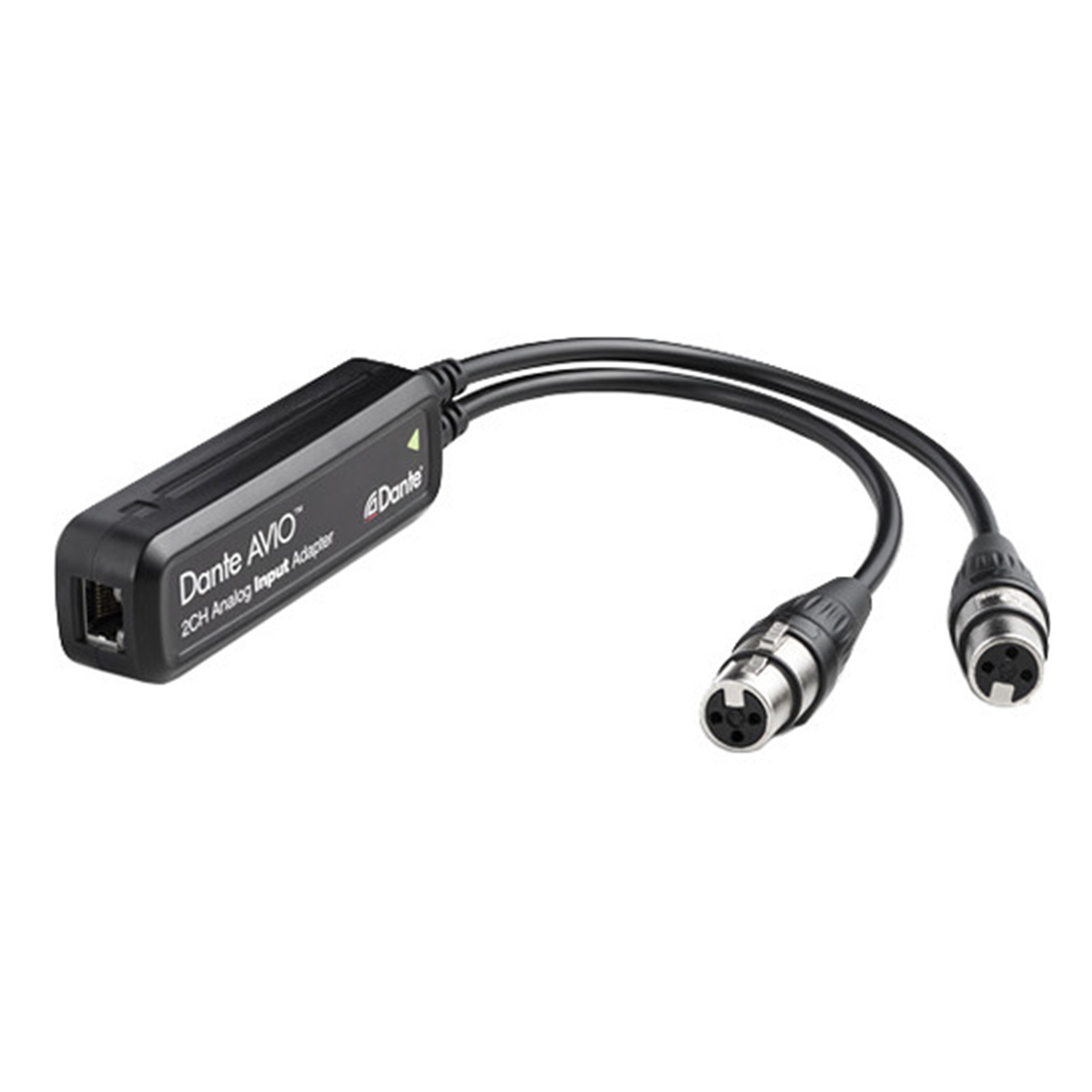

The Audinate Dante AVIO 2-Channel Analog Input Adapter allows you to use the analog gear you already own with your Dante audio network. It provides audio engineers with a cost-effective solution for adapting analog mixers, DI boxes, keyboard instruments, or analog compressors and equalizers, delivering the interoperability, performance, and scalability of Dante network connectivity.
Compact and built for the road, the AVIO is automatically discovered by the network and is ready to use when connected. It features two balanced line-level inputs equipped with XLR connectors and delivers high-quality audio at up to 24-bit/96 kHz with configurable gain and attenuation, low total harmonic distortion, and a 20 Hz to 20 kHz frequency response.
The AVIO supports Dante audio over IP and AES67 RTP transport formats, and is compatible with Dante Domain Manager (DDM).
- Cost-effective solution for adapting analog gear to your Dante network
- Plug-and-play operation
- Balanced, line-level dual-channel analog input adapter
- Compact and built for the road with sonically welded polycarbonate enclosure
- Sample rates up to 96 kHz
- Wide dynamic range
- High signal-to-noise ratio
- Low total harmonic distortion
- Configurable gain and attenuation
- Dante Audio over IP and AES67 RTP transport formats
- Power over Ethernet (PoE) support
- Compatible with Dante Domain Manager (DDM)
Applications
- Connect analog mixers and consoles to a Dante network
- Patch DSPs, analog compressors and equalizers into a Dante system using a combination of Dante AVIO Input and Output adapters
- Connect stage DI boxes and keyboard instruments directly to a Dante network
- Connect wireless mic receiver to a Dante network
Specifications
Maximum Signal Level
+24 dBu, +4 dBu, 0 dBu (balanced)
0 dBV, -10 dBV (balanced)
Frequency Response
20 Hz to 20 kHz (±0.5 dB)
Impedance
20 kOhms (balanced)
10 kOhms (unbalanced)
Dynamic Range
>100 dB
Signal-to-Noise Ratio
>100 dB
Total Harmonic Distortion
<0.01% at +4 dBu
Connectors
RJ45
2 x XLR-F
Power
Class 1 802.3af PoE
Sample Rates
44.1, 48, 96 kHz
Bit Depth
24-bit
Network Transport Protocol
Dante Audio over IP
AES67 RTP
Construction
Sonically welded polycarbonate enclosure
Package Weight
0.45 lb
Box Dimensions (LxWxH)
7.95 x 3.4 x 1.4"
