StarTech.com PEXUSB3S42V 4 Port Dual Bus PCIe USB 3 Card w/ UASP
StarTech.com PEXUSB3S42V 4 Port Dual Bus PCIe USB 3 Card w/ UASP
- Brand: StarTech.com
- MPN: PEXUSB3S42V
- Part #: ADPSTT2552328
- UPC: 065030854597
- Brand: StarTech.com
- MPN: PEXUSB3S42V
- Part #: ADPSTT2552328
- UPC: 065030854597
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular USB Cards





StarTech.com PEXUSB3S42V 4 Port Dual Bus PCIe USB 3 Card w/ UASP
- Brand: StarTech.com
- MPN: PEXUSB3S42V
- Part #: ADPSTT2552328
- UPC:065030854597

Product URL: https://www.pbtech.co.nz/product/ADPSTT2552328/StarTechcom-PEXUSB3S42V-4-Port-Dual-Bus-PCIe-USB-3
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

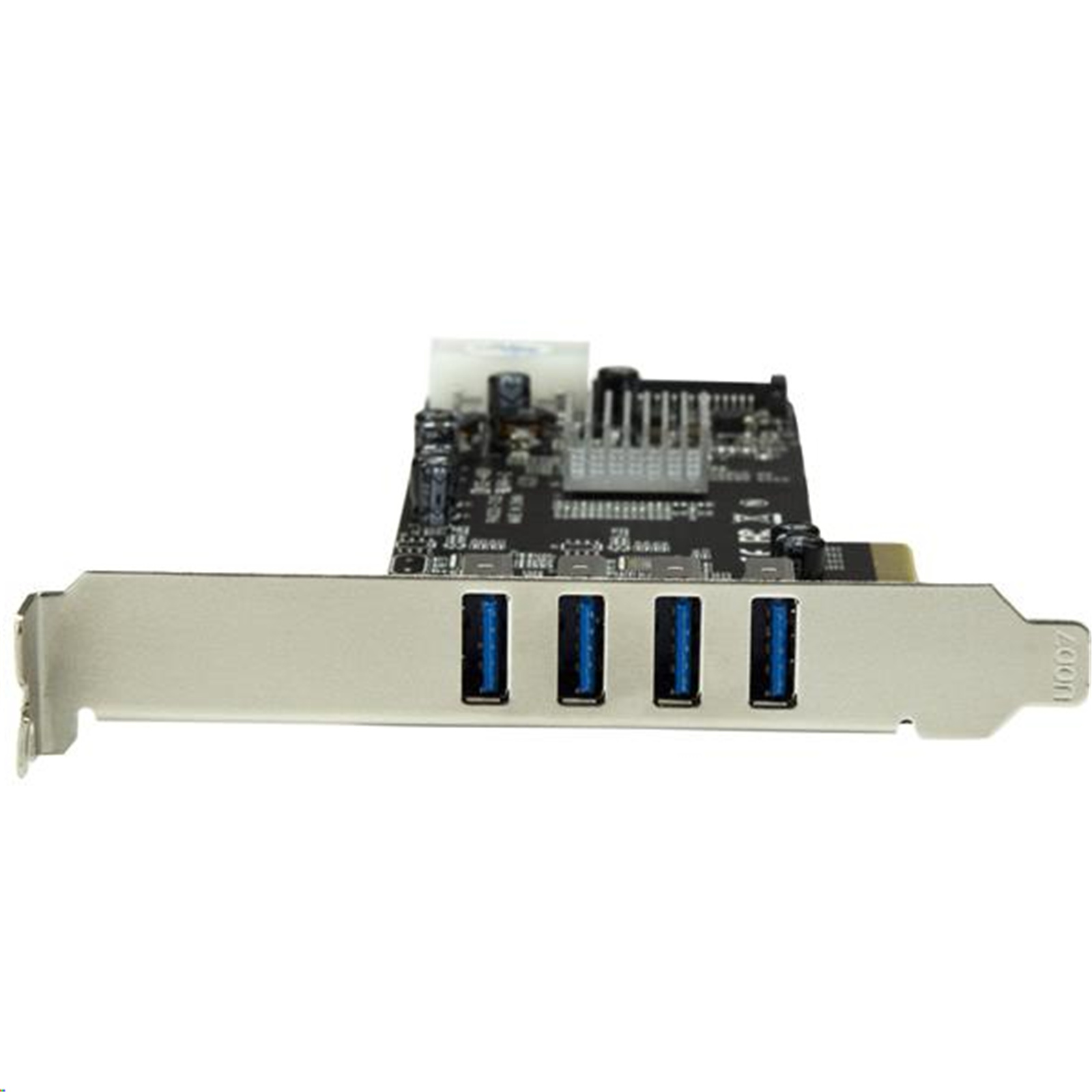

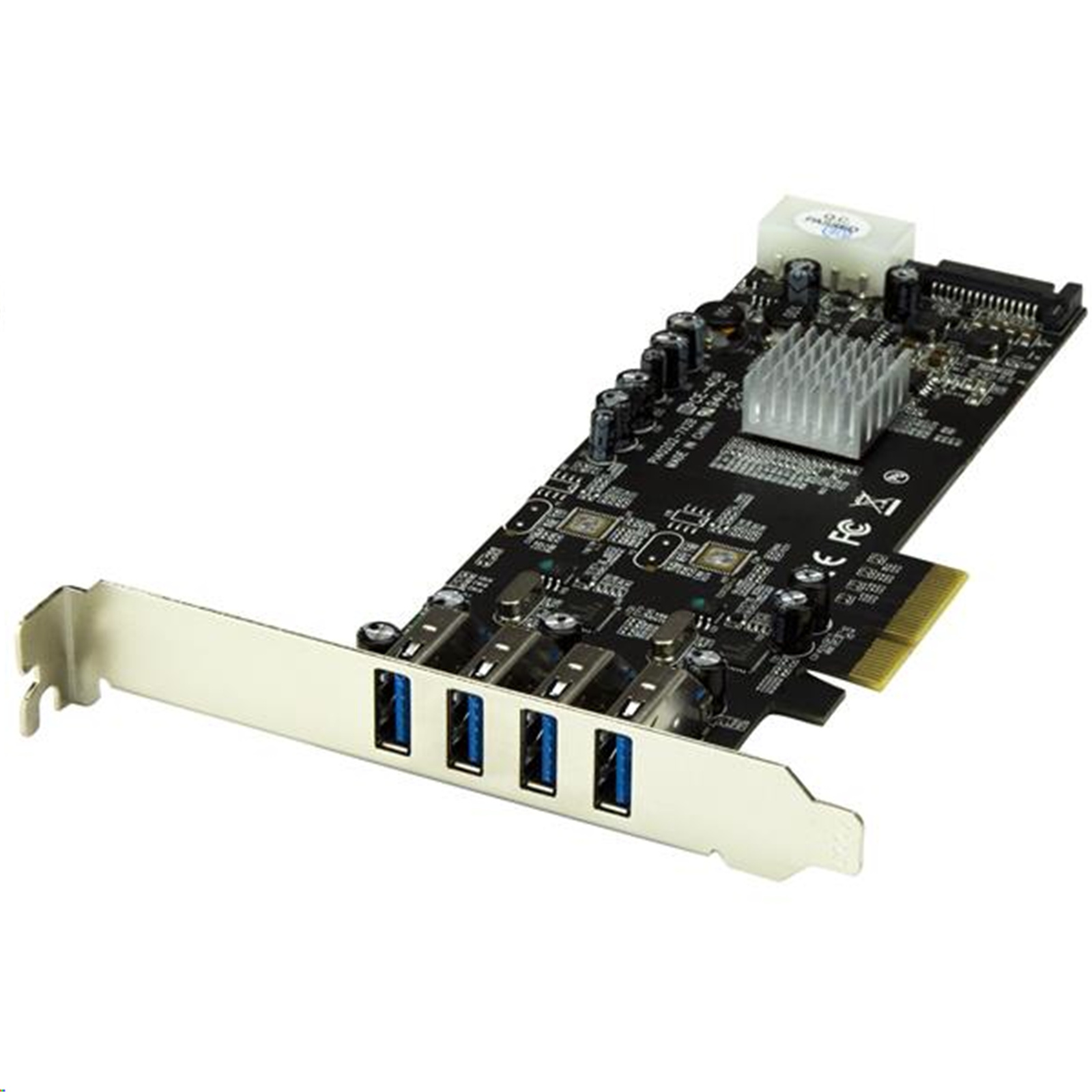

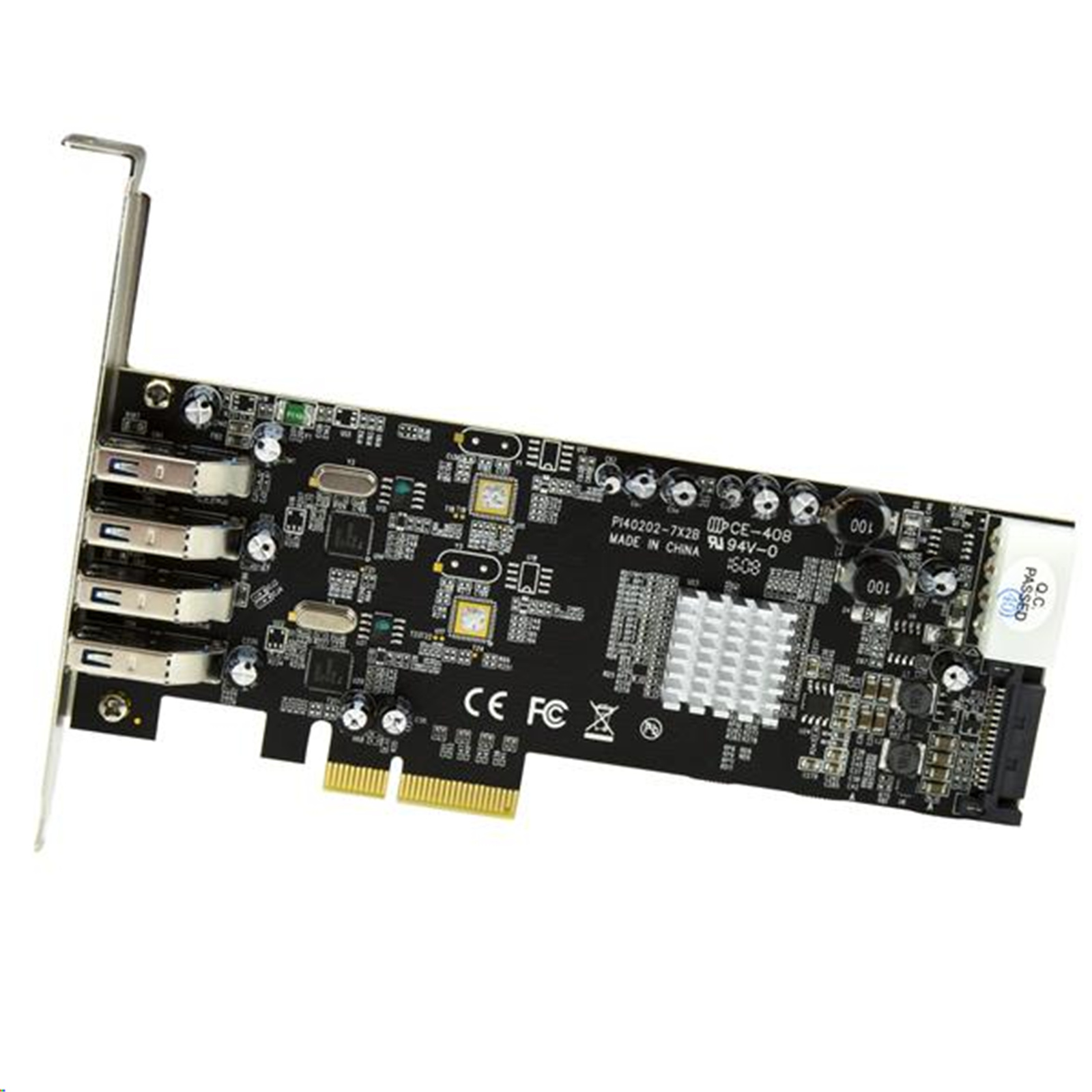

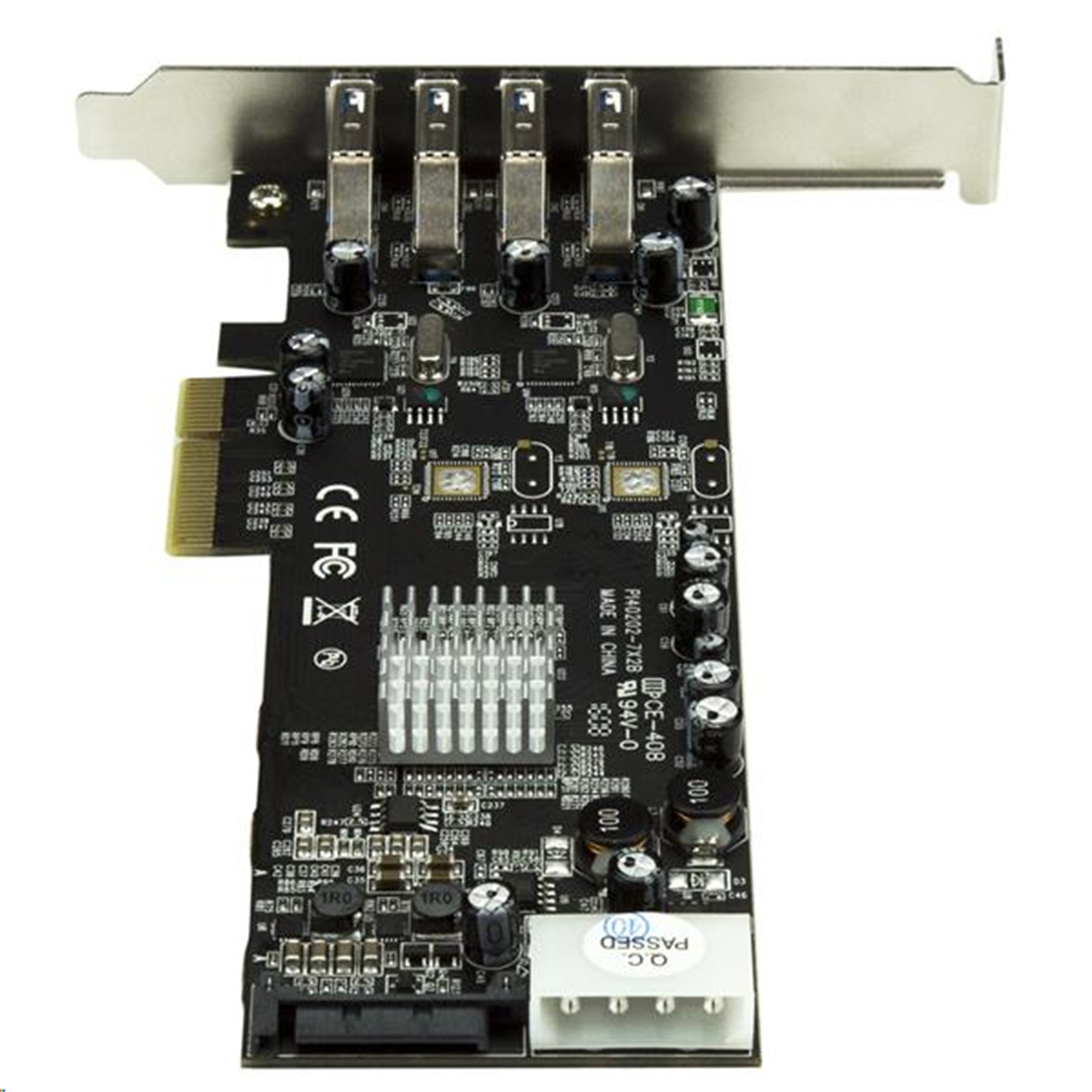

The PEXUSB3S42V 4-Port PCI Express USB 3.0 Card lets you add four USB 3.0 ports with two dedicated 5 Gbps channels to your PCIe x4-enabled PC. This independent port architecture improves USB 3.0 performance by transferring data on two individual channels to your computer, giving you faster file transfers. When multiple devices are connected, traditional single bus USB 3.0 cards share your maximum bandwidth between all ports. By employing a second host controller chipset, the transmission channel is shared across two ports rather than four. Dedicating up to 5 Gbps for each set of two ports reduces performance bottlenecks, and effectively doubles your total available to bandwidth to 10 Gbps. Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details. For high-power USB devices, this PCIe USB 3.0 card includes an optional SATA or LP4 power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0). The USB 3.0 card also supports USB Battery Charging Specification 1.2 (Apple Mode only), letting you charge compatible Apple devices (iPhones and iPads) faster than a standard USB 3.0 port. The controller card is compliant with USB 3.0 standards while offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the USB 3.0 PCIe card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASP
In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.0 at peak performance.
The StarTech.com Advantage
- Increase the efficiency of your USB 3.0 devices with two dedicated bus channels and up to 5 Gbps of bandwidth per channel
- Time-saving file transfers, up to 70% faster than traditional USB 3.0 when used with a UASP-supported enclosure
- Power high-powered USB devices as necessary, with the optional LP4 or SATA power connector
Specifications
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Chipset ID
2 x Renesas / NEC - µPD720202
Industry Standards
USB 3.0 Specification Rev. 1.0
USB Battery Charging Specification Rev. 1.2 (Apple Mode only)
PCI Express Base Specification Rev. 2.0
Intel xHCI Specification Rev. 1.0
Interface
USB 3.0
Port Style
Integrated on Card
Ports
4
Performance
Maximum Cable Length
9.8 ft [3 m]
Maximum Data Transfer Rate
5Gbps per 2 ports - 10Gbps Total
Type and Rate
USB 3.0 - 5 Gbit/s
UASP Support
Yes
Connector(s)
Connector Type(s)
1 - PCI Express x4 Male
External Ports
4 - USB Type-A (9 pin) USB 3.0 Female
Internal Ports
1 - LP4 (4 pin, Molex Large Drive Power) Male
1 - SATA Power (15 pin) Plug
Software
OS Compatibility
Windows® Vista, 7, 8, 8.1, 10
Windows Server® 2008 R2, 2012, 2012 R2, 2016
Linux 2.6.31 to 4.4.x LTS versions only
Environmental
Humidity
5~85% RH
Operating Temperature
0°C to 50°C (32°F to 122°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Physical Characteristics
Product Height
4.7 in [120 mm]
Product Length
6.6 in [167 mm]
Product Weight
3.2 oz [90 g]
Product Width
0.6 in [15 mm]
