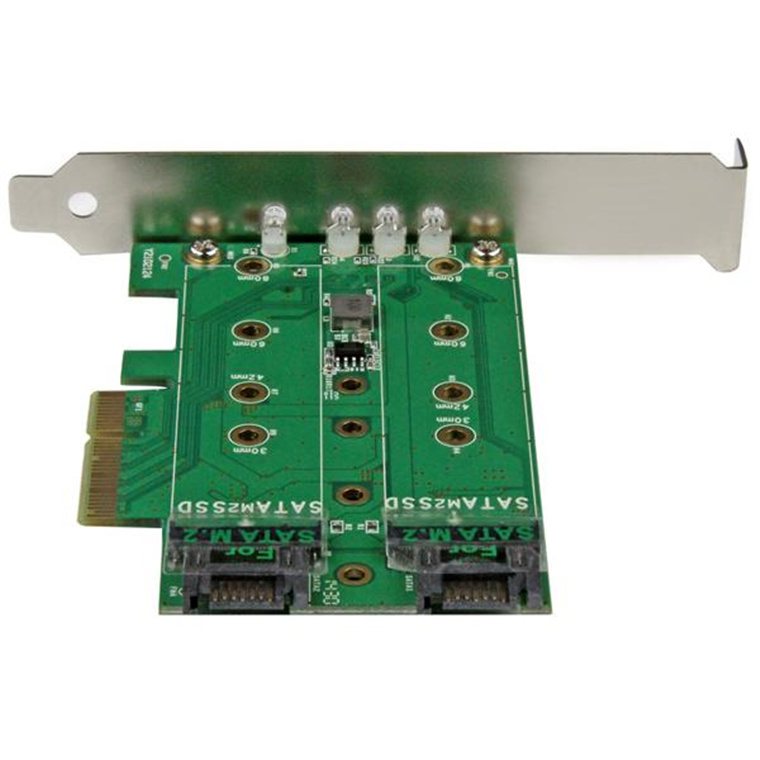

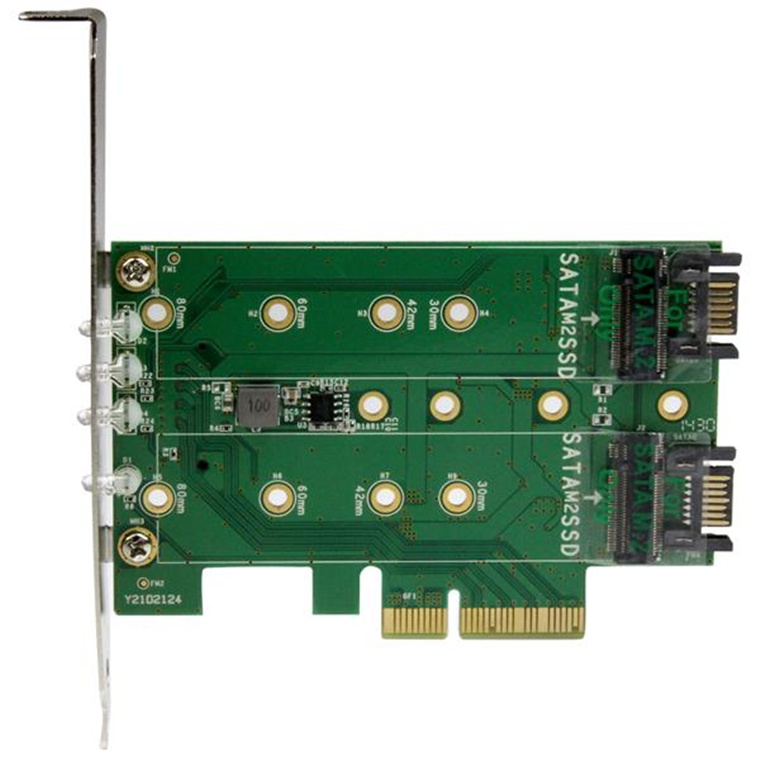

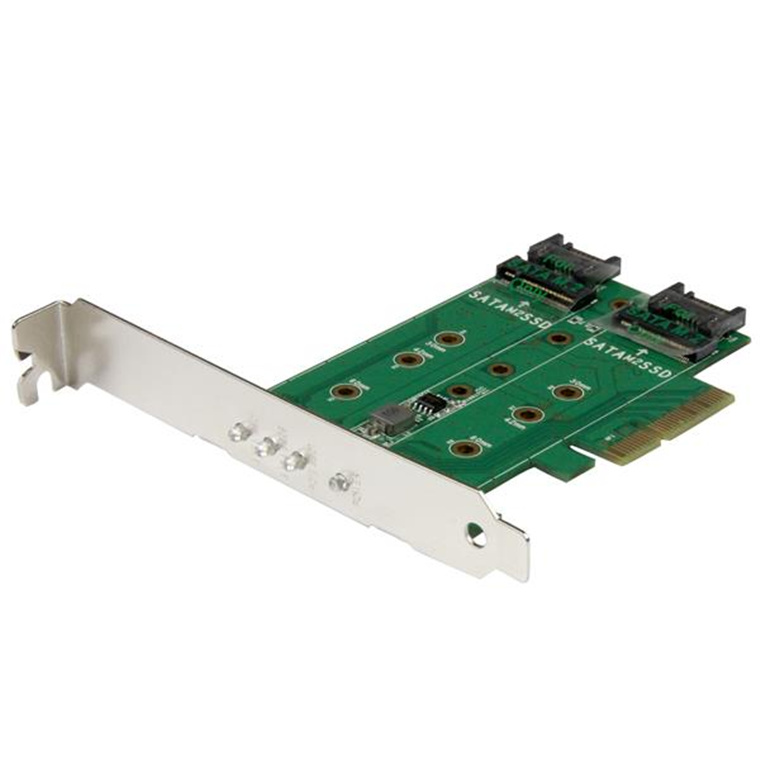

StarTech.com PEXM2SAT32N1 1 3-Port M.2 SSD (NGFF) Adapter Card - 1 x PCIe (NVMe) M.2, 2 x SATA III M.2 - PCIe 3.0

PB Tech price
PB Tech price
$ 71 .30
 +GST
$ 82 .00
 inc GST
$71.30  +GST
$82.00

StarTech.com PEXM2SAT32N1 1 3-Port M.2 SSD (NGFF) Adapter Card - 1 x PCIe (NVMe) M.2, 2 x SATA III M.2 - PCIe 3.0

  • Brand: StarTech.com
  • MPN: PEXM2SAT32N1
  • Part #: ADPSTT3360988
  • UPC: 065030865708
PB Tech price
$ 71 .30 $ 82 .00
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 09 Oct When will I receive it?
$71.30  +GST
$82.00

Features

This 3-port M.2 SSD adapter card is one of the only cards that supports both PCIe and SATA-based M.2 SSDs (solid-state drives). It's a versatile way to expand the overall storage capacity of your desktop PC or server. Plus, because it supports a high-speed PCIe M.2 drive, you can increase the speed and performance of your computer.


Increase the storage of your desktop PC


If you need a simple and discreet way to expand your computer's storage, then this card can help. The card provides a platform for adding up to three M.2 SSDs to virtually any computer that has a PCIe slot. It supports common M.2 SATA SSDs, as well as newer high-performance M.2 PCIe drives. Now, you have a simple and effective way to expand the storage of your computer, regardless of the M.2 drive types you are using.


Optimize your computer's performance


When you couple this card with a PCI Express based M.2 drive, you can give your computer's performance a noticeable speed boost. With support for PCI Express 3.0 (up to approximately 40Gbps), you can install the latest high-performance M.2 PCIe SSDs inside your computer. With faster performance, you can get more work done in less time.


Peace of mind, with simple and cost-effective data recovery


Due to their performance and size advantages, M.2 drives are commonly used in laptops. If your laptop has failed, but its M.2 drive is still functional, then this card can help with data recovery. Once the M.2 drive is installed and the data recovery is complete, you can continue to use the drive for storage and backup purposes.


Leverage the size and speed of M.2 drives


This M.2 card lets you take advantage of the size and performance benefits of NGFF M.2 SSDs. M.2 drives are smaller than typical platter drives or mSATA-based SSDs, so you can install them in small form-factor PCs and servers, or in tighter areas within your computer case.


Supports a wide range of drives

You can rest assured that your M.2 SSDs are compatible with the adapter card. It supports the most common drive sizes, including, 2280, 2260, 2242 and 2230.

Specifications

Bus Type
PCI Express

Card Type
Standard Profile (LP bracket incl.)

Industry Standards
Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps)
PCI Express 3.0

Interface
M.2 SATA
SATA
M.2 PCIe

Port Style
Integrated on Card

Ports
3

ATAPI Support
Yes

Bootable
Yes

MTBF
50,000 Hours

Port Multiplier
No

RAID
No

Type and Rate
SATA III (6 Gbps)

Connector Type(s)
1 - PCI Express x4 Male

Internal Ports
2 - M.2 (NGFF, B-Key) Receptacle
1 - M.2 (NGFF, M-Key, PCIe x4) Receptacle
2 - SATA (7 pin, Data) Plug

LED Indicators
3 - M.2 drive status/activity
1 - Power

Humidity
20%~80% RH (Non-condensing)

Operating Temperature
5°C to 50°C (41°F to 122°F)

Storage Temperature
-25°C to 70°C (-13°F to 158°F)

Product Height
4.7 in [120 mm]

Product Length
4.7 in [120 mm]

Product Weight
1.6 oz [46 g]

Product Width
0.8 in [20 mm]

Included in Package
1 - 3-port M.2 NGFF SSD adapter card
1 - low-profile bracket
3 - M.2 mounting screws
3 - M.2 mounting standoffs
3 - M.2 mounting nuts
1 - screwdriver
1 - quick-start guide
Manufacturer Part No:
PEXM2SAT32N1
Brand:
Product Type:
-
UPC
065030865708
Product Family:
-
Shipping Weight:
0.161 kg
PB Part No:
ADPSTT3360988
Product Model:
PEXM2SAT32N1
Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
