StarTech.com PEX1S953LP 1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows, macOS, Linux

PB Tech price
PB Tech price
$ 86 .09
 +GST
$ 99 .00
 inc GST
$86.09  +GST
$99.00

StarTech.com PEX1S953LP 1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows, macOS, Linux

  • Brand: StarTech.com
  • MPN: PEX1S953LP
  • Part #: ADPSTT4505145
  • UPC: 065030881159
PB Tech price
$ 86 .09 $ 99 .00
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 26 Sep When will I receive it?
$86.09  +GST
$99.00
  • Brand: StarTech.com
  • MPN: PEX1S953LP
  • Part #: ADPSTT4505145
  • UPC: 065030881159

Number of Ports

1

Port Type

N/A

Features

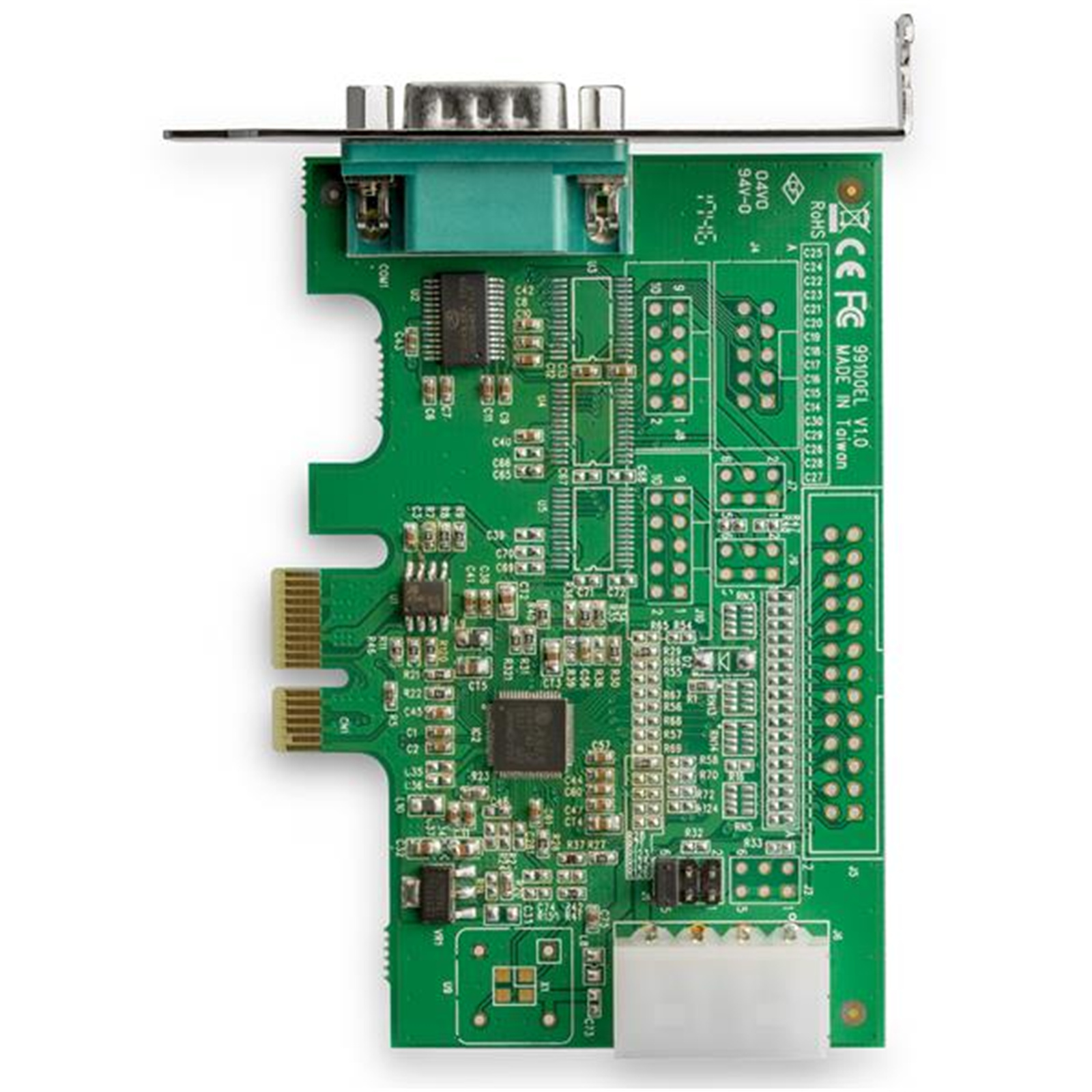

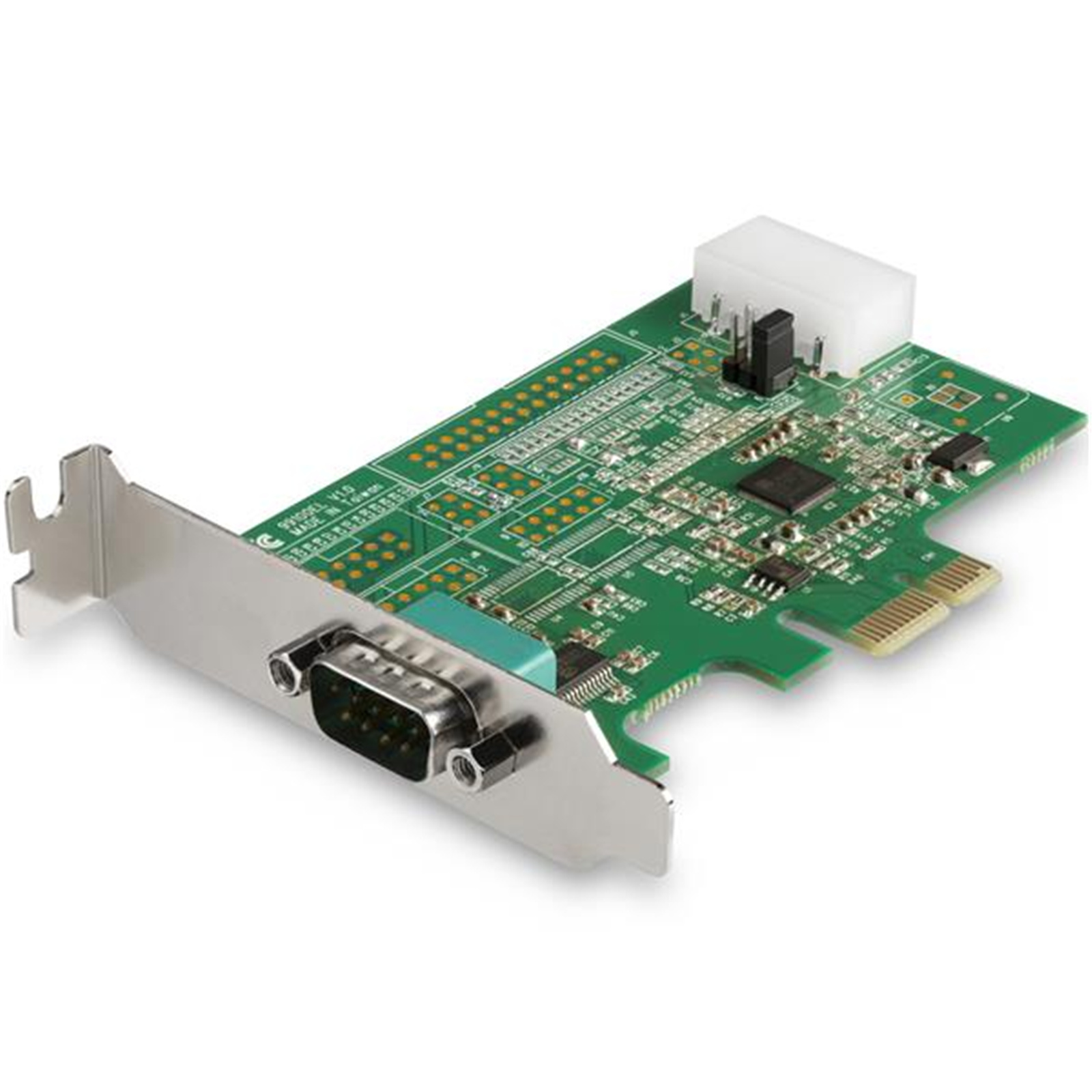

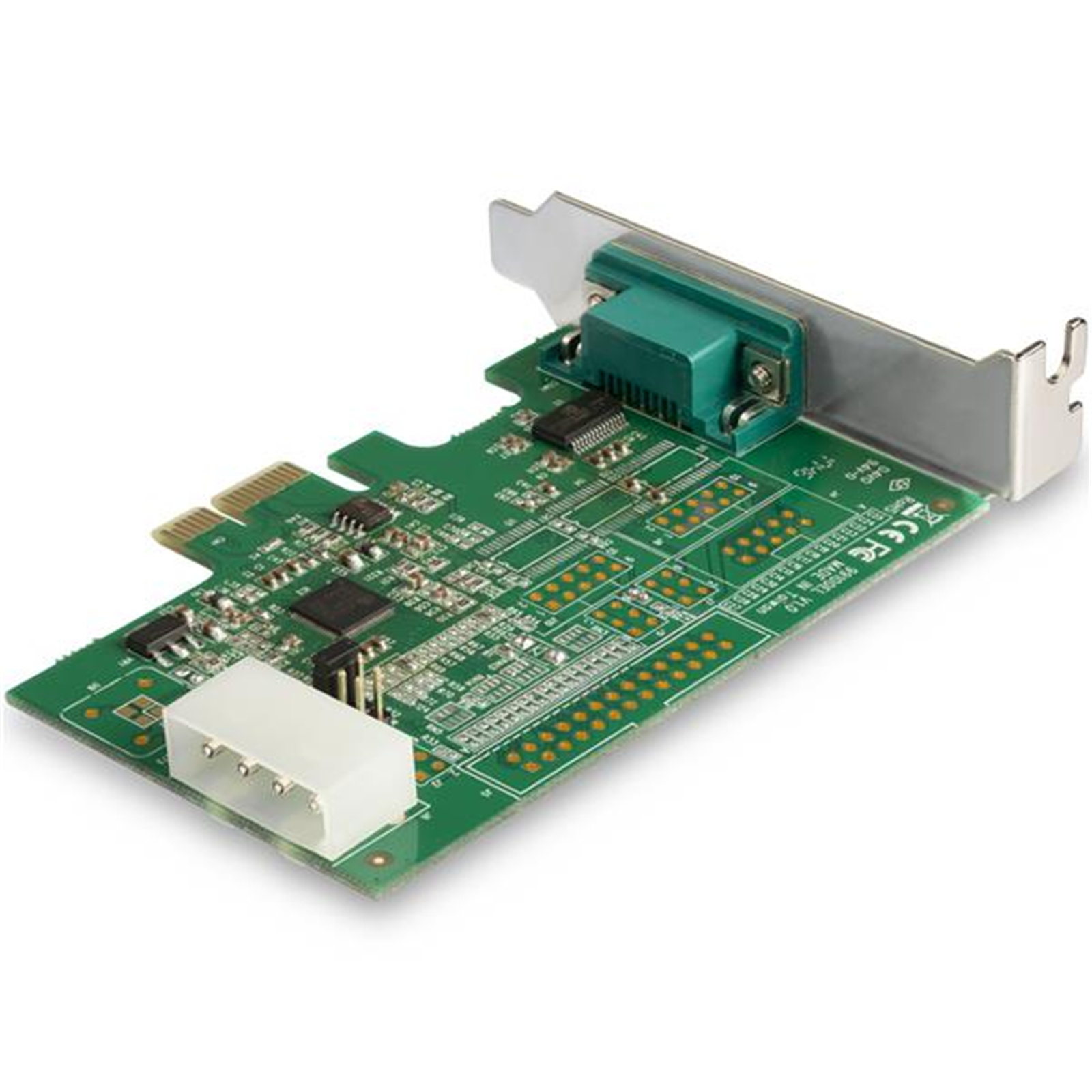

This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps.

Maximum Compatibility

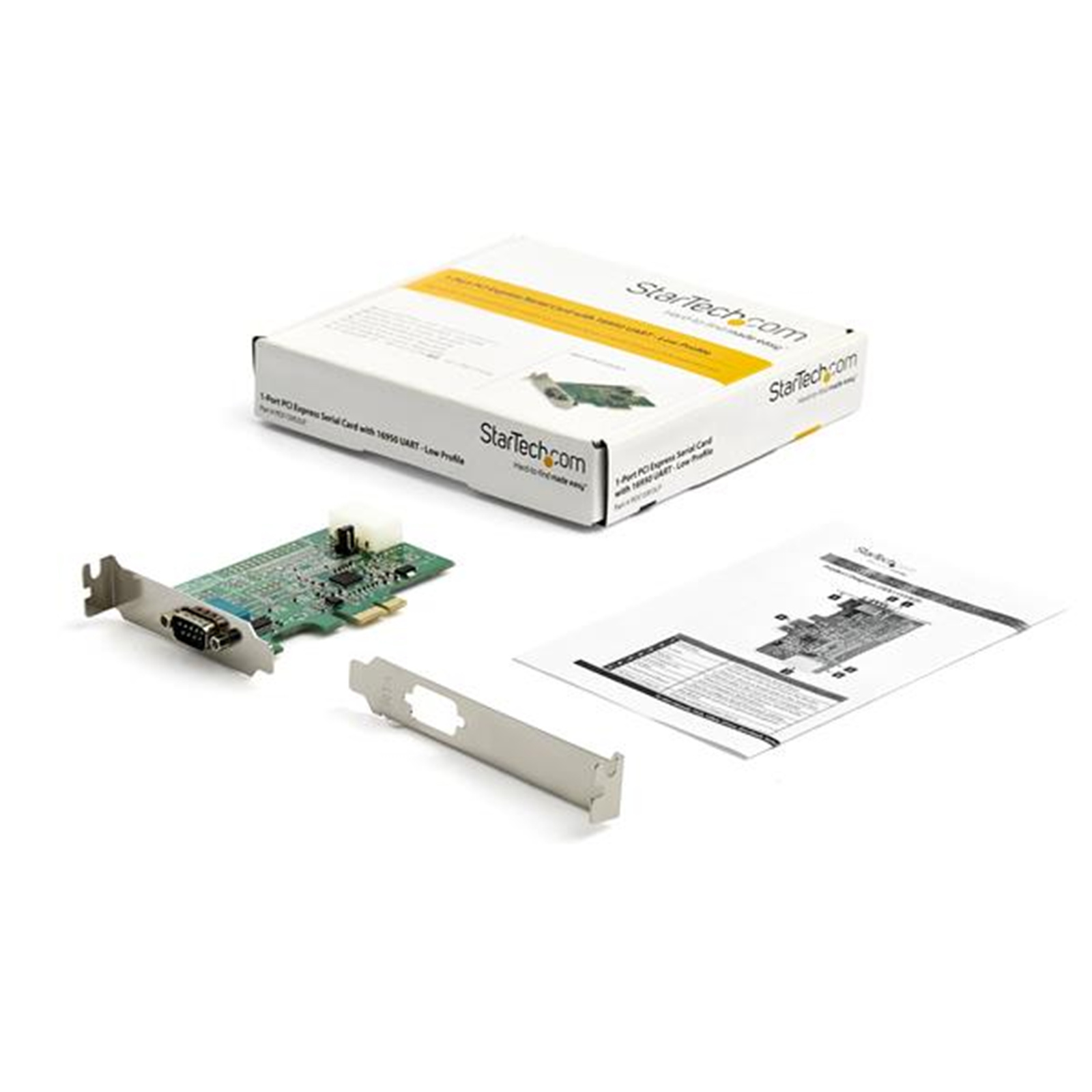

With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.

Experience Optimal Technology

This PCIe to serial adapter supports the following features:

- Compatible with industry standard 16950 UART
- Supports max baud rate of up-to 921.4Kbps
- Provides 5/12V power output on Pin 9 when external power is connected
- 128-byte depth FIFO per transmitter and receiver
- Supports 9, 8, 7, 6, 5 data bits
- Asix AX99100 chipset
- PCI Express 1.1 compliant
- PEX1S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.

Applications

- Install in home or office workstationsConnect in retail POS applications
- Connect to automated self-service kiosks or ATM machines
- Interact with RS232 serial devices like card readers or printers

Specifications

Hardware

Bus Type

PCI Express

Card Type

Low Profile (SP bracket incl.)

Chipset ID

Asix AX99100

Interface

Serial

Port Style

Integrated on Card

Ports

1

Performance

Data Bits

5, 6, 7, 8, 9

FIFO

256 Bytes

Flow Control

None, Xon/Xoff, RTS/CTS

Max Baud Rate

921.6 Kbps

Parity

None, Odd, Even, Space, Mark

Serial Protocol

RS-232

Stop Bits

1, 1.5, 2

Connector

Connector Type(s)

1 - PCI Express x1 Male

External Ports

1 - DB-9 (9 pin, D-Sub) Male

Internal Ports

1 - LP4 (4 pin; Large Drive Power) Male Input

Software

Microsoft WHQL Certified

Yes

OS Compatibility

Windows® 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016
Linux 2.4.x to 2.6.x LTS Versions only

Special notes / Requirements

Note

Selectable power output on pin 9 of the serial port

Enviromental

Humidity

20~80% RH

Operating Temperature

0°C to 70°C (32°F to 158°F)

Storage Temperature

-20°C to 80°C (-4°F to 176°F)

Physical characteristics

Product Height

5.9 in [15 cm]

Product Length

3.9 in [98 mm]

Product Width

2.6 in [67 mm]

Weight of Product

1.6 oz [44 g]

Manufacturer Part No:
PEX1S953LP
Brand:
Product Type:
-
UPC
065030881159
Product Family:
-
Shipping Weight:
0.1 kg
PB Part No:
ADPSTT4505145
Product Model:
PEX1S953LP
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
