StarTech.com PEX1P2 1-Port Parallel PCIe Card/Printer LPT
StarTech.com PEX1P2 1-Port Parallel PCIe Card/Printer LPT
- Brand: StarTech.com
- MPN: PEX1P2
- Part #: ADPSTT5188702
- UPC: 065030891400
- Brand: StarTech.com
- MPN: PEX1P2
- Part #: ADPSTT5188702
- UPC: 065030891400
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular IO, SCSI, IDE Cards
StarTech.com PEX1P2 1-Port Parallel PCIe Card/Printer LPT
- Brand: StarTech.com
- MPN: PEX1P2
- Part #: ADPSTT5188702
- UPC:065030891400
Product URL: https://www.pbtech.co.nz/product/ADPSTT5188702/StarTechcom-PEX1P2-1-Port-Parallel-PCIe-CardPrinte
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features

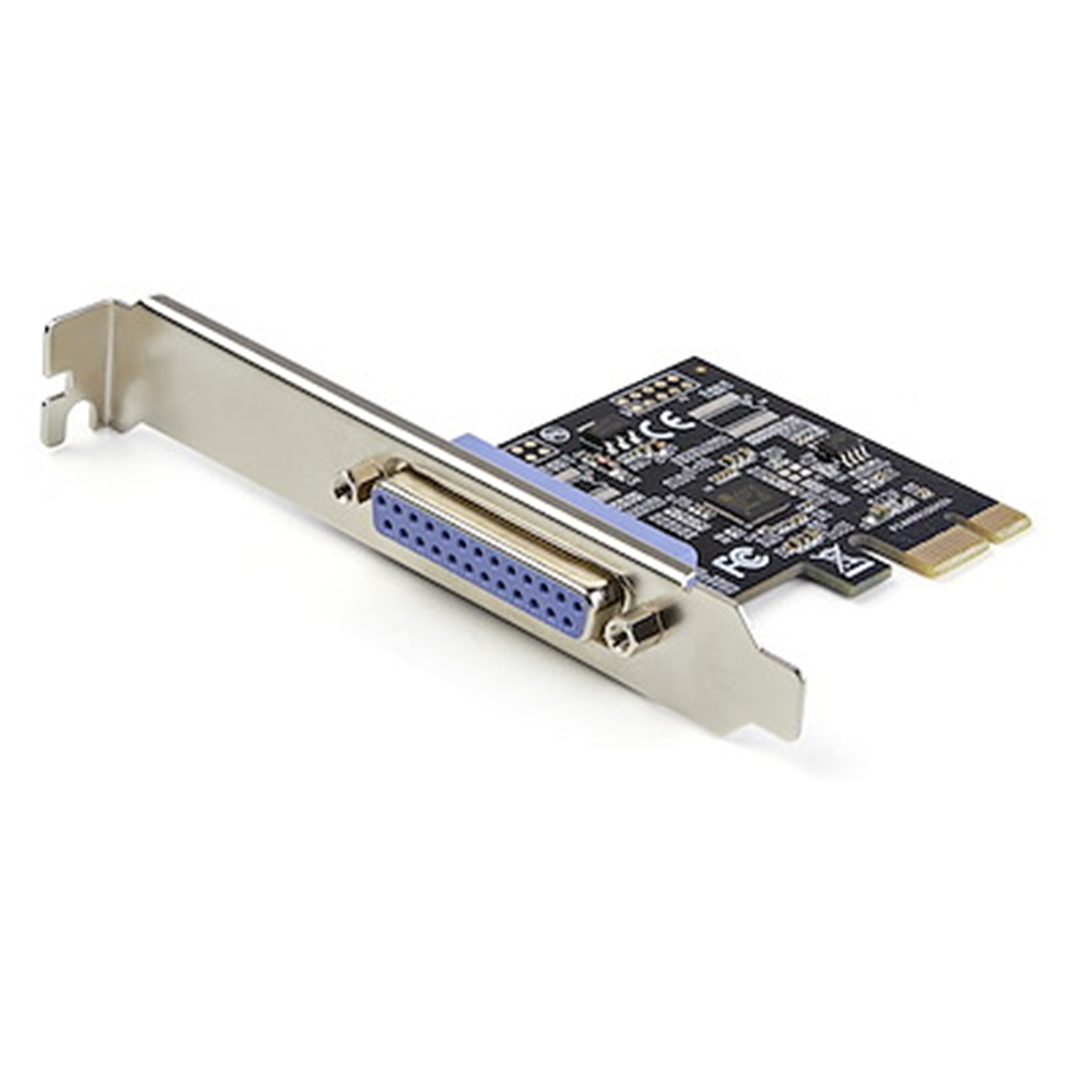

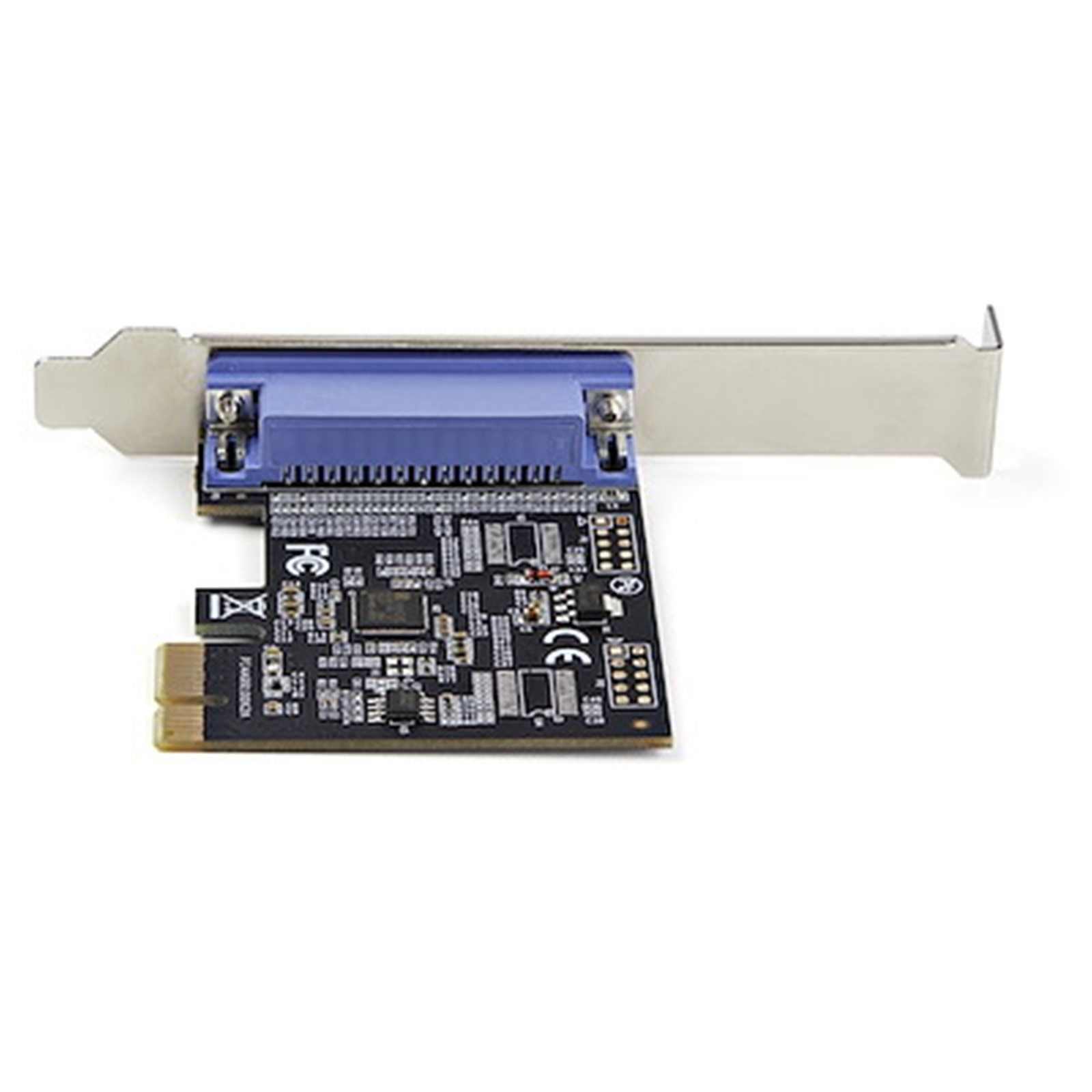

This PCIe Parallel controller card installs into an available PCI-Express x1 slot in your computer and enables you to add DB25 parallel communication port to your system.
Adds a Parallel Port to Your Desktop Computer
The controller card features an Asix AX99100 chip and enables you to connect a DB25 device to your desktop computer. The parallel port port is ideal for connecting printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes. The card can also be used in factories, to control or automate equipment. The parallel (LPT) port supports SPP/Byte/Nibble/ECP modes and is compatible with PCI Power Management 1.2 and IEEE 1284 for speeds up to 2.5Mbps.
Wide Installation Compatibility

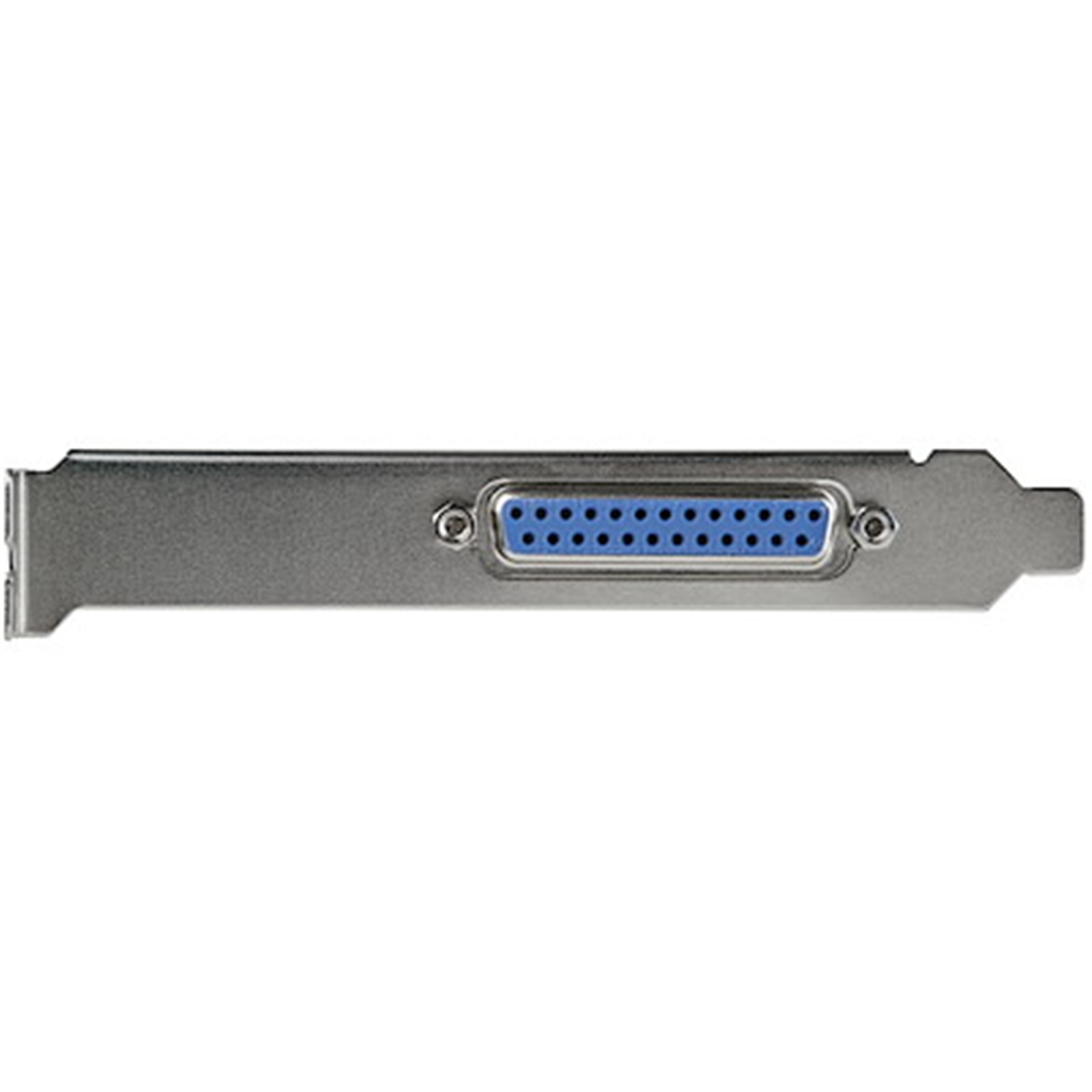

This add-on card includes both full-profile and low-profile installation brackets (full-profile bracket pre-installed) ensuring you can install it into either a full or low-profile PCIe 2.0 x1 slot (backward compatible with PCIe 1.1). For wide platform support the card is compatible with Windows (XP or higher), Windows Server (2003 or higher), and Linux (2.6.X or higher).
Applications
Connect printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes to your computer
Use in factories to control or automate equipment
Specifications
Connector(s)
1 - Connector Type(s)
PCI Express x1
1 - External Ports
DB-25 (25 pin, D-Sub)
Hardware
Ports
1
Interface
PCI Express
Bus Type
Parallel
Card Type
Standard Profile (LP bracket incl.)
Port Style
Integrated on Card
Industry Standards
PCI Express 2.0
IEEE 1284
Chipset ID
Asix - AX99100
Performance
Maximum Data Transfer Rate
2.5 Mbps
General Specifications
Supported Parallel Modes: SPP (Standard Printer Port), Nibble, Byte, and ECP (Extended Capabilities Port)
MTBF
17,520 Hours
Software
OS Compatibility
Windows® 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
Linux 2.6.x to 5.x LTS Versions only
