Features
Add four 10Gbps USB Type-C ports to a server or desktop computer through PCI Express

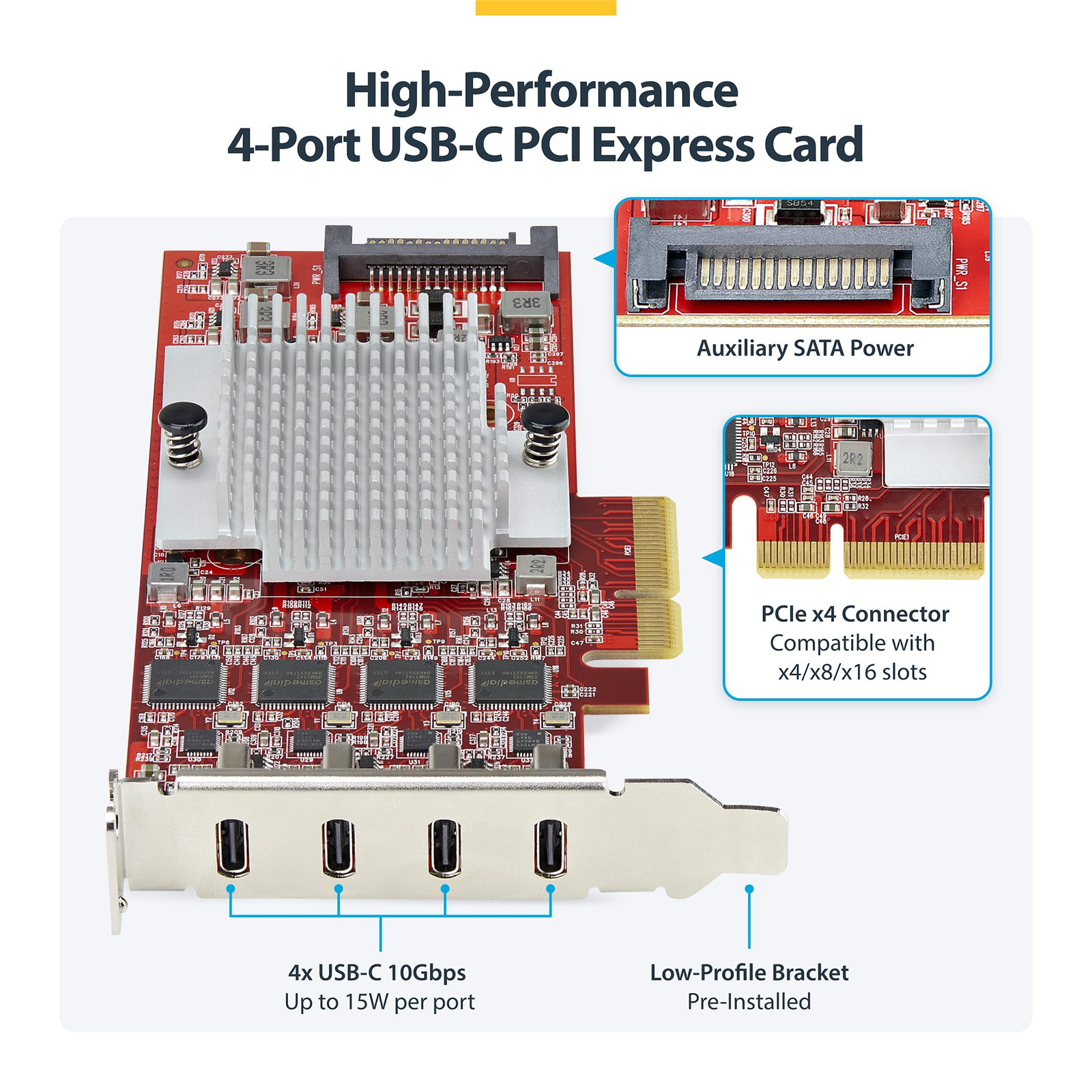

- HIGH-PERFORMANCE USB CARD: Enhance a desktop computer or server by upgrading or expanding its USB connectivity with this four-port USB Type-C card; Features individual USB controllers for up to 10Gbps per port (data only); PCI Express 3.0; TAA-compliant
- DEDICATED 10GBPS PER PORT: Features 4x USB controllers ensuring up to 10Gbps of bandwidth per port; High data throughput is ideal for large file transfers on external storage, simultaneous use of multiple USB-C devices, or using 10GbE USB network adapters
- COMPATIBILITY: Windows/Linux/macOS compatible; Add-on card ships with low-profile bracket installed (standard profile included); PCIe 3.0 x4 (or larger) slot required; Plug-and-play drivers; Supported speeds: 10Gbps, 5Gbps, 480Mbps, 12Mbps, and 1.1Mbps
- AUXILIARY SATA POWER: If the motherboard doesn't provide enough power, the built-in SATA power connection can be used to supply additional power to the USB ports; Internal USB-C PCIe expansion card can supply up to 5V 3A (15W) per port

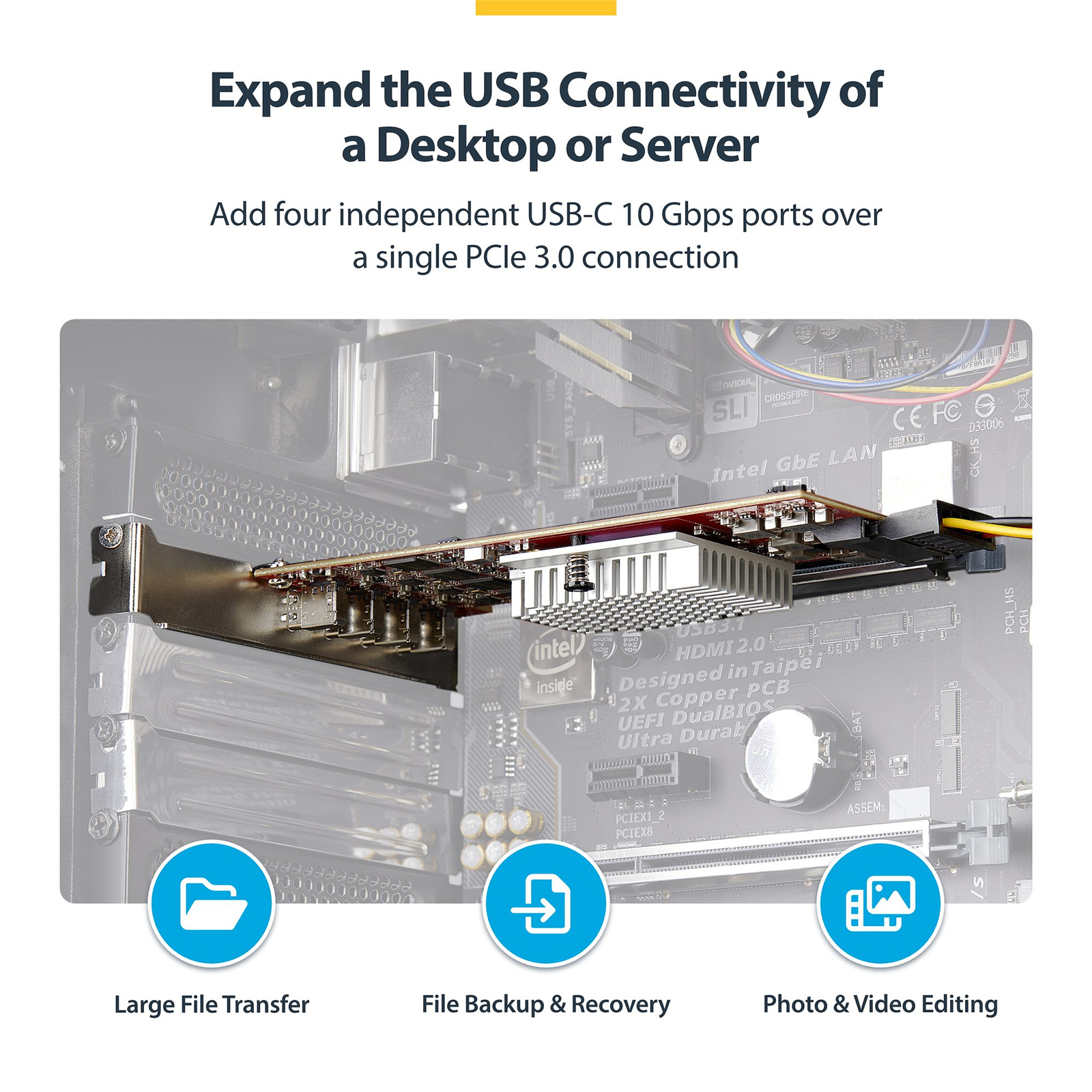

Expand the USB connectivity of a desktop computer or server by adding four external USB Type-C 10Gbps ports with this internal PCI Express 3.0 expansion card.

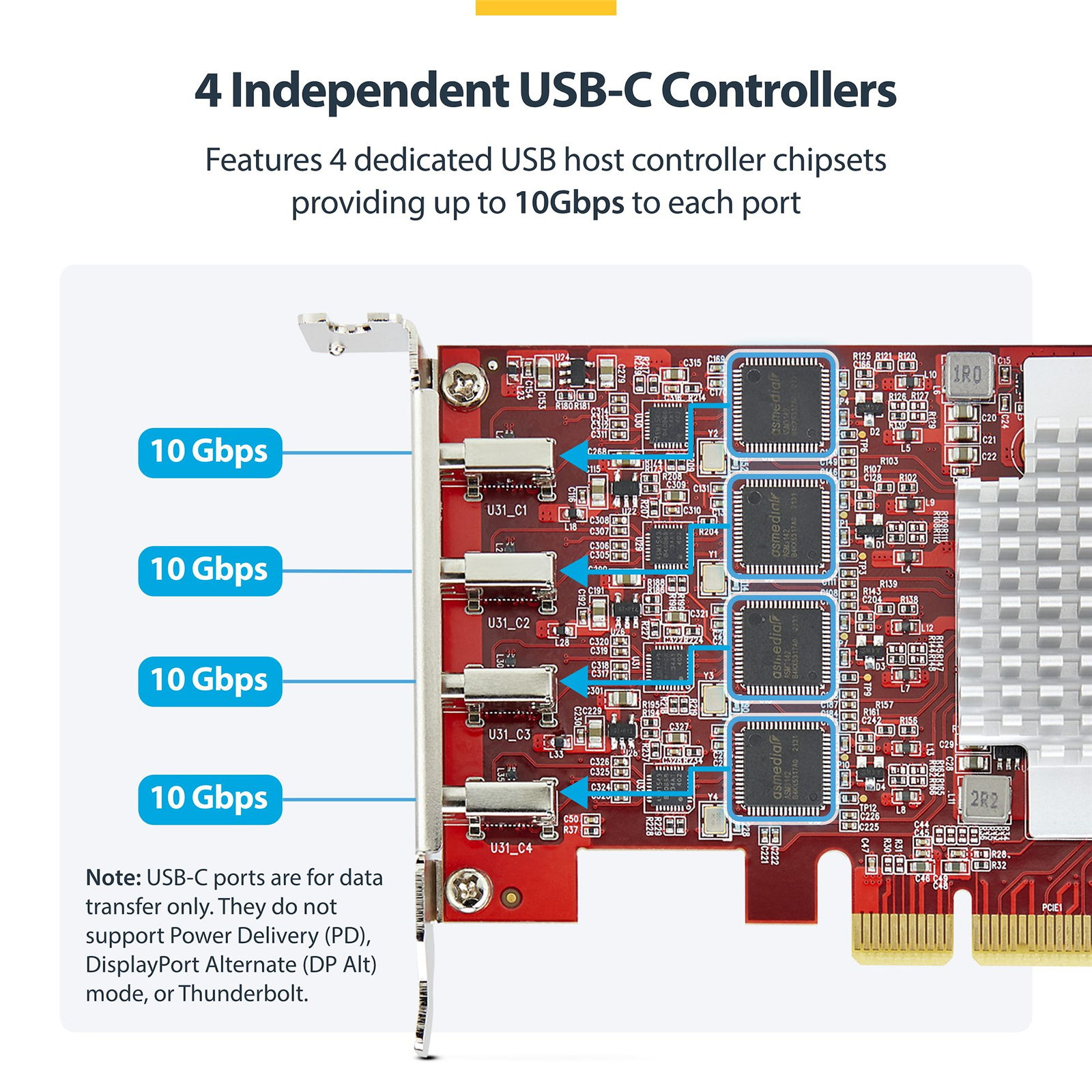

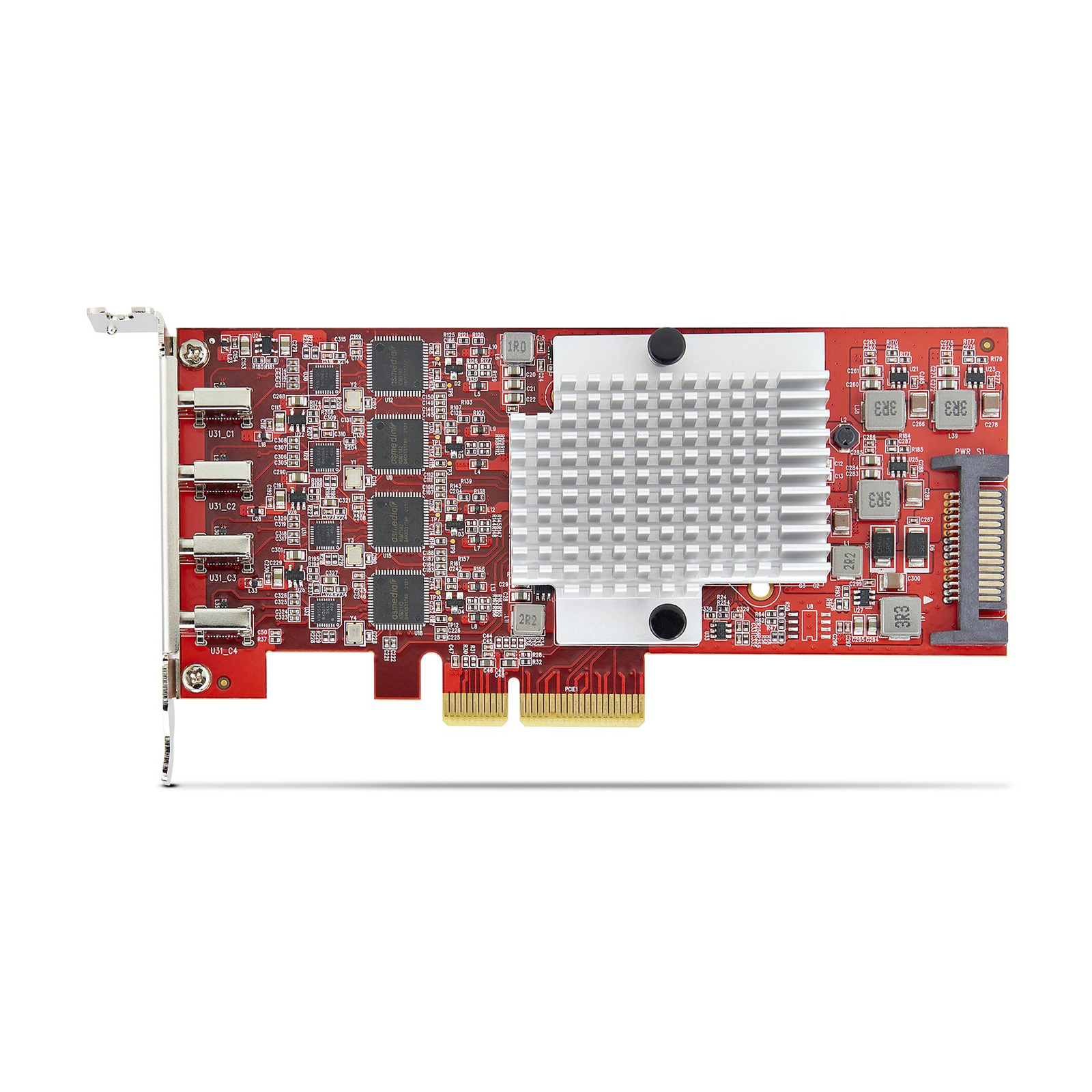

Dedicated USB Controllers
Traditional single-controller USB cards share bandwidth across all ports. With its four independent USB controllers, this USB-C expansion card enables each port to achieve up to 10Gbps, reducing bottlenecks and increasing data throughput.
USB 3.2 Gen 2 (10Gbps) Performance
The high bandwidth makes the card ideal for transferring large files, real-time editing of high-resolution photos and videos on external storage, off-loading media from mobile devices, using high-resolution video capture devices, tethered photography equipment, or high-speed USB network adapters like 10G Ethernet copper or fiber adapter.

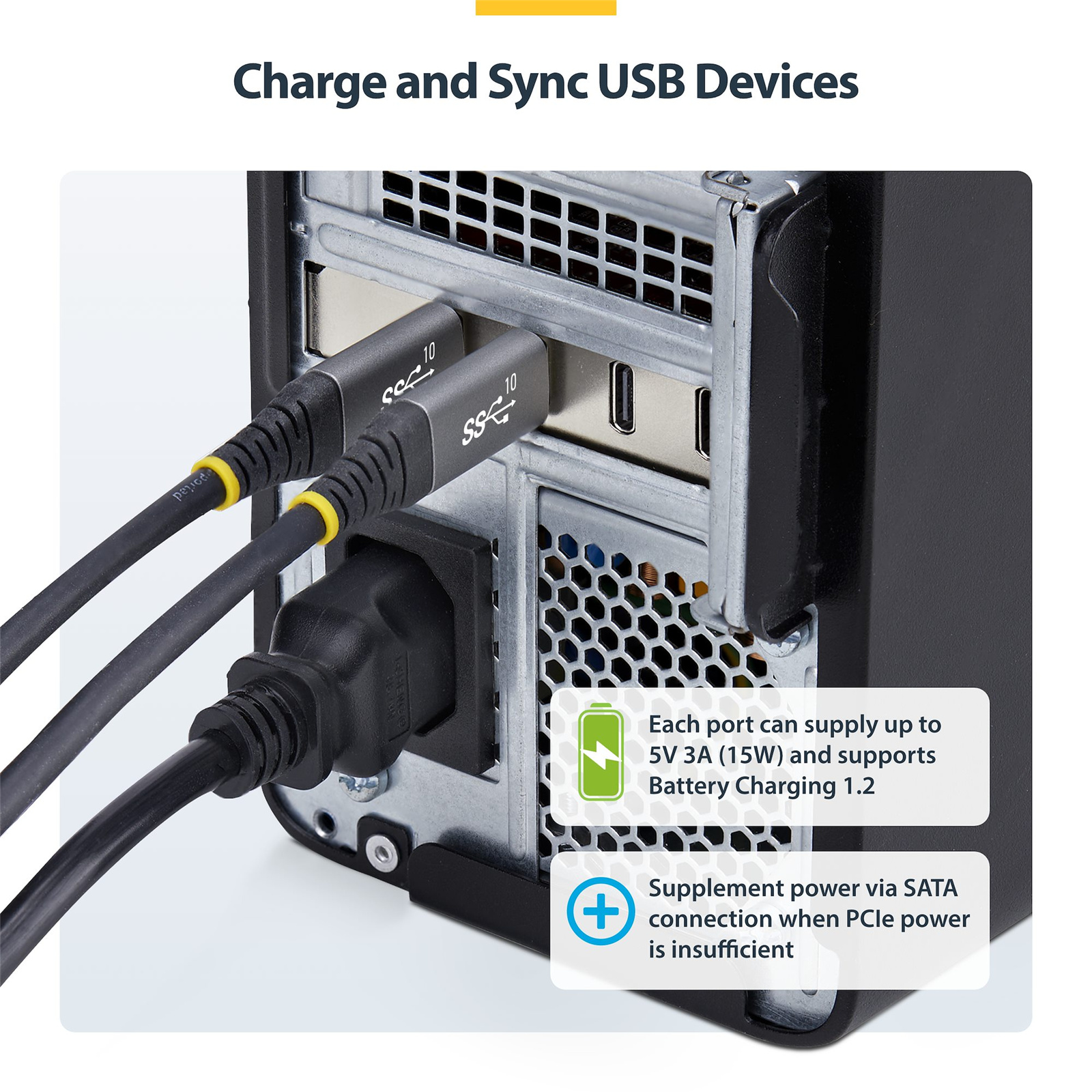

Charge and Sync USB Devices
This USB PCI Express card can provide up to 5V 3A (15W) per USB-C port, enabling sync and charge of portable devices. If the motherboard can't supply enough power, a built-in SATA power connector can supply additional power to the card.

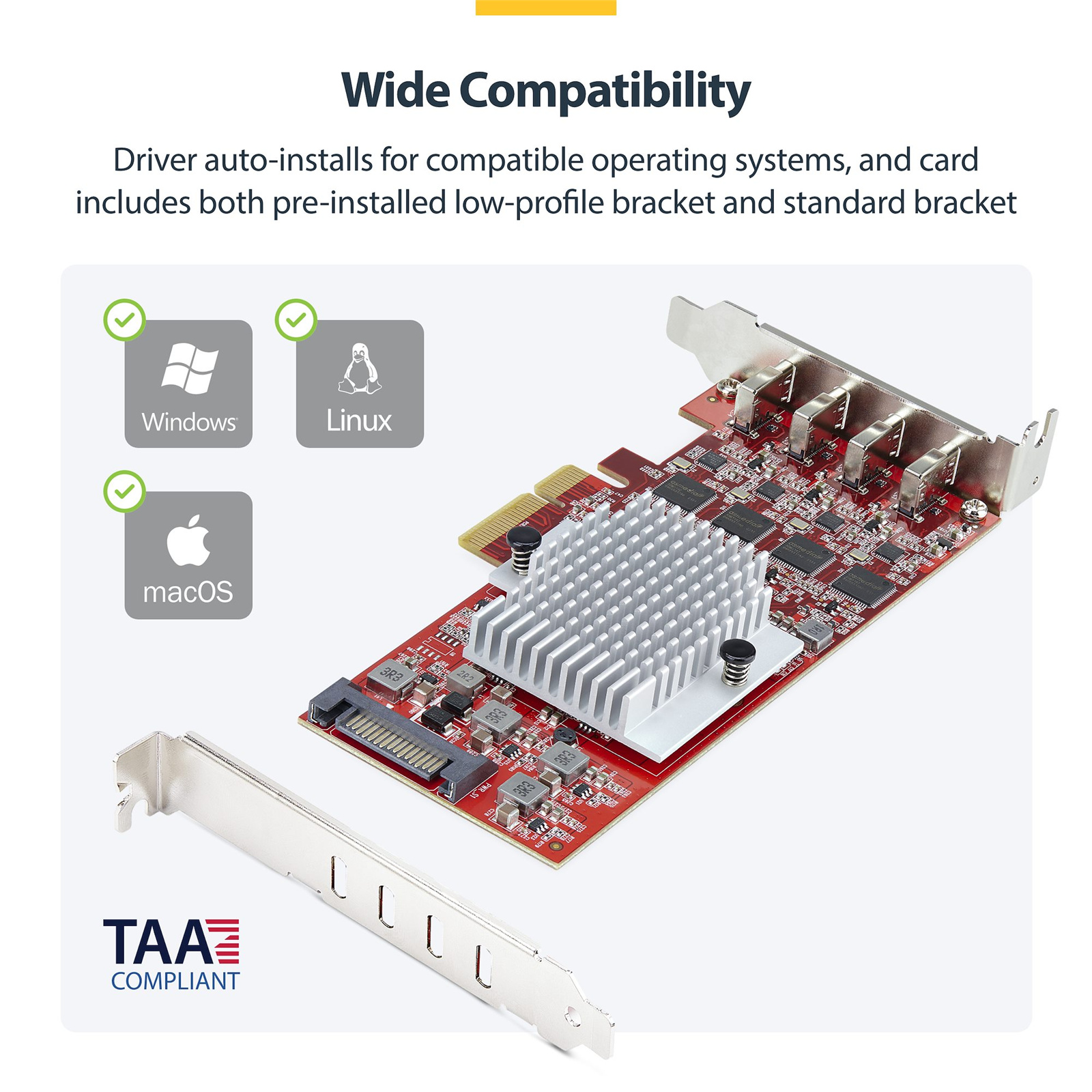

Compatibility

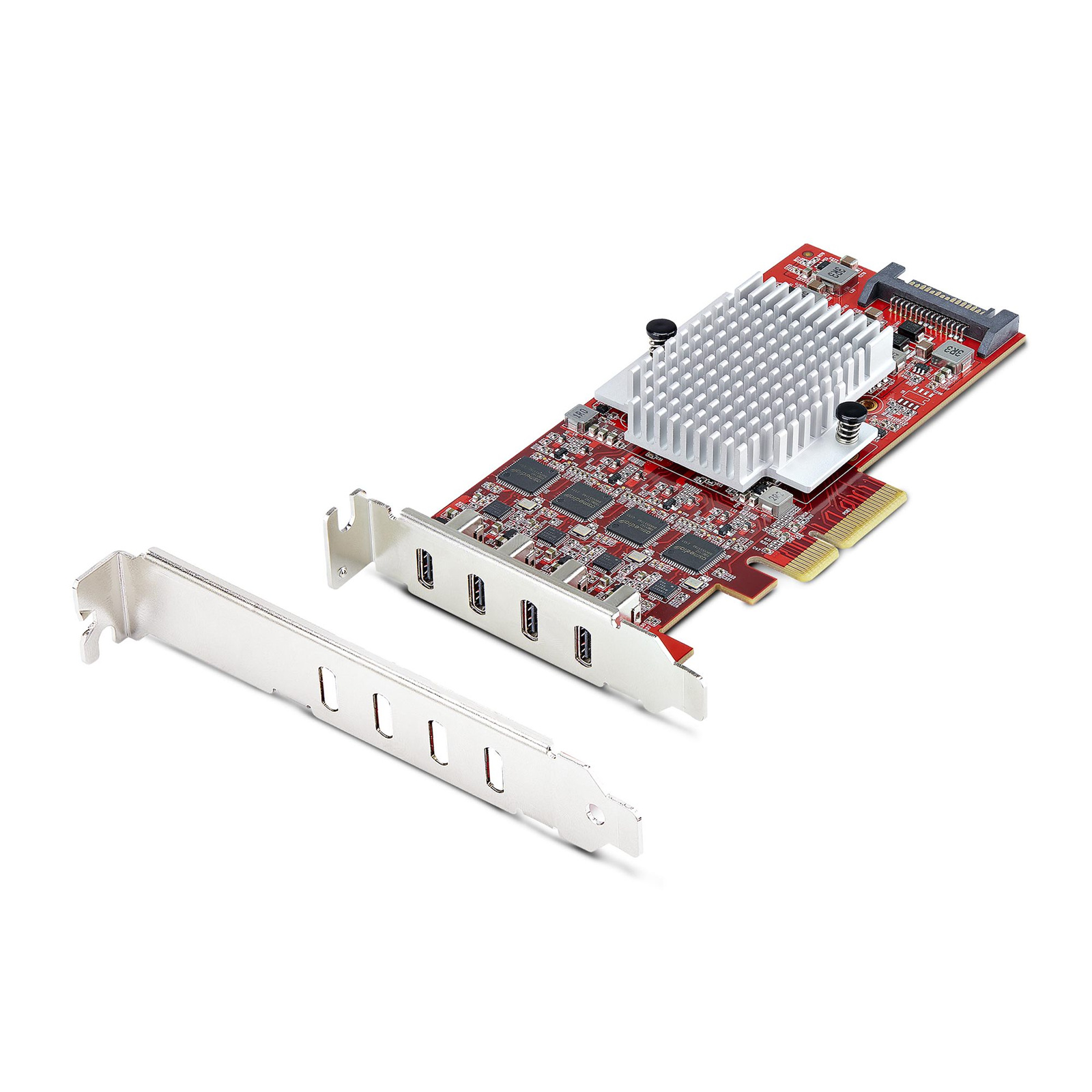

The PCI Express USB card is plug-and-play in most major operating systems, including Windows, macOS, and Linux. The card is compatible with PCI Express 3.0 and x4, x8, and x16 slots. The USB expansion card also ships with a pre-installed low-profile bracket and includes a standard profile bracket for maximum compatibility.
Specifications
Connector(s)
External Ports
4 - USB 3.2 Type-C (24 Pin, Gen 2, 10Gbps, 15W Power)
Internal Ports
1 - SATA Power (15 pin)
Host Connectors
1 - PCI Express x4
Environmental
Operating Temperature
0°C to 85°C (32°F to 185°F)
Storage Temperature
-25°C to -13°C (14°F to 185°F)
Humidity
20% ~ 80% RH (non-condensing)
Hardware
Ports
4
Interface
PCI Express
Card Type
Low Profile (SP bracket incl.)
Port Style
Integrated on Card
Industry Standards
PCI Express 3.0
Chipset ID
ASMedia - ASM3142
ASMedia - ASM1543
ASMedia - ASM2812X
Performance
Total USB Power Output
15W max per port
Maximum Data Transfer Rate
10Gbps
Type and Rate
USB 3.2 Gen 2 - 10 Gbit/s
UASP Support
Yes
Physical Characteristics
Colour
Red

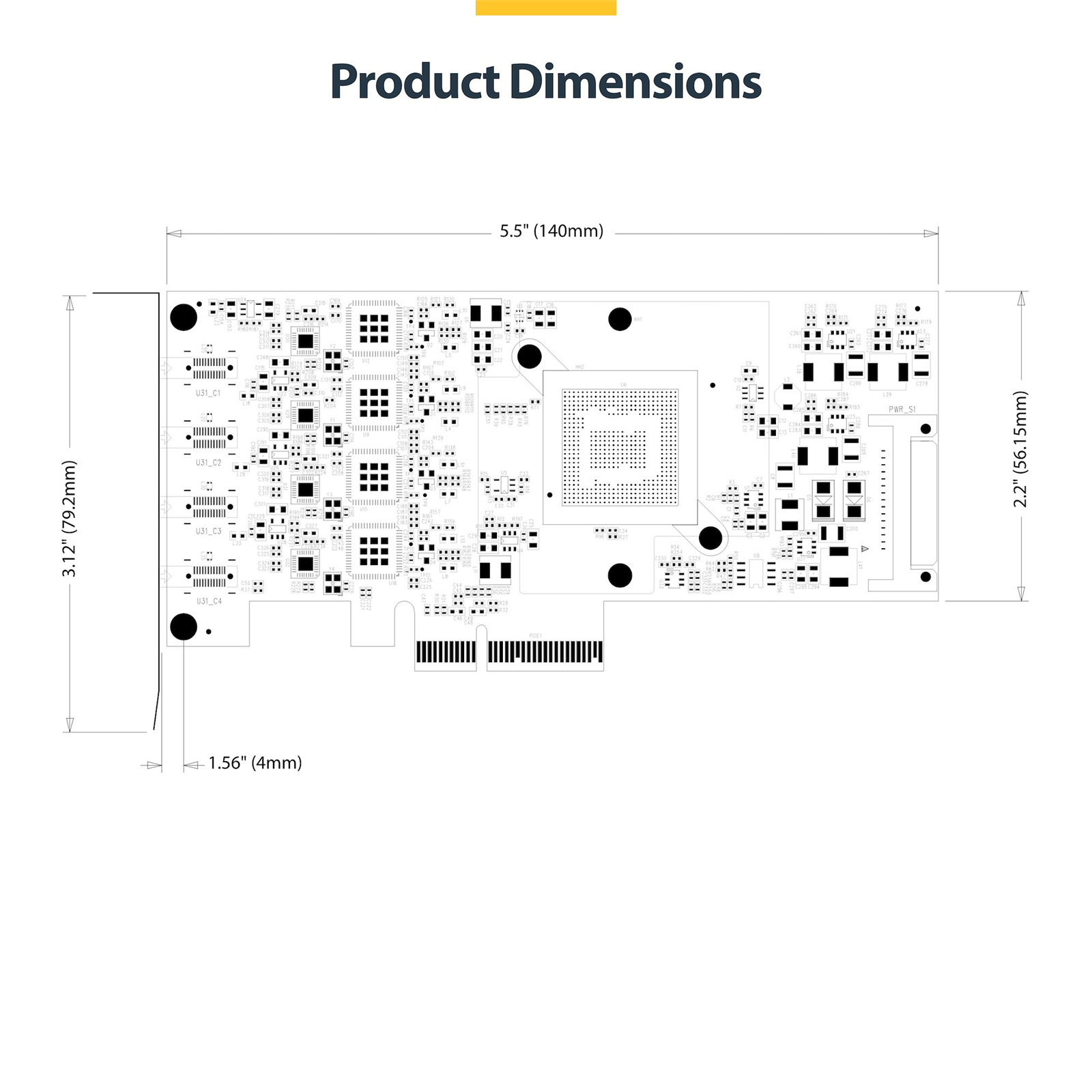

Product Height
3.1 in [79.2 mm]
Product Length
5.5 in [140 mm]
Weight of Product
3.5 oz [100 g]
Product Width
2.2 in [56.2 mm]
Power
Power Source
Bus Powered
Software
OS Compatibility
Windows® 10, 11
Windows Server® 2019, 2022
Linux 2.6.31 and up - LTS Versions only
What's in the Box
Included in Package
1 - PCIe USB Card (Low-Profile Bracket Installed)
1 - Standard-Profile Bracket
1 - Quick-Start Guide
