Features

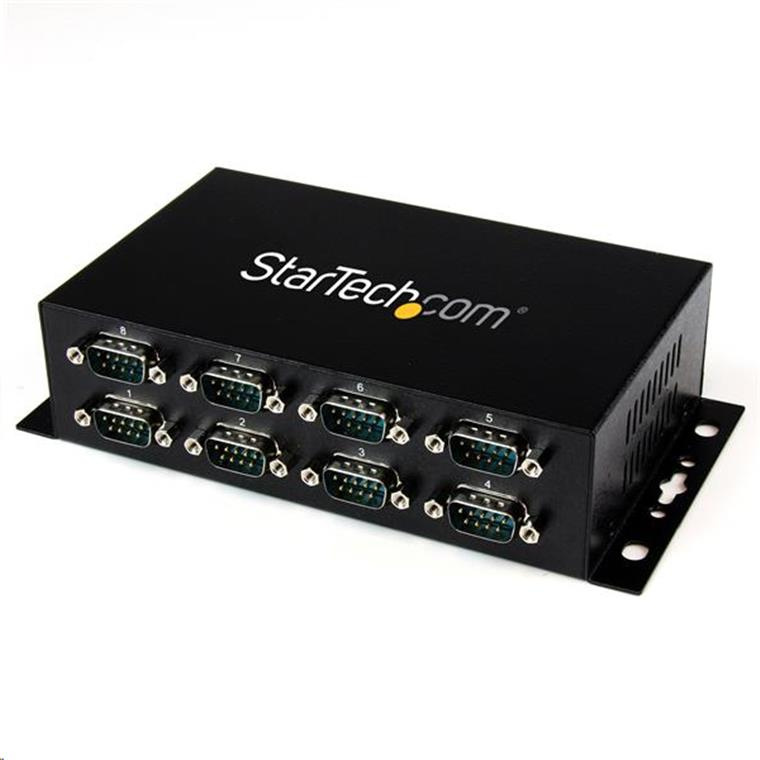

8 Port USB to DB9 RS232 Serial Adapter Hub - Industrial DIN Rail and Wall Mountable
The ICUSB2328I Industrial 8-Port USB to Serial Hub with DIN Rail Clips converts a single USB port into eight RS232 serial ports, enabling you to connect to, monitor and control your serial devices. Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this 8 port USB to RS232 Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations. This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the USB serial hub ports. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Integrated wallmount brackets and included DIN Rail clips for versatile mounting options
- Rugged all-metal enclosure for added durability in harsh environments
- Easy plug and play installation, with our USB Powered adapter - no power outlet required
Specifications
Bus Type
USB 2.0
Chipset ID
FTDI - FT232RL
Interface
Serial
Port Style
External Hub
Ports
8
Data Bits
7, 8
FIFO
4096 byte Transmit and Receive
Max Baud Rate
921.6 Kbps
Maximum Data Transfer Rate
921.6 Kbps
MTBF
146,300 Hours
Parity
Odd, Even, Mark, Space, None
Serial Protocol
RS-232
Stop Bits
1, 2

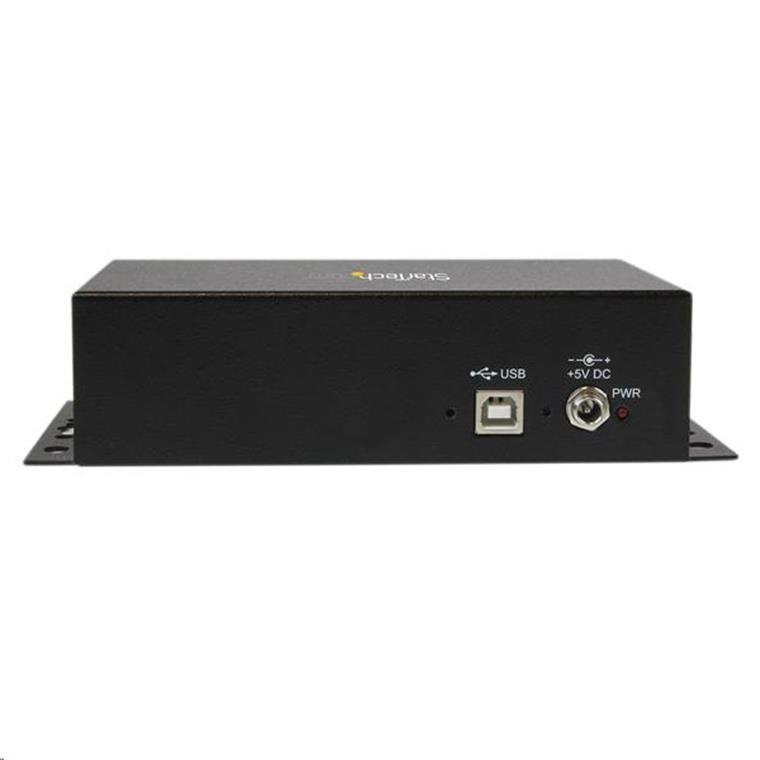

External Ports
1 - USB B (4 pin) Female

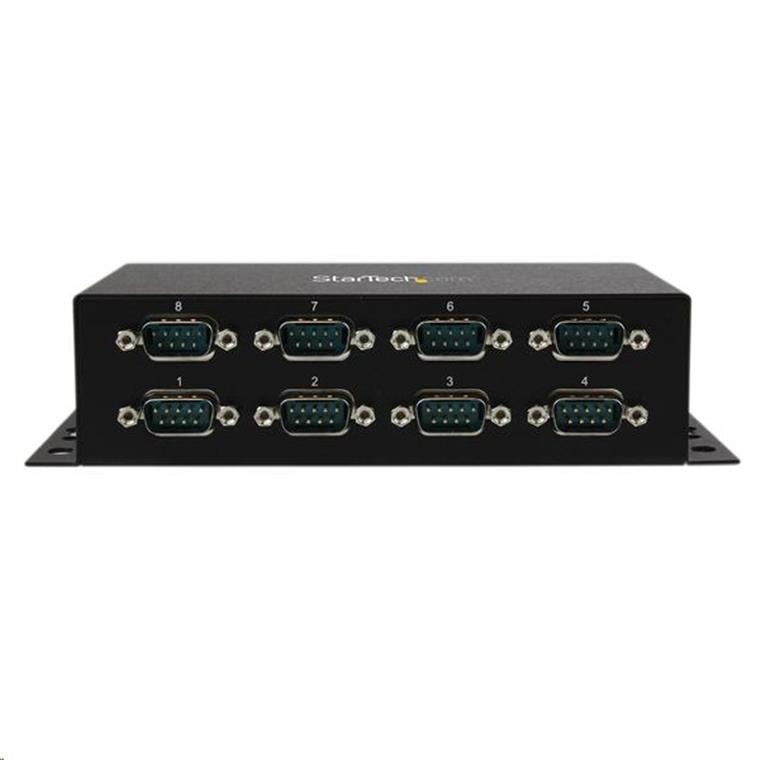

8 - DB-9 (9 pin, D-Sub) Male
OS Compatibility
Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS® 10.6 to 10.12
Linux 2.4.x to 4.4.x LTS Versions only
LED Indicators
8 - Each, Tx/Rx Activity indicators
Input Current
250 mA
Input Voltage
5 DC
Plug Type
M
Power Source
USB-Powered
Humidity
5~95% RH
Operating Temperature
0°C to 55°C (32°F to 131°F)
Storage Temperature
-20°C to 85°C (-4°F to 185°F)

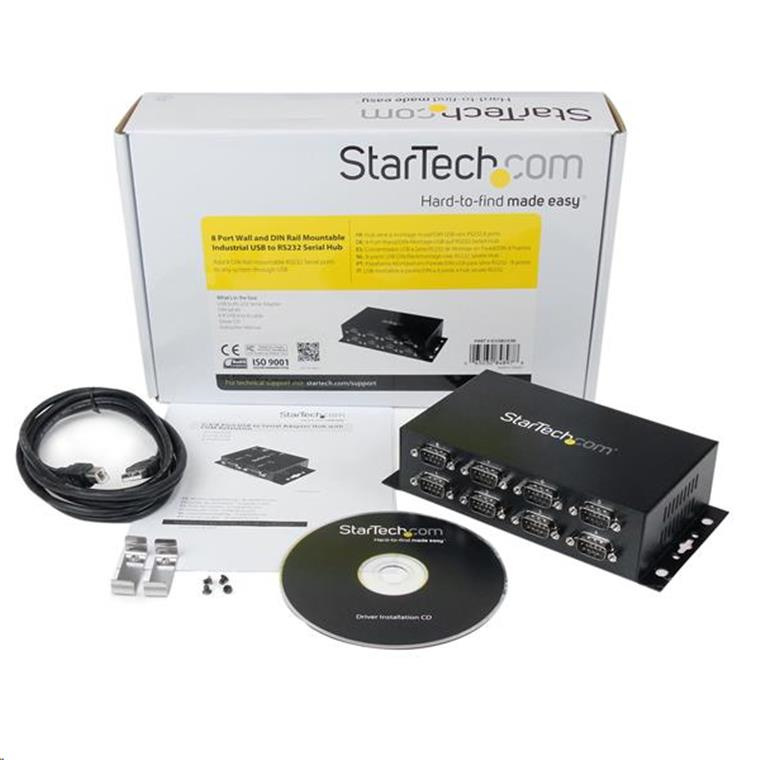

Included in Package
1 - USB to RS-232 Serial Adapter
1 - DIN rail kit
1 - 6 ft USB A to B cable
1 - Driver CD
1 - Instruction Manual
