Features

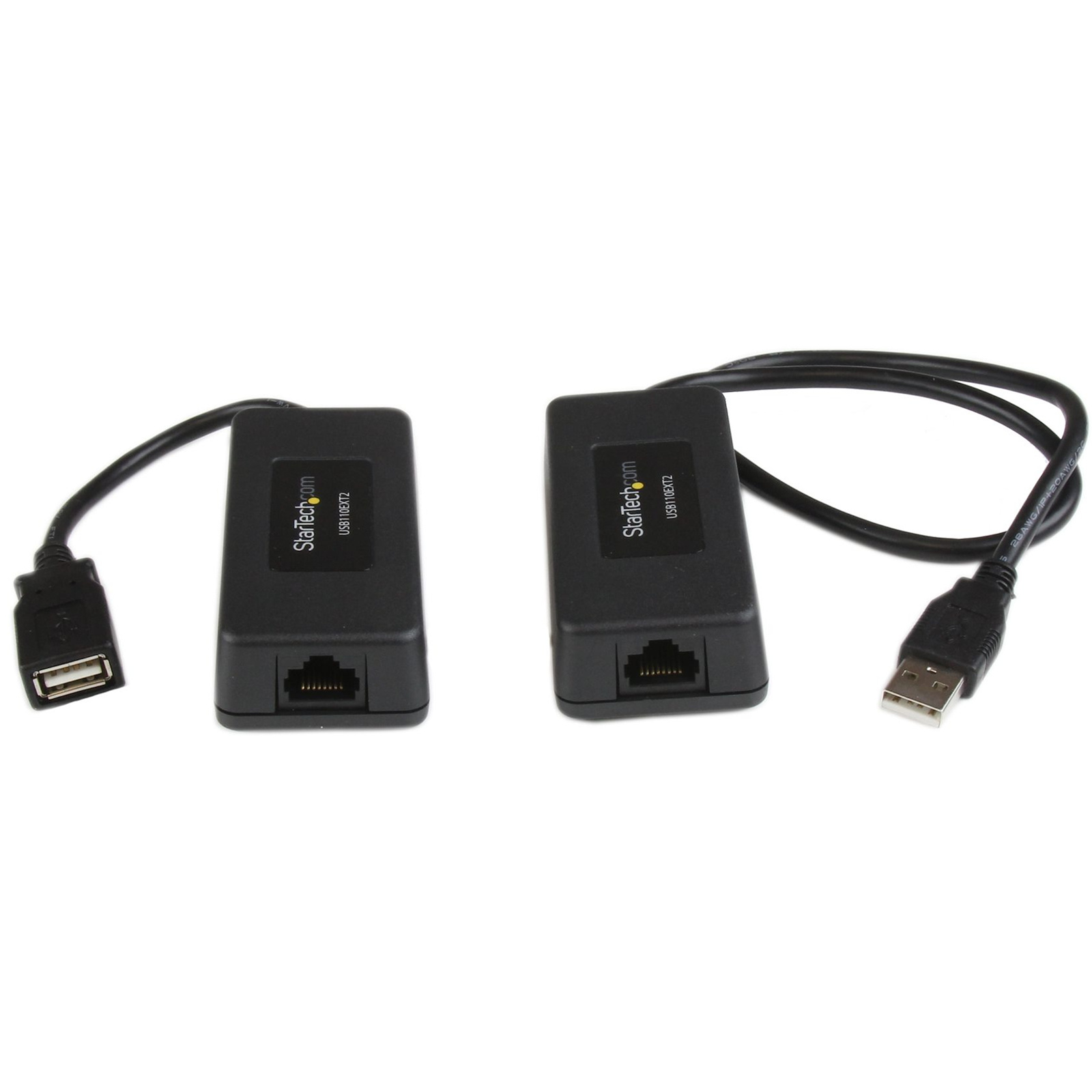

The USB110EXT2 USB 1.1 Extender enables you to extend a USB 1.1 connection over distances of up to 40-meters (131-feet) using standard Cat5 or Cat6 UTP cabling, bypassing the normal limitation of 5m (15ft) for USB 1.1 devices and allows for the host computer system to be safely stored in a remote location.
The USB Extender features a compact design with no external power requirements, making it the ideal solution for remote USB cameras, keyboards, mice or other input devices for environments where install space or access to electrical outlets is limited.
Able to deliver up to 300mA of power (when supplied with 500mA from the host computer), the extender is fully compliant with the USB 1.1 specification, with support for up to 12Mbps of data bandwidth.
Applications
- Secured environments where the host computer must be in a secure, inaccessible location from the the keyboard, mouse, camera or other USB input devices
- Use existing in-wall Cat5/Cat6 wiring to extend USB 1.1 device connections between rooms
- Reduce cable clutter and the need for mid-point USB hubs/repeaters by running a single, easy-to-install Cat5/Cat6 cable
- Industrial control environments where the host computer must be located away from interference or contamination
Specifications
Connector(s)
Local Unit Connectors
1 - USB Type-A (4 pin) USB 2.0
1 - RJ-45
Remote Unit Connectors
1 - USB Type-A (4 pin) USB 2.0
1 - RJ-45
Environmental
Operating Temperature
0°C to 50°C (32°F to 122°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Humidity
20% ~ 80% RH
Hardware
Ports
1
Cabling
Cat 5e UTP or better
Performance
Maximum Data Transfer Rate
12 Mbps
Max Distance
40 m / 131 ft
Power
Power Source
USB-Powered
What's in the Box
Included in Package
1 - USB 1.1 Extender Local Unit
1 - USB 1.1 Extender Remote Unit
1 - Instruction Manual
