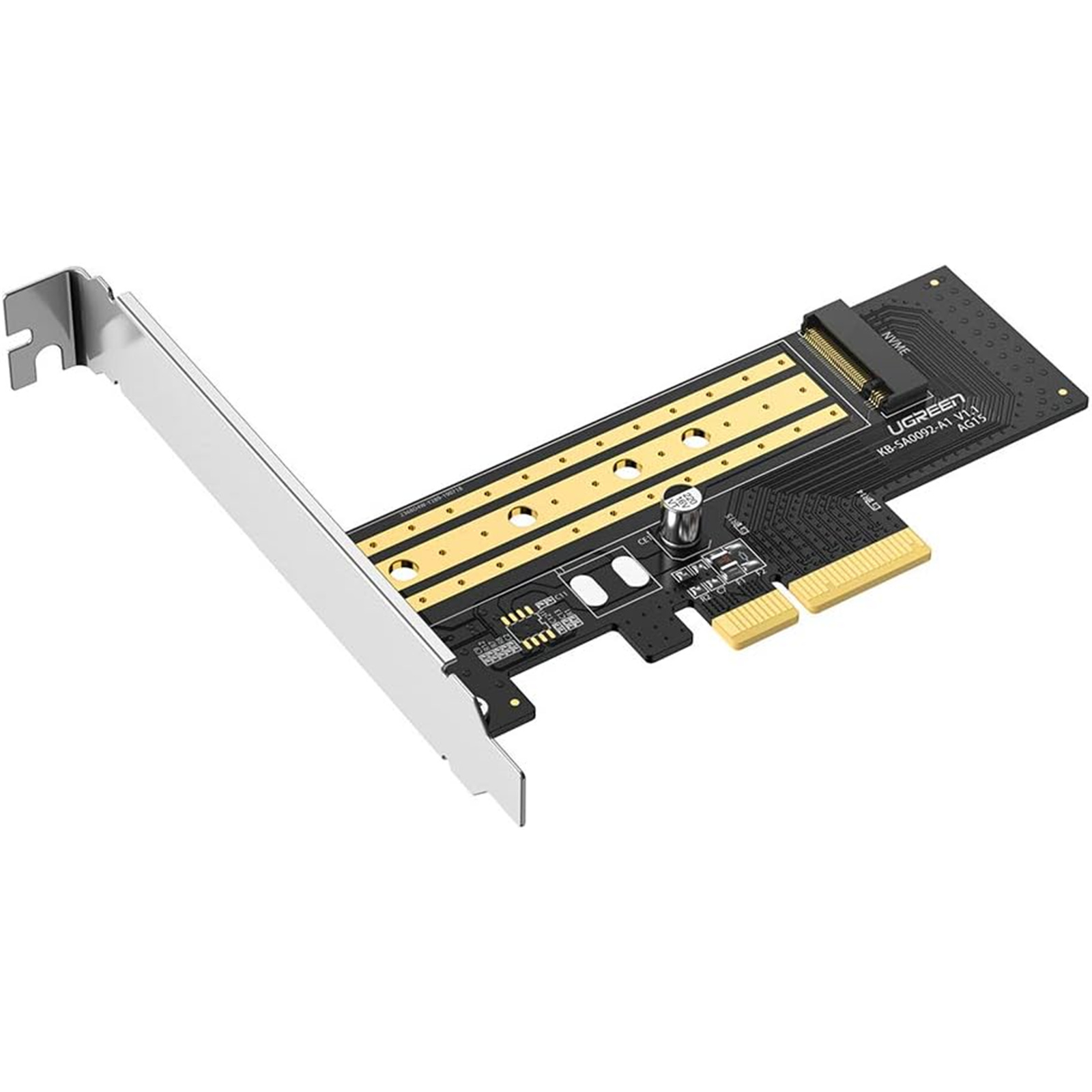

UGREEN CM302 M.2 NVME to PCI-E 3.0 X4 Express Card Adapter - Support 2230 2242 2260 2280 M.2 SSD
UGREEN CM302 M.2 NVME to PCI-E 3.0 X4 Express Card Adapter - Support 2230 2242 2260 2280 M.2 SSD
- Brand: UGREEN
- MPN: UG-70503
- Part #: ADPUGR70503
- UPC:
Select your store to check availability
- Brand: UGREEN
- MPN: UG-70503
- Part #: ADPUGR70503
- UPC:
What PB Tech customers are saying about this product...
See More Reviews"Works just as intended and haven't had any issues what so ever"
"easy to use"
"this is the 2nd time I buy from UGREEN brand, they make great products and will buy again if need it.
I was impressed that from the moment I purchased online to collect and to the ...view more"
COMBO DEALS: Buy Together and SAVE!
Dynamix C-SATA3 6Gbps SATA Data Cable - with Latch - 50cm - Black
$3.78 +GST
$4.35
Cruxtec ADS01 flammable Clean Range Compressed Air Duster 400ml Spray Can with Nozzle Dust-off...
$9.32 +GST
$10.72
ADATA UV128 USB Flash Drive - 32GB - Black / Blue USB 3.2
$5.69 +GST
$6.54
DEEPCOOL DM9 professional-grade thermal paste 1.5g
$10.26 +GST
$11.80
Features
M.2 NVME TO PCLE 3.0 ADAPTER
- Multi-layer PCBA Protection

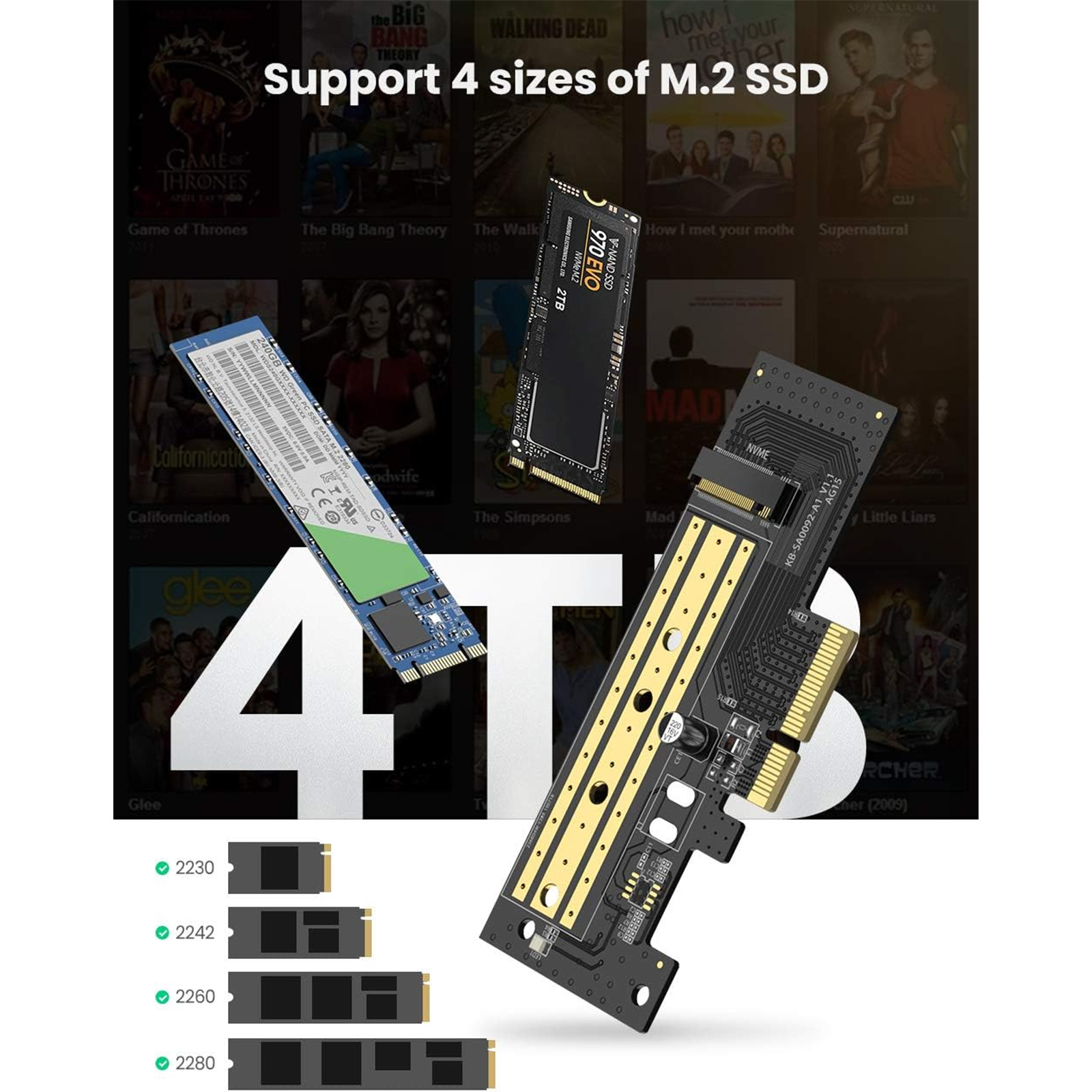

- Support 4 Sizes of M.2 SSD
- Heat Dissipation
MULTI-LAYER PCBA, MULTI-LAYER PROTECTION
Overcurrent protection,Overvoltage protection,Short circuit protection,EMI (Electromagnetic Interference) protection. Maximum protection of M.2 NVMe SSD (Your valuable data) from electrical signal interference.
EASY SETUP
No driver installation required (if an exclamation mark appears after installing the adapter, ask the SSD manufacturer to offer the NVME driver for SSD for PCIe). Includes both flat and full profile brackets for installing flexible system chassis, ideal for 2U enclosures.

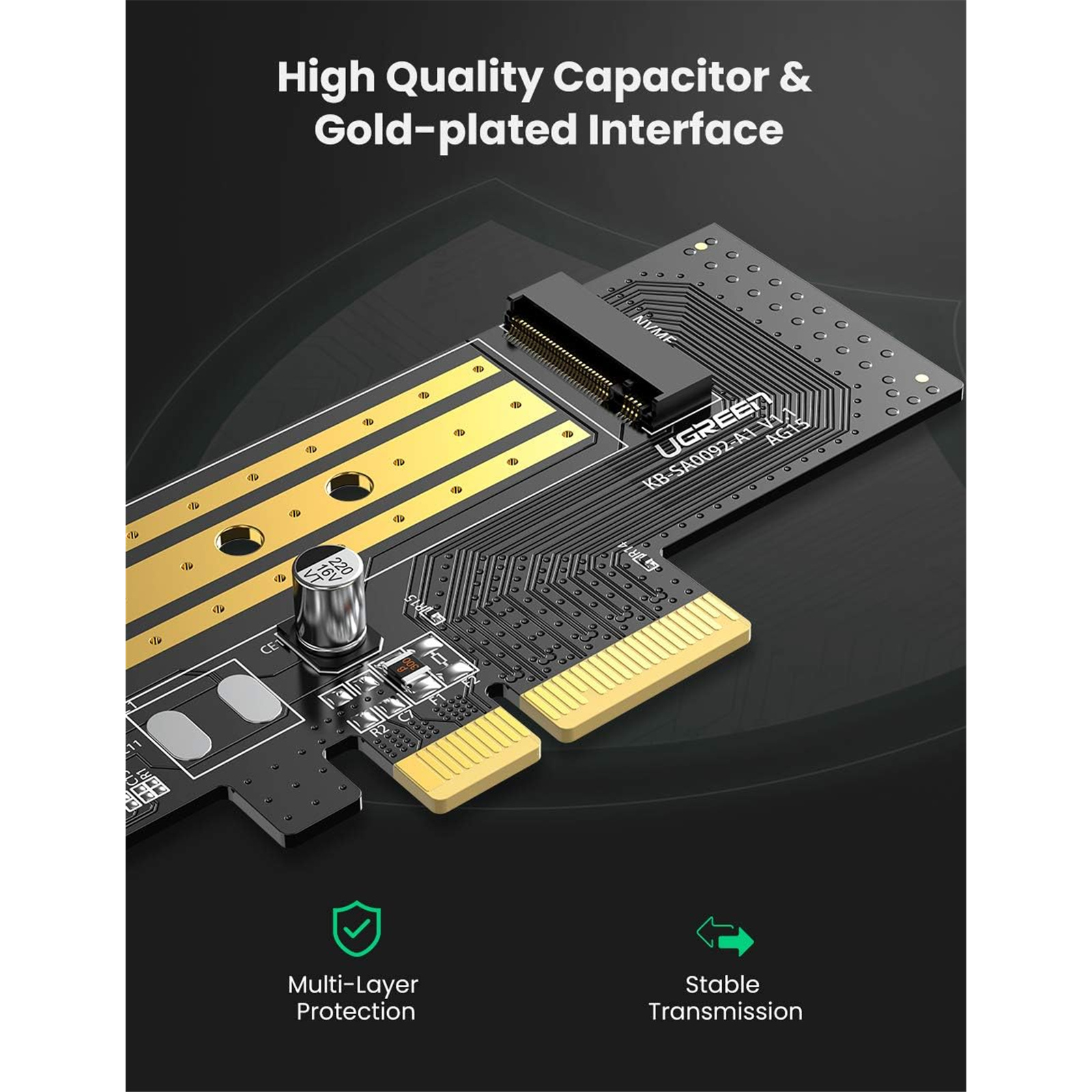

SAFE AND STABLE TRANSMISSION
It bilut with high quality capacitor and gold-plated interface to ensure information security and stable transmission.
COMPATIBLE DEVICES
- Compatible with PCI-e 3.0 motherboards, and is backwards compatible with PCIe 2.0 and PCIe 1.0. Adapter supports PCIe 3.0 x4 NVMe (M Key) and PCIe AHCI M.2 SSD including 2230, 2242, 2260, and 2280 drives
- Samsung 950PRO/960EVO/PM951/PM961/SM951/SM961/970EVO/970PRO
- Intel Optane SSD 800P Series, Intel SSD 760p Series, Intel SSD 660p Series, Intel SSD 600p Series
- Toshiba OCZ RD400/Plextor M8PEG M6E/Kingston KC1000, etc.
NOTE
It is designed to work only with 'M' key M.2 PCIe SSD. Not compatible with 'B' key M.2 PCIe x2 SSD or 'B' key M.2 SATA SSD.
Specifications
Reviews
Do you own this product?
Amazing product
Works just as intended and haven't had any issues what so ever
Great value
easy to use
Happy with the product and fast service by PBtech
this is the 2nd time I buy from UGREEN brand, they make great products and will buy again if need it.
I was impressed that from the moment I purchased online to collect and to the moment I got the its ready to pick up from pbtech, it was very fast and I need it the product asap, so good on Ya Pbtech
Plug and play!
No issues, easy to install, no drivers needed.
Great
Works perfectly as intended and doesn't break the bank.
Excellent problem solver
Product worked well, needed to clone my m.2 SSD and the USB device I purchased wouldn't support a 2TB drive. PBTech swapped it out for this, which worked perfectly.
Great Price - just works!
I put this in a Mac Pro 5,1 with a 2Tb NVME - worked 1st time!
It Just Works
I got it to put a spare SSD I had laying around to some use. I slapped it on a full size PCI slot, but worked without any problems. PC recognized the SSD basically immediately.
Great Product
This expansion card saved the day, allowing me to add a second M.2 SSD to my PC. And it's such a great price!
Perfect
Unlike the very cheap kit sold online, this one worked absolutely perfectly first time. It's perfect for an extra NVME disk in your machine.
Works great
Does exactly what it says on the box, would love if there was an included low profile bracket, but that's just a minor thing.
Great adapter for the price
Works good, is a lot cheaper than external m.2 enclosures and is a lot easier than having to remove a graphics card to get access to onboard m.2 slots, when moving data from one m.2 to another
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Drive Adapters & Converters
UGREEN CM302 M.2 NVME to PCI-E 3.0 X4 Express Card Adapter -...
UGREEN UG-30715 PCIe 4.0(16 ) to M.2 NVMe Expansion Card
Unitek Y-1039 USB 3.0 to SATA 6G Converter Super-Speed 5Gbps...
UGREEN UG-70504 M.2 NVME to PCI-E3.0 Express Card with M.2 SATA
StarTech.com PEX4M2E1 x4 PCI Express to M.2 PCIe SSD Adapter
UGREEN CM302 M.2 NVME to PCI-E 3.0 X4 Express Card Adapter - Support 2230 2242 2260 2280 M.2 SSD
- Brand: UGREEN
- MPN: UG-70503
- Part #: ADPUGR70503
Product URL: https://www.pbtech.co.nz/product/ADPUGR70503/UGREEN-CM302-M2-NVME-to-PCI-E-30-X4-Express-Card-A
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 2 | |
| Auckland - Glenfield | 5 | |
| Auckland - Queen Street | 1 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 2 | |
| Auckland - Westgate | 5 | |
| Auckland - Penrose | 3 | |
| Auckland - Henderson (Express) | 1 | |
| Auckland - St Lukes | 2 | |
| Auckland - Manukau | 2 | |
| Hamilton | 1 | |
| Tauranga | 5 | |
| New Plymouth | 0 | |
| Palmerston North | 3 | |
| Petone | 1 | |
| Wellington | 5 | |
| Auckland - Head Office | 10+ | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 3 | |
| Christchurch - Christchurch Central | 6 | |
| Dunedin | 0 |
Features
M.2 NVME TO PCLE 3.0 ADAPTER
- Multi-layer PCBA Protection
- Support 4 Sizes of M.2 SSD
- Heat Dissipation
MULTI-LAYER PCBA, MULTI-LAYER PROTECTION
Overcurrent protection,Overvoltage protection,Short circuit protection,EMI (Electromagnetic Interference) protection. Maximum protection of M.2 NVMe SSD (Your valuable data) from electrical signal interference.
EASY SETUP
No driver installation required (if an exclamation mark appears after installing the adapter, ask the SSD manufacturer to offer the NVME driver for SSD for PCIe). Includes both flat and full profile brackets for installing flexible system chassis, ideal for 2U enclosures.
SAFE AND STABLE TRANSMISSION
It bilut with high quality capacitor and gold-plated interface to ensure information security and stable transmission.
COMPATIBLE DEVICES
- Compatible with PCI-e 3.0 motherboards, and is backwards compatible with PCIe 2.0 and PCIe 1.0. Adapter supports PCIe 3.0 x4 NVMe (M Key) and PCIe AHCI M.2 SSD including 2230, 2242, 2260, and 2280 drives
- Samsung 950PRO/960EVO/PM951/PM961/SM951/SM961/970EVO/970PRO
- Intel Optane SSD 800P Series, Intel SSD 760p Series, Intel SSD 660p Series, Intel SSD 600p Series
- Toshiba OCZ RD400/Plextor M8PEG M6E/Kingston KC1000, etc.
NOTE
It is designed to work only with 'M' key M.2 PCIe SSD. Not compatible with 'B' key M.2 PCIe x2 SSD or 'B' key M.2 SATA SSD.
Specifications
Package content
1 x M.2 to PCI Express Adapter Card
1 x Aluminum Heatsink
1 x Heat conducting silica gel pad
1 x Screwdriver
1x Screw kit
SKU
70503
Data Transmission
32Gbps (NVME), 6Gbps (NGFF)

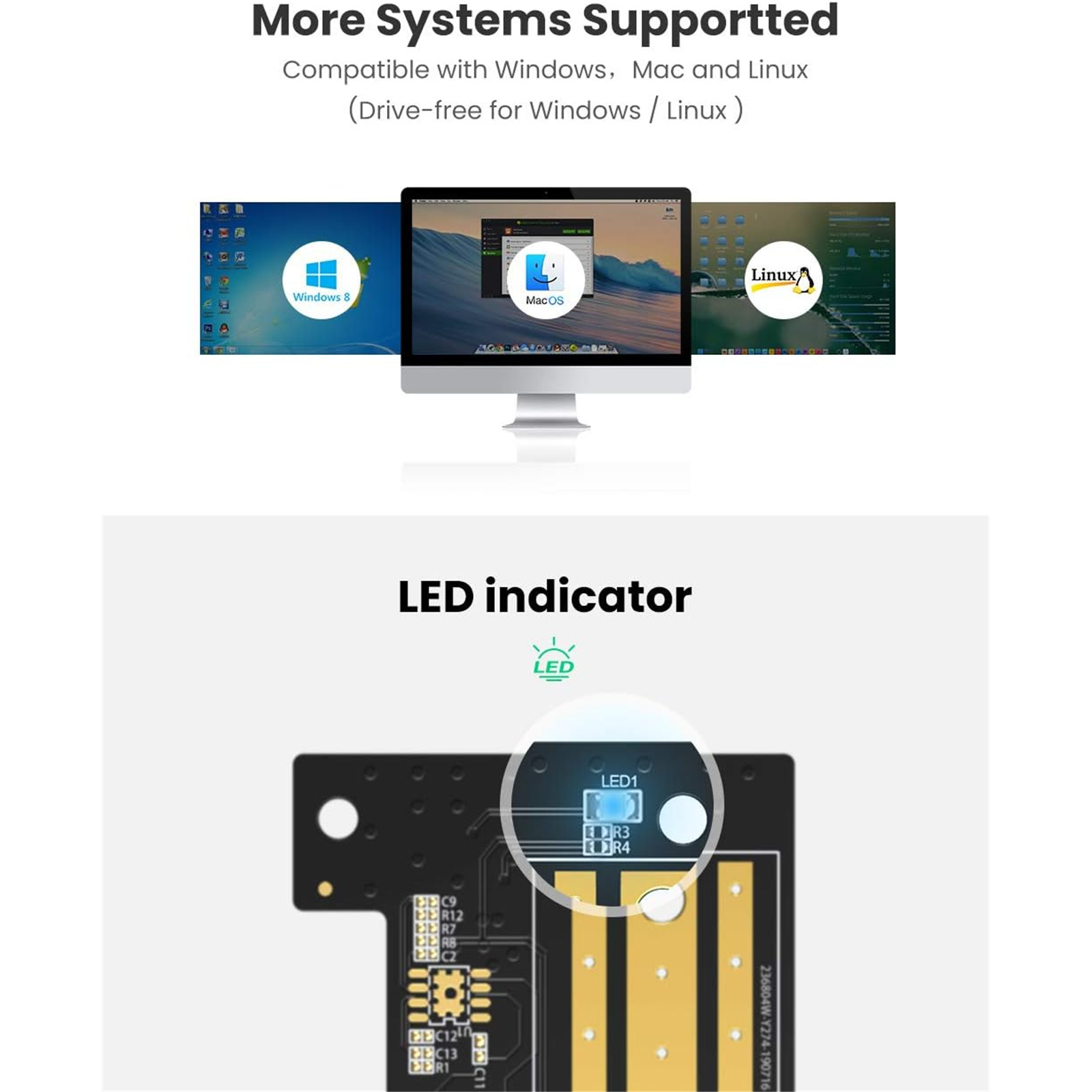

Supported Systems
Windows, Mac, Linux
