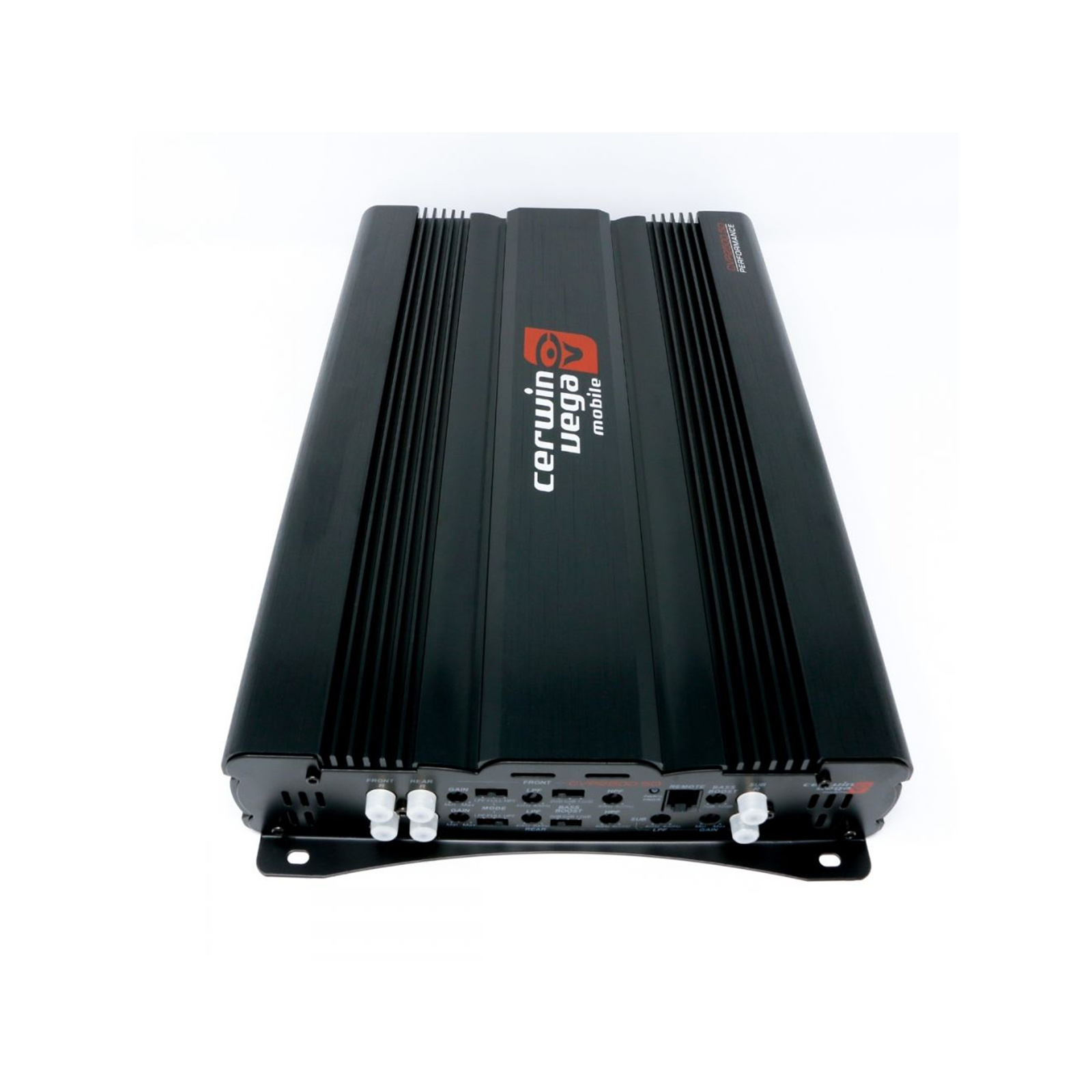

Cerwin-Vega CERWIN VEGA CVP2500.5D AMPLIFIER CVP SERIES 5 CH 100W RMS X4 + 350W RMS 4OHM / 150WRMS X4 + 500W RMS 2OHM
Cerwin-Vega CERWIN VEGA CVP2500.5D AMPLIFIER CVP SERIES 5 CH 100W RMS X4 + 350W RMS 4OHM / 150WRMS X4 + 500W RMS 2OHM
- Brand: Cerwin-Vega
- MPN: CVP2500.5D
- Part #: AUDCWV1010
- UPC:
- Brand: Cerwin-Vega
- MPN: CVP2500.5D
- Part #: AUDCWV1010
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Car Audio





Cerwin-Vega CERWIN VEGA CVP2500.5D AMPLIFIER CVP SERIES 5 CH 100W RMS X4 + 350W RMS 4OHM / 150WRMS X4 + 500W RMS 2OHM
- Brand: Cerwin-Vega
- MPN: CVP2500.5D
- Part #: AUDCWV1010

Product URL: https://www.pbtech.co.nz/product/AUDCWV1010/Cerwin-Vega-CERWIN-VEGA-CVP25005D-AMPLIFIER-CVP-SE
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Compact Size with Ambient backlit logo
RCA "Pass Thru" output for easy system expansion
Fully Variable Crossovers (12dB per octave)
Handles HI and LO level input to 12V
2 O Stable Stereo and 4O Mono (CH3/4) for 3 CH mode
Proprietary Vega Bass Boost EQ Up To 12dB
Specifications
Model
CVP2500.5D
RMS Power(2O)
85Wx4 + 300Wx1
RMS Power (4O)
65Wx4 + 185Wx1
RMS Bridge (mono 4O)
180Wx2 +NA
Technology
AB class
Power Supply
PWM
Power Supply (Threshold)
10-16VDC
Idle Current
1.0A
Distortion - THD (1KHz@4O)
?1%
Distortion - S/N Ratio (A weight @ 1W)
>90dB
Distortion - S/N Ratio (A weight @ FP)
>105dB
Input Sensitivity - Hi/Low Input Level
200mV-6V
Input Impedance - Low Input Level
20KO
Output Impedance
2/4O
Damping Factor (50Hz@4O)
100
Bandwidth (-3dB)
10Hz-32KHz /10Hz-400Hz
Crossover (-12 dB/ Oct) Variable High-Pass
40Hz-400Hz
Crossover (-12 dB/ Oct) Variable Low-Pass
40Hz-400Hz
Crossover (-12 dB/ Oct) Variable Sub-Sonic
n/a
FUSE Ratings - ATC
40Ax2
Dimension - Length x Width x Height - Inches(mm)
14.97x9.38x2.25 (380x238x57)
