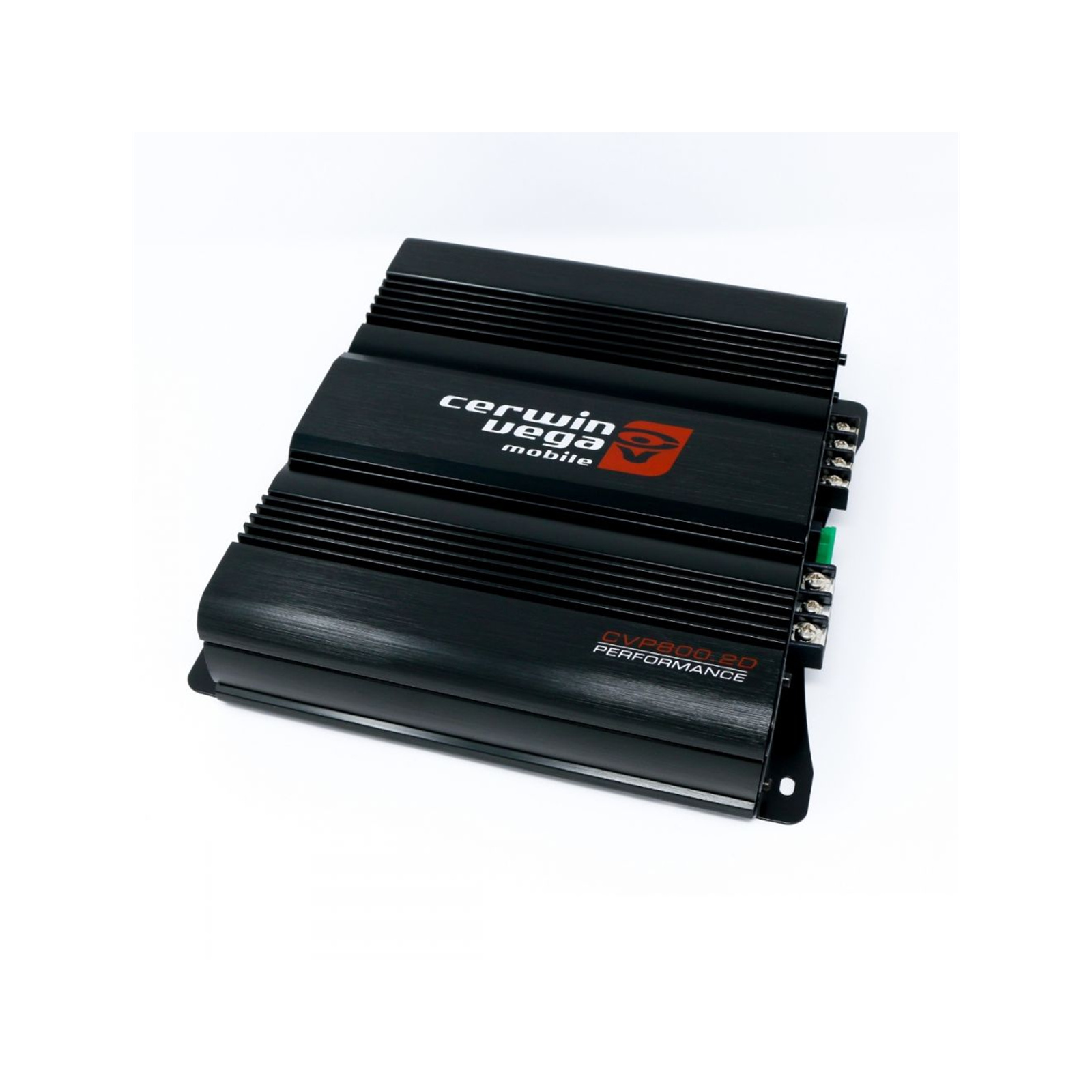

Cerwin-Vega CERWIN VEGA CVP800.2D AMPLIFIER CVP SERIES 2CH 60W RMS X 2 4OHM / 85W RMS X 2 2OHM
Cerwin-Vega CERWIN VEGA CVP800.2D AMPLIFIER CVP SERIES 2CH 60W RMS X 2 4OHM / 85W RMS X 2 2OHM
- Brand: Cerwin-Vega
- MPN: CVP800.2D
- Part #: AUDCWV1012
- UPC:
- Brand: Cerwin-Vega
- MPN: CVP800.2D
- Part #: AUDCWV1012
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Other Car Audio





Cerwin-Vega CERWIN VEGA CVP800.2D AMPLIFIER CVP SERIES 2CH 60W RMS X 2 4OHM / 85W RMS X 2 2OHM
- Brand: Cerwin-Vega
- MPN: CVP800.2D
- Part #: AUDCWV1012

Product URL: https://www.pbtech.co.nz/product/AUDCWV1012/Cerwin-Vega-CERWIN-VEGA-CVP8002D-AMPLIFIER-CVP-SER
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
HPF / LPF control
Input Mode
Input and Output Selected
Treble Boost control u Bass Boost control u Gain control
Power Input
Fuse
speaker Output
Specifications
RMS Power(2O)
85Wx2
RMS Power (4O)
60Wx2
RMS Bridge (mono 4O)
180Wx1
Power Supply
PWM
Power Supply (Threshold)
10-16VDC
Idle Current
0.5A
Distortion - THD (1KHz@4O)
?1%
Distortion - S/N Ratio (A weight @ 1W)
>90dB
Input Sensitivity - Hi/Low Input Level
200mV-6V
Input Impedance - Low Input Level
20KO
Output Impedance
2/4O
Damping Factor (50Hz@4O)
100
Bandwidth (-3dB)
10Hz-32KHz
Crossover (-12 dB/ Oct) Variable High-Pass
40Hz-400Hz
Crossover (-12 dB/ Oct)Variable Low-Pass
40Hz-400Hz
Crossover (-12 dB/ Oct) Variable Sub-Sonic
n/a
FUSE Ratings - ATC
30Ax1
Dimension - Length x Width x Height - Inches(mm)
7.88x9.38x2.25 (200x238x57)
