Cerwin-Vega CERWIN VEGA XED8005D AMPLIFIER XED SERIES 5 CH 65W RMS X 4 4OHM / 90W RMS X 2OHM + 300W RMS 2OHM

PB Tech price
PB Tech price
$ 431 .30
 +GST
$ 496 .00
 inc GST

Out of stock

Cerwin-Vega CERWIN VEGA XED8005D AMPLIFIER XED SERIES 5 CH 65W RMS X 4 4OHM / 90W RMS X 2OHM + 300W RMS 2OHM

  • Brand: Cerwin-Vega
  • MPN: XED8005D
  • Part #: AUDCWV1060
  • UPC:
PB Tech price
$ 431 .30 $ 496 .00
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: Cerwin-Vega
  • MPN: XED8005D
  • Part #: AUDCWV1060
  • UPC:

Features

Latest High-Efficiency Class D Topology. Compact Size with Ambient backlit logo. RCA "Pass Thru" output for easy system expansion. Fully Variable Crossovers (12dB per octave). Handles HI and LO level input to 12V. 2 ohm Stable Stereo and 4 ohm Mono (CH3/4) for 3 Ch mode. Proprietary Vega Bass Boost EQ Up To 12dB.

Specifications

Amplifier

5 Channel

Amplifier Power

1000W MAX

RMS Power(2 ohm)

4 x 90W + 1 x 300W

RMS Power (4 ohm)

4 x 65W + 1 x 200W

Types

5-Channel

Topology

Class D

Frequency Response

10Hz~30KHz+10Hz~250Hz

Power Supply

Full PWM

Power Supply (Threshold)

10.0VDC - 16.0VDC

Idle Current

(0.7A)

Distortion - THD (1KHz @ 4 ohm)

<0.1%

Distortion - S/N Ratio (A weight @ 1W)

-85dBA

Distortion - S/N Ratio (A weight @ FP)

-101.1dBA

Input Sensitivity Low

500mV - 12V

Input Sensitivity High

N/A

Input Impedance - Low Input Level

20 Kohm

Input Impedance - High Input Level

100 ohm

Output Impedance

2 ohm/4ohm

Damping Factor (50Hz @ 4 ohm)

>70

Bandwidth (-3dB)

10Hz-30KHz+10Hz-250Hz

Crossover (-12 dB/ Oct) Variable High-Pass

35Hz-250Hz

Crossover (-12 dB/ Oct) Variable Low-Pass

35Hz-250Hz

Crossover (-12 dB/ Oct) Variable Sub-Sonic

N/A

FUSE Ratings - ATC

2 x 25A

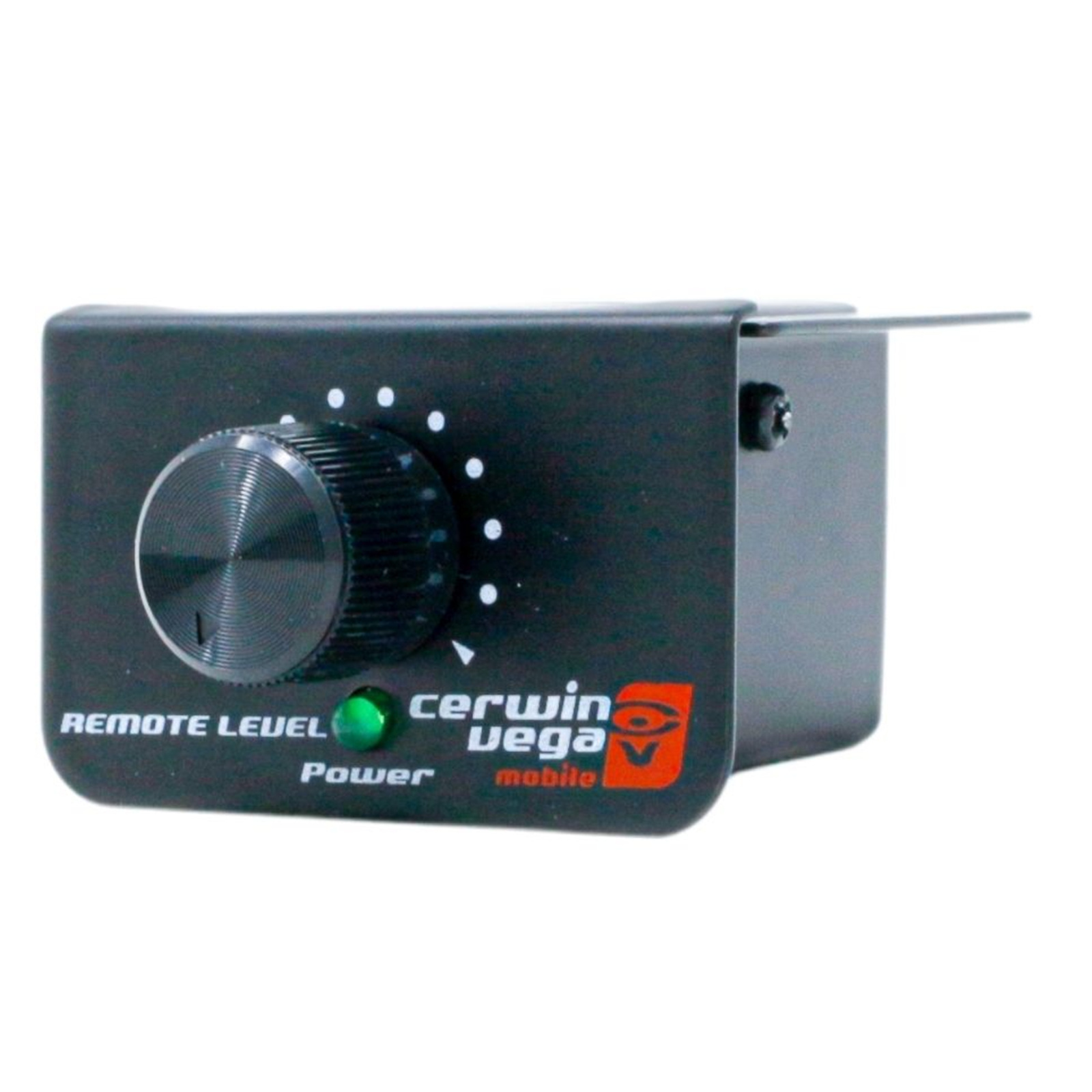

Remote

Bass Volume Control

Dimension - Length x Width x Height

10.3" x 4.7" x 1.8" ( 260 x 120 x 46.5mm)

Manufacturer Part No:
XED8005D
Brand:
Cerwin-Vega
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1.01 kg
PB Part No:
AUDCWV1060
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
