FiiO KA15 Portable + Desktop DAC & Headphone Amplifier - Midnight Black - 560mW+560mW Desktop Mode - 10-band precision lossless EQ - Dual Cirrus Logic CS43198 DACs - IPS Display - 3.5mm + 4.4mm Balanced outputs - Compatible with Android, iO

Explore new musical realms with this versatile & fun little dongle
  • Brand: FiiO
  • MPN: 5510250
  • Part #: AUDFIO5510250
  • UPC:
PB Tech price
$ 173 .87 $ 199 .95
 +GST  inc GST
Tax free price $184.30*
*Price includes surcharge


Click & Collect: Available from 11 stores.
Select your store to check availability
Delivery: Order now and it ships today When will I receive it?
Uber Delivery: Order now and get it within 3 hours. Some areas, max $1k order. How does it work?
$173.87  +GST
$199.95

Four payments of $50.49 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

Features

KA15 DAC and Headphone Amplifier

 - 10-band high-precision lossless PEQ

 - Real-time current and voltage monitoring

 - Intelligent dynamic power consumption

 - Powerful 560mW+560mW desktop mode

 - Dual Cirrus Logic CS43198 DACs + dual op-amps



The versatile and fun little dongle Exploring new musical realms

The KA15 has been completely revamped inside and out. It combines FIIO's experienced audio know-how on the inside with elements of retro tape recorder looks on the outside.

The new generation of FIIO's 5-series audio dongles inspires endless fun with avant-garde innovation and appeals to quality enthusiasts with a practical design. It brings together great sound, ergonomics, fun, and aesthetics, all into a single tiny and convenient package!



Limitless enjoyment, be your own music tuner

The audiophile-grade DSP allows the KA15 to feature a ten-band high-precision lossless PEQ, which operates smoothly and with high quality thanks to FIIO's self-developed advanced adjustment algorithms.

Through the control app or the web interface*, not only can you simulate or correct the frequency response curve of headphones but you can also export, import, share, and save EQ curves. Whether you choose to use officially recommended tunings or choose to share your tunings online with other enthusiasts, you can easily enjoy setting up EQ the way you want it.

*Access to the web version of PEQ: Top status bar at fiio.com ->Support ->Web-based PEQ settings.



Intelligently fun, intelligent dynamic power consumption

Equipped with a high-performance, low-power processor and high-precision chips, the KA15 innovatively features real-time voltage and current monitoring for dynamic power adjustment. By recognizing the device's playback status, it intelligently adjusts the overall power consumption, allowing your phone to run using less power. When you set a timer for music playback during the night, once the timer ends the KA15 will enter an ultra-low power sleep mode - so you don't have to worry about your phone's battery being low when you wake up the next day.

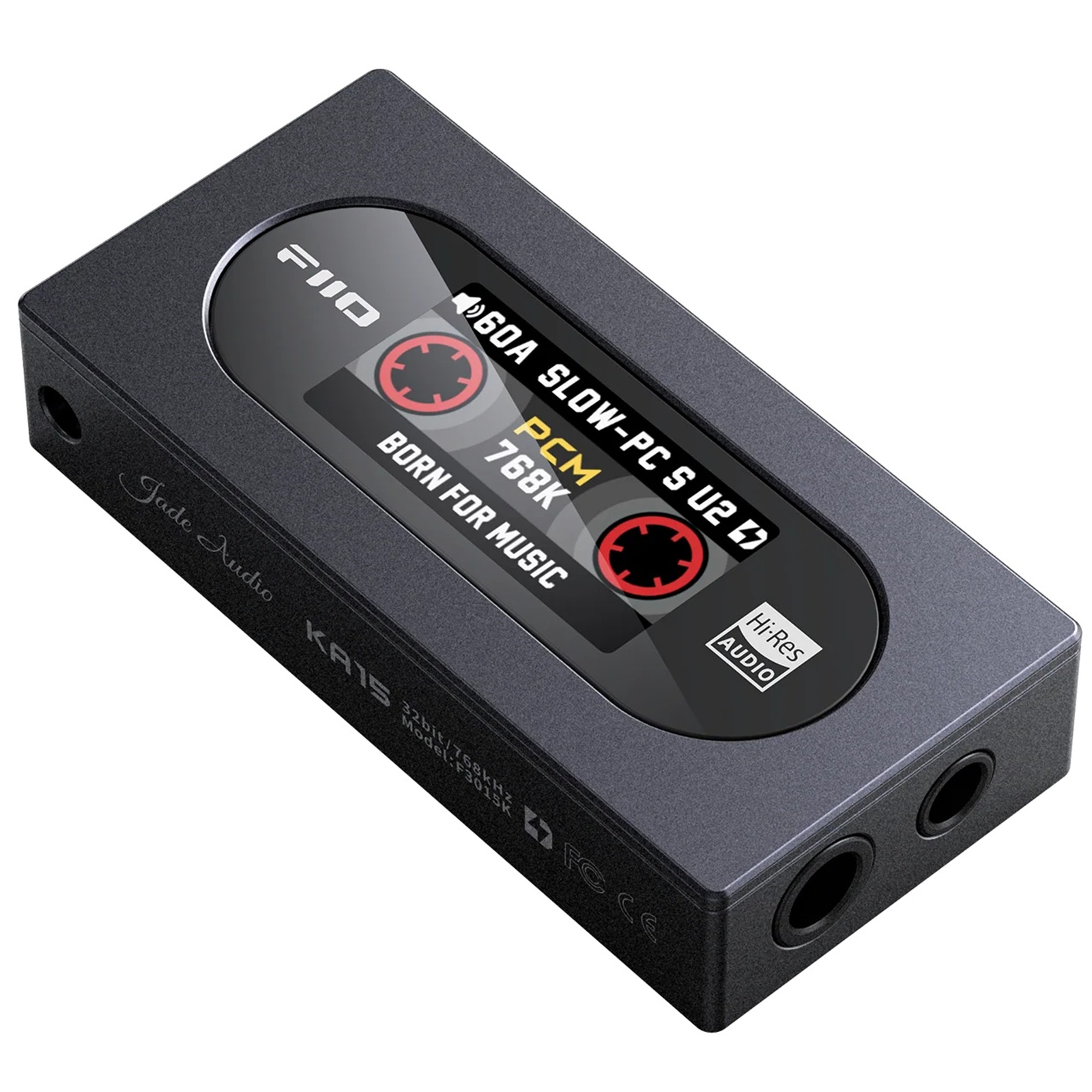

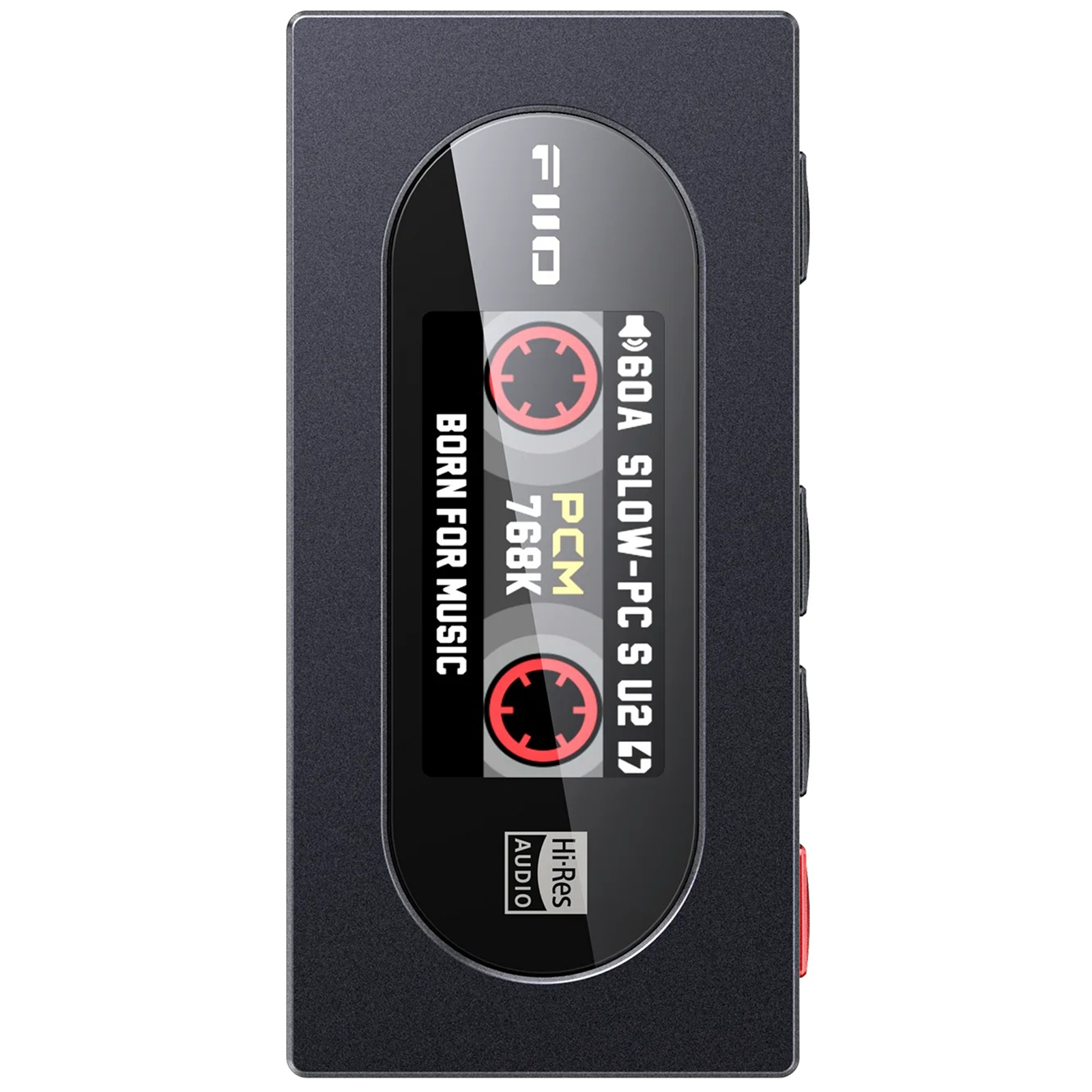

Compellingly fun, an outstanding display

The KA15 is the first to use a 0.96-inch IPS true color LCD screen among similar dongles and supports both Chinese and English language display. The settings menus have been designed to be more intuitive and user-friendly. Additionally, the KA15 features a new retro dynamic UI, combining technological innovation with classic design. With the simulating spinning tape, you can truly feel the uniqueness of the KA15.

There are more impressive functions- powerful 560mW+560mW desktop mode, dual CS43198 + dual op-amps, supports 768kHz/32bit and DSD256, app control, 60-step quick adjustment and 120-step fine adjustment available, supports microphones, 3.5mm jack supports the CTIA standard of in-line controls, supports connection with the Switch, PS5 and other devices under UAC1.0 mode... Check on the product page for more details.



Surge of power, Patented Desktop Mode

Activate Desktop Mode for greater power, with balanced output power of 560mW+560mW, an astonishing increase of 207% compared to the KA5. This gives the KA15 the headroom to drive both low and high impedance headphones.

Patent no.: L202321946664.8



Flagship chips All expertly tuned

The golden combination of a high-performance USB chip, dual CS43198 flagship DACs + dual high-performance SGM8262 op-amps, allow for high performance in a tiny area, giving the minute KA15 dongle more sound quality than its small size would suggest.



Capable decoder, All secrets unveiled

The KA15 supports up to 768kHz/32bit and DSD256 sampling rates, easily handling various lossless audio formats to meet your demands for great sound. Additionally, it is Hi-Res Audio certified, a testament to its excellent ound quality.

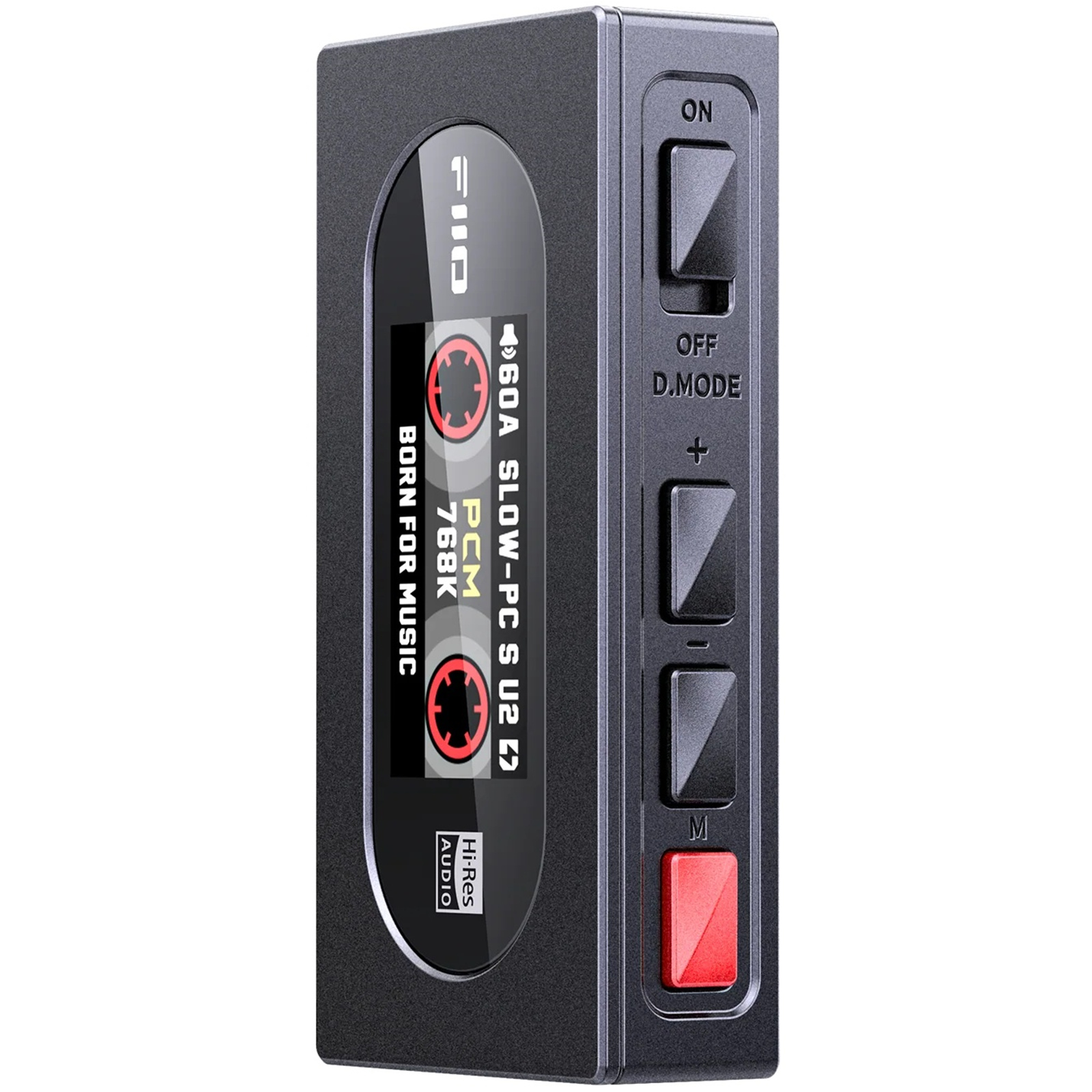

A joy to use, Ergonomically designed

To better suit your preferences, you can choose which control modes to use: Dual modes for volume control, 60-step quick adjustment or 120-step fine adjustment.

A/B button modes:

mode A: short press volume +/-, long press previous/next track;
mode B: short press previous/next track, long press to continuously adjust volume.



In-line controls, Music and calls at your fingertips

Microphones are supported*, as a part of the 3.5mm jack that supports the CTIA standard of in-line controls - allowing you to not only use your microphone, but also to control music playback and volume.

*Some phones may not support microphone input due to operating system limitations.

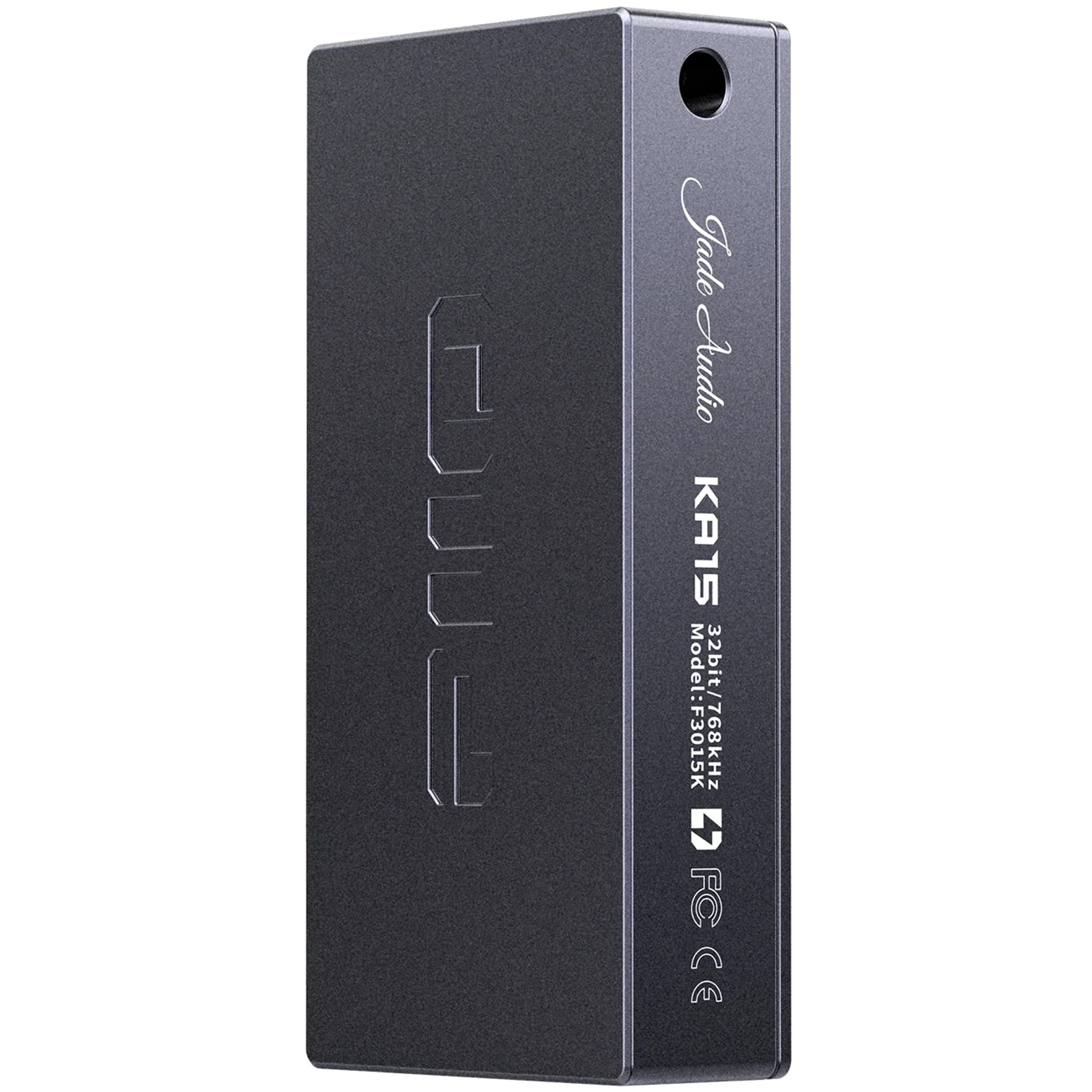

Metal construction, Refreshingly cool

The all-metal body is meticulously crafted after undergoing multiple processes including precision CNC milling, anodizing, and polishing. The result is a smooth and refined texture that fits comfortably in the hand. The all-metal construction also effectively reduces external interference, for purer and improved sound quality.



COAX output supported Your own digital jukebox

The 3.5mm jack also acts as a SPDIF output, allowing you to connect to an external decoder for more ways to listen.



Wide compatibility, HiFi without restrictions

A detachable cable plus compatibility with Android/iOS/iPadOS/Windows/macOS means you can connect seamlessly to a wide range of devices, for a truly HiFi experience without restrictions!



UAC1.0 mode, Plug and play

Select the UAC1.0 mode to connect to the Switch, PS5 and other devices for more immersive gaming.




With MagClip Enjoy Hi-Fi on the go with greater ease

When used with the magnetic bundling kit MagClip, it is locked securely without wobbling, allowing for a more comfortable portable Hi-Fi experience!

Specifications

General

Name/Model

KA15

Hardware Solution

DAC: CS43198 x2

Color

Midnight black

Dimensions

About 52*25*11mm

Weight

About 21g

Adaptive Impedance

PO: 16~150O; BAL: 16~300O

Sampling Rate Indication

LCD Display Screen

Max Supported Sampling Rate

768K/32bit, DSD64/128/256, 384K/32bit (coaxial)

Firmware Upgrade

System firmware can be upgraded via USB

FiiO Control

Supported

EQ

Supported

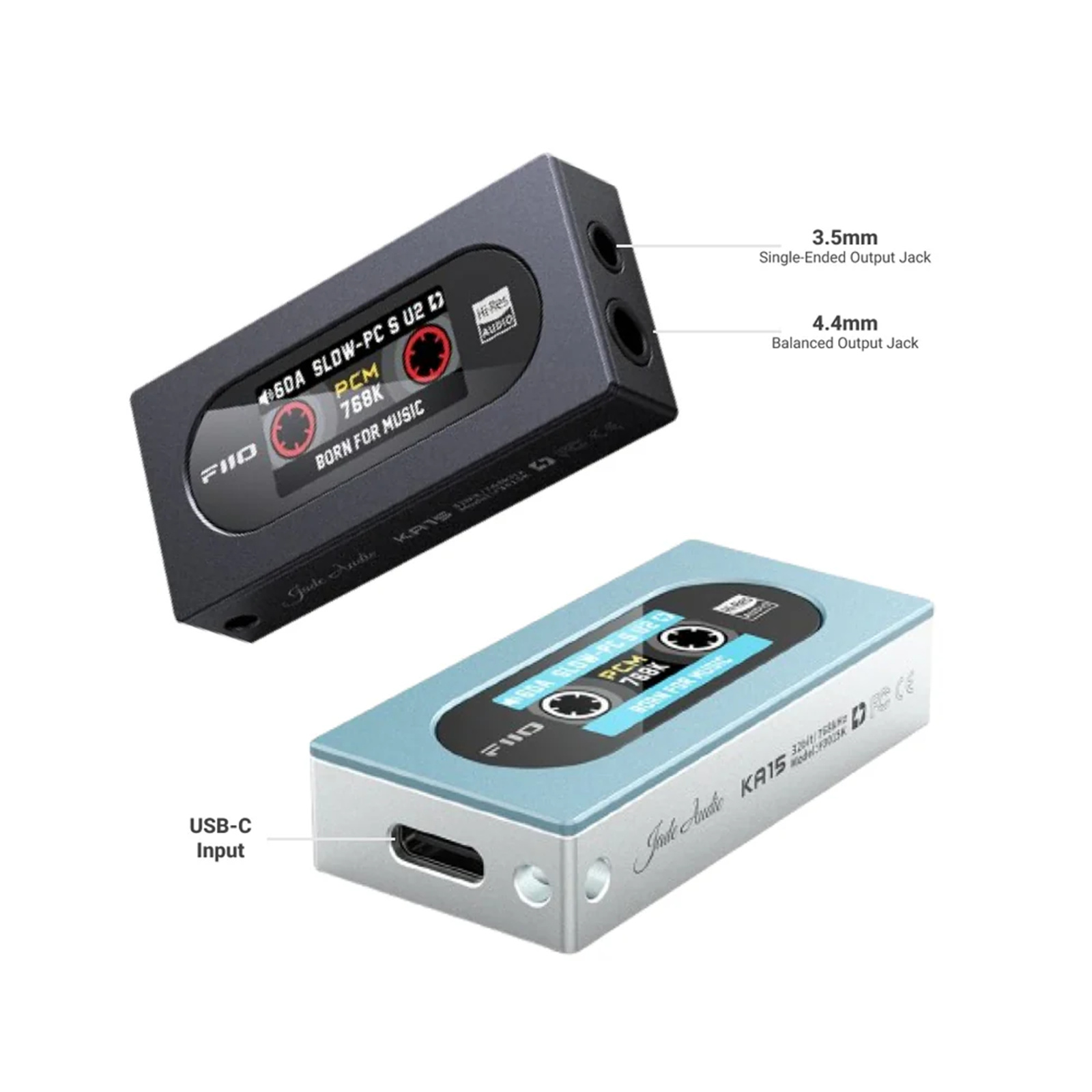

Buttons and Ports

USB Port

Type-C USB

3.5mm Plug

Single-ended/SPDIF output (shared)

4.4mm Plug

Balanced output

Physical Button

Adjust volume, switch songs

Toggle Switch

Desktop mode switch

Audio Parameters (3.5mm headphone out)

Output Power

L+R=290mW+290mW (16O)
L+R=180mW+180mW (32O)
L+R=19mW+19mW (300O)

Peak Output Voltage

=2.4V (32O)

Output Impedance

<0.8O

Frequency Response

20Hz~20kHz, damping =0.1dB
20Hz~50kHz, damping =0.1dB

THD+N

<0.00045% (0dB, 32O)

SNR

=122dB (32O, A-weighted)

Crosstalk

=74dB (1kHz, 32O)

Audio Parameters (4.4mm headphone out)

Output Power

L+R=510mW+510mW (16O)
L+R=560mW+560mW (32O)
L+R=78mW+78mW (300O)

Peak Output Voltage

=4.2V (32O)

Output Impedance

<1.2O

Frequency Response

20Hz~20kHz, damping =0.1dB
20Hz~50kHz, damping =0.1dB

THD+N

<0.0004% (-4dB, 32O)

SNR

=123dB (32O, A-weighted)

Manufacturer Part No:
5510250
Brand:
Product Type:
Portable + Desktop DAC & Headphone Amplifier
UPC
-
Product Family:
KA15
Shipping Weight:
0.1 kg
PB Part No:
AUDFIO5510250
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
