FiiO KB3 Hi-Fi Edition Wired Mechanical Keyboard with built-in DAC/Amp

- 3.5mm/4.4mm Balanced headphone jacks w/550mW output power - Stepless volume knob - Mag-alloy construction - Gateron Gpro yellow switches - 75% layout - Windows/MacOS support

PB Tech price
PB Tech price
$ 216 .52
 +GST
$ 249 .00
 inc GST

Out of stock

FiiO KB3 Hi-Fi Edition Wired Mechanical Keyboard with built-in DAC/Amp

- 3.5mm/4.4mm Balanced headphone jacks w/550mW output power - Stepless volume knob - Mag-alloy construction - Gateron Gpro yellow switches - 75% layout - Windows/MacOS support

An unlimited Hi-Fi experience in a quality mechanical keyboard
  • Brand: FiiO
  • MPN: 5610105
  • Part #: AUDFIO5610105
  • UPC:
PB Tech price
$ 216 .52 $ 249 .00
 +GST  inc GST

No store stock available. See in-stock alternatives

Click & Collect: Collect unavailable
Delivery: Out of stock
  • Brand: FiiO
  • MPN: 5610105
  • Part #: AUDFIO5610105
  • UPC:

Form Factor

75% Layout

Mechanical Switch Type

Gateron G Pro Yellow Switches

Colour

Black

Wireless Technology

N/A

Backlit Keys

Yes

Programmable Buttons

0

Interface

USB-C

Movement Detection

Not Specified

Product is out of stock. View similar products in-stock at PB Tech

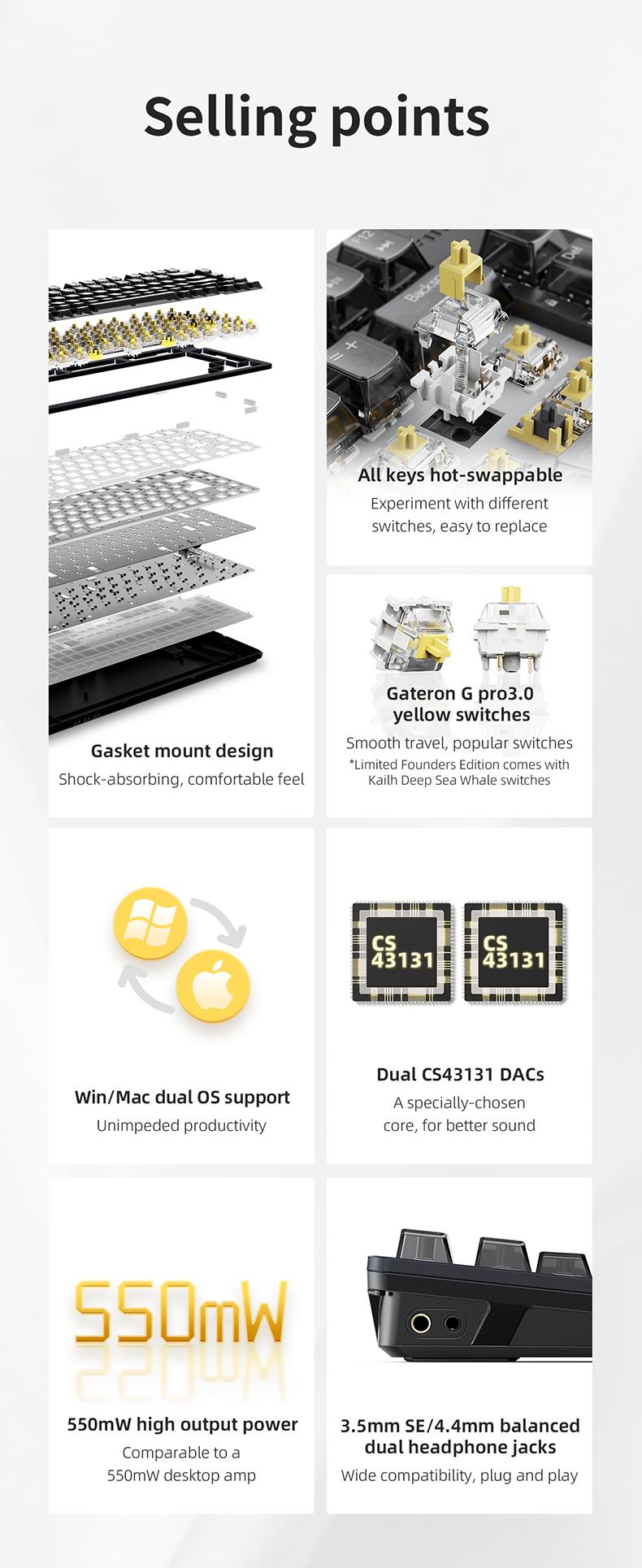

Features

KB3 - HiFi Audio Mechanical Keyboard

Gasket mount design | All keys hot-swappable
Gateron Gpro 3.0 yellow switches | Win/Mac OS support | Dual CS43131 DAC
550mW high output power | 3.5mm SE/4.4mm balanced headphone jacks

*Pictures are for reference only. The actual product may vary.



Patented design - A HiFi creation across industries

With the function of music listening, the FIIO HiFi mechanical keyboard KB3 has obtained a patent certificate.

Patent No.: ZL202220085310.8

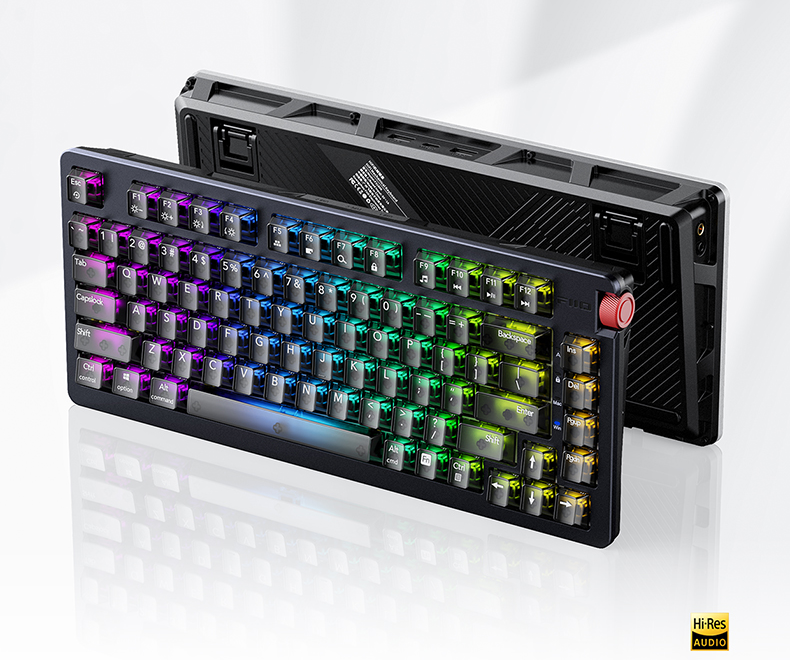

Time to upgrade your music experience!

Desktop-grade all-in-one DAC and amp, for immersive HiFi music

A customizable keyboard with swappable keys, the perfect slate for experimentation

Aluminum-magnesium alloy faceplate, a "true HiFi" desk keyboard

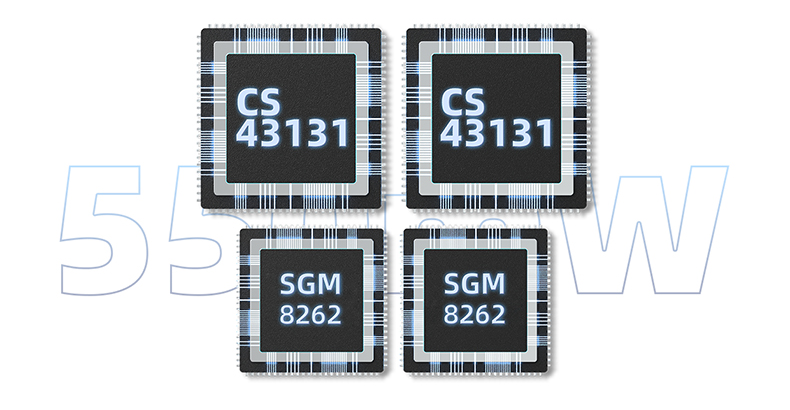

An unlimited HiFi experience - 2+2 chip combo, ensures lots of high-quality power

KB3 uses two high-performance and efficient CS43131 DACs as well as two low-noise SGM8262 op-amps, capable of providing 550mW of output power, comparable to desktop amps. Enjoy high-quality sound with any headphones.



Dual outputs, to connect various devices

It is equipped with 3.5mm single-ended and 4.4mm balanced headphone jacks, allowing you to connect it to a variety of headphones.



High-res support, hear all of the details

With support for up to 32bit/384kHz and DSD256 you will be able to hear all of the details in your music, letting you better understand the story it tells.

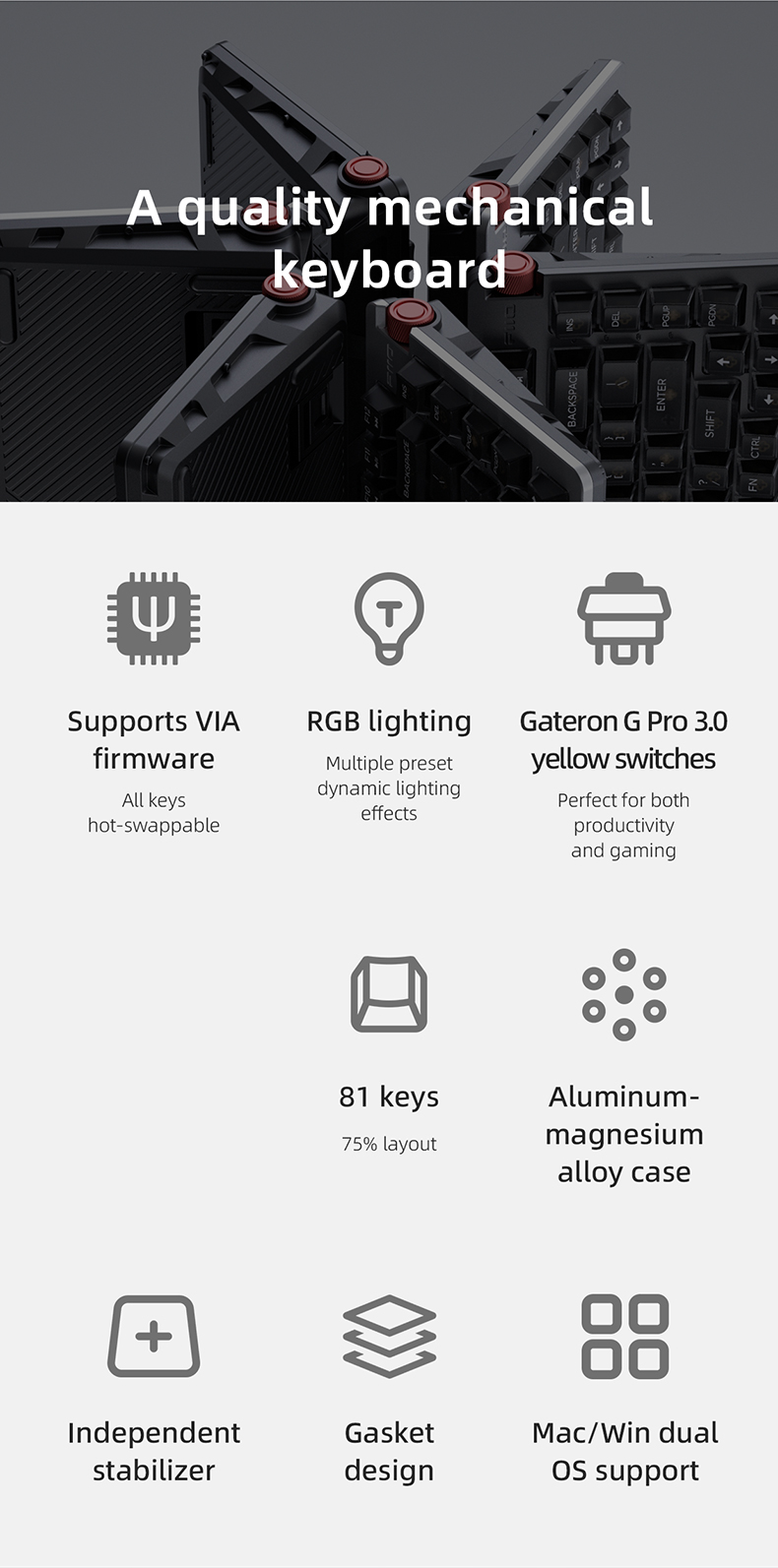

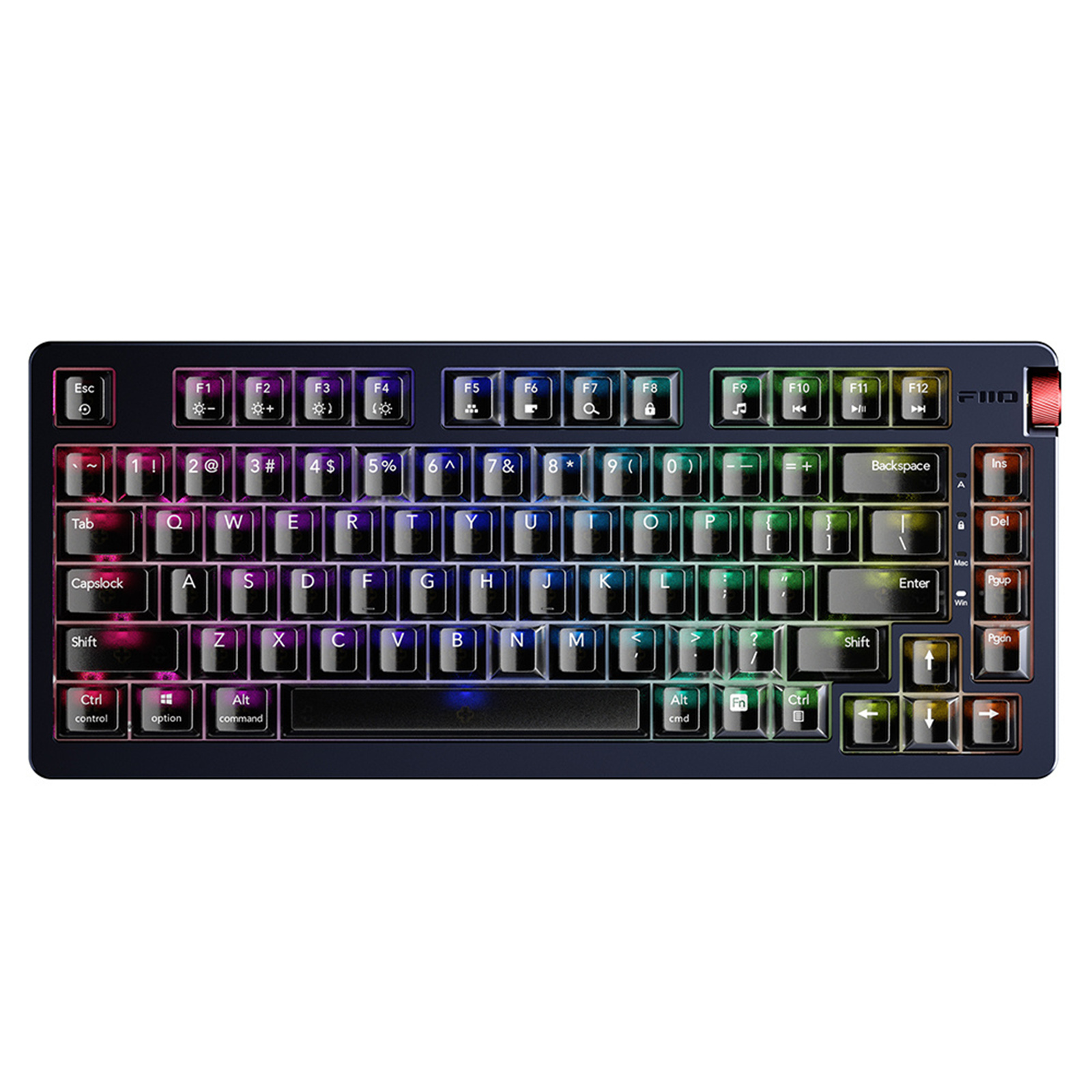

A quality mechanical keyboard

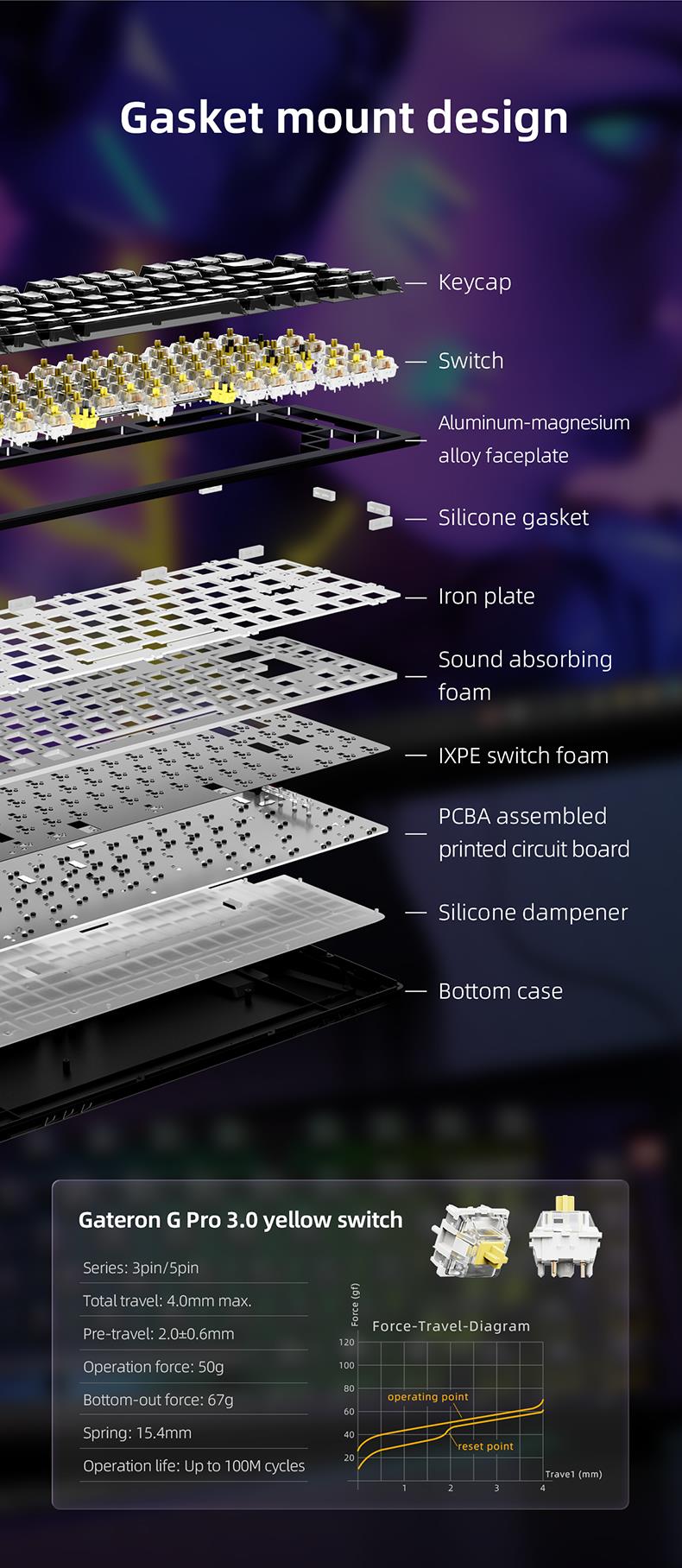

Gasket mount design



Ergonomic, all easily accessible

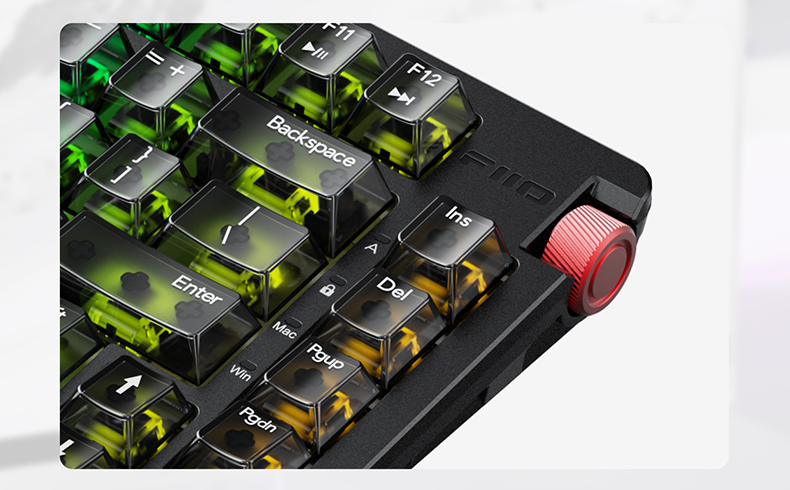

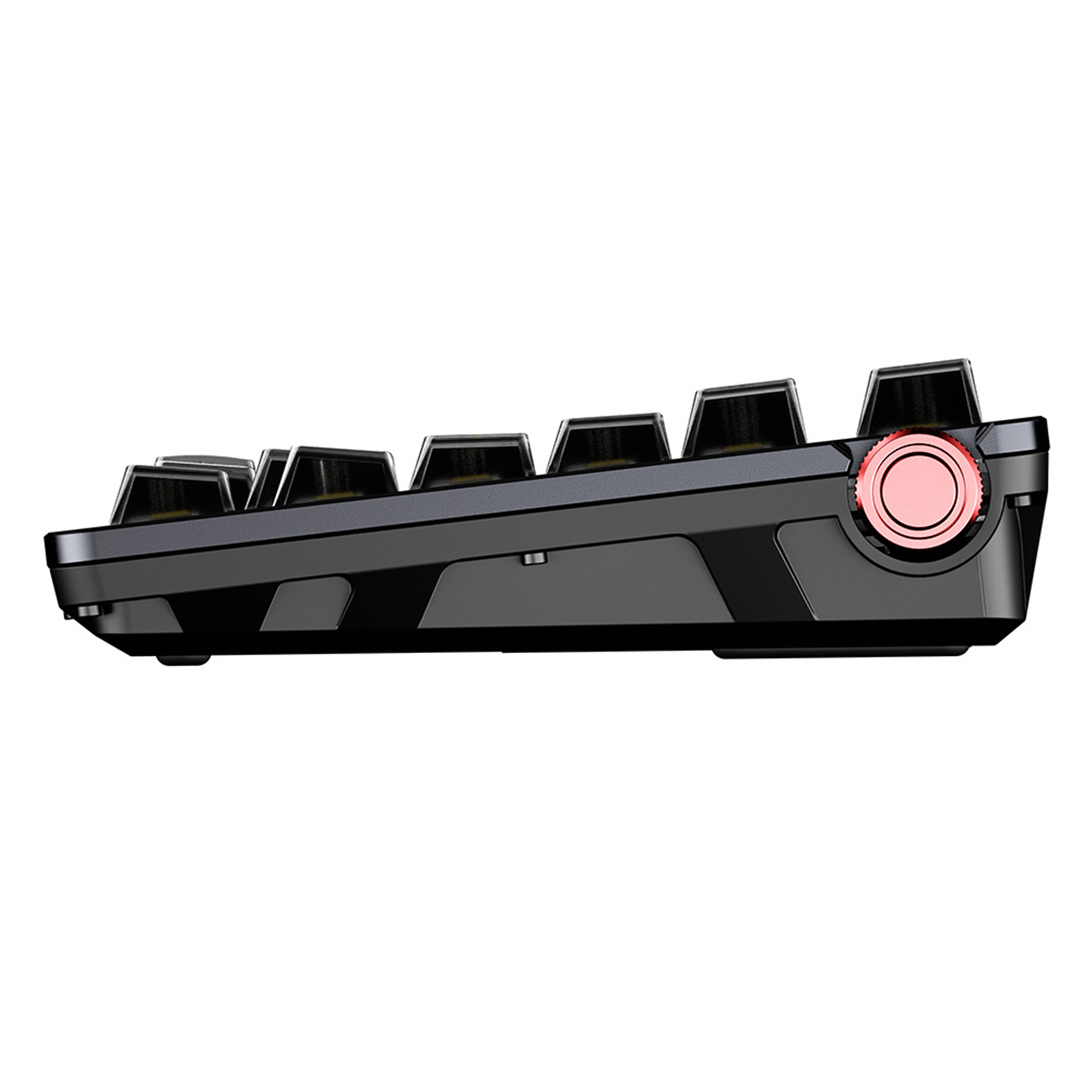

All editions come with stepless volume knob



Standard Gateron G Pro 3.0 yellow switch

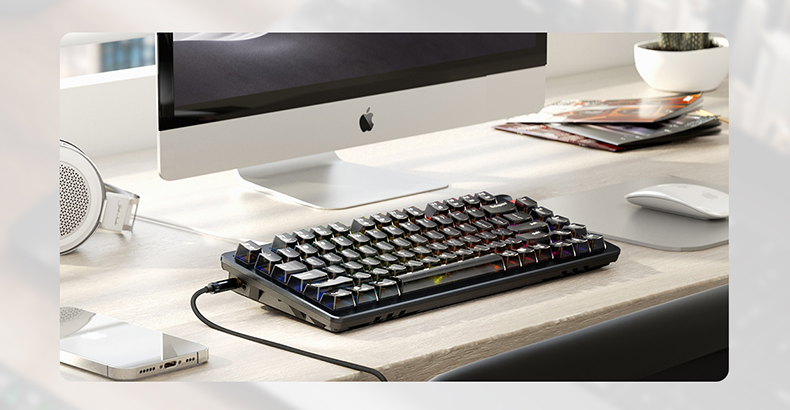

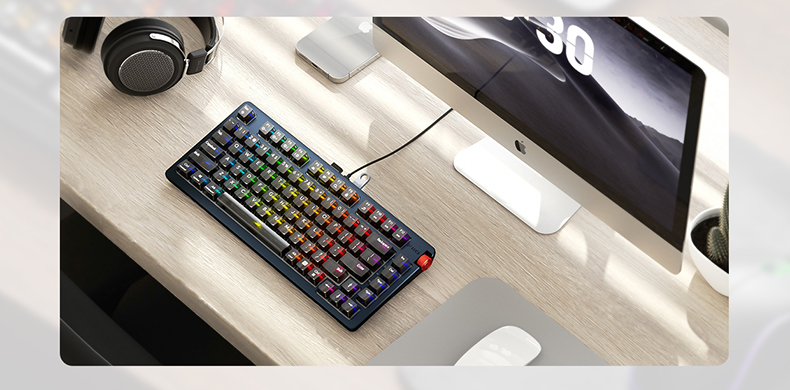

Tidy up your desk

Not only is it a mechanical keyboard with a HiFi DAC, it can also act as a docking station, connecting your mouse and USB drives

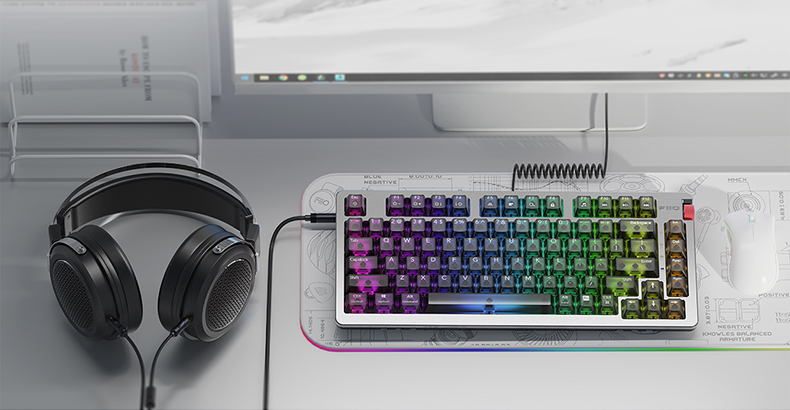

Connecting audio equipment
4.4mm balanced jack*1, 3.5mm SE jack*1
*Wireless edition does not have audio jacks and USB ports for audio

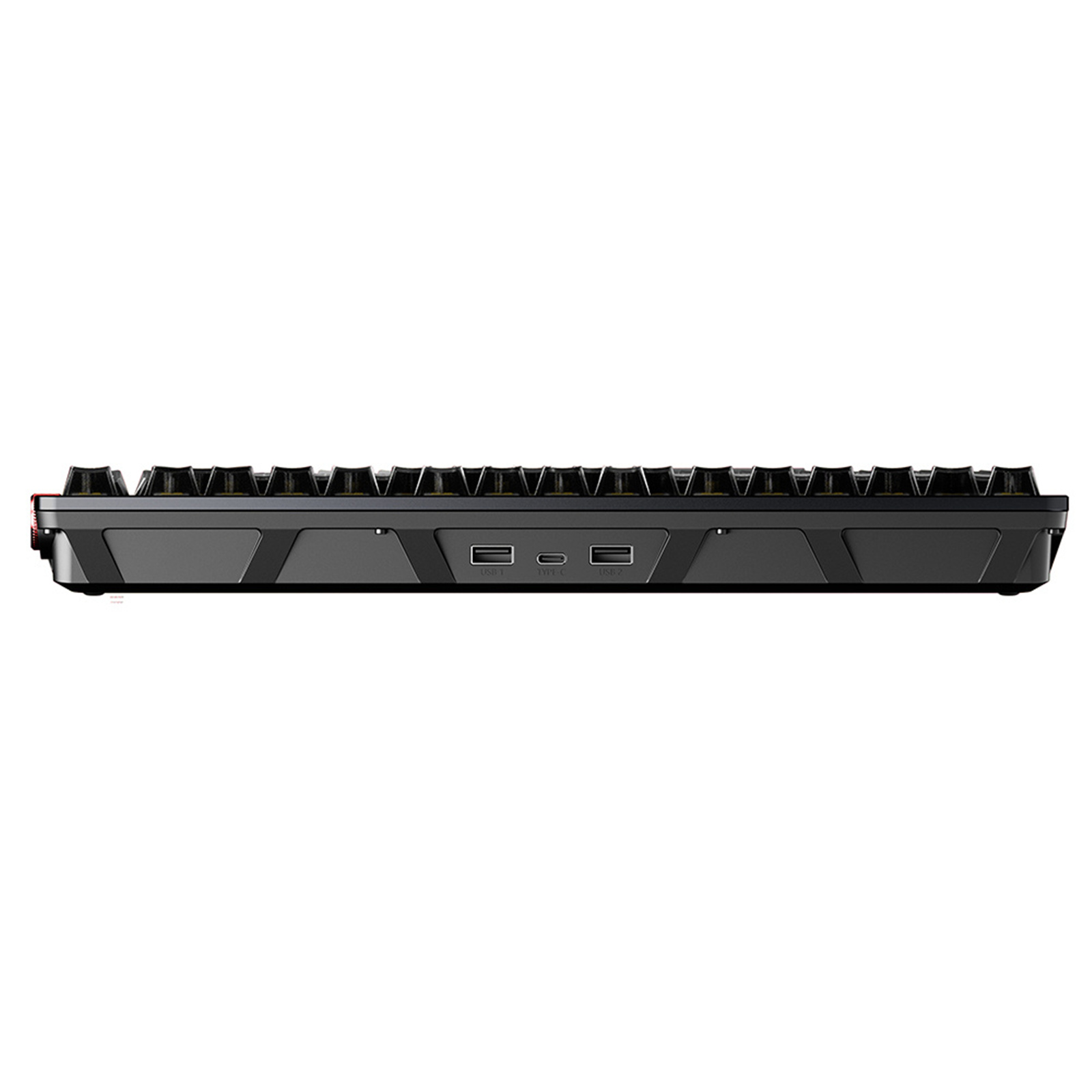

Connecting other devices
Type-C charging port*1, USB*2



High-definition voice calls - Smooth communication

The 3.5mm single-ended headphone jack on the KB3 supports TRSS headsets, allowing you to enjoy HiFi music while smoothly communicating with others when playing games.



Abundant accessories

1 - Keyboard*1
2 - USB-A to Type-C cable (about 1.6m)*1
3 - Keycap puller*1
4 - Warranty card*1
5 - Quick start guide*1

Specifications

Keyboard switch

Gateron G Pro 3.0 yellow switches

Dimensions

About 329mm x 140mm x 43.5mm

Weight

Wired edition about 1060g

Input

USB Type-C

Output

3.5mm single-ended+4.4mm balanced headphone out

DAC

CIRRUS LOGIC CS43131*2

Op amp

SGMICRO SGM8262*2

Audio decoding support

Up to PCM384kHz/32bit, DSD256

Output power

-3.5 single-ended: L+R>=170mW+170mW (32O, THD+N<1%, USB IN)
-4.4 balanced: L+R>=550mW+550mW (32O, THD+N<1%, USB IN)

Signal-to-noise ratio

>=122dB (32O A-weighted)

Noise floor

About 2.5uV (A-weighted)

THD+N

<0.0005% (0dB, 32O)

USB chip

SAVITECH SA9312L

OS supported

Android/iOS/Windows/Mac

Color

Midnight black

Manufacturer Part No:
5610105
Brand:
Product Type:
Mechanical Keyboard with built-in DAC/Amp
UPC
-
Product Family:
KB3
Shipping Weight:
2 kg
PB Part No:
AUDFIO5610105
Product Model:
Hi-Fi Edition
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
