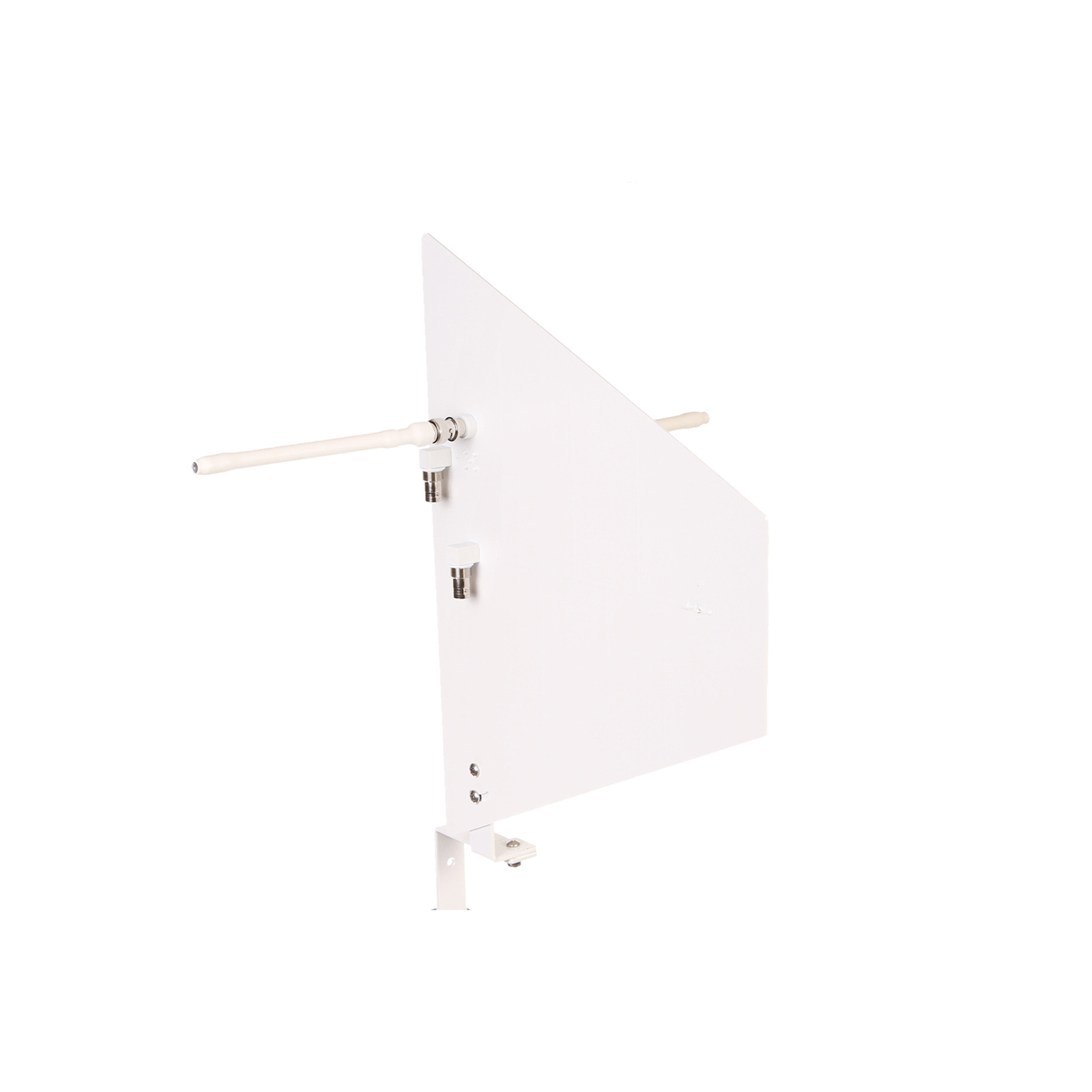

Diversity Fin® Polarization Diversity Antenna for Install White
The patented Diversity Fin® is a multi-purpose antenna for wireless microphones that reduces dropouts using a cross-polarized, hybrid design. It combines one LPDA and one dipole antenna in an orthogonal (right angle) configuration. One element captures vertically polarized waves, and the other horizontally polarized waves-doing the same job as two "shark fin" paddles while greatly improving RF and audio performance.
To use, just connect both the A and B outputs on any antenna distributor or microphone receiver and point toward the stage.
The Diversity Fin has found widespread adoption across multiple pro audio segments for its performance, convenience, space, and cost benefits. From high profile live sound events, to film and TV productions, to routine installations in schools and churches, the Diversity Fin is the ideal all-purpose external antenna for diversity microphone systems of any brand.
A DFIN-PARTS-KIT is available to replace lost whip antennas and mounting blocks.
For extra protection when used outdoors or in active environments we recommend using an acrylic dome.
The DFINW is available in black (DFINB) and for live sound applications (DFIN) as well as part of a distro package: DFINWDISTRO4 and DFINWD9
Practical illustration on the technology of the DFIN using a Shure ULX-D:
Specifications
Electrical
Operating frequency
470-698 MHz
Bandwidth
228 MHz
Average return loss
-9.4 dB
Impedance
50?
LPDA
Beam width
140° azimuth
F/B ratio
-8 dB
F/S ratio
-5 dB
Gain
5 dBd
Dipole
Beam width
100° azimuth
F/B ratio
-5 dB
F/S ratio
-13 dB
Gain
1.8 dBd
Physical
Length
300mm
Height
370mm
Weight
454g
Mount threads
1/4-20, 3/8-16, 5/8-27
Operating temperature
-23°C-54°C
Colour
White
Connector(s)
(2) BNC female
