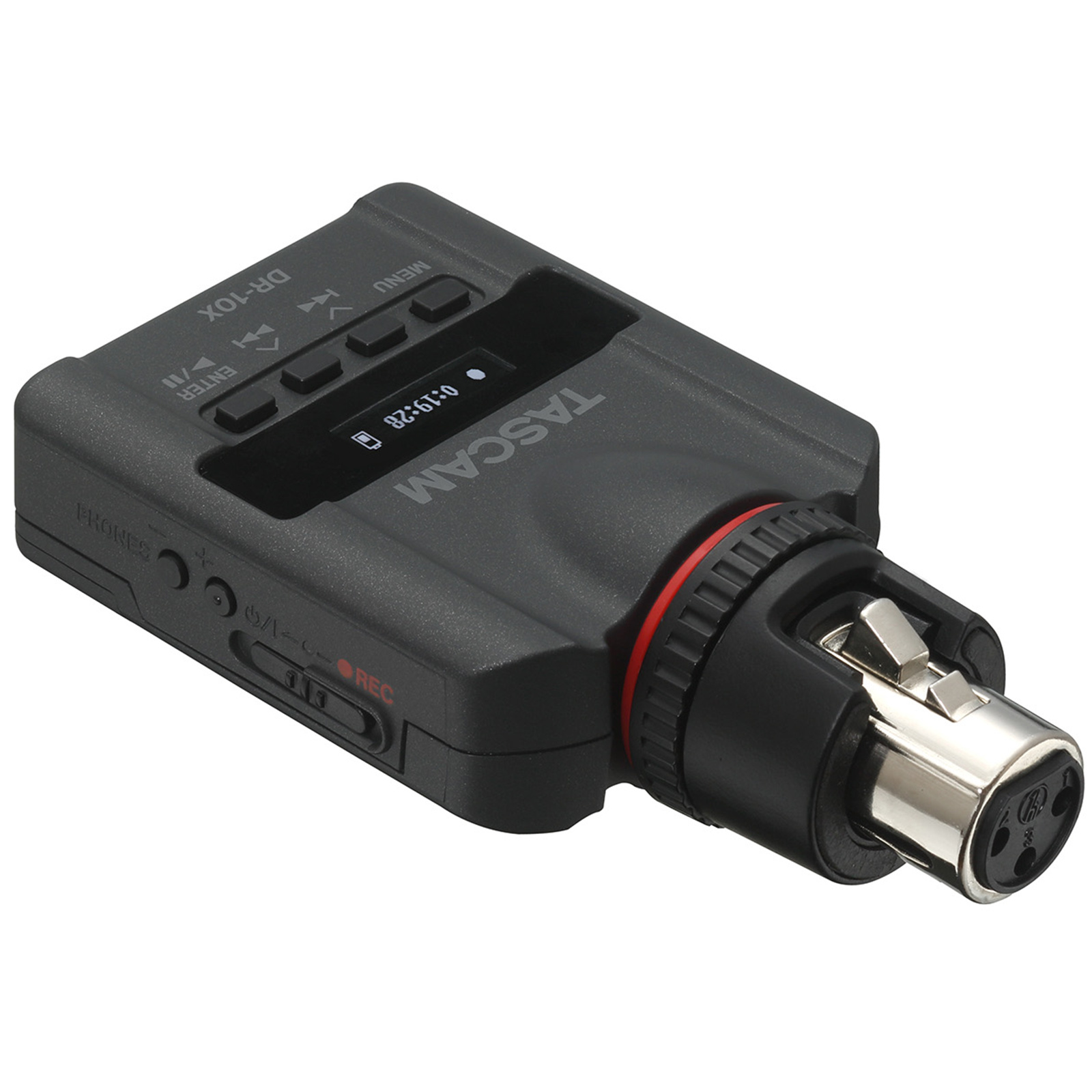

TASCAM DR-10X Digital Audio Recorder w/XLR Microphone Adapter
TASCAM DR-10X Digital Audio Recorder w/XLR Microphone Adapter
- Brand: TASCAM
- MPN: TASCAMDR10X
- Part #: AUDTSC1048
- UPC:
- Brand: TASCAM
- MPN: TASCAMDR10X
- Part #: AUDTSC1048
- UPC:
Features
For the ultimate compact news gathering recording system. A captive XLR connector attaches firmly to your microphone, capturing interviews at 48kHz/24-bit Broadcast WAV resolution.
- Compatible with dynamic mics as well as bettery-powered condenser mics
- 48kHz/24-bit linear PCM mono recording
- Media: microSD/SDHC cards (supports 32GB capacities)
- Dual recording function
- Automatic file closing function to prevent the loss of already recorded data
- High/Mid/Low recording level settings
- With a built-in clock function, supports BWF files that can have time information added, which is convenient for editing and searching
- Records at least 10 hours on a single AAA battery by using alkaline batteries (EVOLTA)

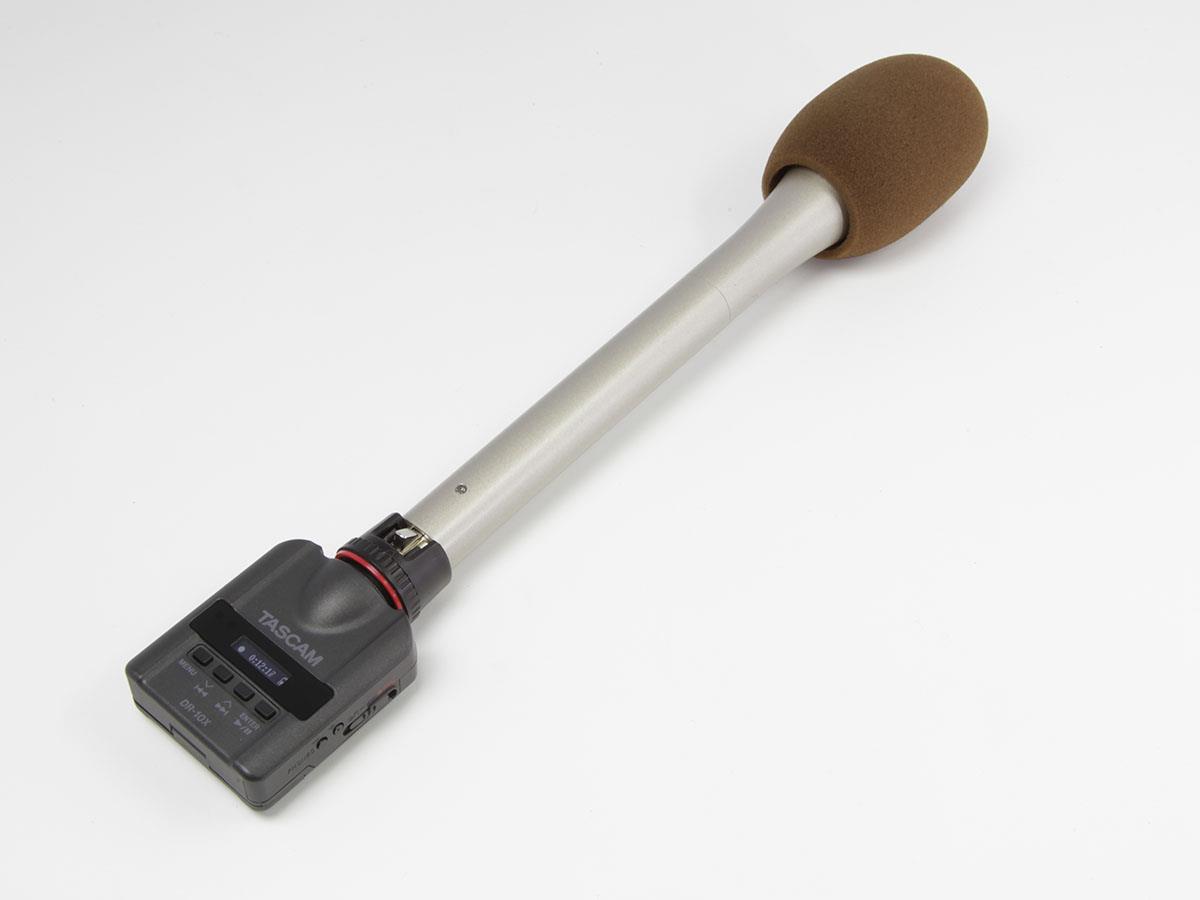

Record audio without a cable by connecting this unit directly to a dynamic mic with XLR output
This audio recorder is designed for plug-on connection, so it can be connected directly to XLR handheld mics. In addition to dynamic mics, it can also be used with battery-powered condenser mics. In addition to using this recorder with handheld mics in interviews and mics on stands in press conferences, it can also be used for recording seminars, meetings and any other situations using a handheld microphone.
Compact and lightweight
The DR-10X is compact - fitting in the palm of the hand and lightweight at 56.3 grams. In addition, the mic connector has a locking mechanism that ensures a tight fit to the microphone body giving the entire assembly a solid feel.
When recording interviews or reporting that requires high audio quality, a field recorder is normally needed. But for small-scale reporting, you can record high-quality audio with just a microphone and the DR-10X. No need to carry bulky equipment - you can now record with a compact rig that you can hold in one hand.

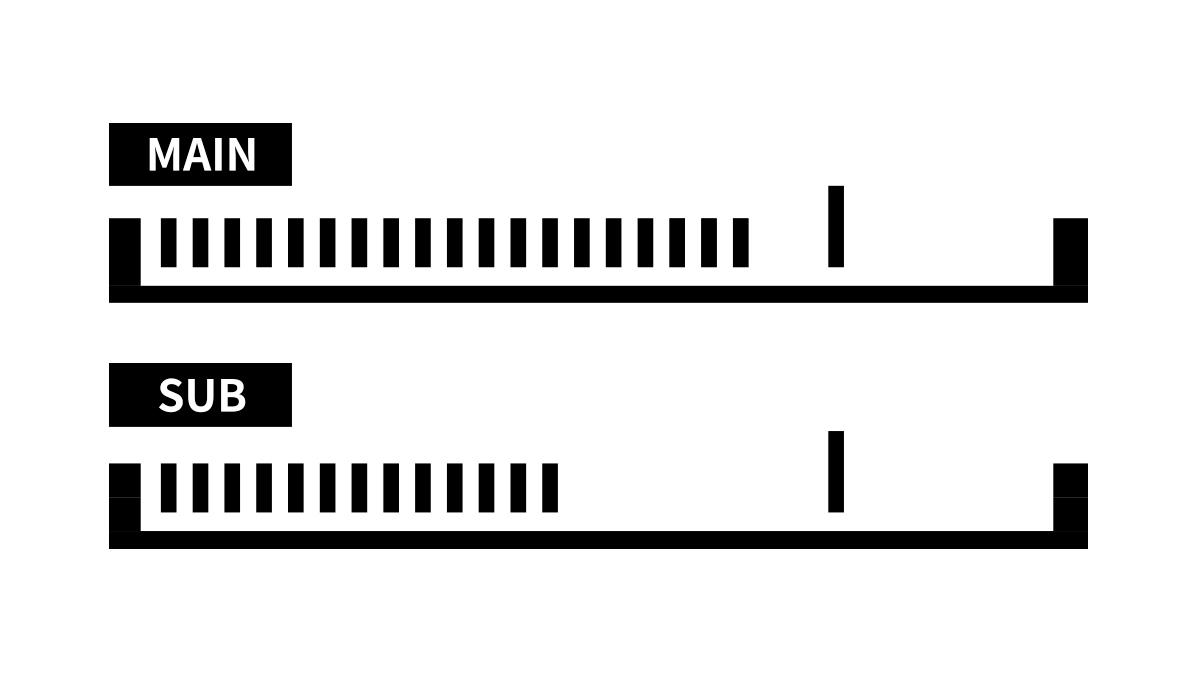

Multiple functions, including dual-recording for simultaneously creating a safety track at a lower level
Many times, there is only one chance to get the desired audio. This unit has functions to prevent issues related to recording level settings - including a dual recording function that allows you to set the recording level as high as possible while simultaneously recording a backup track at a lower level.
In addition, this unit has an automatic gain control function that adjusts the input level to match the input volume. There is also a limiter function.

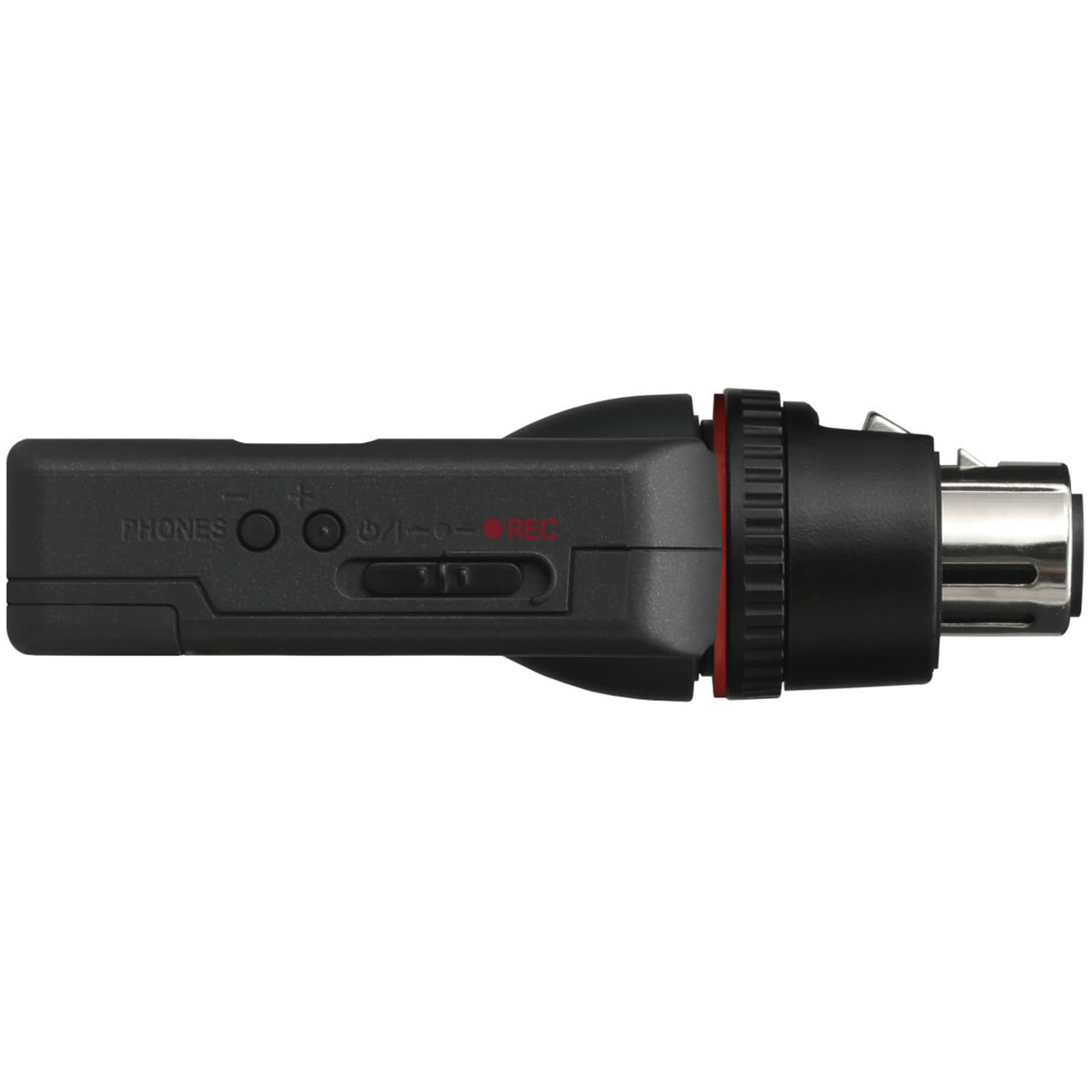

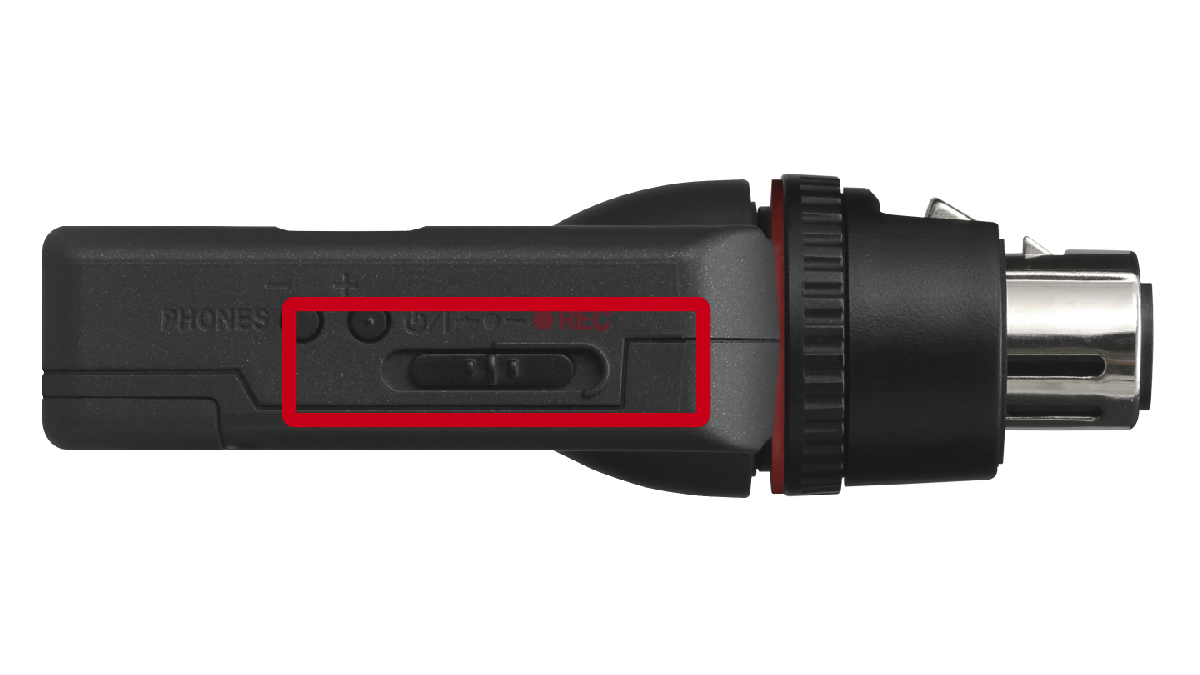

Sliding record button and hold function to prevent misoperation during recording
The recording switch uses a sliding mechanism. This prevents misoperation from accidentally pressing a button. In addition, the hold function can prevent recording from being stopped by accidental contact with a button. Since the DR-10X is designed to be used together with a mic as a single unit, it is engineered to prevent misoperation during recording.

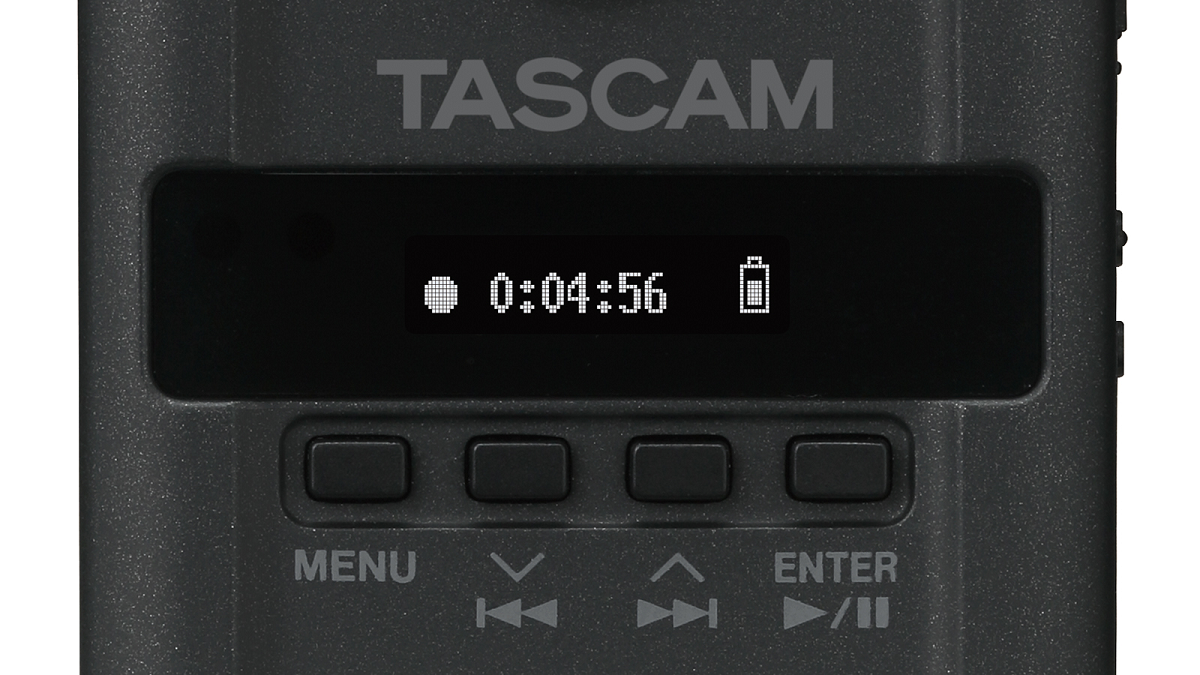

Before the battery charge runs out, automatic file closing prevents the loss of already recorded data

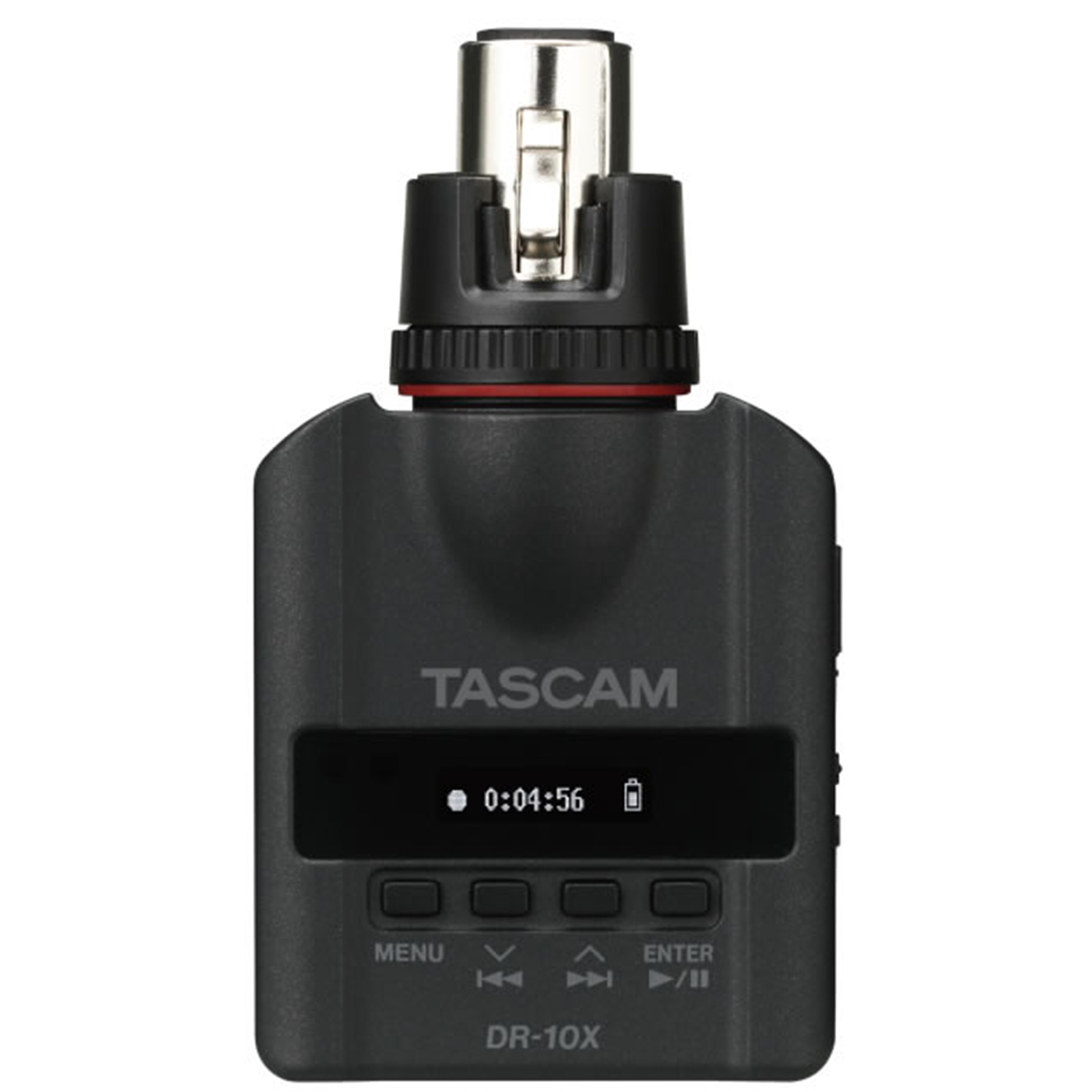

You can check the battery level on the easy-to-read organic EL display. Even if the battery should run out unexpectantly, the unit will automatically close the file to prevent the loss of already recorded data before it shuts down.

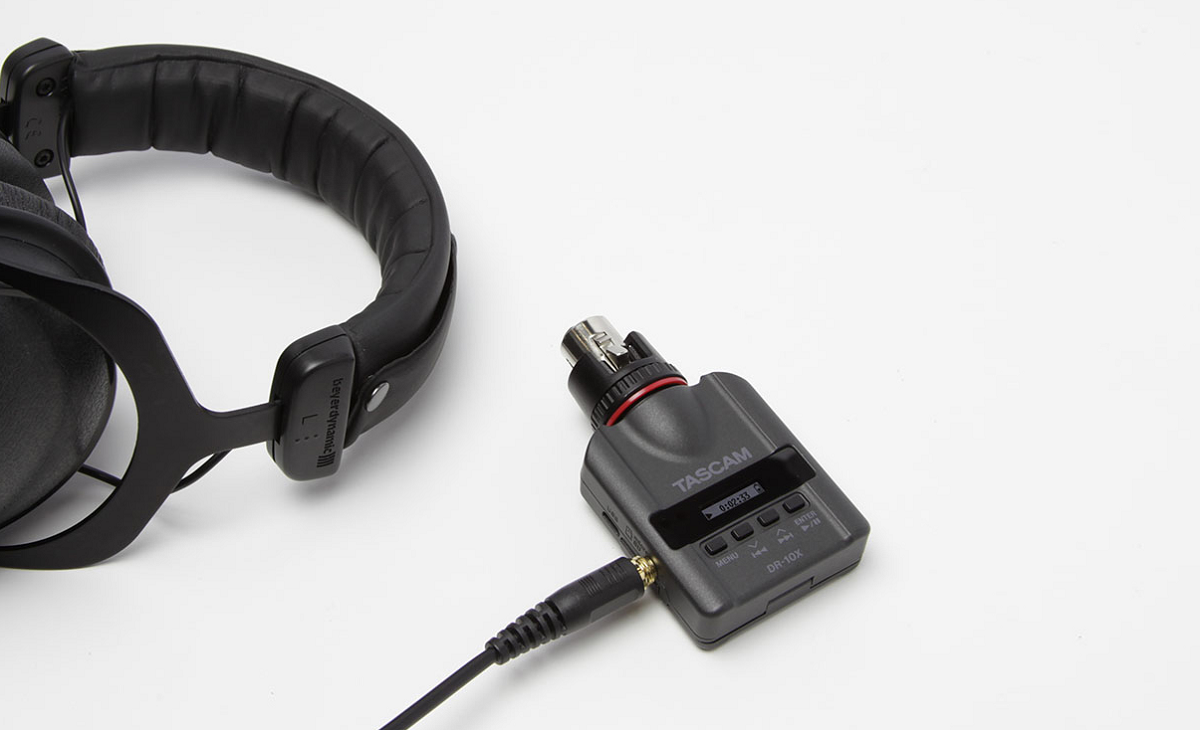

Playback function allows recordings to be checked and headphones output enables input monitoring
Even though this unit is compact, it can play back recorded files. You can also connect headphones to check recorded data right away and to monitor the input during recording.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Other Audio Accessories
DJI Mic Mini Transmitter (Infinity Black)
DJI Mic Mini Mobile Phone Adapter (Lightning)
Boya Microphone Boom Arm, Table Microphone Arm Stand Adjustable &...
Boya BY-K3 3.5mm Female TRRS to Male Lightning Adapter Cable (6cm...
Bose Professional Wireless XLR 2.4GHz Microphone/Line Transmitter...
TASCAM DR-10X Digital Audio Recorder w/XLR Microphone Adapter
- Brand: TASCAM
- MPN: TASCAMDR10X
- Part #: AUDTSC1048
Product URL: https://www.pbtech.co.nz/product/AUDTSC1048/TASCAM-DR-10X-Digital-Audio-Recorder-wXLR-Micropho
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
For the ultimate compact news gathering recording system. A captive XLR connector attaches firmly to your microphone, capturing interviews at 48kHz/24-bit Broadcast WAV resolution.
- Compatible with dynamic mics as well as bettery-powered condenser mics
- 48kHz/24-bit linear PCM mono recording
- Media: microSD/SDHC cards (supports 32GB capacities)
- Dual recording function
- Automatic file closing function to prevent the loss of already recorded data
- High/Mid/Low recording level settings
- With a built-in clock function, supports BWF files that can have time information added, which is convenient for editing and searching
- Records at least 10 hours on a single AAA battery by using alkaline batteries (EVOLTA)
Record audio without a cable by connecting this unit directly to a dynamic mic with XLR output
This audio recorder is designed for plug-on connection, so it can be connected directly to XLR handheld mics. In addition to dynamic mics, it can also be used with battery-powered condenser mics. In addition to using this recorder with handheld mics in interviews and mics on stands in press conferences, it can also be used for recording seminars, meetings and any other situations using a handheld microphone.
Compact and lightweight
The DR-10X is compact - fitting in the palm of the hand and lightweight at 56.3 grams. In addition, the mic connector has a locking mechanism that ensures a tight fit to the microphone body giving the entire assembly a solid feel.
When recording interviews or reporting that requires high audio quality, a field recorder is normally needed. But for small-scale reporting, you can record high-quality audio with just a microphone and the DR-10X. No need to carry bulky equipment - you can now record with a compact rig that you can hold in one hand.
Multiple functions, including dual-recording for simultaneously creating a safety track at a lower level
Many times, there is only one chance to get the desired audio. This unit has functions to prevent issues related to recording level settings - including a dual recording function that allows you to set the recording level as high as possible while simultaneously recording a backup track at a lower level.
In addition, this unit has an automatic gain control function that adjusts the input level to match the input volume. There is also a limiter function.
Sliding record button and hold function to prevent misoperation during recording
The recording switch uses a sliding mechanism. This prevents misoperation from accidentally pressing a button. In addition, the hold function can prevent recording from being stopped by accidental contact with a button. Since the DR-10X is designed to be used together with a mic as a single unit, it is engineered to prevent misoperation during recording.
Before the battery charge runs out, automatic file closing prevents the loss of already recorded data
You can check the battery level on the easy-to-read organic EL display. Even if the battery should run out unexpectantly, the unit will automatically close the file to prevent the loss of already recorded data before it shuts down.
Playback function allows recordings to be checked and headphones output enables input monitoring
Even though this unit is compact, it can play back recorded files. You can also connect headphones to check recorded data right away and to monitor the input during recording.
Specifications
Media
Recording media
microSD card (64MB to 2GB)
microSDHC card (4GB to 32GB)
Media discharging
Push-Push type (Guard cover mounted)
Recording format
V1.00
WAV 44.1k / 48k Hz, 16 / 24-bit mono/poly WAV (BWF format)
V2.00
WAV 44.1k / 48k Hz, 16 / 24-bit mono/poly (BWF format)
MP3 44.1k / 48k Hz, 24-bit mono/poly
Recording
128k / 192k bps
Playback
32k to 320k bps
Analog audio Inputs
Connector

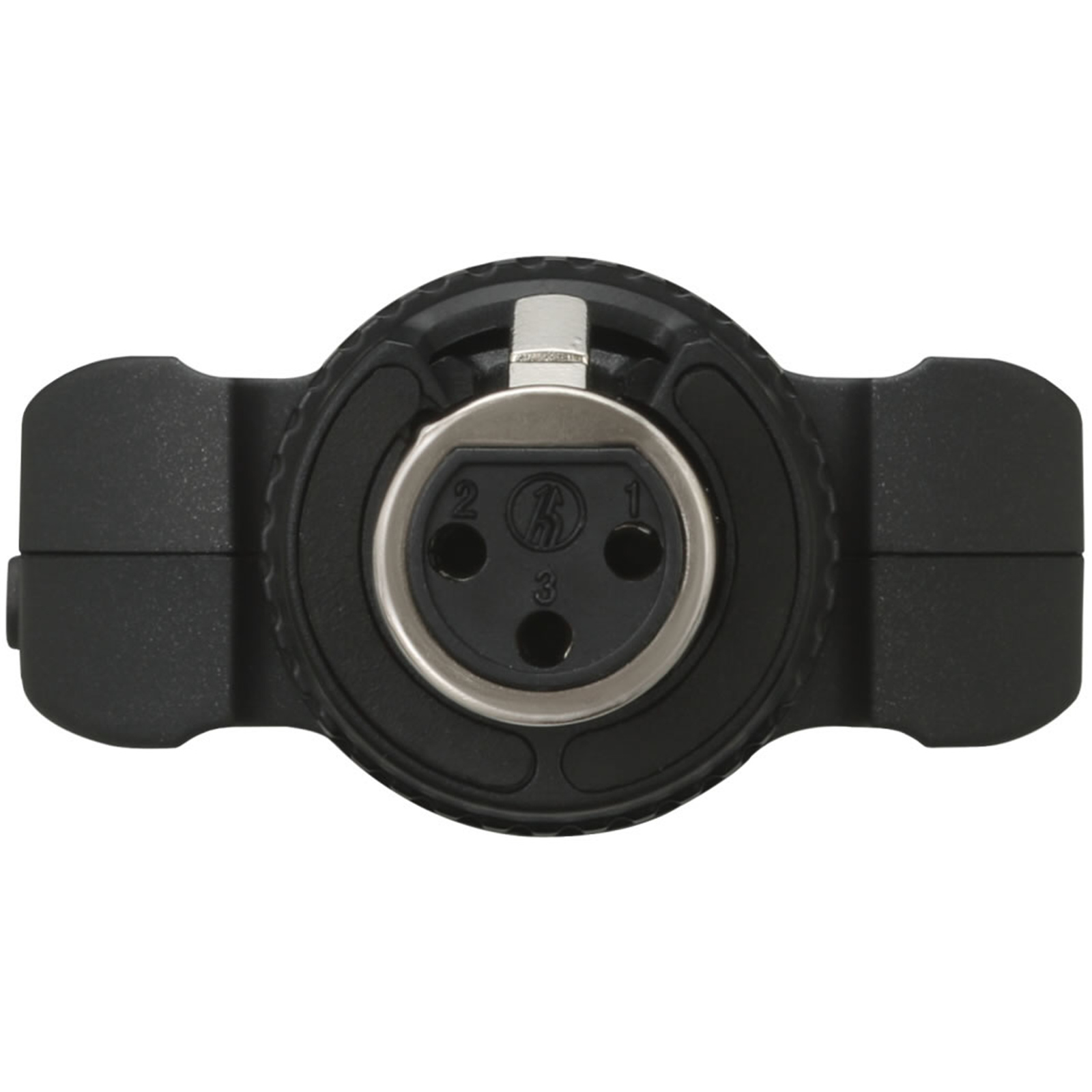

XLR-3-31 × 1
Input Impedance
10kO or more
MIC input gain
LOW / MID / HIGH
Phones
Connector

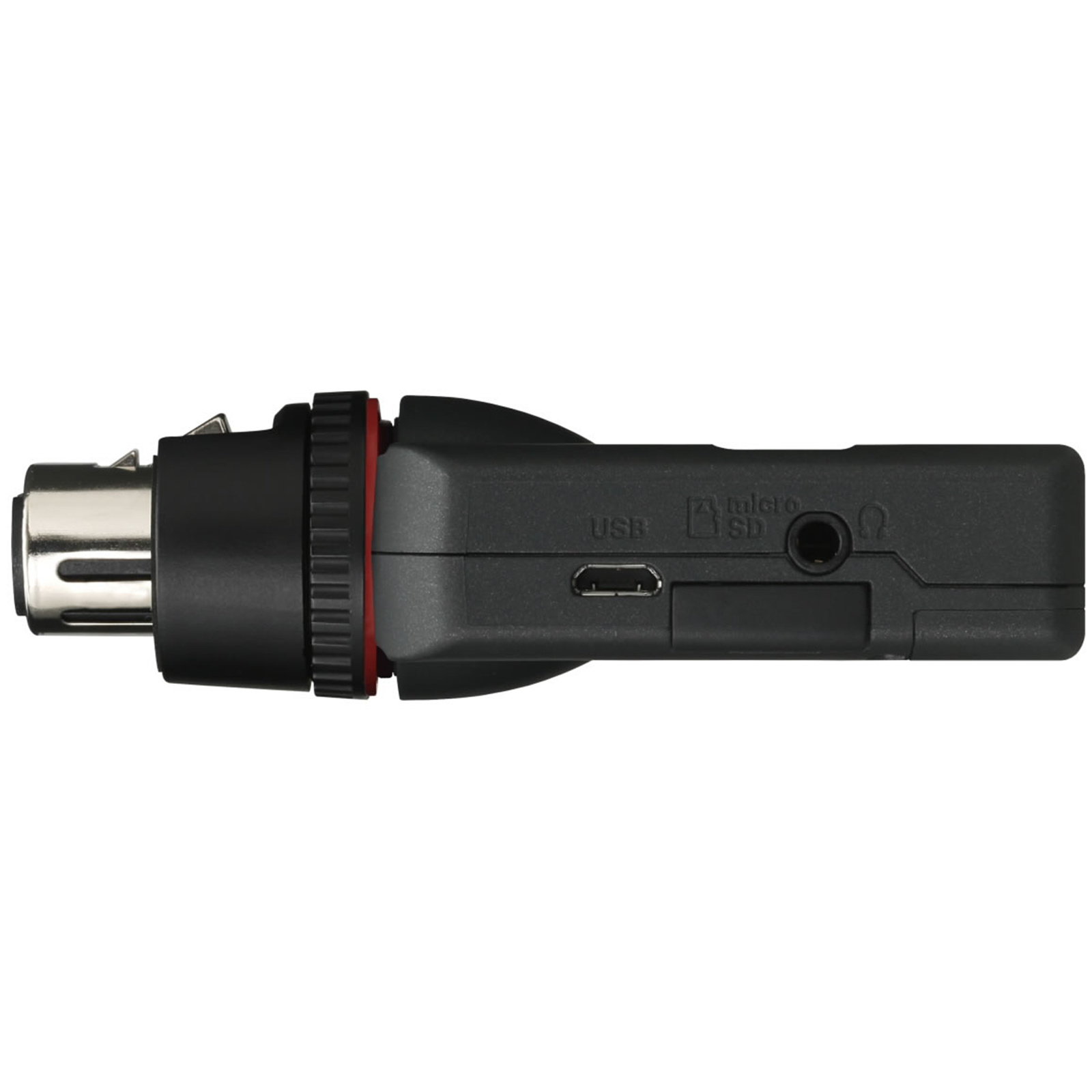

1/8" (3.5mm) Stereo Mini jack (DUAL MONO) × 1
USB
Connector
USB Micro-B type × 1
Maximum Output
USB2.0 HIGH SPEED mass storage class
Power
Power
1 AAA batteries (Alkaline or NiMH),
USB bus power
Alkaline batteries (EVOLTA)
Aprrox. 10 hours
Battery (RTC)
Lithium × 1(built in with soldering)
Dimensions & Weight
Dimensions
2.1" × 3.7" × 1.1" / 52 × 94.4 × 28 mm
Weight
2.4 oz. / 68.3 g (including batteries), 1.99 oz. / 56.3 g (excluding batteries)
