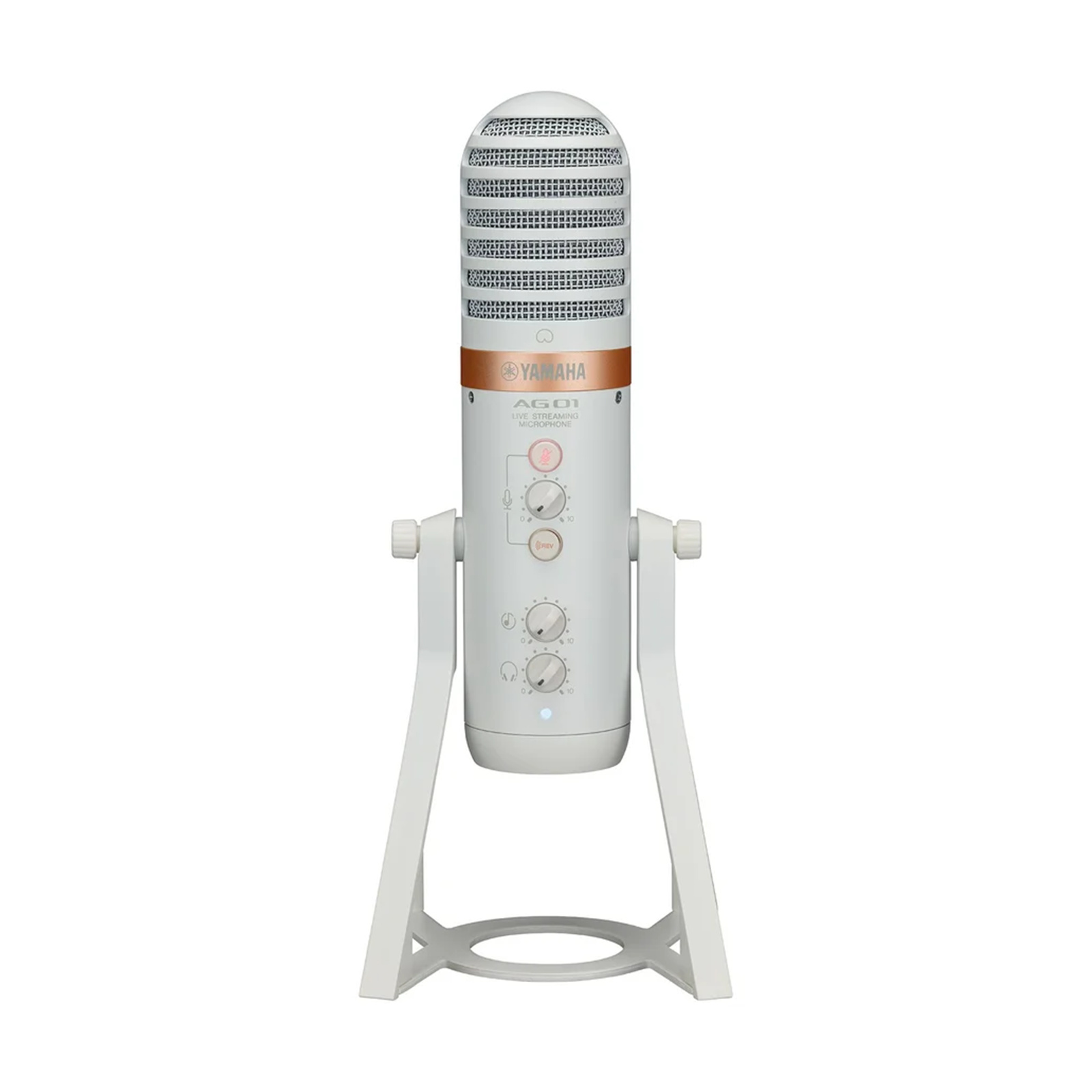

Yamaha AG01W Microphone USB 192kHz White
- Brand: Yamaha
- MPN: AG01W
- Part #: AUDYAM0102
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Microphones





Yamaha AG01W Microphone USB 192kHz White
- Brand: Yamaha
- MPN: AG01W
- Part #: AUDYAM0102

Product URL: https://www.pbtech.co.nz/product/AUDYAM0102/Yamaha-AG01W-Microphone-USB-192kHz-White
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Your Audience Awaits.
Configuring a streaming setup from scratch can be a daunting task, particularly for users with little or no music production experience. The minimalist design of the AG01 takes this into account by combining a high-quality condenser microphone with DSP effects, a LOOPBACK function, flexible input connectivity, and a simple, intuitive mixer for stress-free streaming operation.
Simply connect to your computer or iOS/Android device along with the headphones of your choice, then set your levels and youâ??ve got a fully operational streaming station that can be up and running within minutes. If you are an aspiring live streamer that requires a compact yet comprehensive, high quality all-in-one solution, the AG01 is ready when you are.
- Modern and retro design with two models in black and white
- High resolution (24-bit, 192 kHz) 2-track audio recording and playback
- 4-pole mini input/output (TRRS) to support new streaming applications
- Flexible LOOPBACK function ideal for live streaming or live recording
- Mute button for convenience during Live Streaming
- Easy control and pro sound with COMP/EQ and 1-TOUCH REVERB
- AG Controller (Windows/Mac/iOS) for precise parameter control
- Windows/Mac support by USB-C connection
- iOS connectivity via Apple Camera Adapter (requires external USB power supply)
- Android supported by 4-pole mini input/output (TRRS)
- USB-C power input (5 V DC, 900 mA)
- 3/8â?³ screw hole for mic stand (with protective cap)
Specifications
Microphone
Microphone Unit
Back electret condenser type
Polar Pattern
Cardioid
Adress Type
Side
Frequency Response
30 Hz - 20 kHz
Max Input SPL
110 dB (THD �1.0% at 1 kHz)
Sensitivity
-34 dB ± 3 dB (0 dB=1 V/Pa, at 1 kHz)
Connector
USB Type-C
Outline
Input Channels
Microphone 1 (Mono condenser microphone)
AUX
1 - Stereo mini
Smartphone
1 - 4-pole mini input/output (TRRS)
USB
1
Output Channels
PHONES
1 - Stereo mini
Smartphone
1 - 4-pole mini input/output (TRRS)
USB
1
Bus
1 Stereo
Functions
MIC GAIN (HIGH / MID / LOW), MUTE button x 1, STREAMING OUT (MIC / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF)
On-board processors
DSP COMP/EQ, REVERB (SPX Reverb) *Detail is Controlled on AG Controller
USB
USB Audio
2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C
USB DC Power input
1 - Type-C, 5 V DC, 900 mA
General specifications
Power requirements
5 V DC, 900 mA
Power consumption
Max. 4.5 W
Dimensions
W
116 mm (4.6")
H
281 mm (11.1")
D
118 mm (4.6")
Net weight
1.2 kg (2.6 lbs)
Included Accessories
USB2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information
Others
Operating Temperature: 0 to + 40 �
