Features
This 18Gbps HDBaseT Extender can extend HDMI signal, i-directional IR control signal, ARC signal and RS-232 control signal to a distance up to 70m / 230ft via a single CAT5e/6 cable. This products converts HDMI signal to standard HDBaseT signal and transmits it through LAN cable. It can easily control signal source device or display device from the remote and through di-directional IR signal pass through function. Video resolution up to 4K2K@ 60Hz. It supports ARC and POC function. The extender can be widely used in other fields such as video conference systems, multimedia signal broadcasting, HDMI signal extension, etc.
- HDMI2.0b and HDCP 2.2 compliant
- Supports 18Gbps video bandwidth
- Supports video resolution up to 4K2K@ 60Hz RGB/YCBCR 4:4:4
- The transmission distance can be extended up to 70m / 230ft via a single CATe/6 cable
- Supports bi-directional IR and RS-232 control signal pass-through
- Supports ARC function, audio formats supports Dolby 5.1, DTS 5.1, PCM2.0 etc.
- Advanced EDID management
- Supports POC (Power over Cable) function
- Compact design for easy and flexible installation

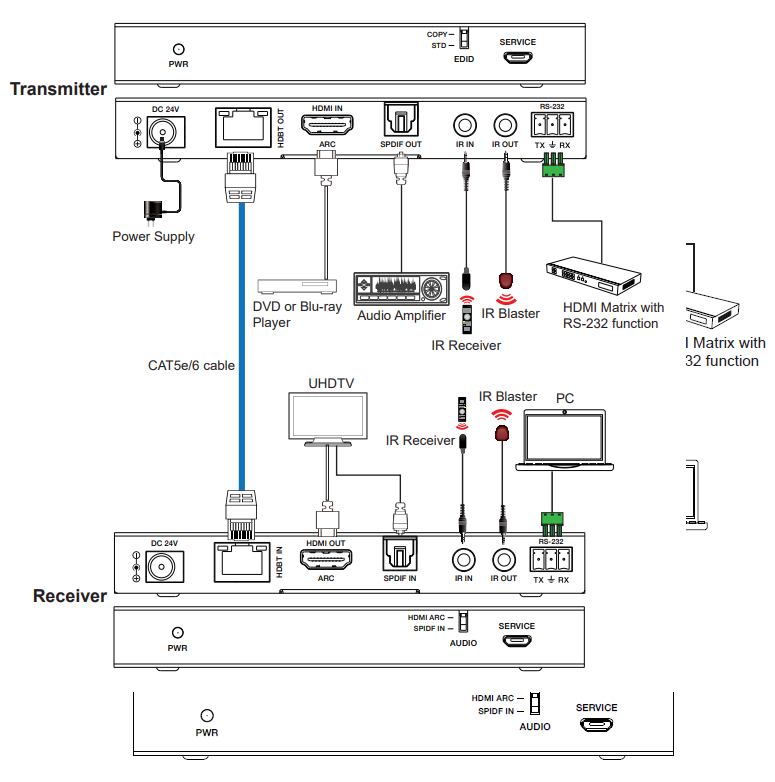

Application Example
Specifications
Technical
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2
Video Bandwidth
18Gbps
Video Resolution
Up to 4K2K@ 60Hz RGB/YCBCR 4:4:4
IR Level
5Vp-p
IR Frequency
Wideband 20K-60KHz
Transmission Distance
70m via a single CAT5e/6 cable
Color Space
RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth
8-bit, 10-bit, 12-bit (1080P)
8-bit (4K60)
8-bit, 10-bit, 12-bit (4K24/30)
HDR
HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Formats
HDMI: LPCM 7.1CH, Dolby True HD, and DTS-HD Master
Optical: Dolby 5.1, DTS 5.1, PCM 2.0

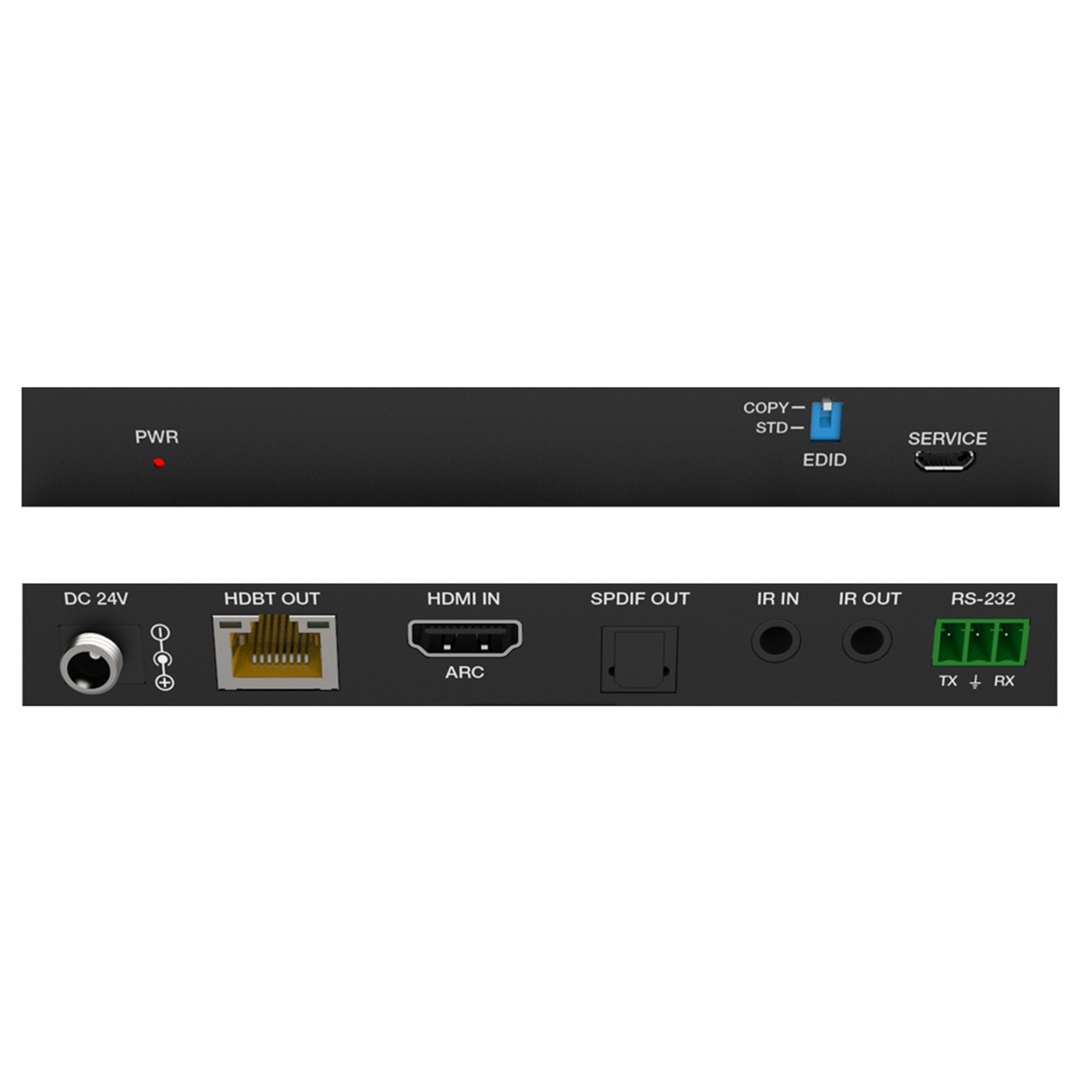

Connections
Transmitter
Input: 1x HDMI IN [TypeA, 19-pin female]
Output: 1x HDBT OUT [RJ45]
1x SPDIF OUT
Control: 1x RS-232 [3pin-3.81mm Phoenix connector]
1x SERVICE [Micro-USB jack]
1x IR IN [3.5mm Stereo Mini-jack]
1x IR OUT [3.5mm Stereo Mini-jack]
Receiver
Input: 1x HDBT IN [RJ45]
1x SPDIF IN
Output: 1x HDMI OUT [TypeA, 19-pin female]
Control: 1x RS-232 [3pin-3.81mm Phoenix connector]
1x SERVICE [Micro-USB jack]
1x IR IN [3.5mm Stereo Mini-jack]
1x IR OUT [3.5mm Stereo Mini-jack]
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
Transmitter / Receiver:140mm [W]×65mm [D]×18mm [H]
Weight
Transmitter: 235 g, Receiver: 239 g
Power Supply
DC 24V/1A;
Support bi-directional POC function
Power Consumption
9.6W (Max.)
Operation Temperature
32°F - 104°F / 0°C - 40°C
Storage temperature
-4°F -140°F / -20°C - 60°C
Relative Humidity
20 - 90% RH (no condensation)
