Segway Cube 1000 Power Station Capacity 1024WH, 3 X AC Output 2200w, DC Output 384W 2* 100w USB-C, Max Input 2050W, 800W Solar Input, Expandable To 5KWH
Segway Cube 1000 Power Station Capacity 1024WH, 3 X AC Output 2200w, DC Output 384W 2* 100w USB-C, Max Input 2050W, 800W Solar Input, Expandable To 5KWH
- Brand: Segway
- MPN: AA.20.04.02.0012
- Part #: BAPSGW0001
- UPC:
Select your store to check availability
- Brand: Segway
- MPN: AA.20.04.02.0012
- Part #: BAPSGW0001
- UPC:
Features
How does Segway Cube expand your life?
- 2200W MAX AC output power
- 12 output sockets for different devices
No worry about the power outage
- 1kWh expandable up to 5kWh to meet your need
- R-Drive function for devices with 4400W power
- UPS (Uninterruptible Power Supply) function
Prepare for outdoor work
- 4000+ battery lifecycle
- IP56 level battery pack
- Alloy shell structure
Enjoy no power limit on RV life
- MPPT (Maximum Power Point Tracking)
- Max. AC charging: 1250W
- Max. DC charging (solar): 800W
- 1kWh recharge in 1.2 hrs
Charge your car battery for emergency
Detects the car battery and recharges with stabilized voltage & current

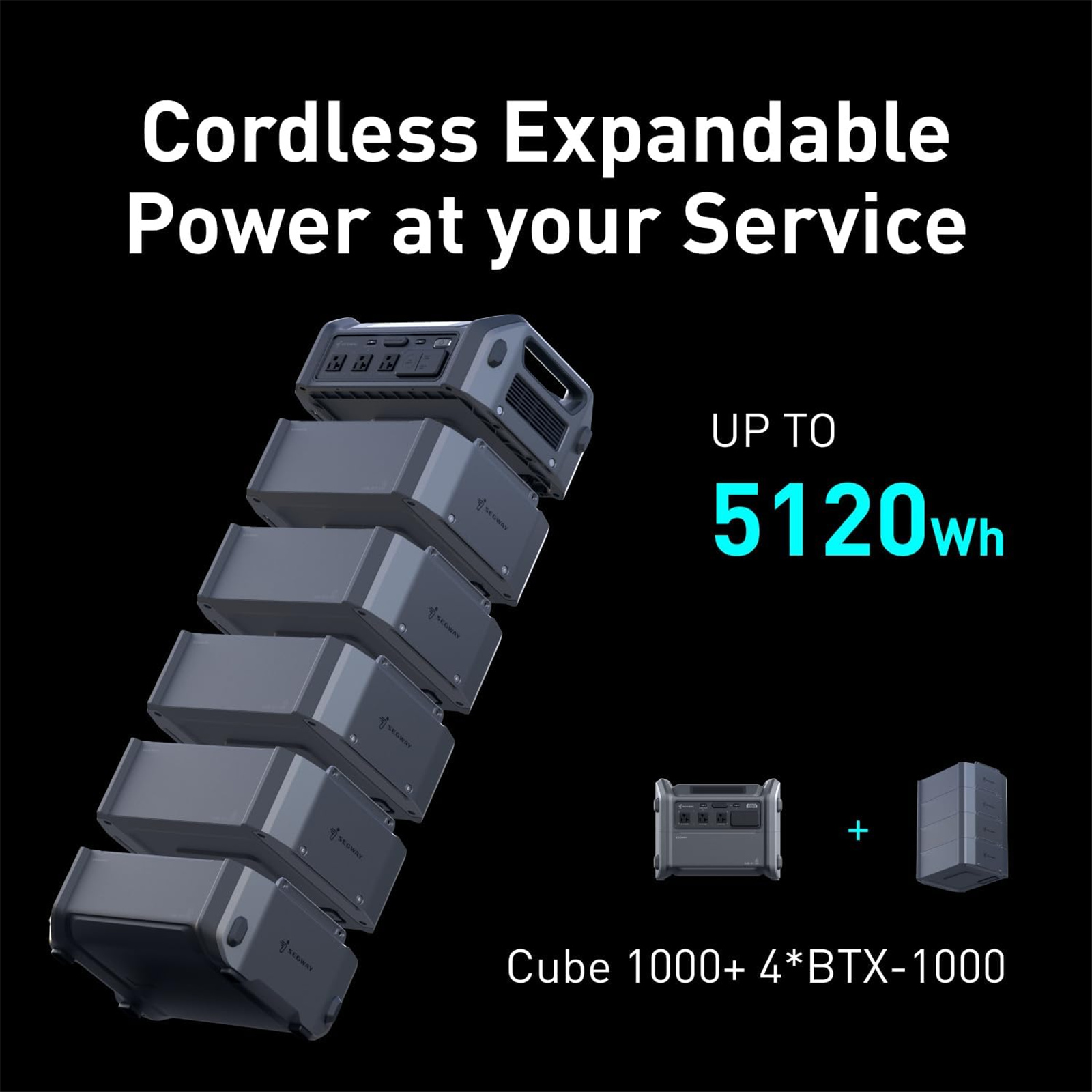

Easy Setup for 1kWh - 5kWh Capacity
Segway Power Station Cube Series offers a versatile solution with an expandable capacity of up to 5kWh*, allowing users to extend their capacity. It serves as a reliable backup power source for the entire family, providing peace of mind during unexpected power outages.

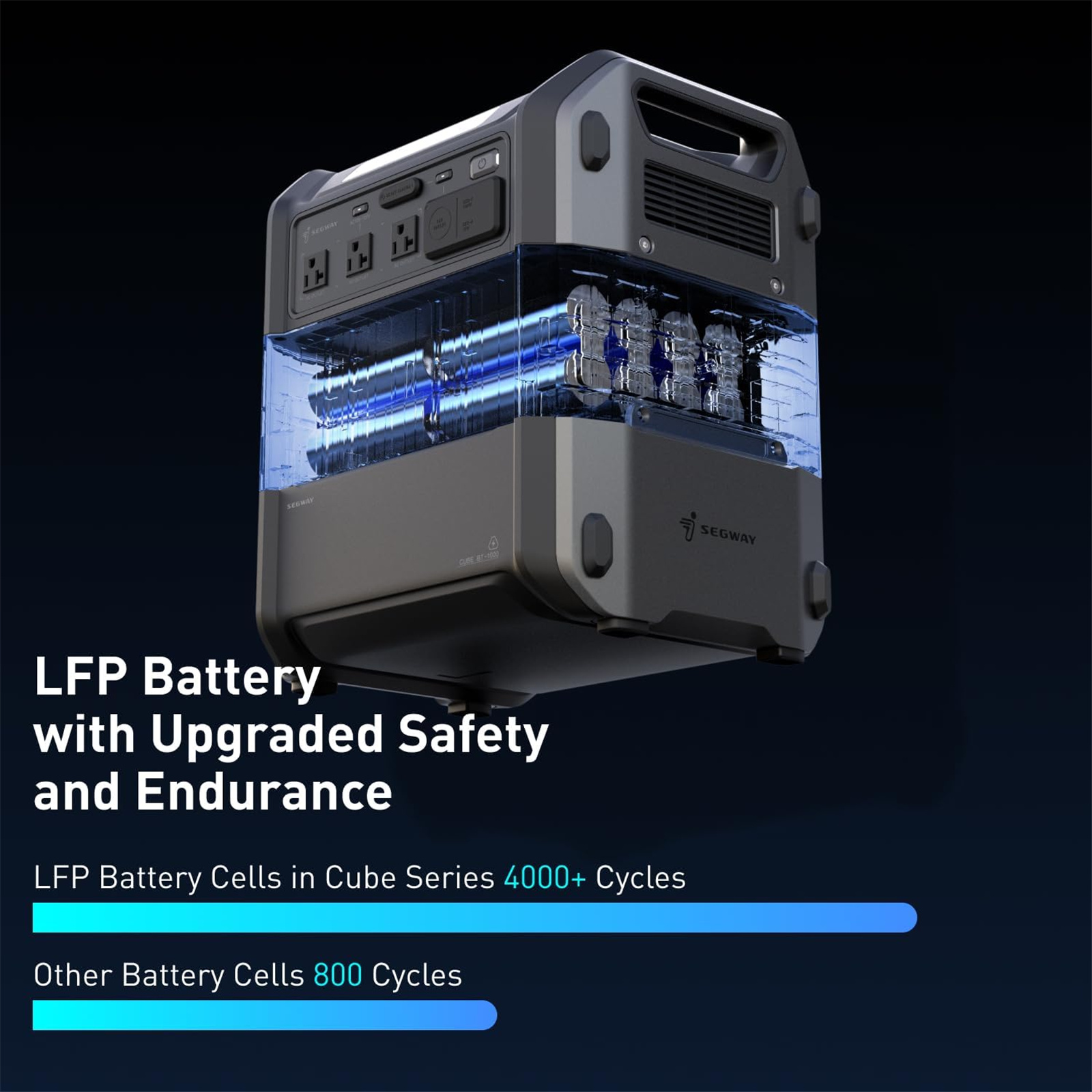

Upgraded Safety & Endurance
Segway-Ninebot has produced more than 20 million packs of self-developed power batteries. Now Segway created Cube based on our extensive experience in battery.
Cube equipped with safer and more durable LiFePO4 battery, our UL-certified automotive-grade LiFePO4 power cells can support over 4000 cycles. To keep the battery safe and longevity, Cube also has a Battery Management System (BMS), which offers 10 protection mechanisms.
2200W AC Powerful Output
The Cube Series is designed to power a wide range of home appliances. With its R-Drive (high-power surge function), it meets the power requirements of most appliances. This function ensures efficient and safe operation for appliances with power consumption up to 4400W.
Please note that the high-power surge function (R-Drive function) is particularly suitable for resistive devices and appliances with low sensitivity, such as electric kettles, hair dryers, electric cookers, electric ovens, etc

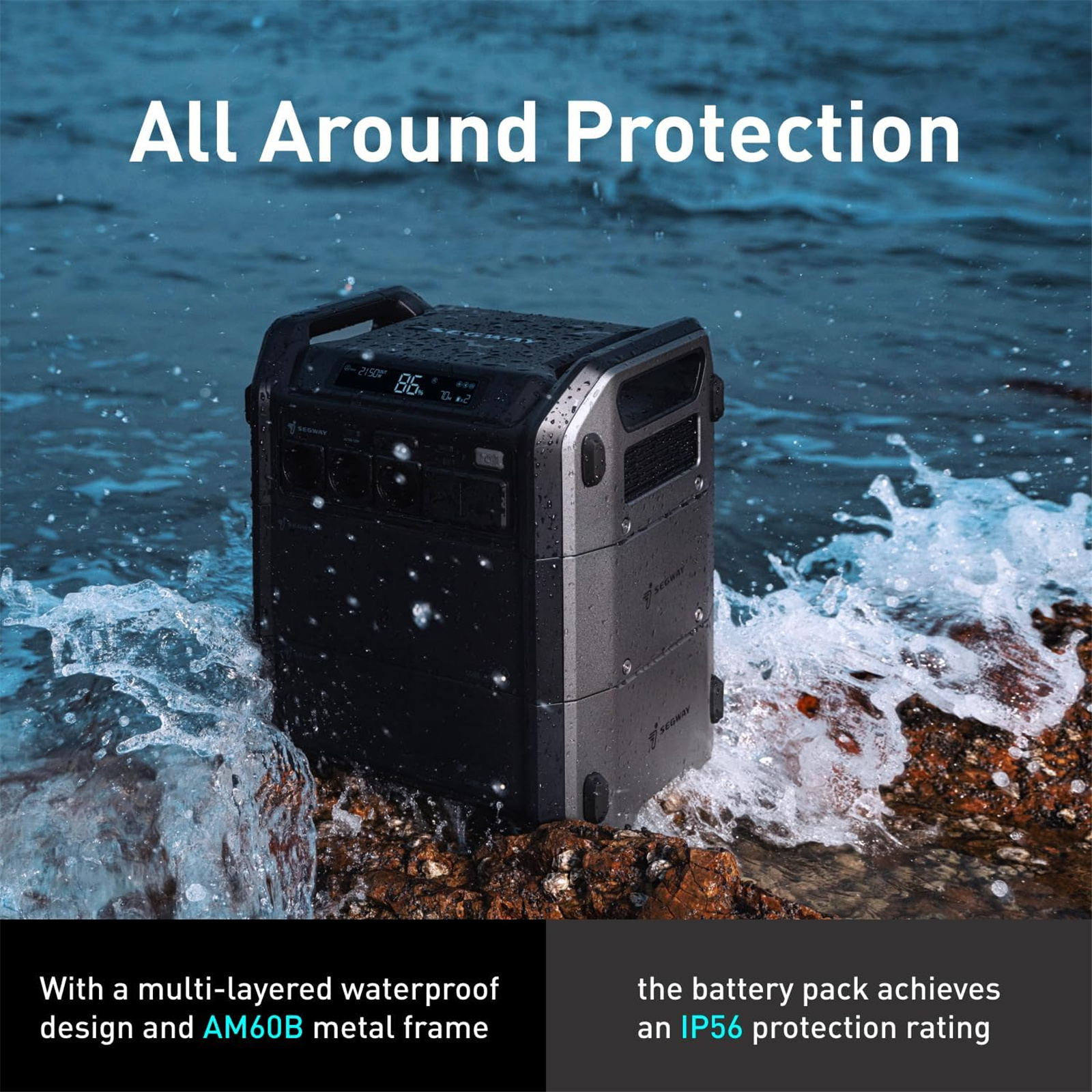

Built Tough with Water Resistance
With its high-performance magnesium alloy AM60B material frame, the Cube Series ensures great safety for the battery cells. With a multi-layered waterproof design, including a waterproof shell, sealants, and waterproof films, the battery module achieves an lP56 protection rating. Rest assured, the Cube Series is well-equipped to withstand wet and rainy environments, providing reliable performance.
UPS with 0.03 sec Switch Time
The Segway Cube Series is the smart choice for your home power backup needs. With pass-through charging capability, it can serve as a reliable backup power source. Monitor the status of your power backup system effortlessly through the Smart App. In the event of a power outage, the Cube Series swiftly activates, delivering stored power in just 0.03 seconds. Stay connected and powered up when it matters most with the Segway Cube Series.

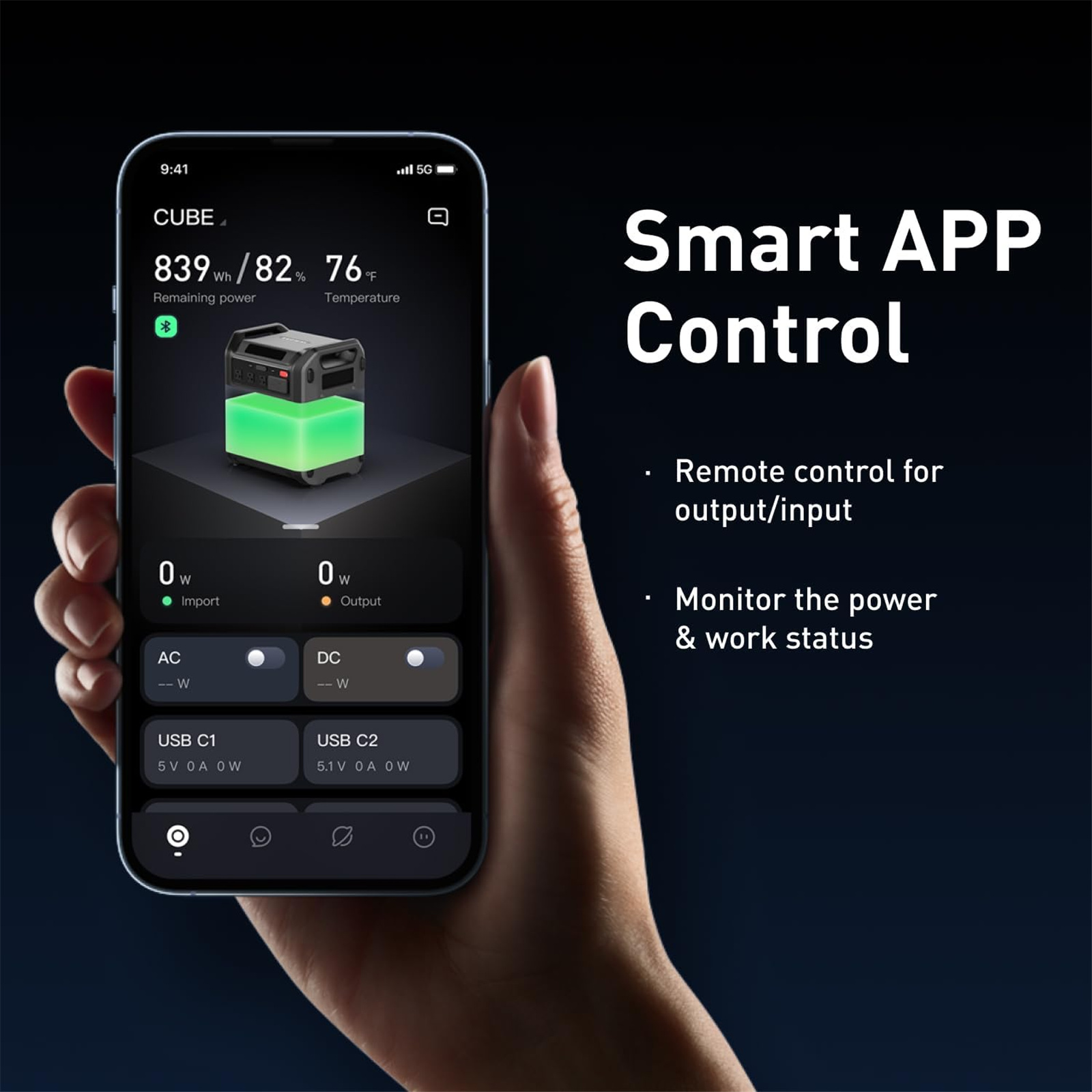

Full control with your fingertips
You can easily connect with Segway-Ninebot App and control the output and input functions, allowing you to manage the power flow with ease. Additionally, you can monitor the power status and work status in real-time, keeping you informed and in control of your energy usage.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Hardwired Articles
Popular Portable Power
Bluetti EB3A Expandable Power Station Capacity 268wh, AC Output...
Bluetti EB70 Portable Power Station Capacity 716WH, AC Output...
Bluetti AC70P Expandable Power Station Capacity 864 wh, AC Output...
Segway Cube 1000 Power Station Capacity 1024WH, 3 X AC Output...
ECOFLOW Delta 2 Portable Power Station - 1024Wh LiFePO4 Battery ...
Segway Cube 1000 Power Station Capacity 1024WH, 3 X AC Output 2200w, DC Output 384W 2* 100w USB-C, Max Input 2050W, 800W Solar Input, Expandable To 5KWH
- Brand: Segway
- MPN: AA.20.04.02.0012
- Part #: BAPSGW0001
Product URL: https://www.pbtech.co.nz/product/BAPSGW0001/Segway-Cube-1000-Power-Station-Capacity-1024WH-3-X
| Branch | New Stock | On Display |
|---|---|---|
| Albany | 0 | |
| Glenfield | 2 | |
| Queen Street | 2 | |
| Auckland Uni | 0 | |
| Newmarket | 1 | |
| Westgate | 0 | |
| Penrose | 5 | |
| Henderson (Express) | 1 | |
| St Lukes | 2 | |
| Manukau | 4 | |
| Hamilton | 6 | |
| Tauranga | 1 | |
| New Plymouth | 2 | |
| Palmerston North | 0 | |
| Petone | 2 | |
| Wellington | 5 | |
| Head Office | 0 | |
| Hornby | 4 | |
| Christchurch Central | 0 |
Features
( Segway Cube Spring Promotion - Bonus 100W Solar panel Worth $399 [Valid 05/09/24 - 30/09/24, NZ Only] )
How does Segway Cube expand your life?
- 2200W MAX AC output power
- 12 output sockets for different devices
No worry about the power outage
- 1kWh expandable up to 5kWh to meet your need
- R-Drive function for devices with 4400W power
- UPS (Uninterruptible Power Supply) function
Prepare for outdoor work
- 4000+ battery lifecycle
- IP56 level battery pack
- Alloy shell structure
Enjoy no power limit on RV life
- MPPT (Maximum Power Point Tracking)
- Max. AC charging: 1250W
- Max. DC charging (solar): 800W
- 1kWh recharge in 1.2 hrs
Charge your car battery for emergency
Detects the car battery and recharges with stabilized voltage & current
Easy Setup for 1kWh - 5kWh Capacity
Segway Power Station Cube Series offers a versatile solution with an expandable capacity of up to 5kWh*, allowing users to extend their capacity. It serves as a reliable backup power source for the entire family, providing peace of mind during unexpected power outages.
Upgraded Safety & Endurance
Segway-Ninebot has produced more than 20 million packs of self-developed power batteries. Now Segway created Cube based on our extensive experience in battery.
Cube equipped with safer and more durable LiFePO4 battery, our UL-certified automotive-grade LiFePO4 power cells can support over 4000 cycles. To keep the battery safe and longevity, Cube also has a Battery Management System (BMS), which offers 10 protection mechanisms.
2200W AC Powerful Output
The Cube Series is designed to power a wide range of home appliances. With its R-Drive (high-power surge function), it meets the power requirements of most appliances. This function ensures efficient and safe operation for appliances with power consumption up to 4400W.
Please note that the high-power surge function (R-Drive function) is particularly suitable for resistive devices and appliances with low sensitivity, such as electric kettles, hair dryers, electric cookers, electric ovens, etc
Built Tough with Water Resistance
With its high-performance magnesium alloy AM60B material frame, the Cube Series ensures great safety for the battery cells. With a multi-layered waterproof design, including a waterproof shell, sealants, and waterproof films, the battery module achieves an lP56 protection rating. Rest assured, the Cube Series is well-equipped to withstand wet and rainy environments, providing reliable performance.
UPS with 0.03 sec Switch Time
The Segway Cube Series is the smart choice for your home power backup needs. With pass-through charging capability, it can serve as a reliable backup power source. Monitor the status of your power backup system effortlessly through the Smart App. In the event of a power outage, the Cube Series swiftly activates, delivering stored power in just 0.03 seconds. Stay connected and powered up when it matters most with the Segway Cube Series.
Full control with your fingertips
You can easily connect with Segway-Ninebot App and control the output and input functions, allowing you to manage the power flow with ease. Additionally, you can monitor the power status and work status in real-time, keeping you informed and in control of your energy usage.
Specifications
Dimensions and Weight
Product dimensions (L × W × H)
354 × 289 x 284 mm (13.9 × 11.3 × 11.1 in)
Net Weight
16.2 kg (35.7 lbs)
Battery
Battery Type
LFP (LiFePO4) Battery
Battery lifecycle
4000+
Battery Pack/Model
1 x CUBE-BT-1000
Nominal Battery Capacity
20 Ah
Nominal Battery Energy
1024 Wh
Nominal Battery Voltage
51.2 V ~
Battery(s) extension
4 (Total 5120Wh)
Net Battery Weight
10 kg (22 lbs)
IP Rating Battery
IP56
Battery Management System
Protection against over temperature, over current, over voltage.
Connectivity
Bluetooth
Yes
Mobile App connectivity
Segway-Ninebot APP (Connect by Bluetooth)
Packaging
Packaging list
Cube-1000 x 1, AC Charging Cable x 1, Car Charging Cable x 1, User manual x 1, Warranty policy x 1
Water and Dust Protection
IP rating
IPX3
Charging
Charging time
1.2 hours
Discharge Temperature
'-10°C to 45°C (14°F to 113°F)
Charge Temperature
5°C to 45°C (41°F to 113°F)
Max. Charging Voltage
57.6 V =
Output port
Max. Power of Output in Total
2200 W
AC Max. Output Power
2200 W
DC Max. Output Power
384 W
AC Output (× 3)
230 V~, 9.56 A, 50 Hz, 2200 W Max (inverter mode, pure sine wave) /230 V~, 50 Hz, 5.2 A Max (bypass mode)
Car Outlet
13.6V, 10A, 136W Max.
DC5525 Output (× 2)
13.6V, 5A, 68W Max.
USB Type-A Output (× 4)
5/9/12V, 3A, 18W Max.
USB Type-C Output (× 2)
5/9/12/15/20V, 5A, 100W Max.
Input port
AC Input
230V~ 50Hz, 1250W Max.
Car Input
12 V/24V, 200W Max.
Solar Panel Input
12-60V, 800W Max.
DC input MPPT (Maximum Power Point Tracking) function
Yes
Inverter & UPS
Inverter Model
CUBE-IV-2200
UPS (Uninterruptible Power Supply)
Yes, 0.03 seconds switch time
Other Functions
Cooling vents
Yes
Display
LCD display
Accessories
Accessories Compatibility (sold separately)
Segway Solar Panel SP, Serial Connector, Parallel Connector, Car battery Charging Cable, Segway Cube Expansion Battery, Cart for Cube
